Highest grade copper windings, resistant to 200 degrees Celsius.
All product shipped are tested
20% More output over stock, works with all other OEM components.

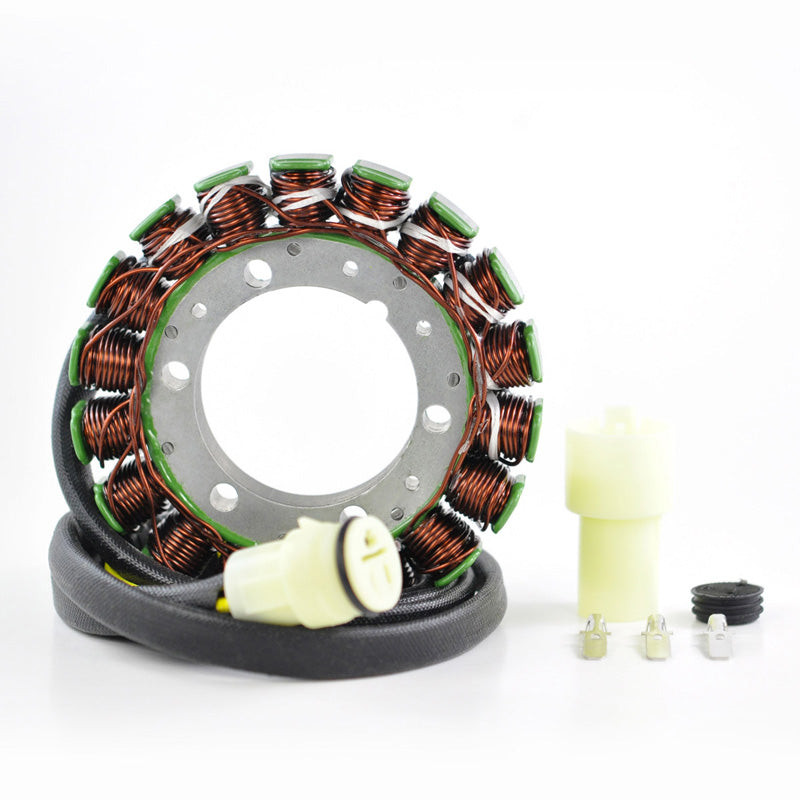

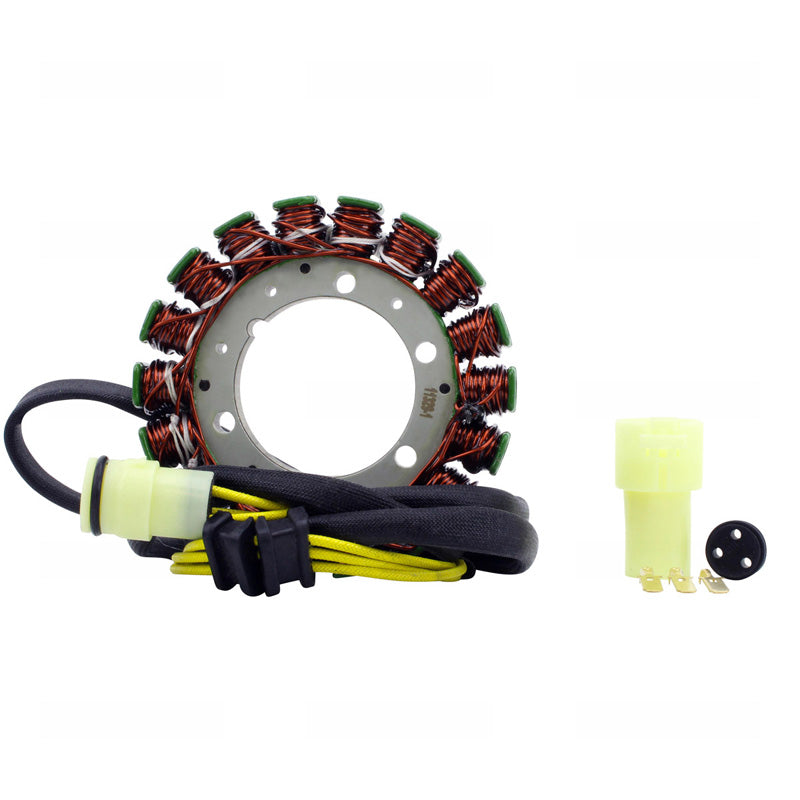

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

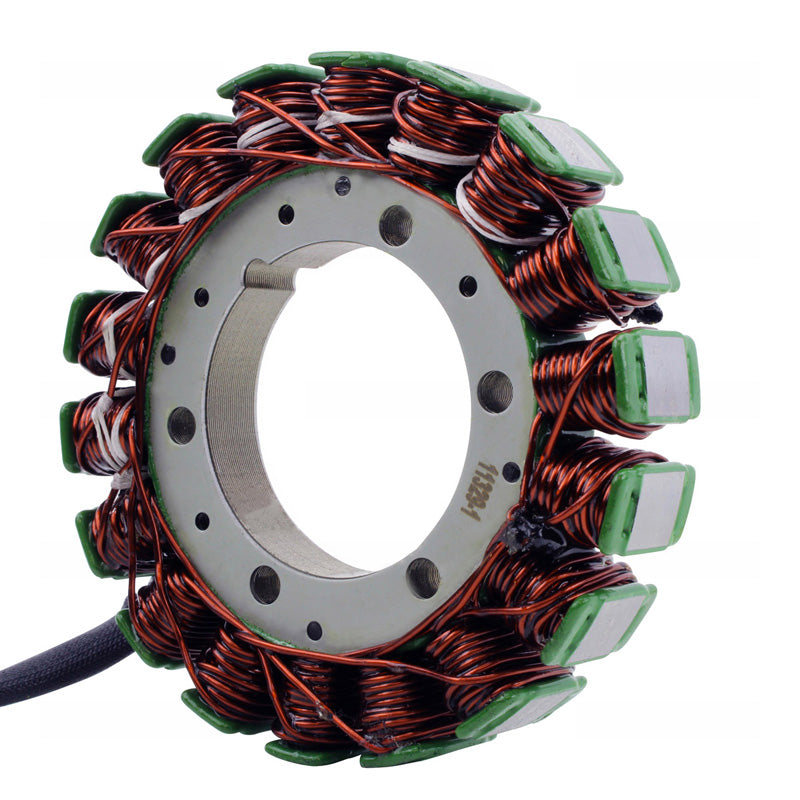

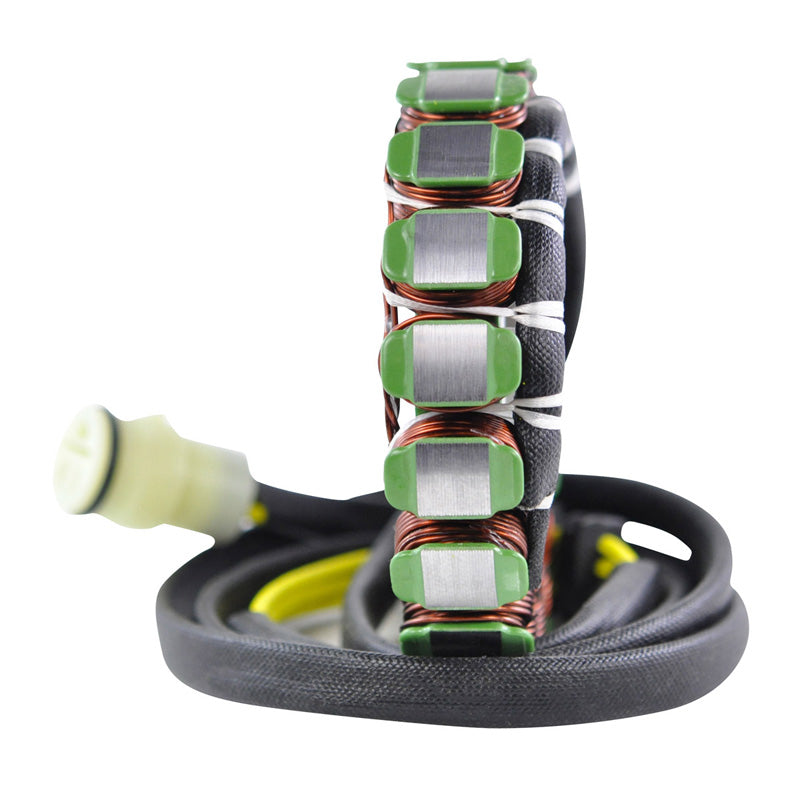

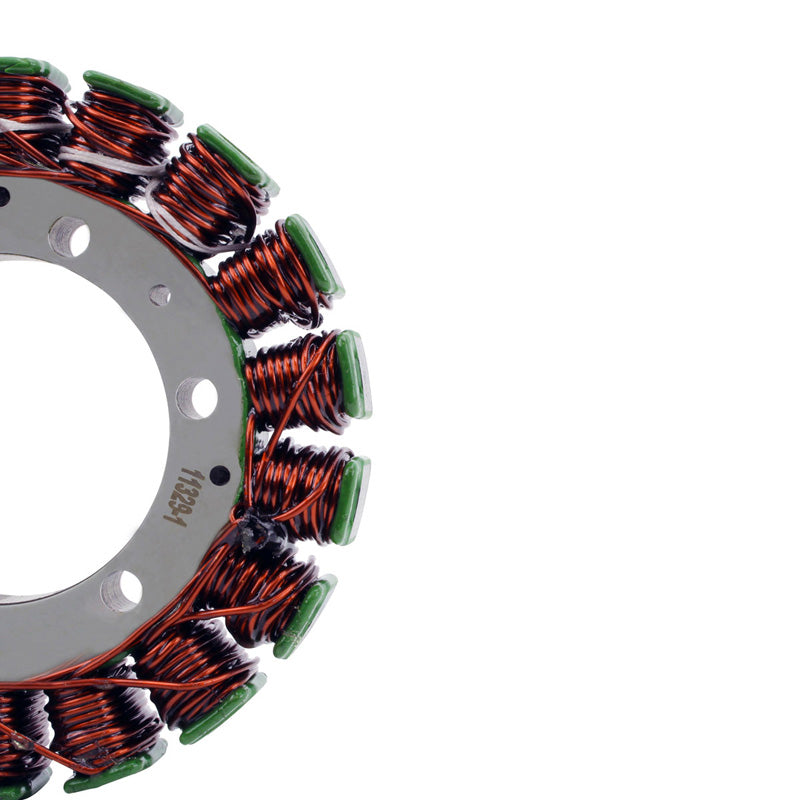

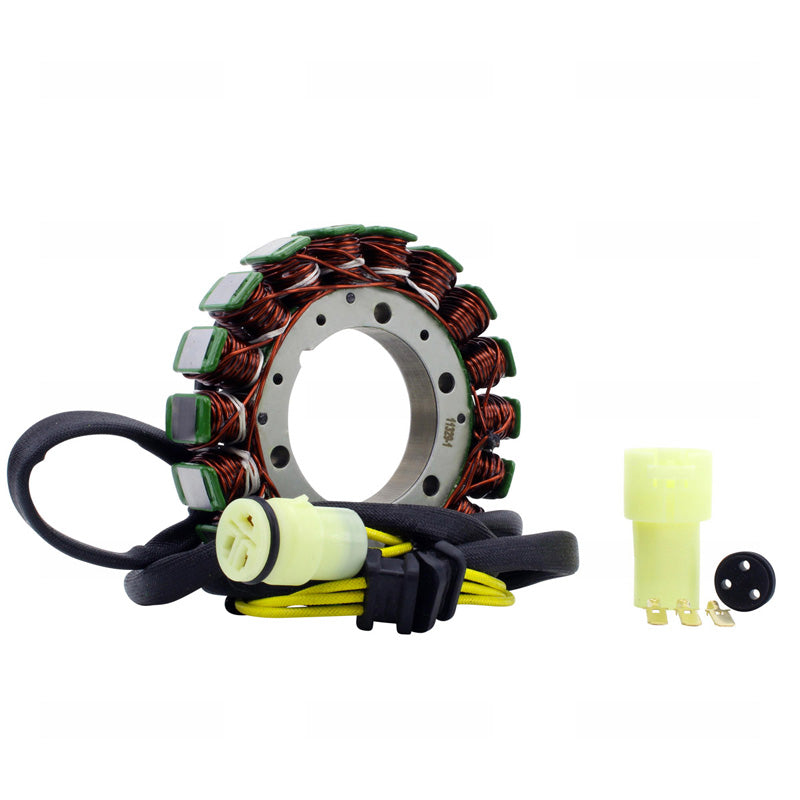

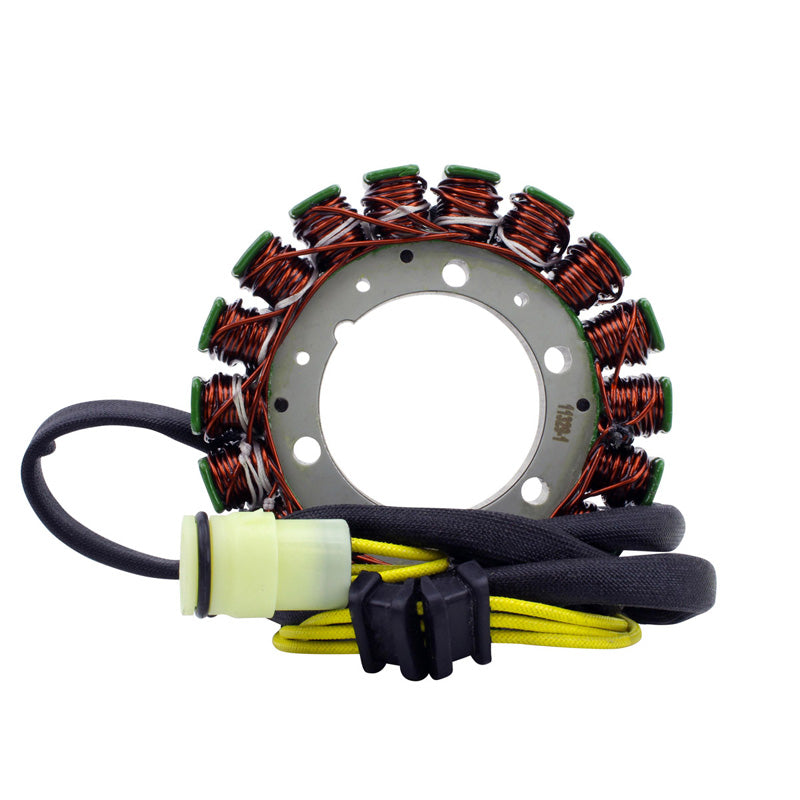

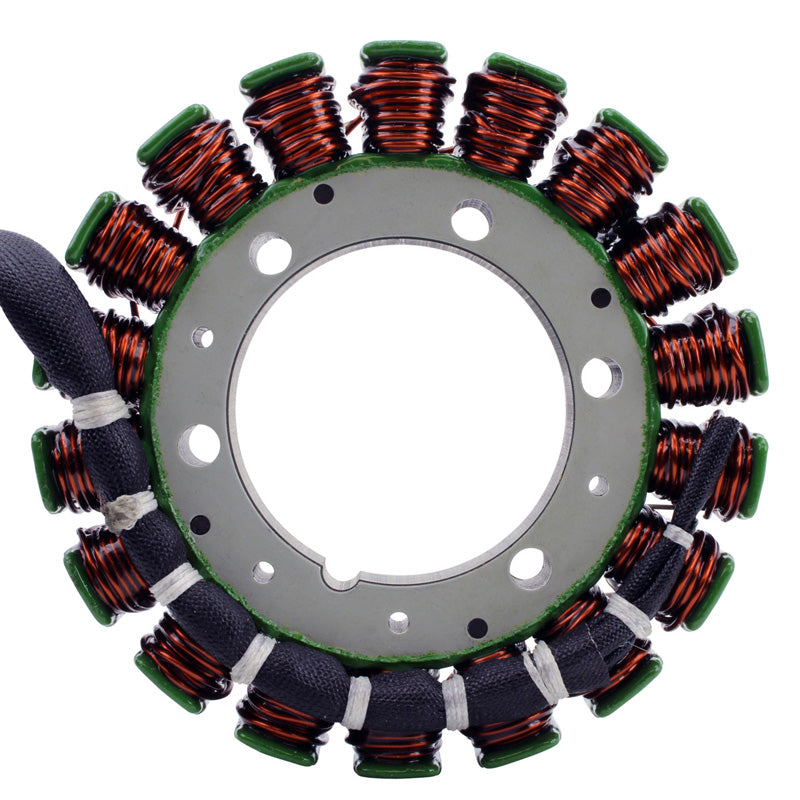

Specifications:
Dimensions :
Interior diameter : 53 mm
Exterior diameter : 114 mm
Thickness : 14 mm
Length of wires stator to grommet : 200 mm
Length of wires grommet to plug : 750 mm
Other specifications :
Number of wires : 3

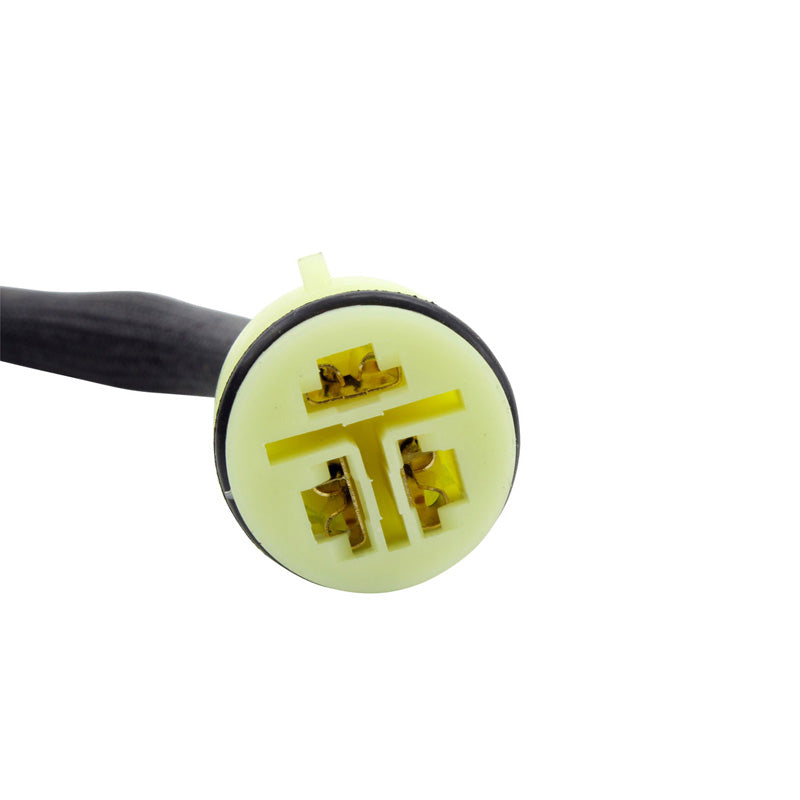

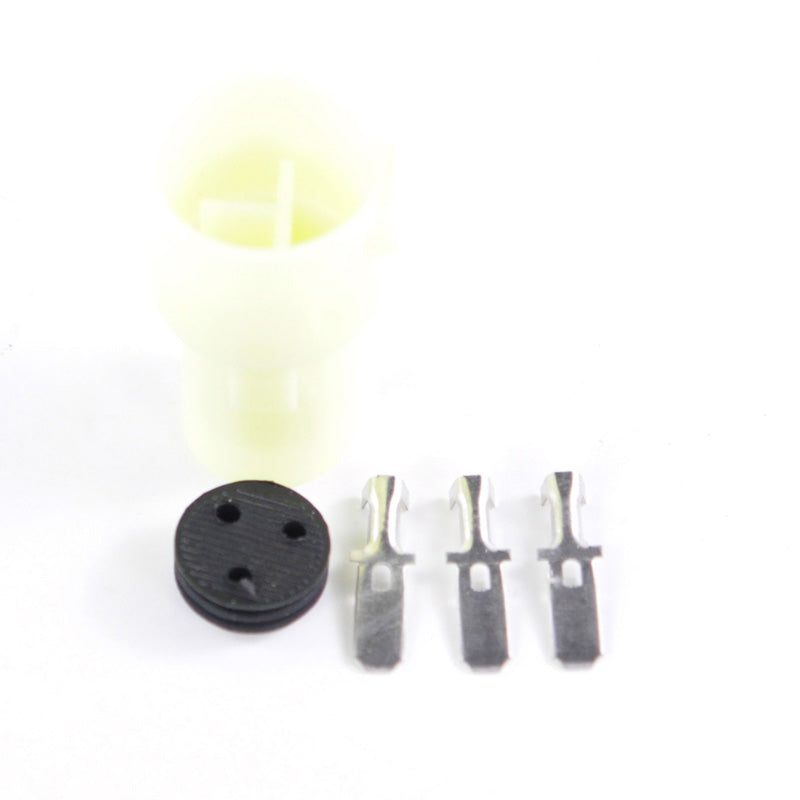

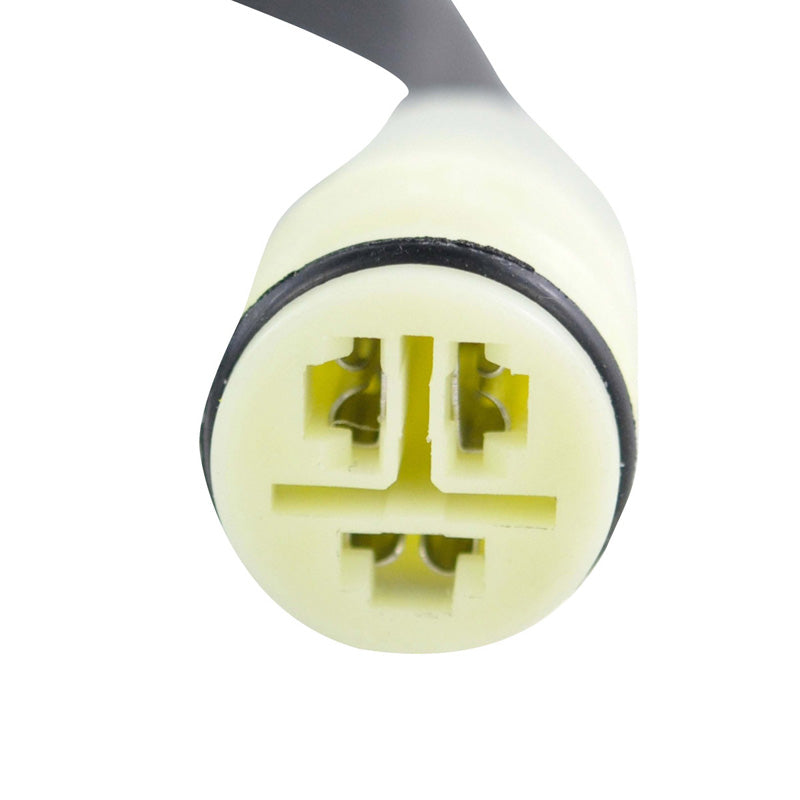

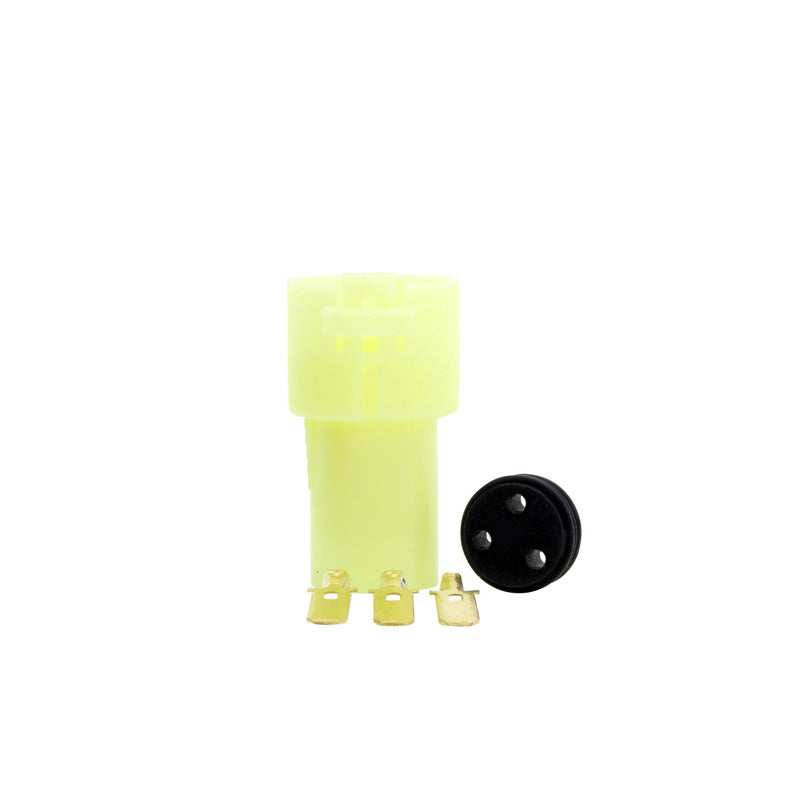

Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Yellow/Red between each Yellow/Red = 0.2 ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
