Highest grade of copper winding, resistant to 200 degrees Celsius.

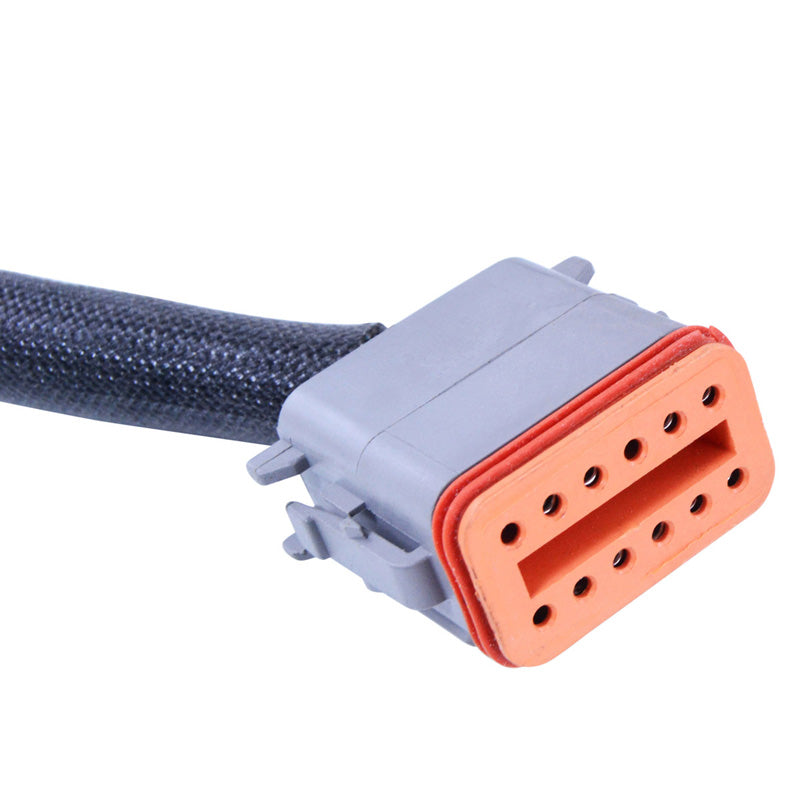

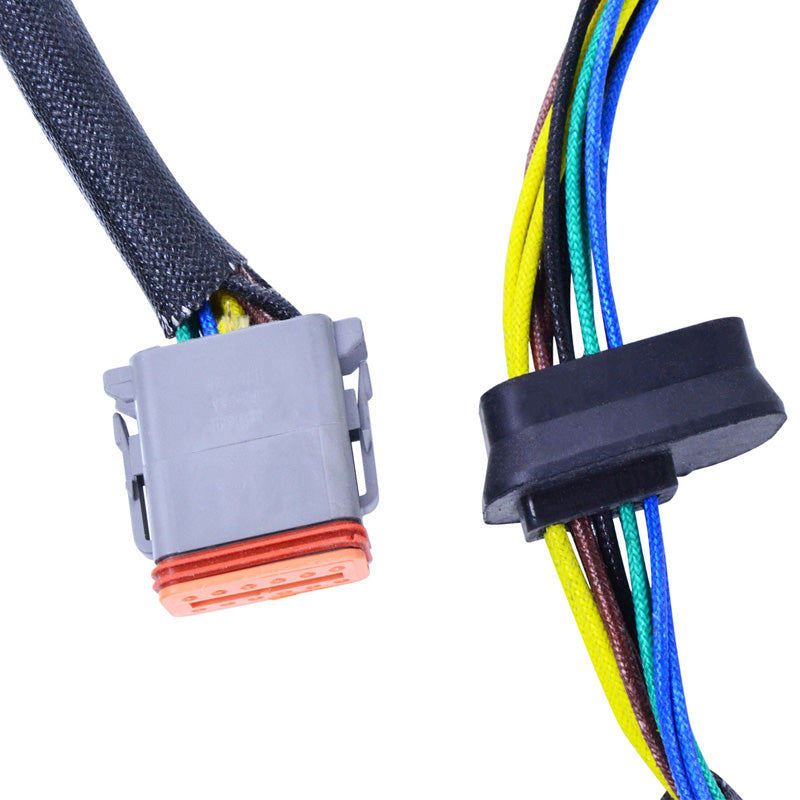

Connector included

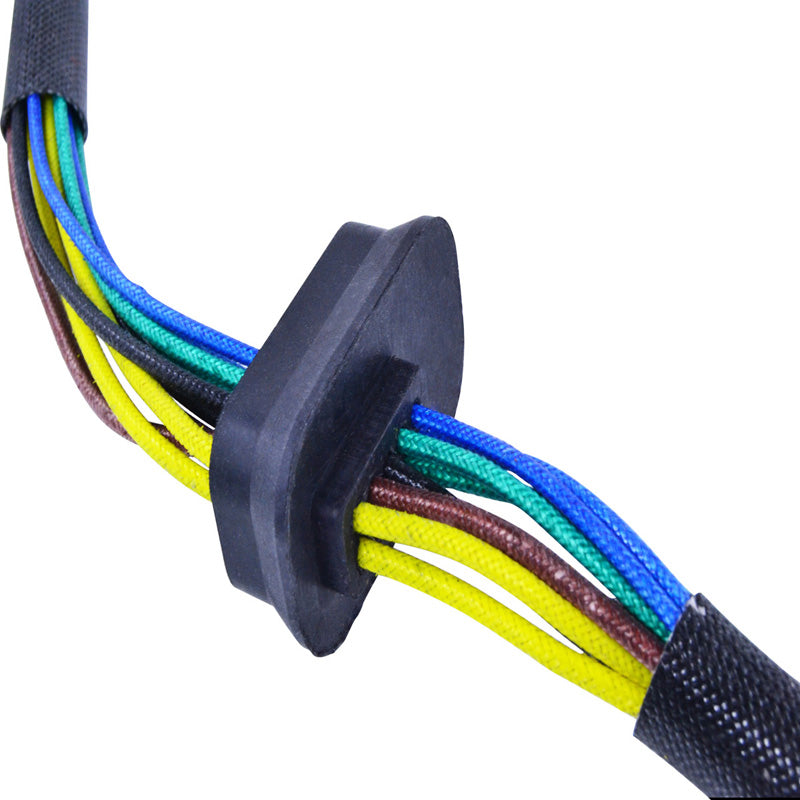

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

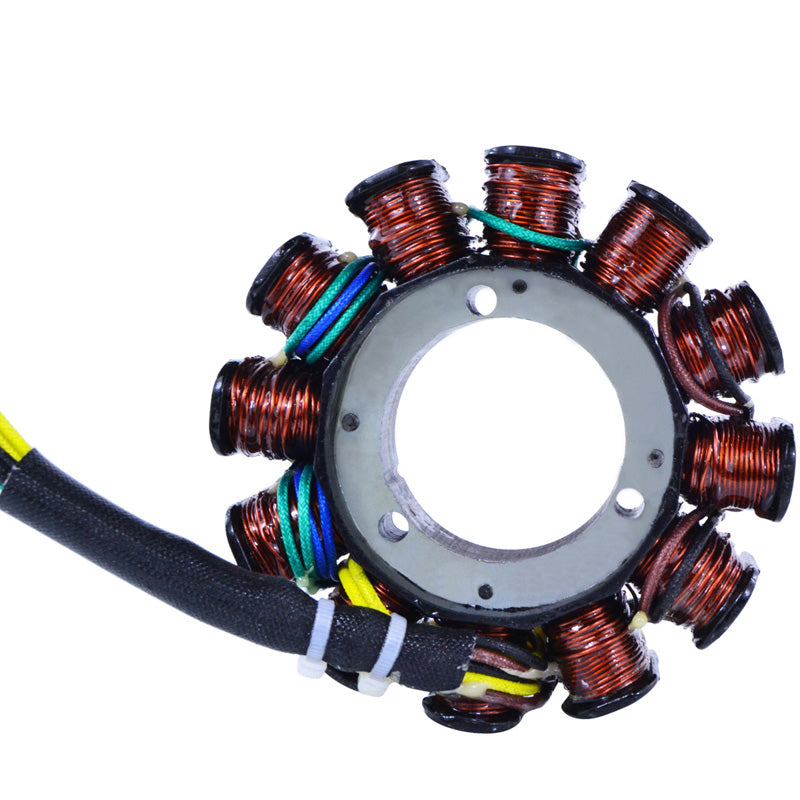

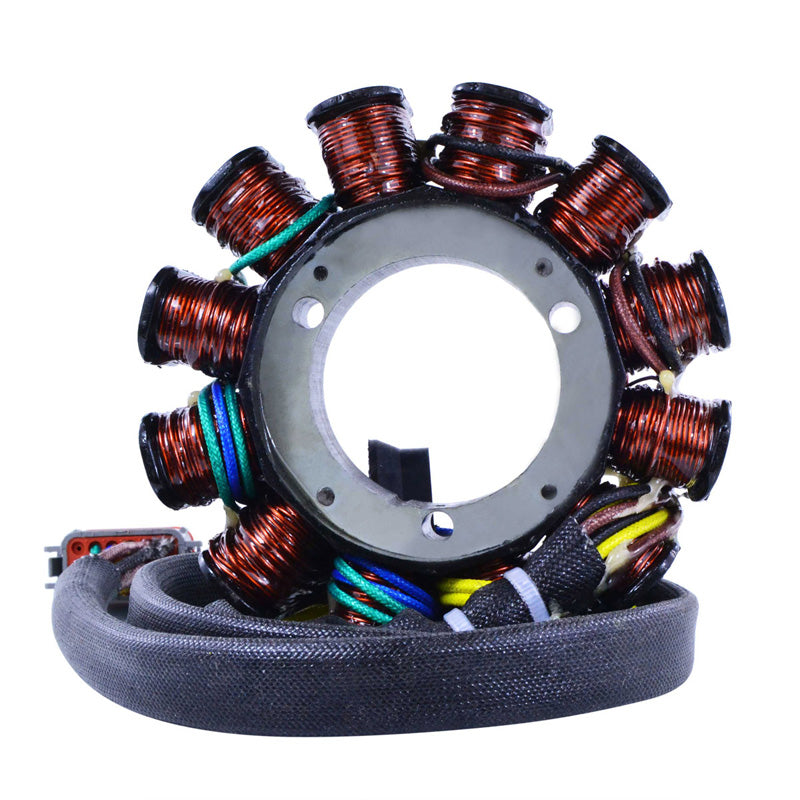

Specifications:
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 127 mm

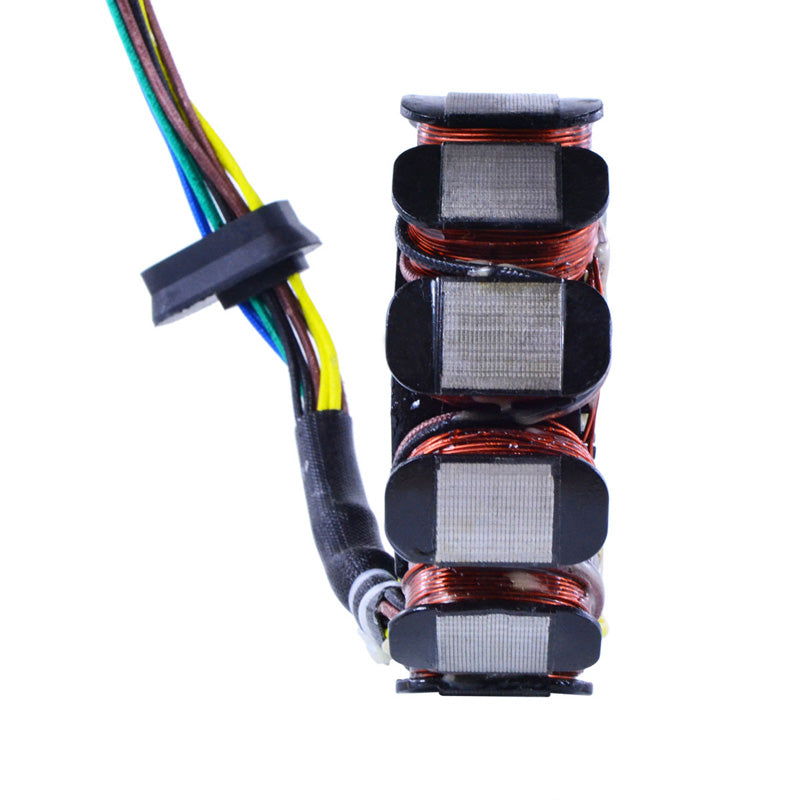

Thickness : 21 mm
Length of wires stator to grommet : 85 mm
Length of wires grommet to plug : 700 mm
Other specifications :
Number of wires : 10
Number of plugs : 1
Number of poles : 12
Number of pins : 10
Wire to wire resistance :
Alternator : White to White/Brown = 0.8 ohms +-20%
Alternator : Black/White to Green/White = 0.8 ohms +-20%
Alternator : Blue to Yellow = 0.7 ohms +-20%
Alternator : Purple to Black = 0.6 ohms +-20%
Alternator : Green to Gray = 0.6 ohms +-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
