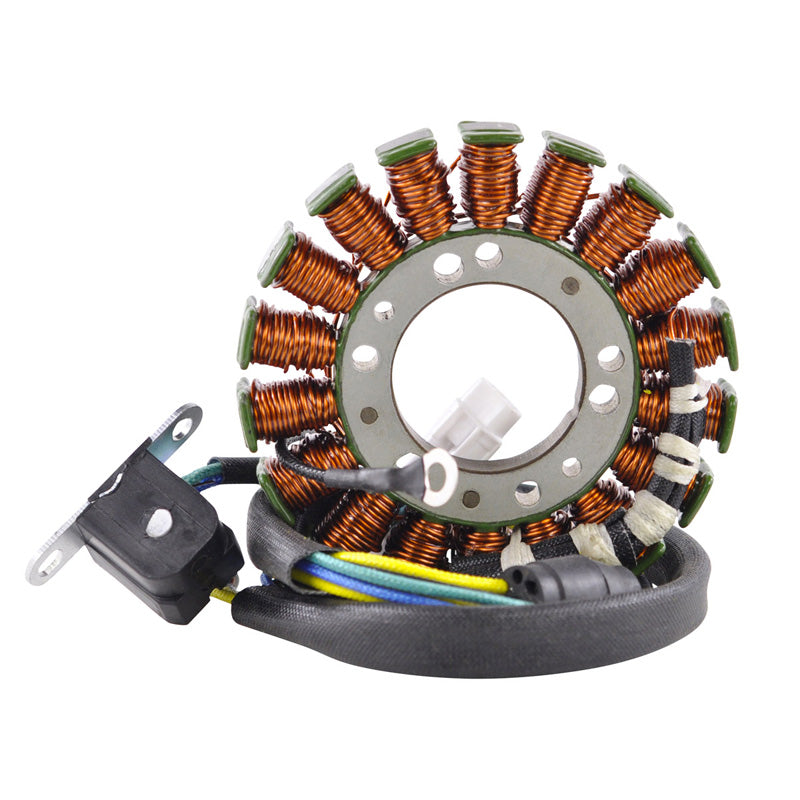

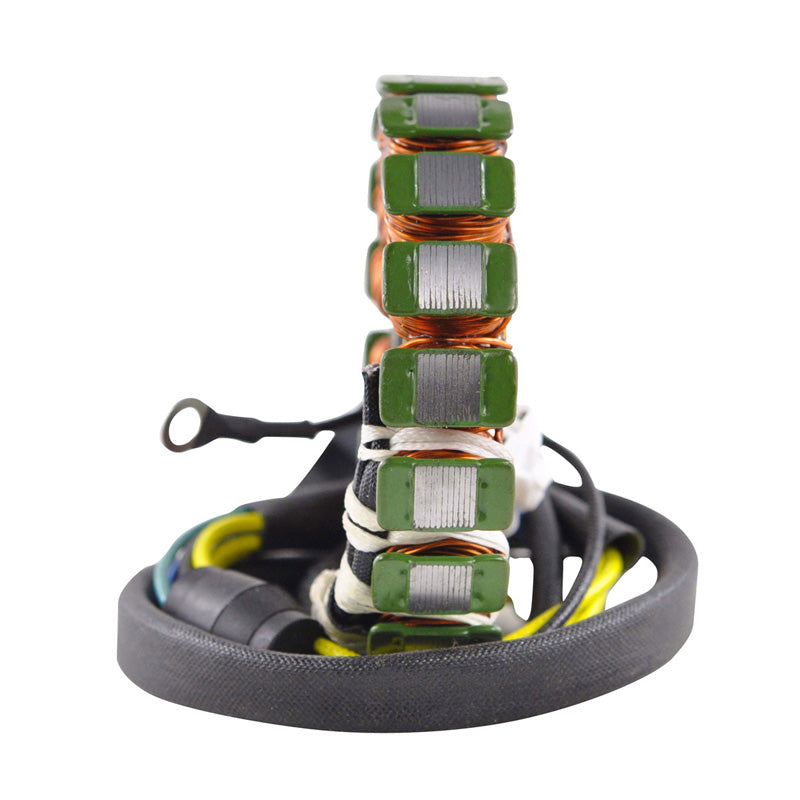

RMS STATOR KAW PWC ULTRA 1200|STX STX-R 1200 99-05 RM01537

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

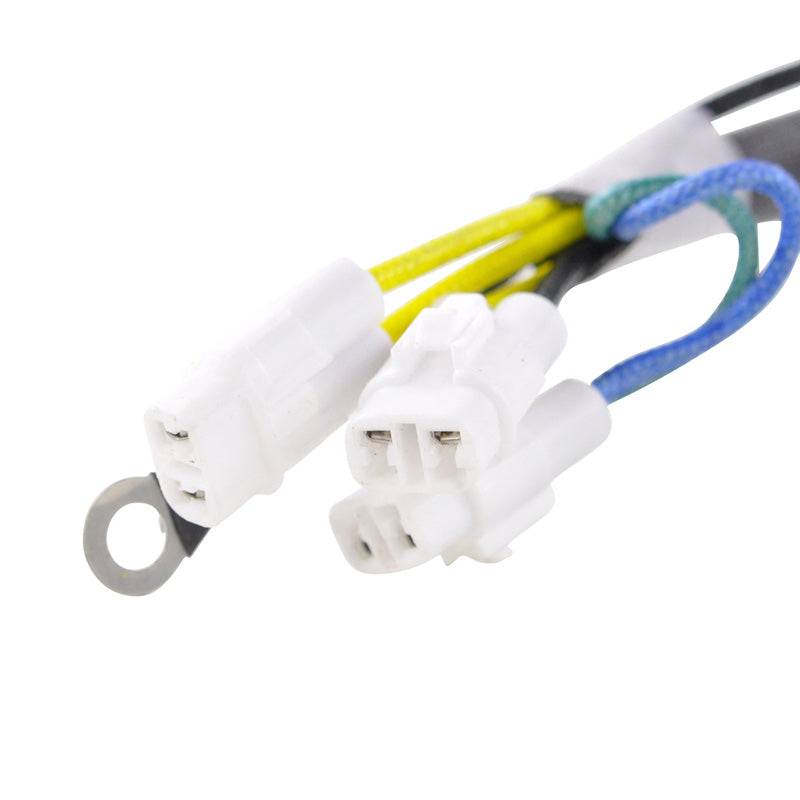

• Connector included
• Rubber grommet included
• All products shipped are tested

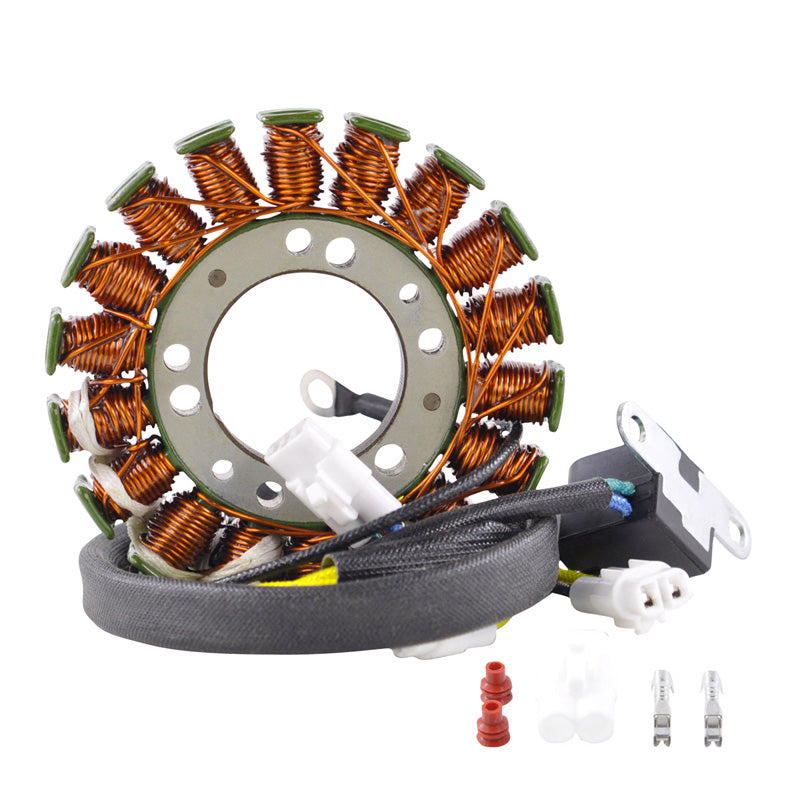

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 35 mm
Exterior diameter : 93 mm
Thickness : 11 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 375 mm
Length of pickup coil's wire to grommet : 105 mm

Other specifications :
Number of wires : 7
Number of plugs : 4
Number of pins : 6

Wire to wire resistance :
Alternator : Yellow between each Yellow = 1.1 ohms +-20%
Pickup : Green to Blue = 515 ohms +-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
