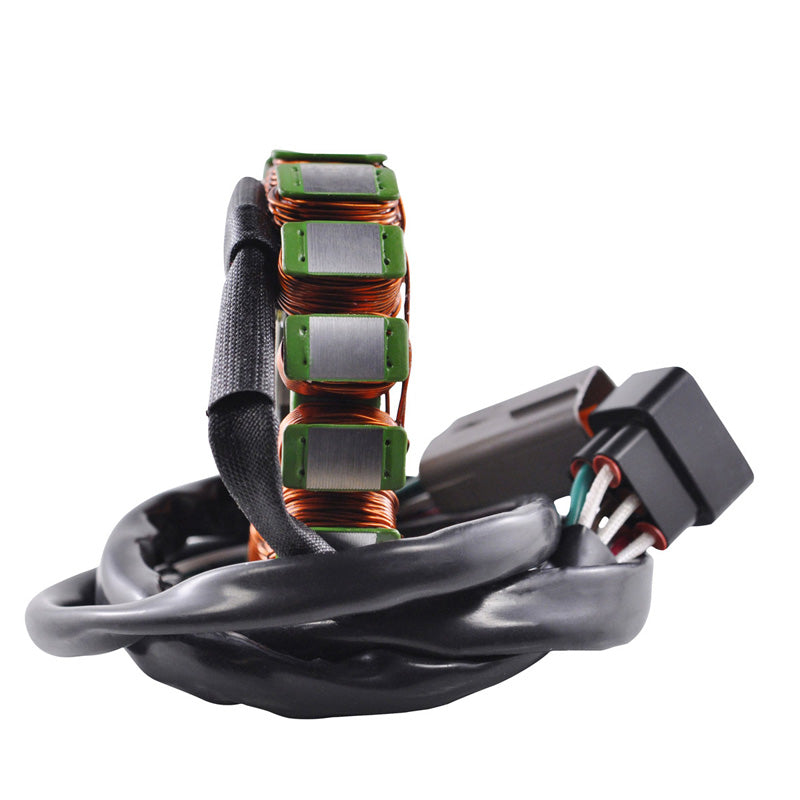

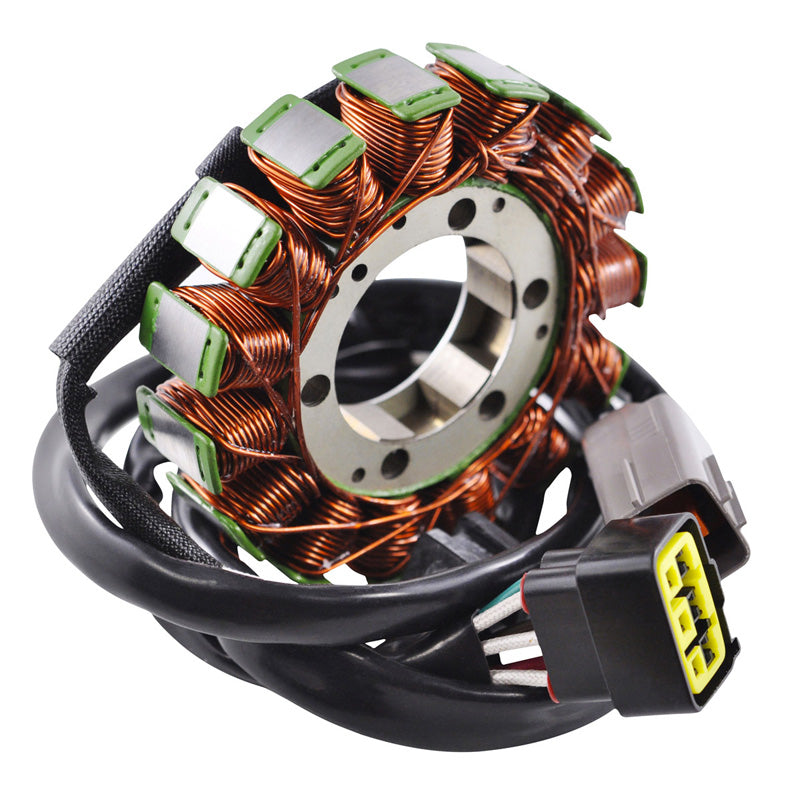

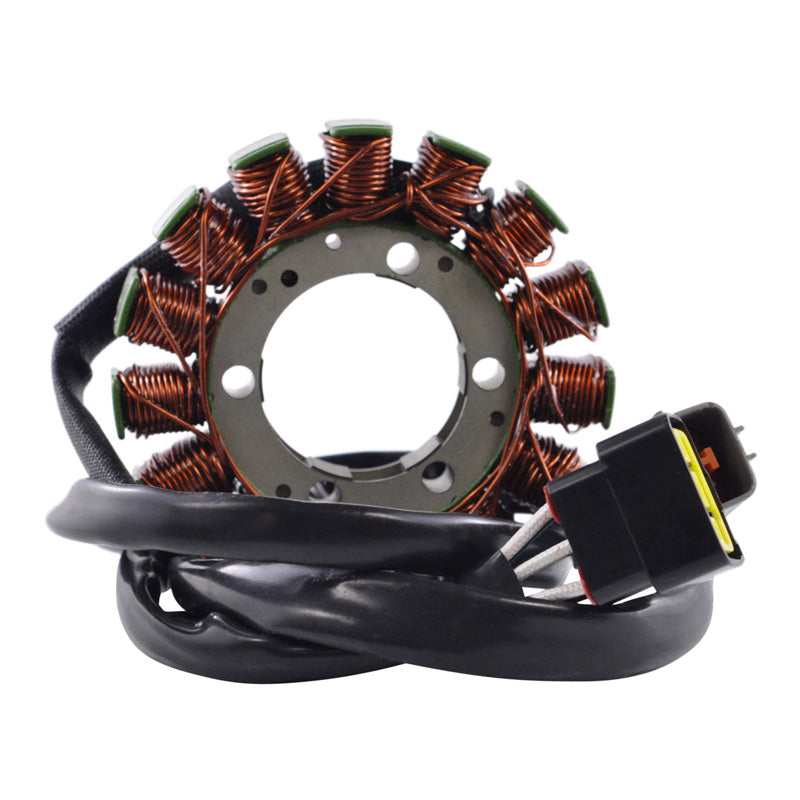

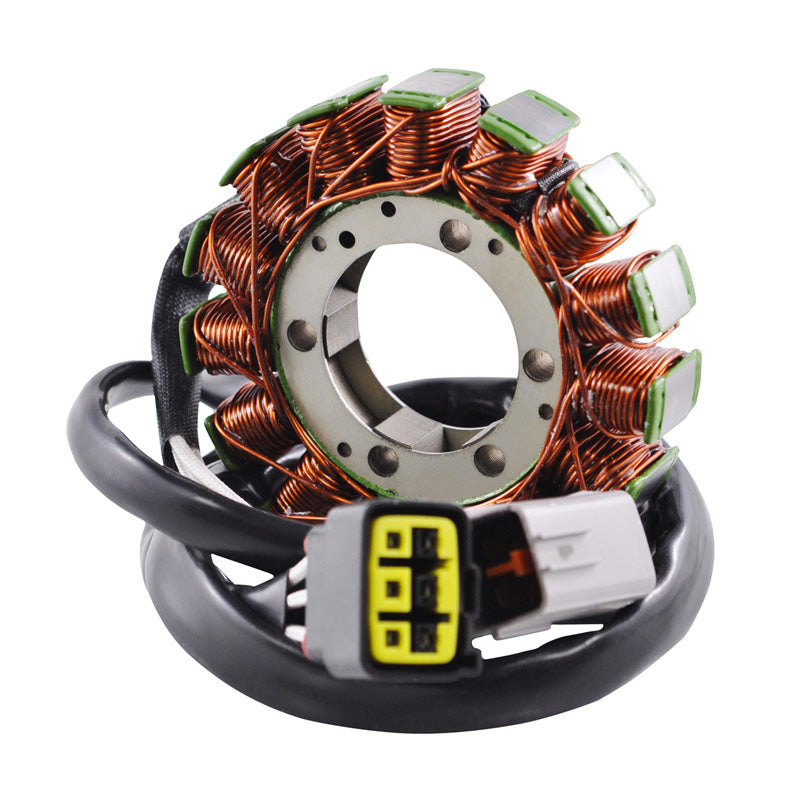

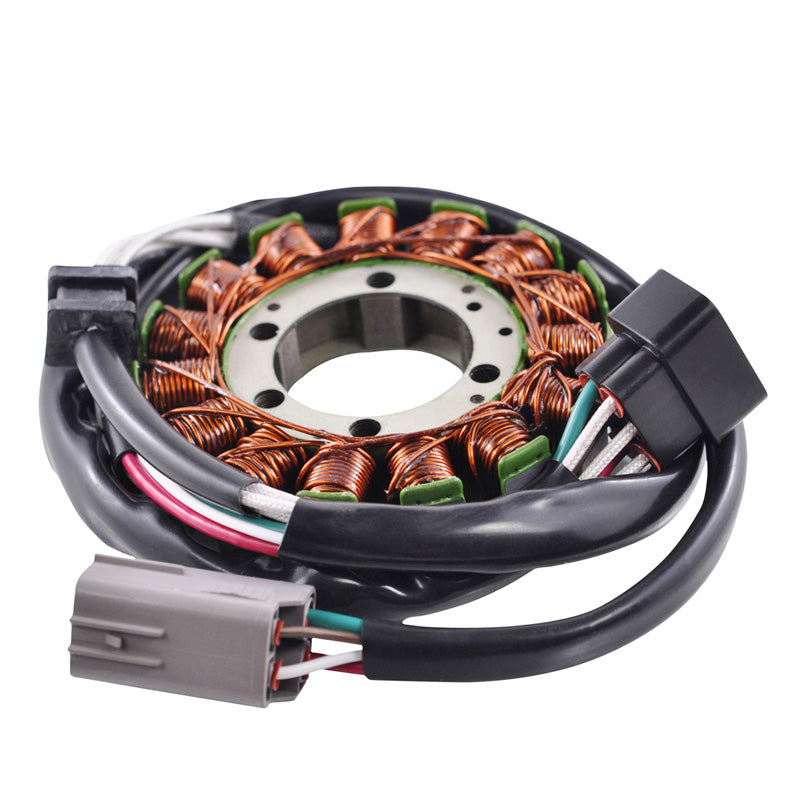

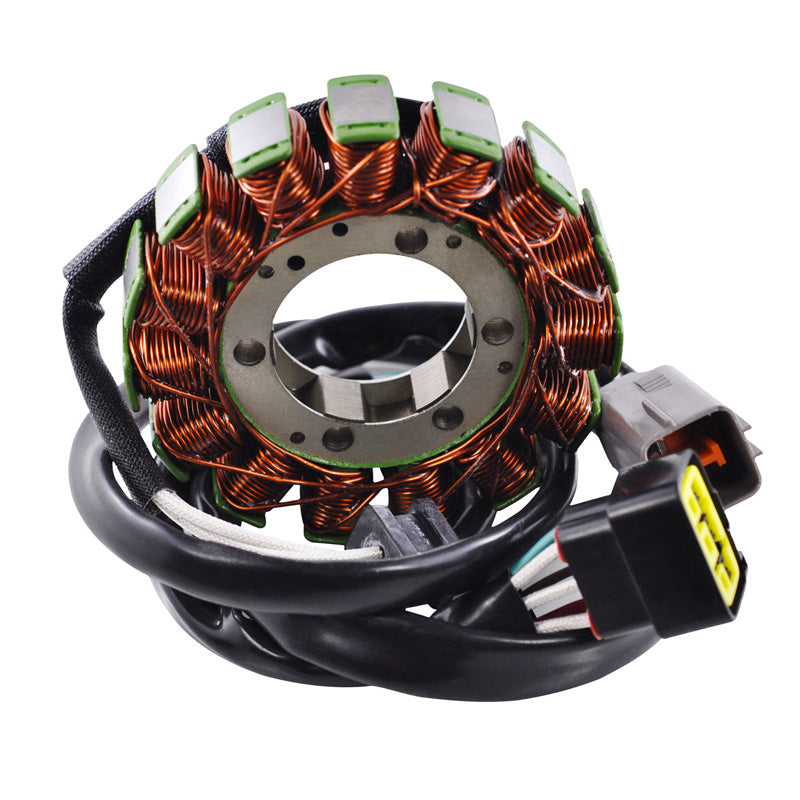

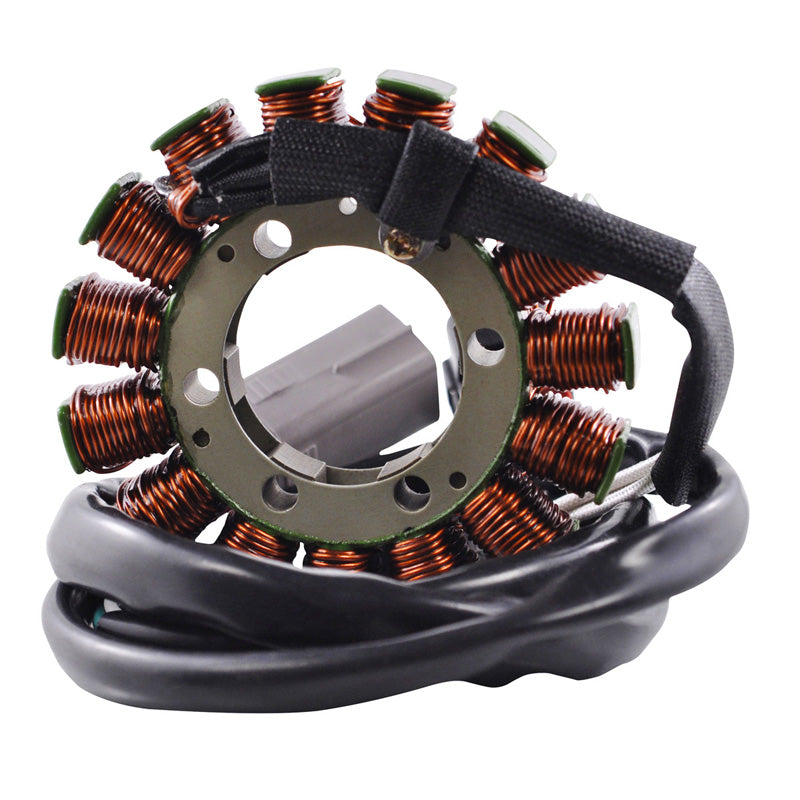

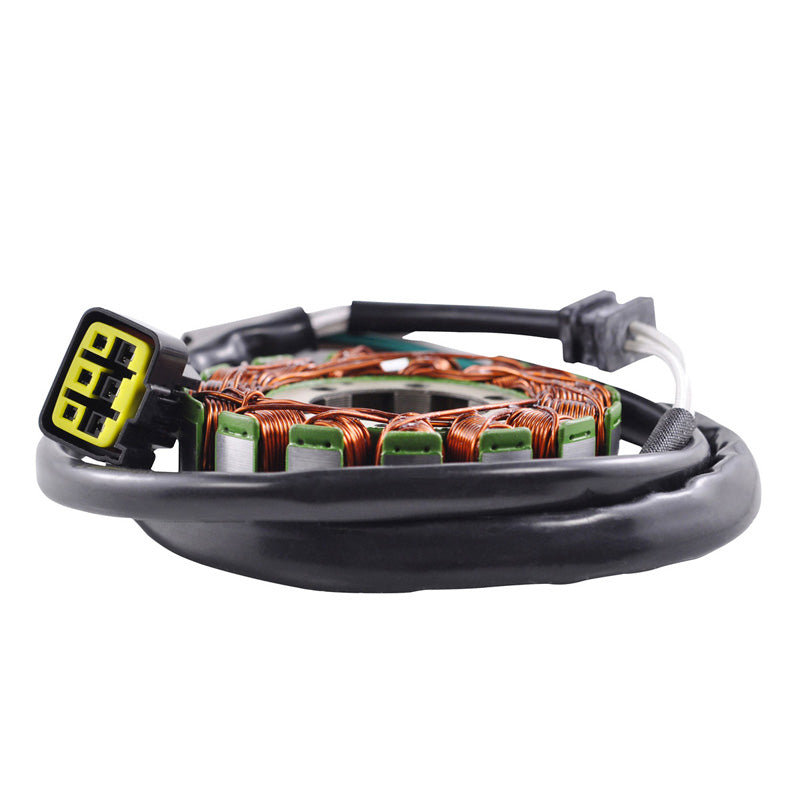

Highest grade copper windings, resistant to 200 degrees Celsius.

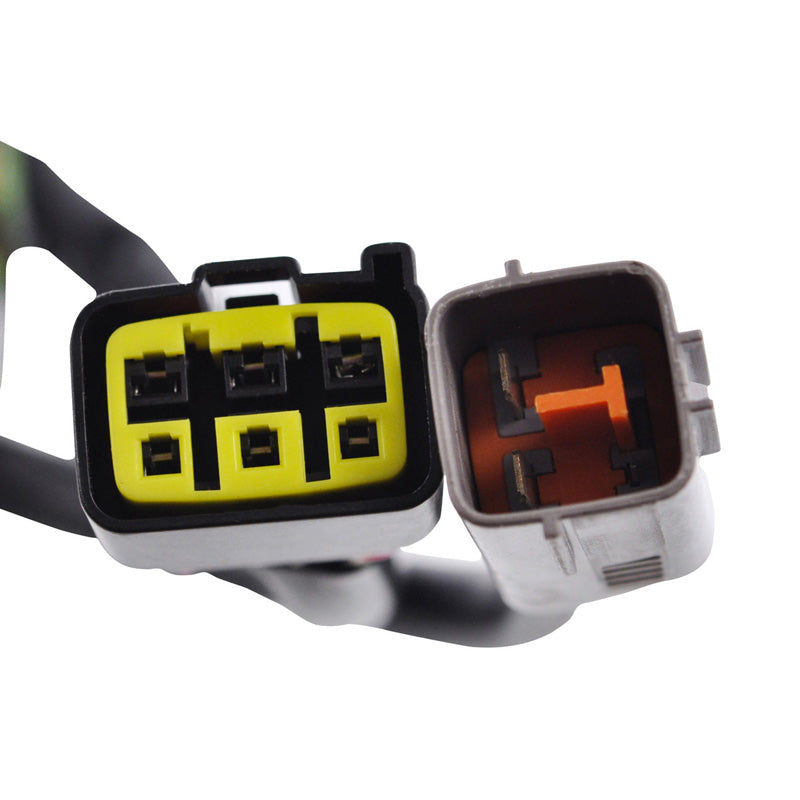

Connector included
Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 44 mm
Exterior diameter : 115 mm
Thickness : 16 mm
Length of wires stator to grommet : 115 mm
Length of wires grommet to plug 1 : 50 mm
Length of wires grommet to plug 2 : 70 mm
Other specifications :
Number of wires : 10
Number of plugs : 2
Number of pins : 10
Wire to wire resistance :
Alternator : White to White = 0.4 ohms +-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
