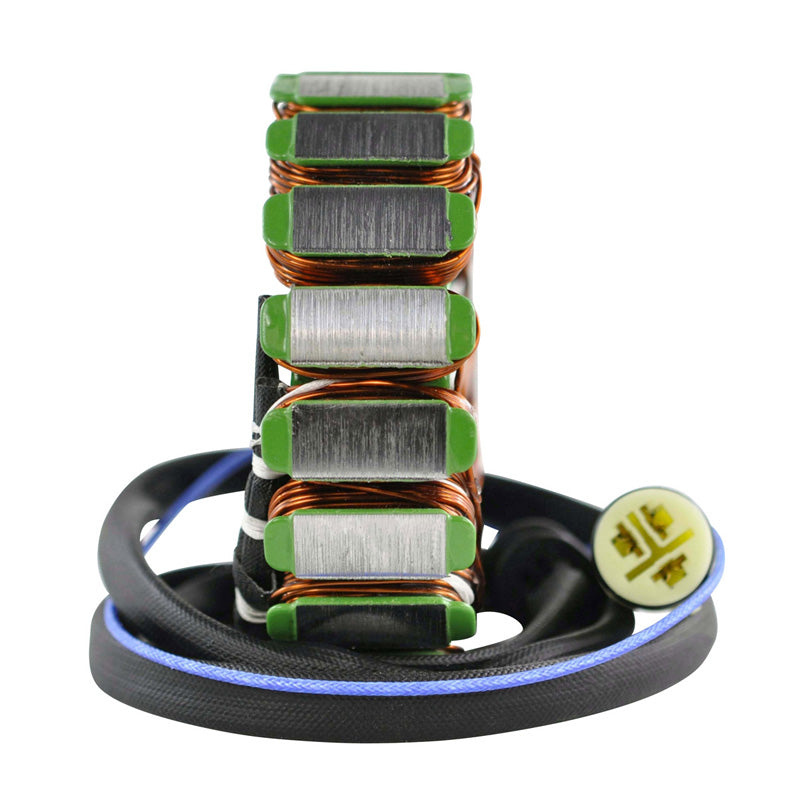

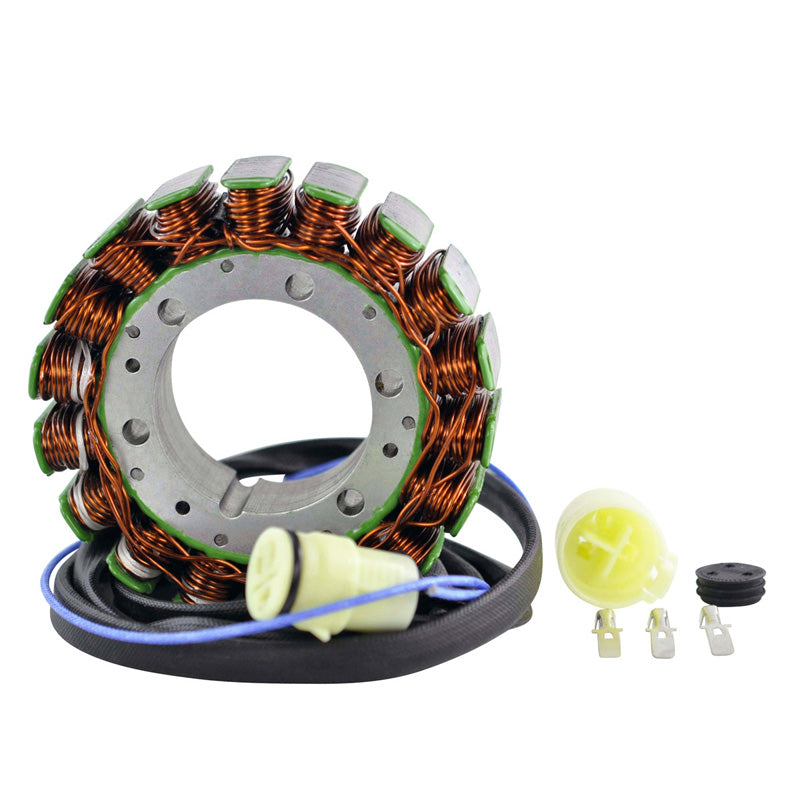

RMS STATOR KAW ZX12R 00-01 RM01087

RMS STATOR KAW ZX12R 00-01 RM01087

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

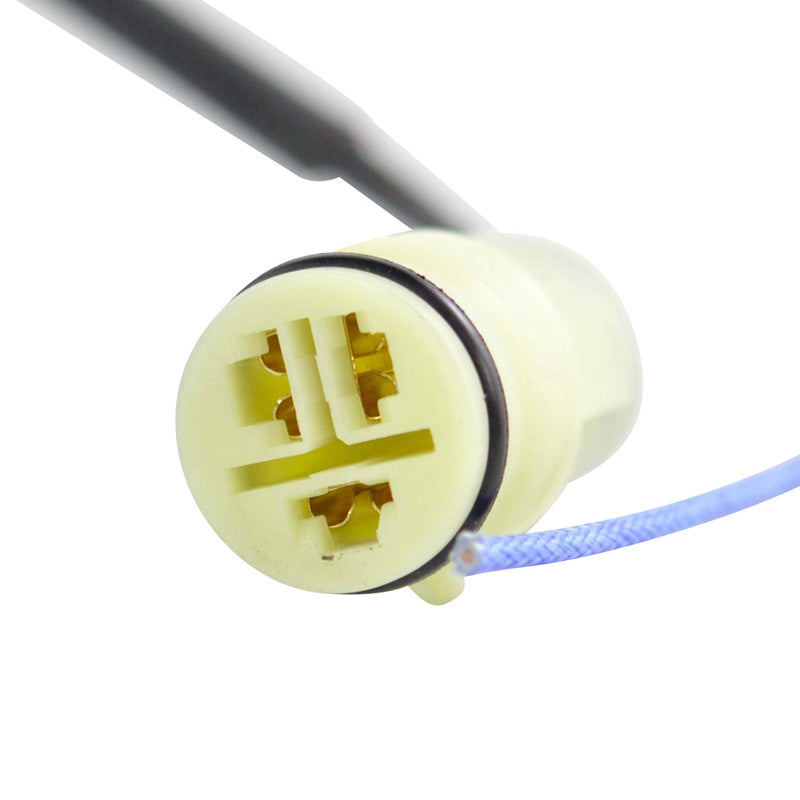

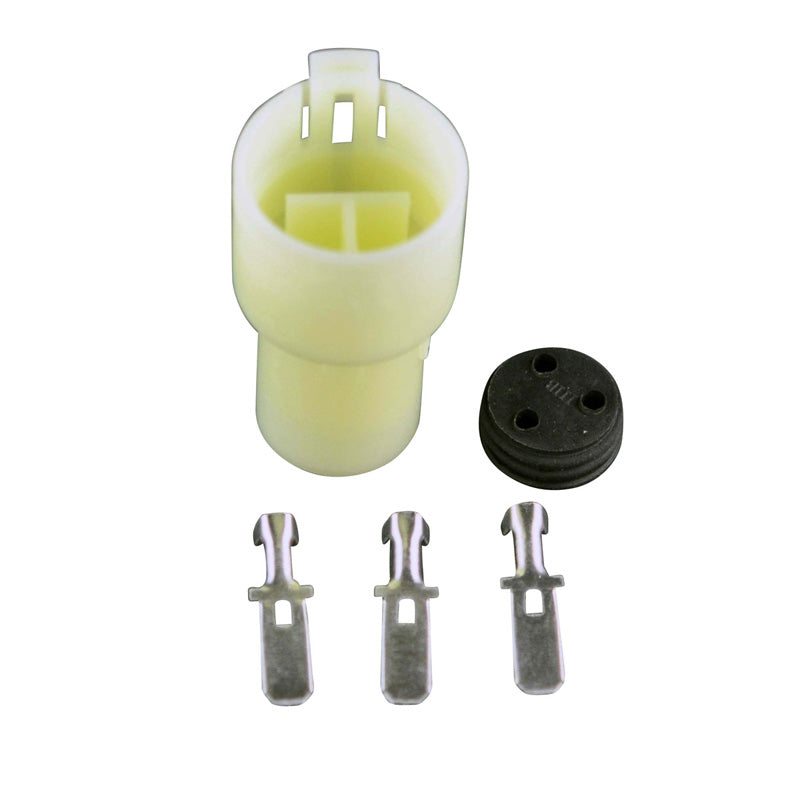

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter: 53 mm
Exterior diameter: 114 mm
Thickness: 27 mm
Length of wires stator to grommet: 95 mm
Length of wires grommet to plug: 940 mm

Other specifications :
Number of wires: 4
Number of plugs: 1
Number of pins: 3

Wire to wire resistance :
Alternator : Brown between each Brown = 0.4 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
