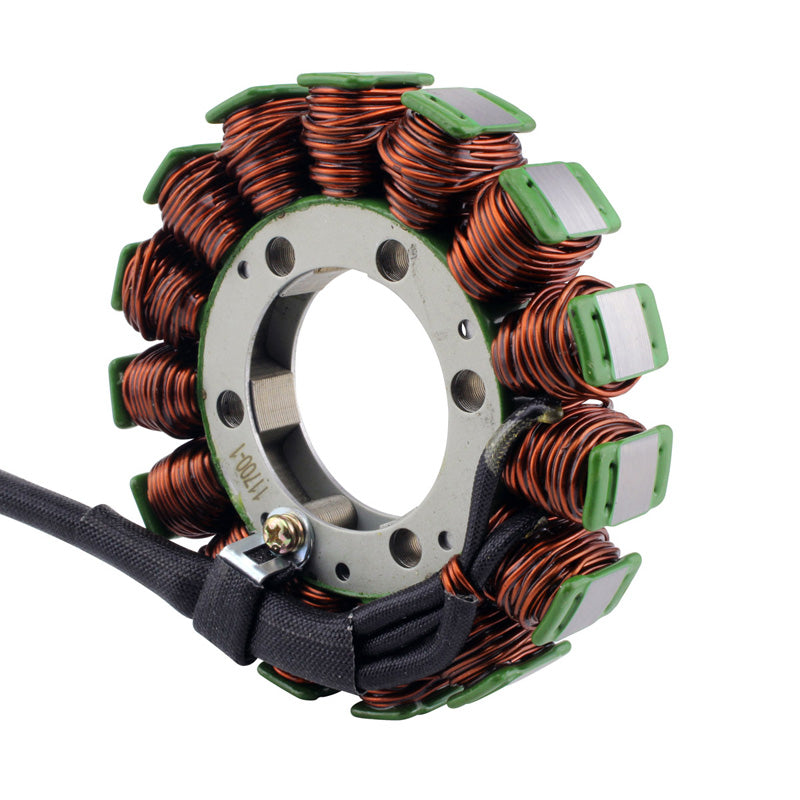

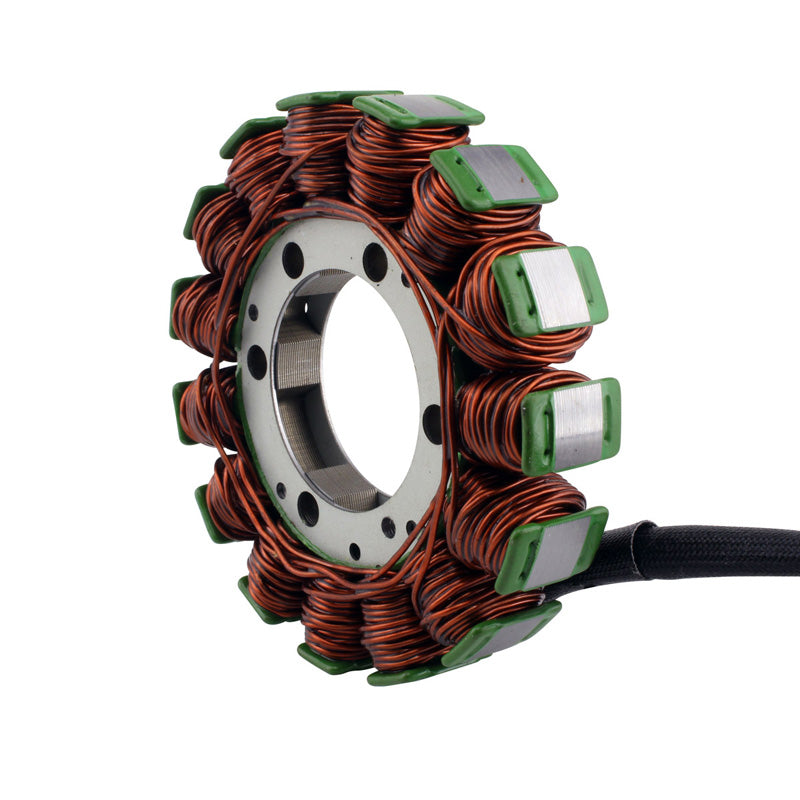

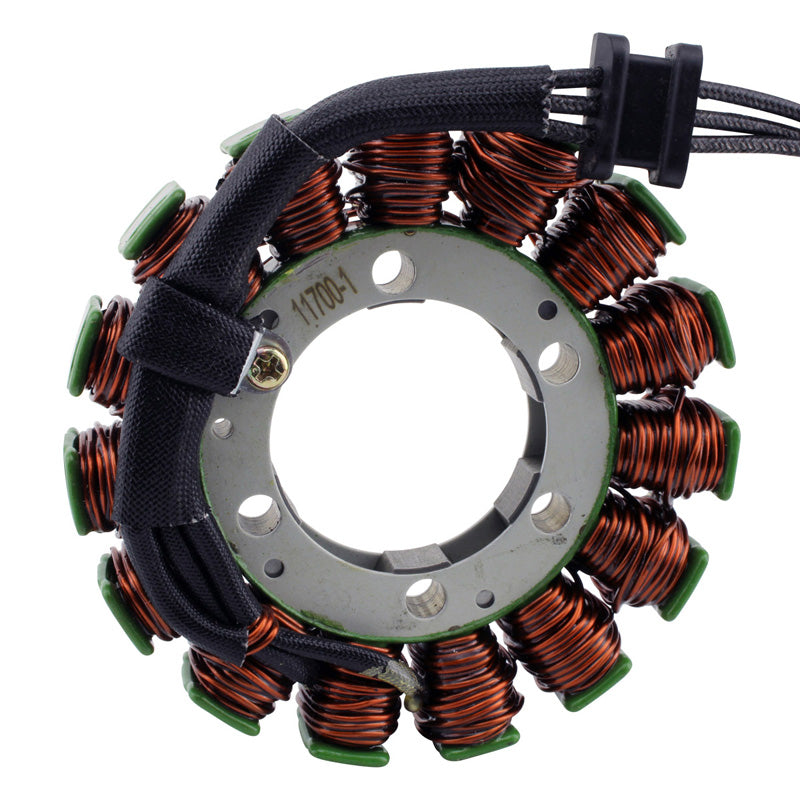

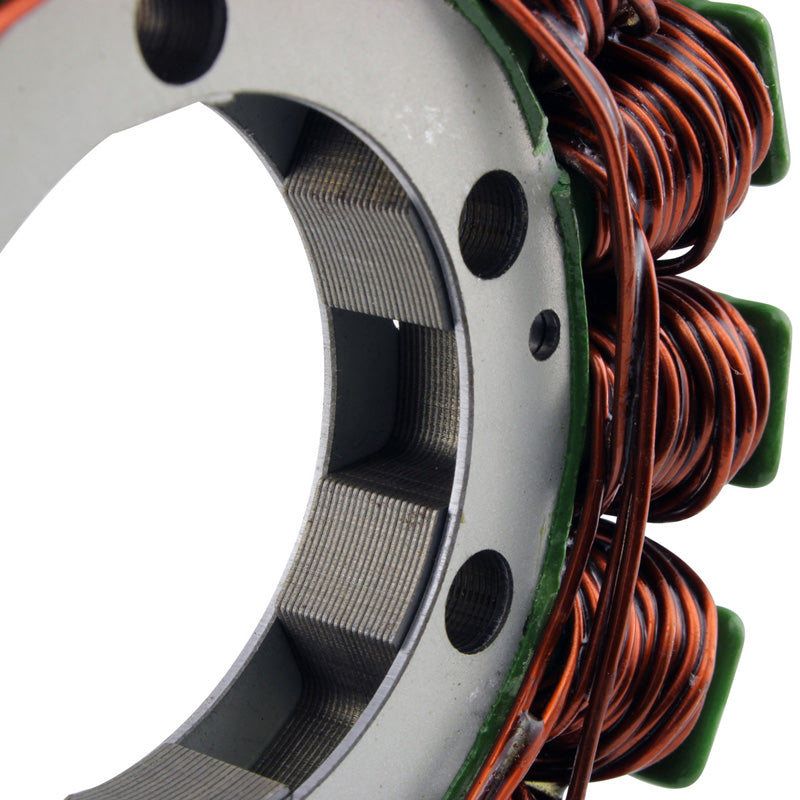

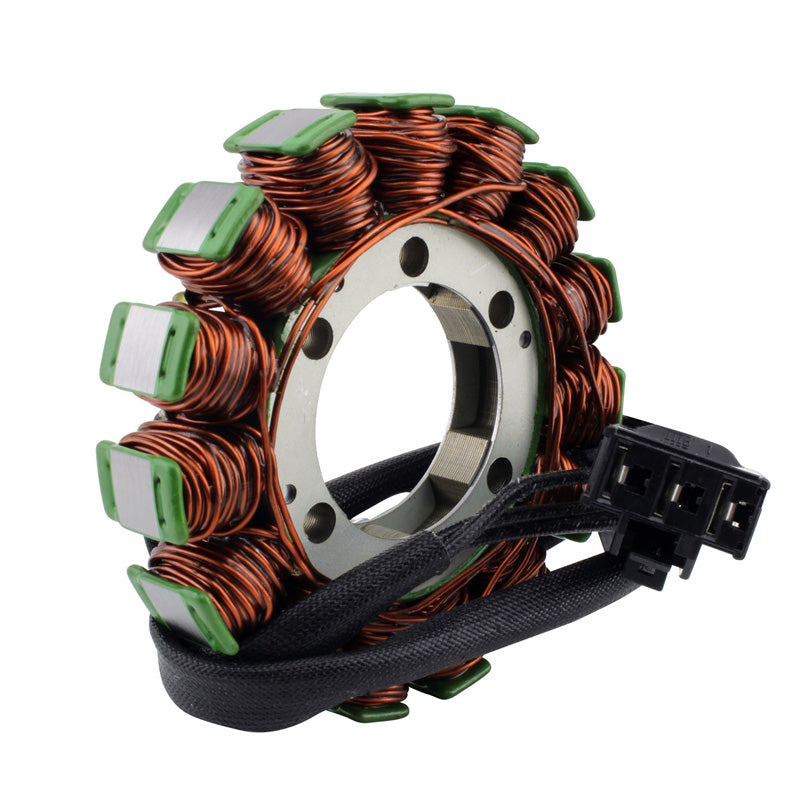

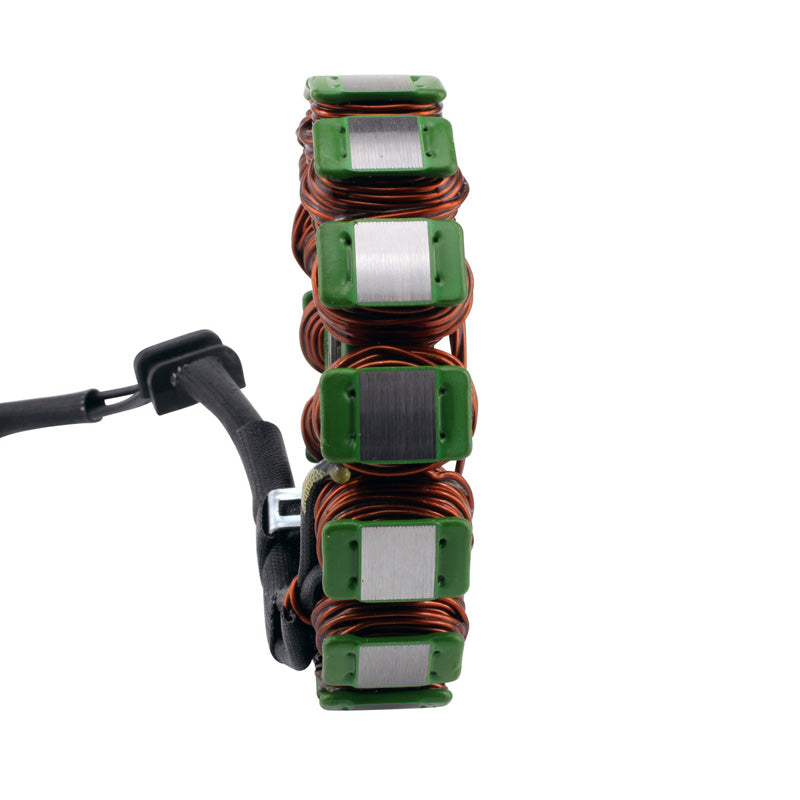

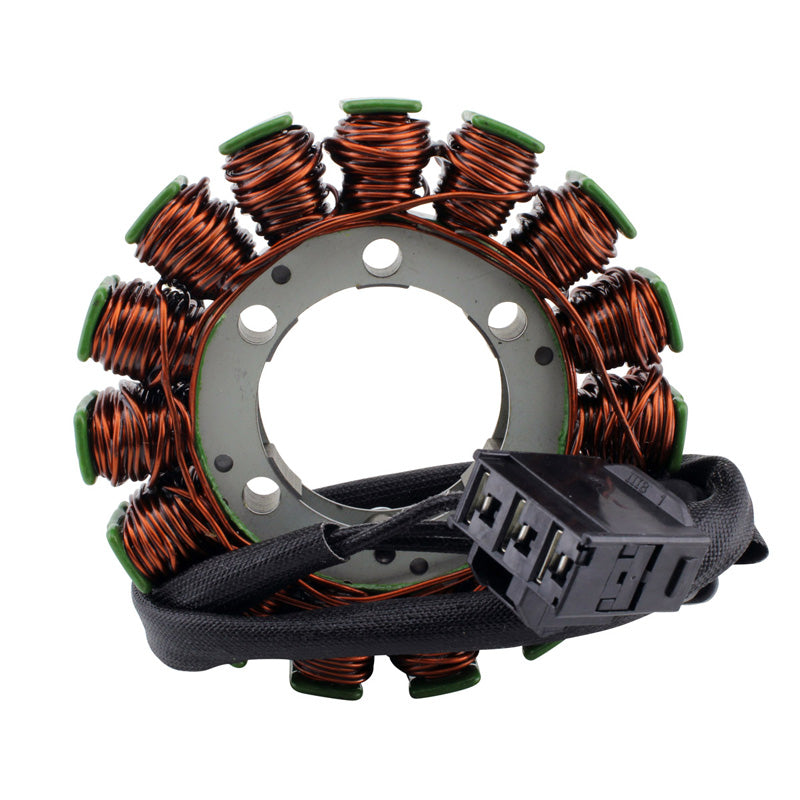

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:

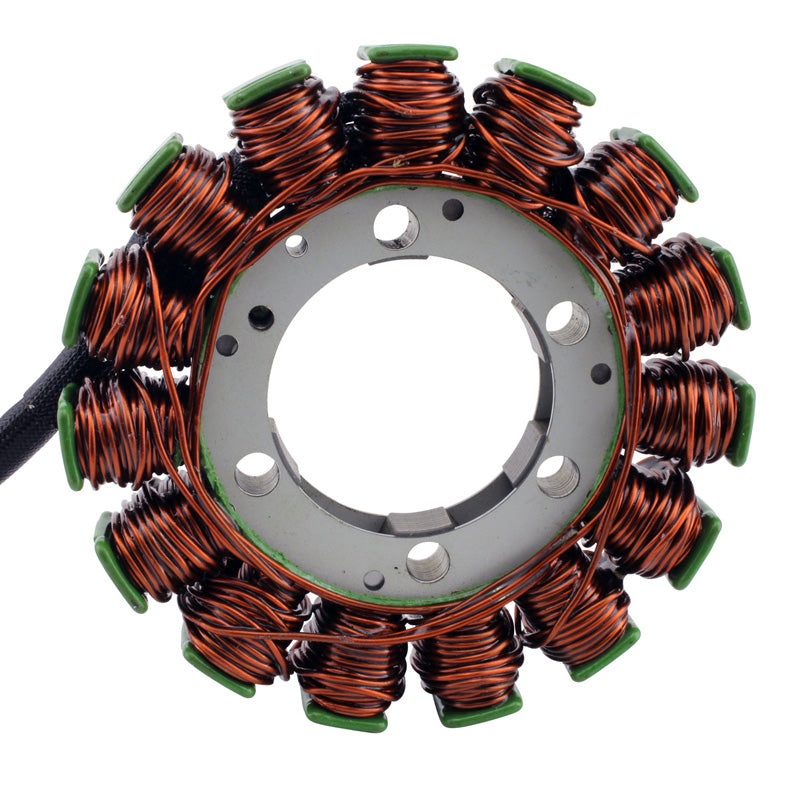

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 13 mm
Length of wires stator to grommet : 85 mm

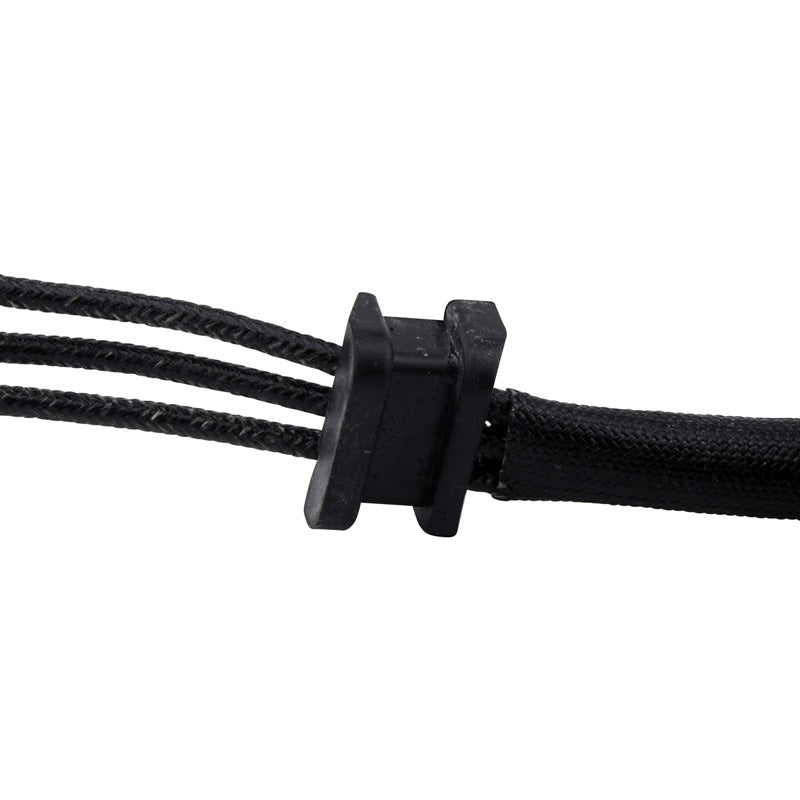

Length of wires grommet to plug : 535 mm
Other specifications :
Number of wires : 3

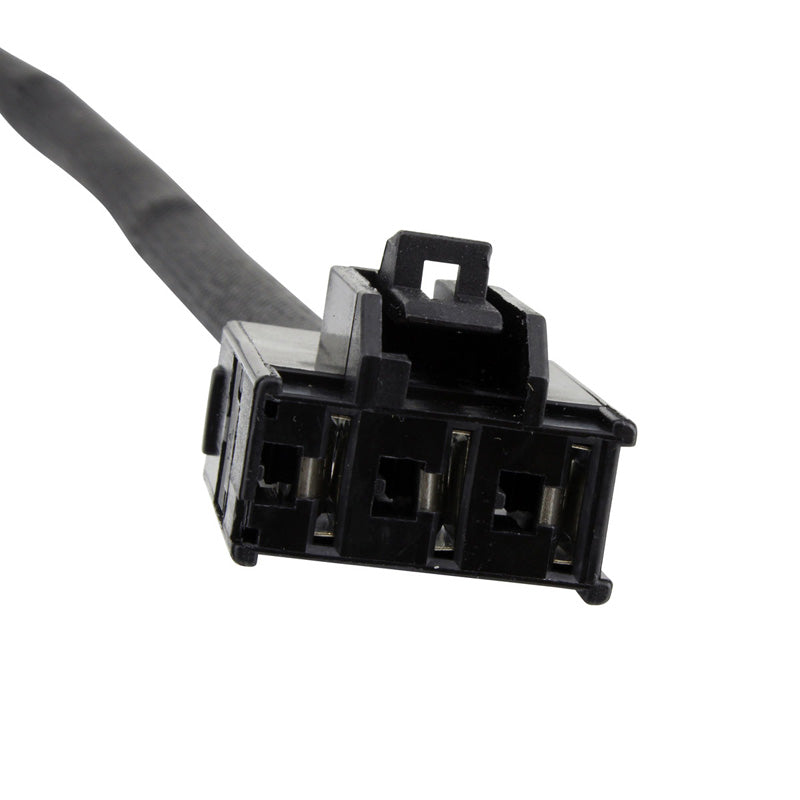

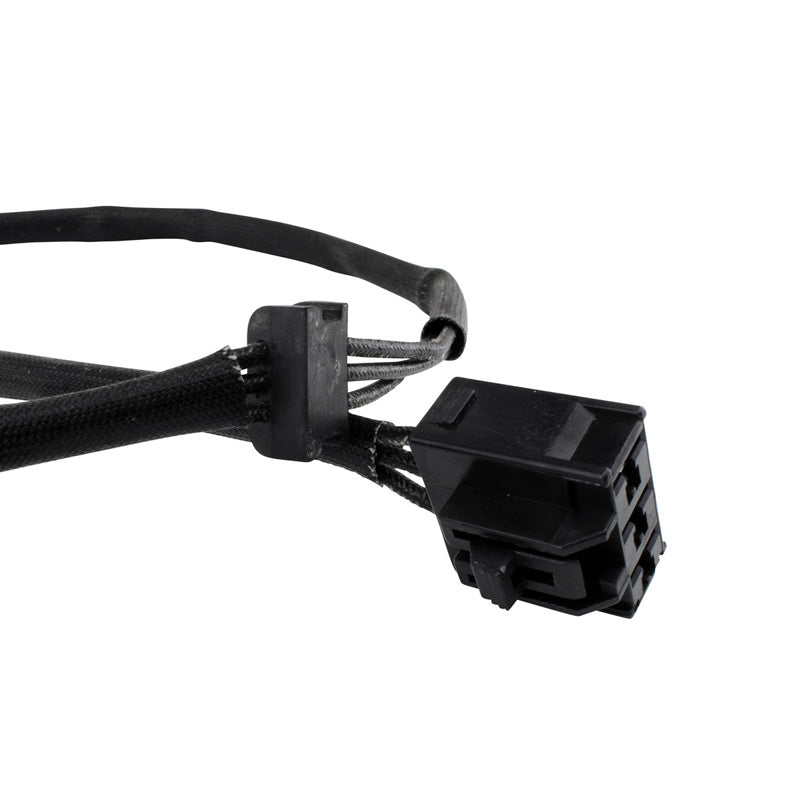

Number of plugs : 1
Number of pins : 3

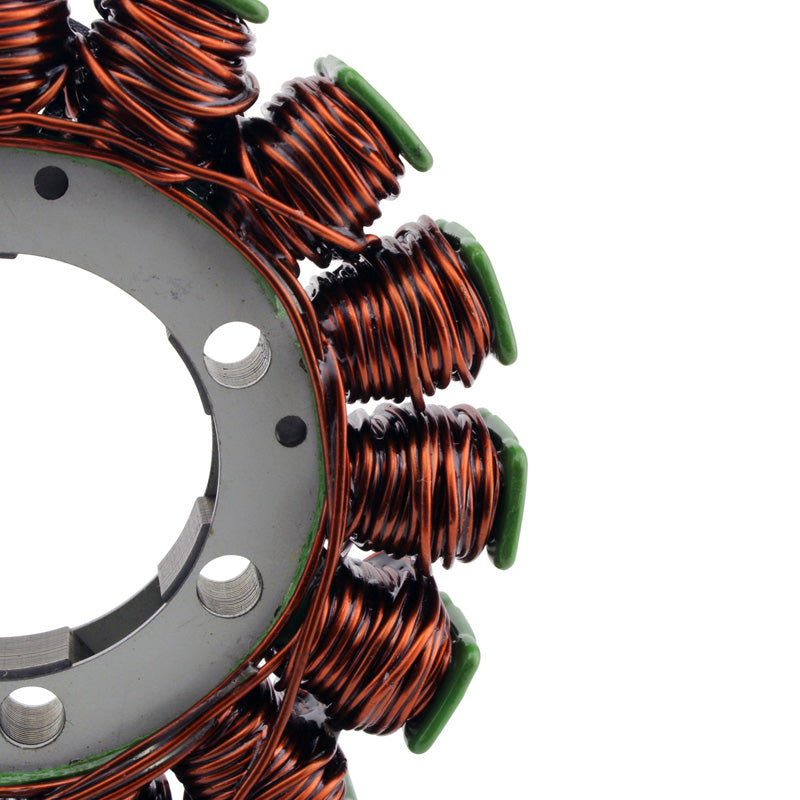

Number of poles : 15
Wire to wire resistance :
Alternator : Black to Black = 0.4 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
