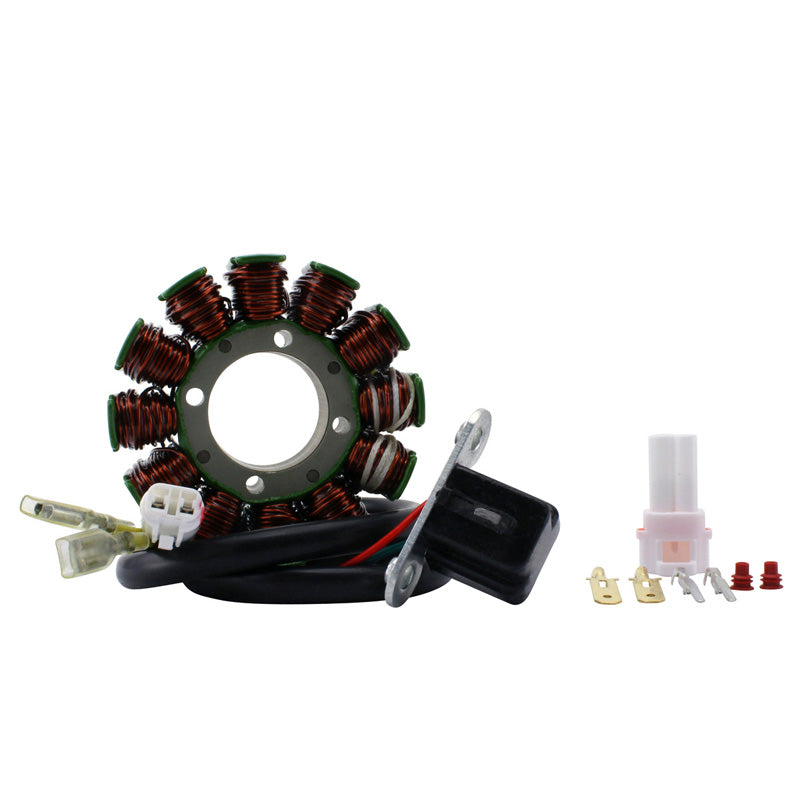

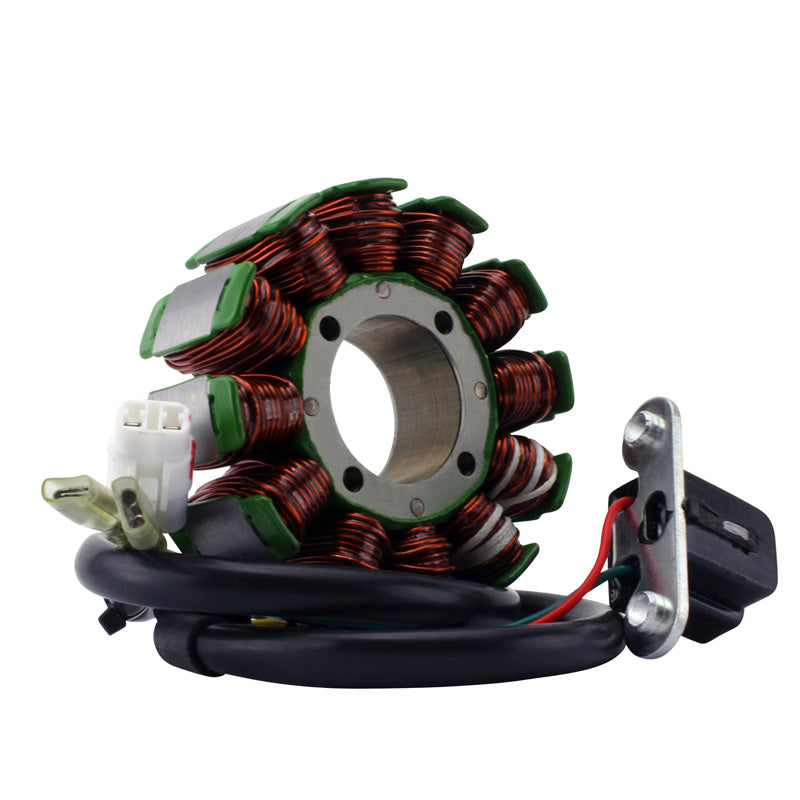

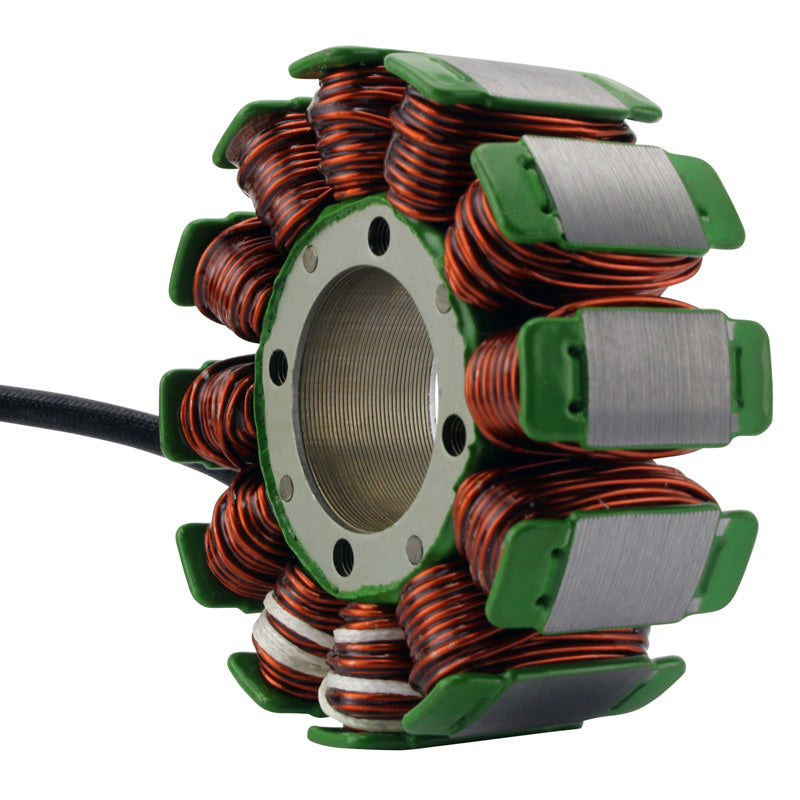

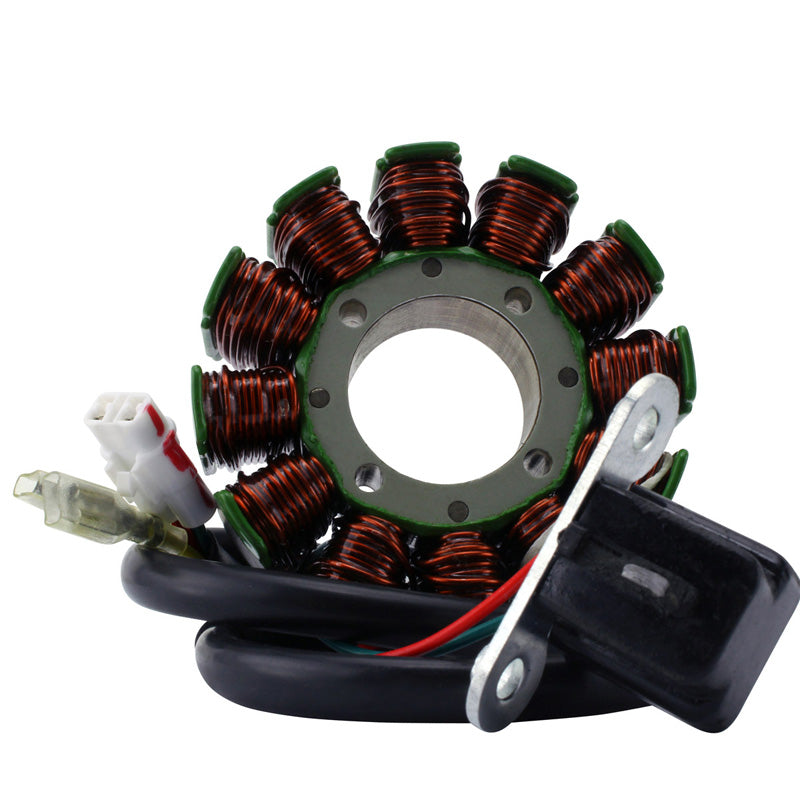

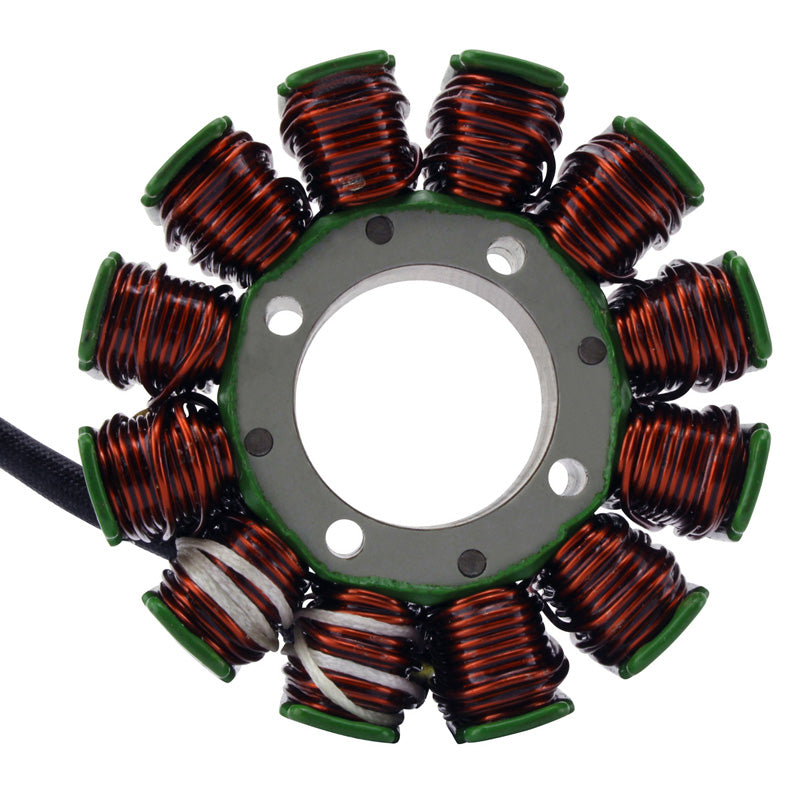

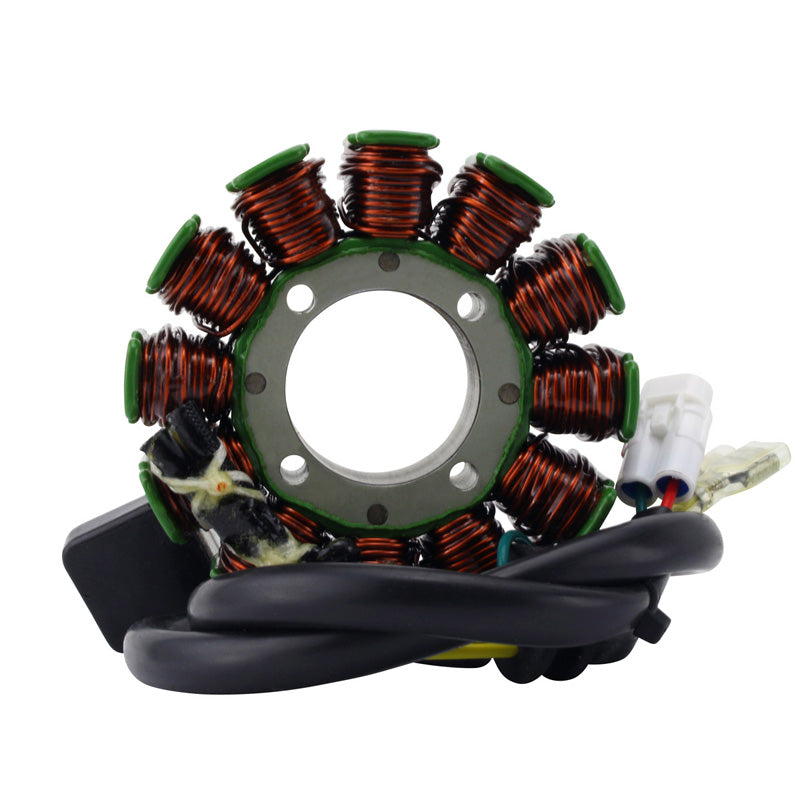

RMS STATOR KTM 250/350 SX-F 11-15|HUSQ FC 14-15 RMS010-107564

Brand new aftermarket Stator

• Direct replacement to your original unit
• 70 Watt DC
• This stator increase power output significantly
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

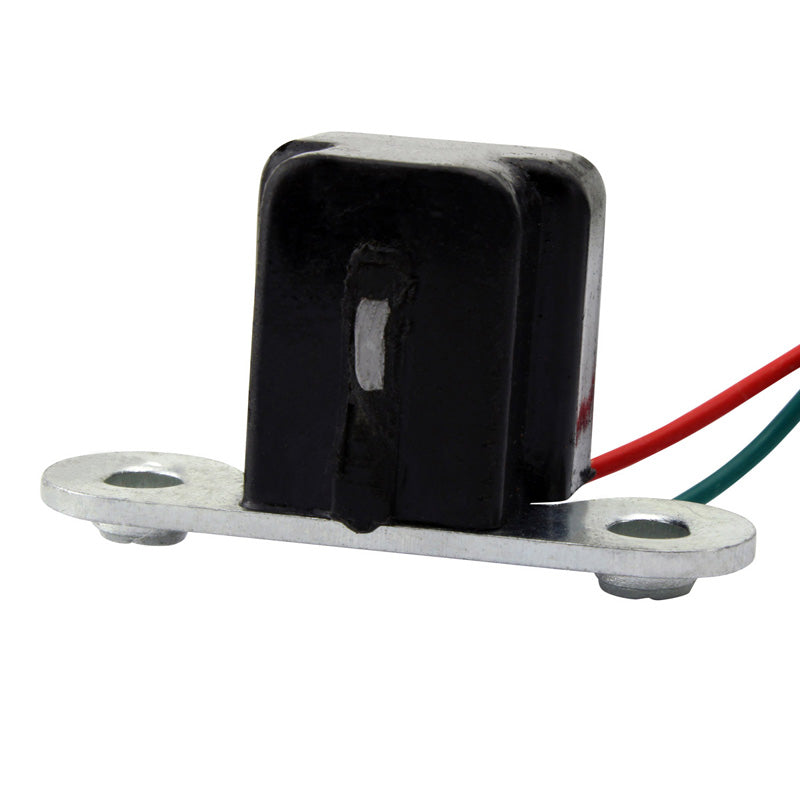

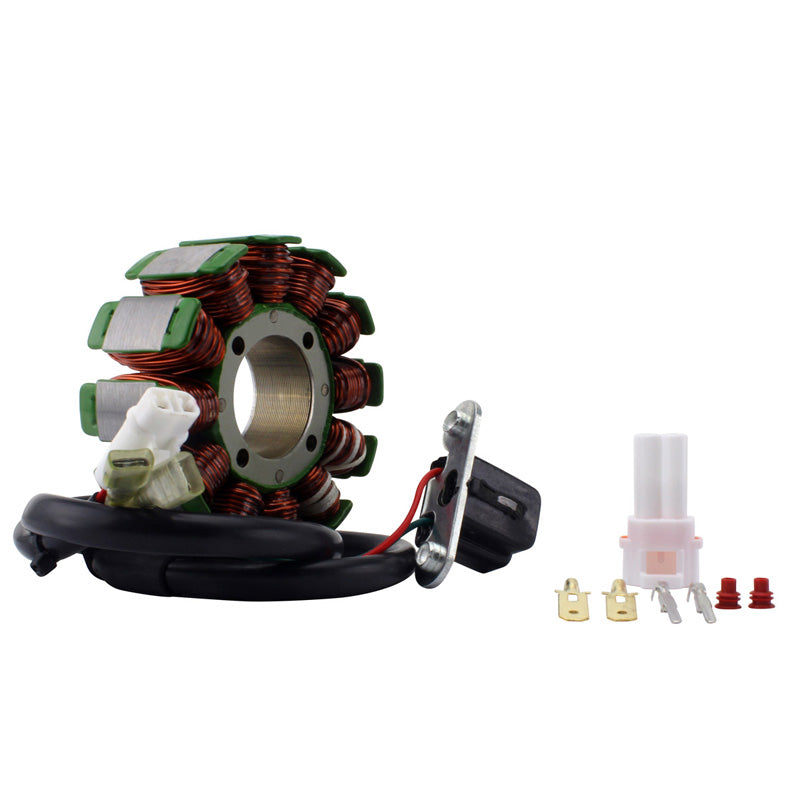

• Pick up pulsar coil included

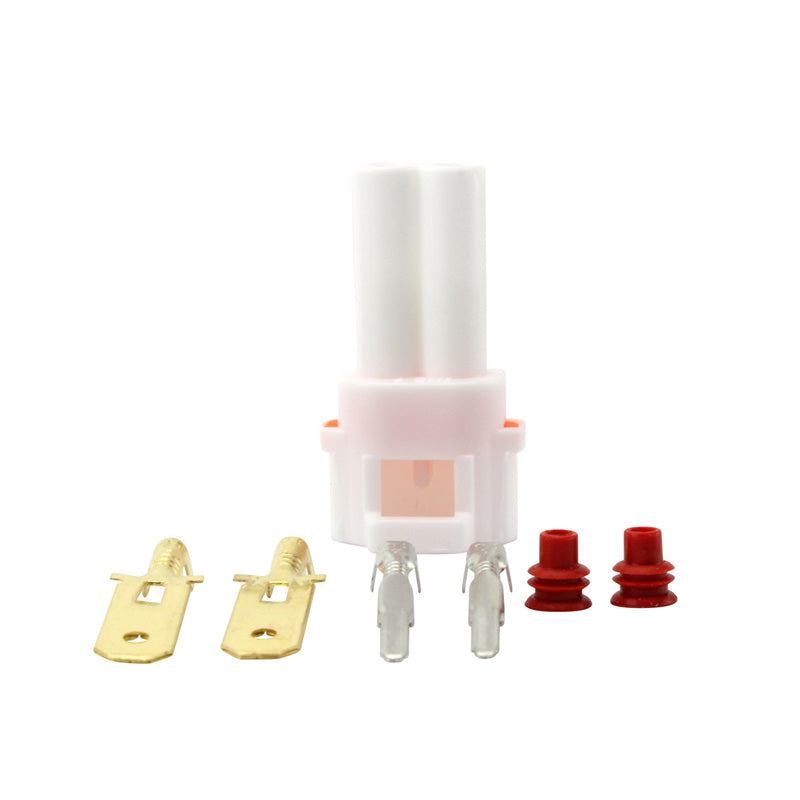

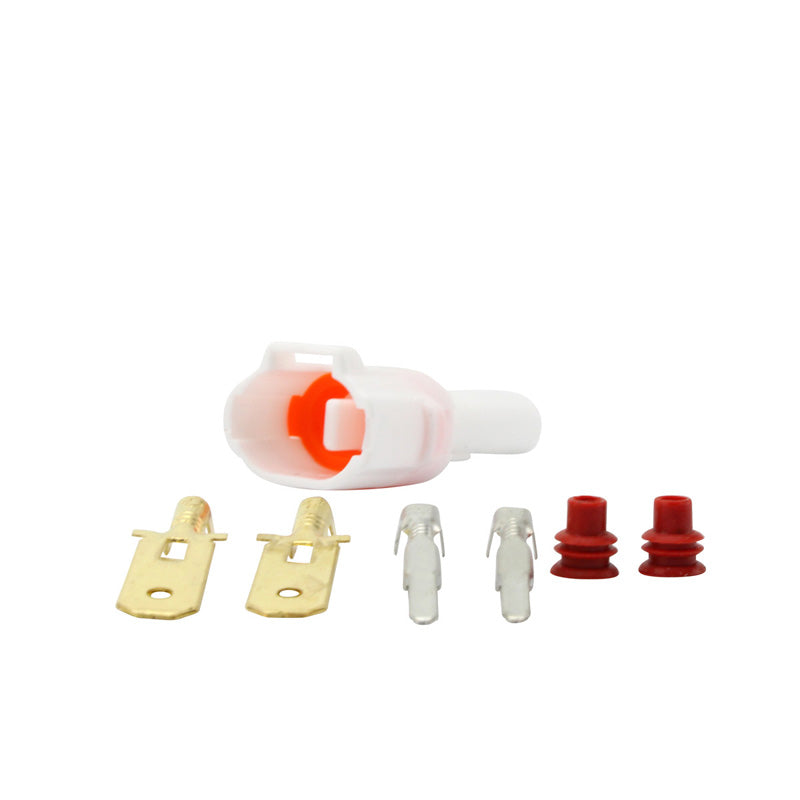

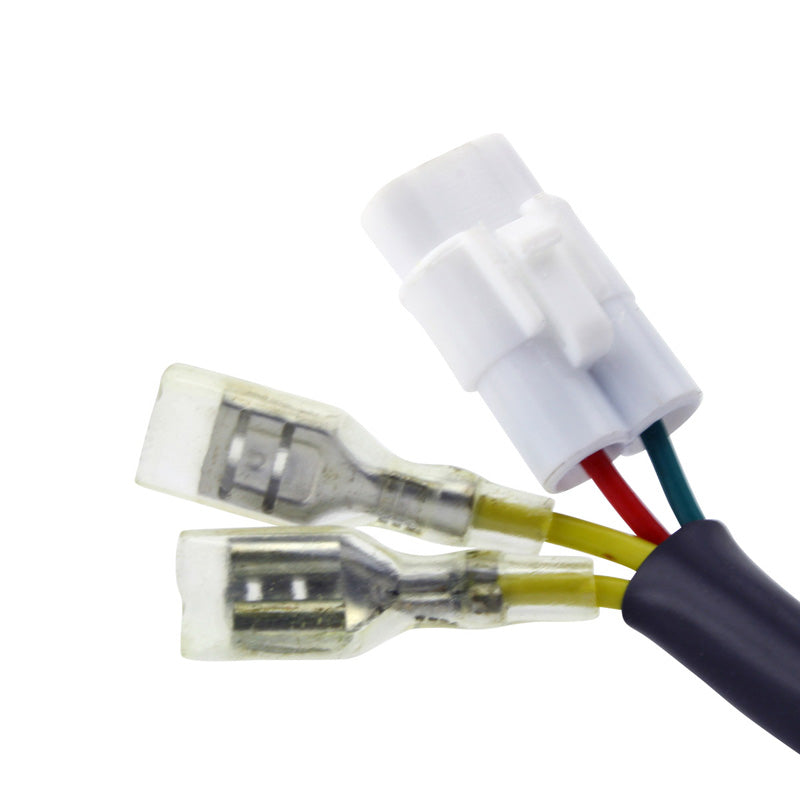

• Connectors included
• Rubber grommet included
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 29 mm
Exterior diameter: 77 mm
Thickness: 21 mm
Length of wires stator to grommet: 120 mm
Length of wires grommet to plug: 520 mm
Length of pickup coil's wire to grommet: 90 mm

Other specifications:
Number of wires: 4
Number of plugs: 1
Number of pins: 4
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.4 ohms +-20%
Alternator: Yellow to ground = O.L
Pickup: Red to Green = 130 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
