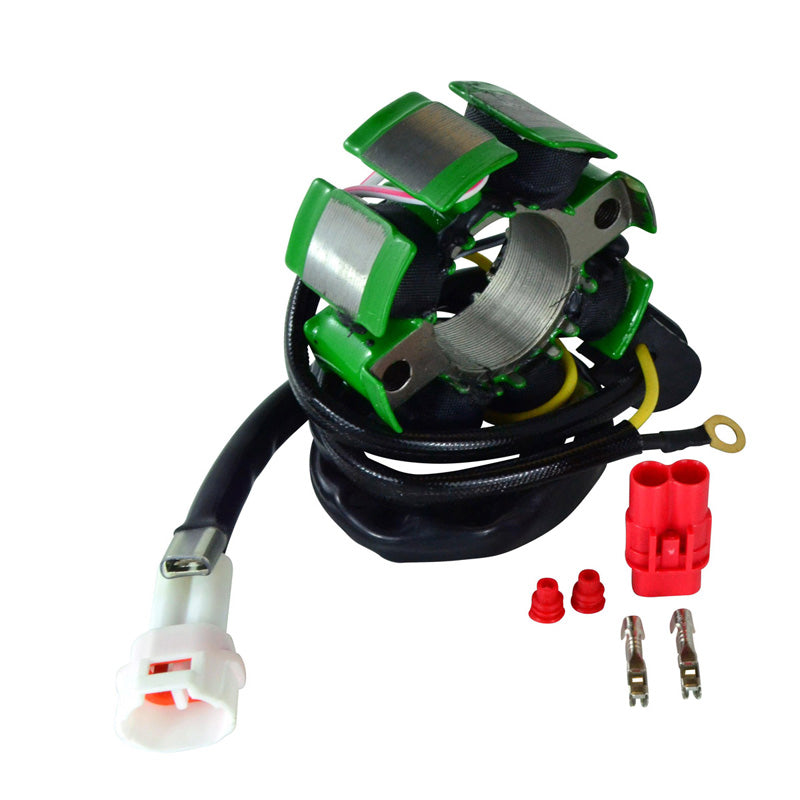

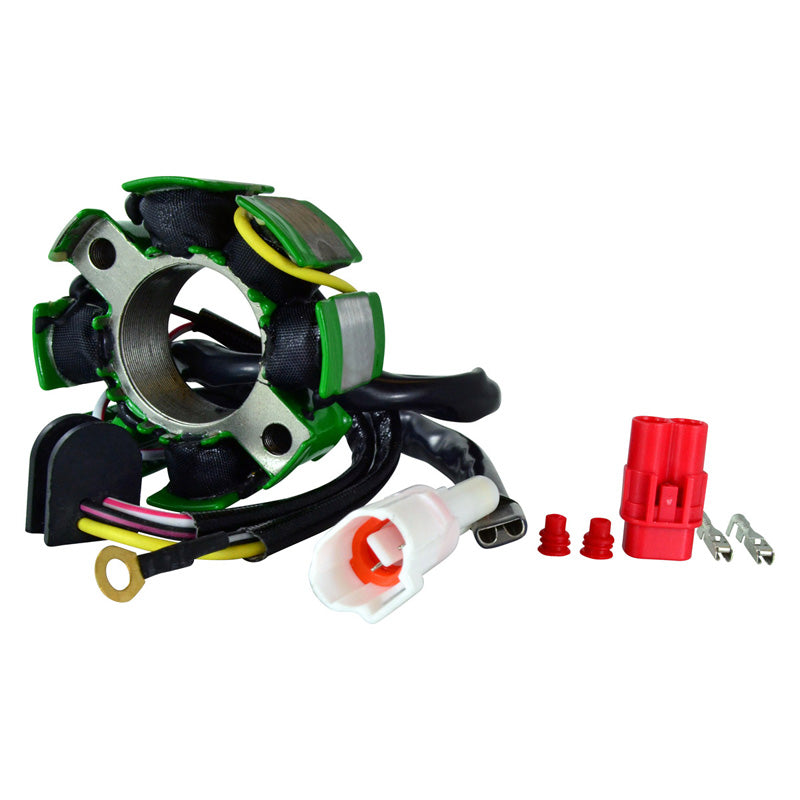

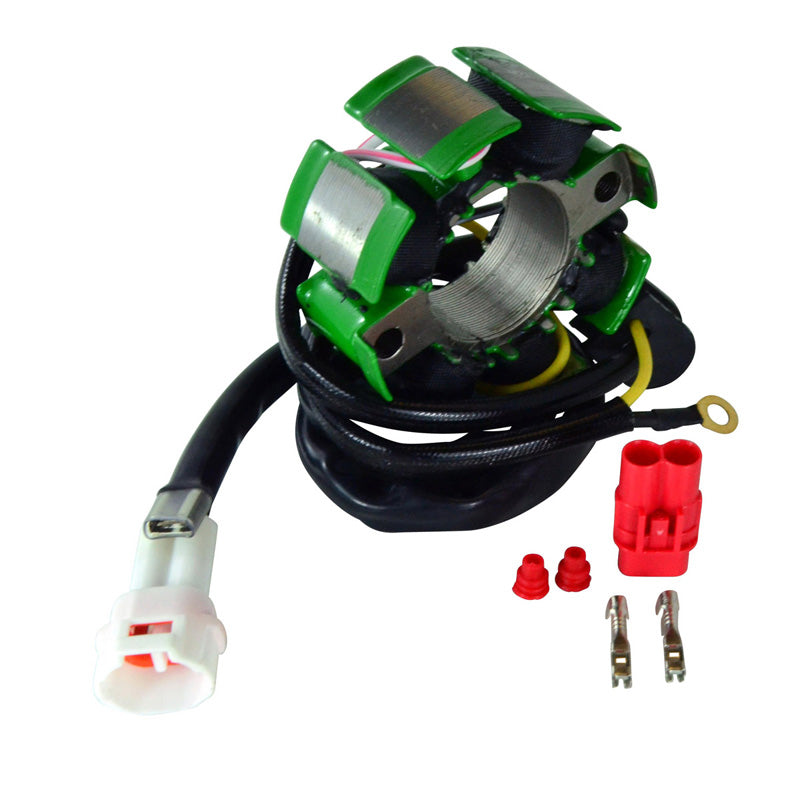

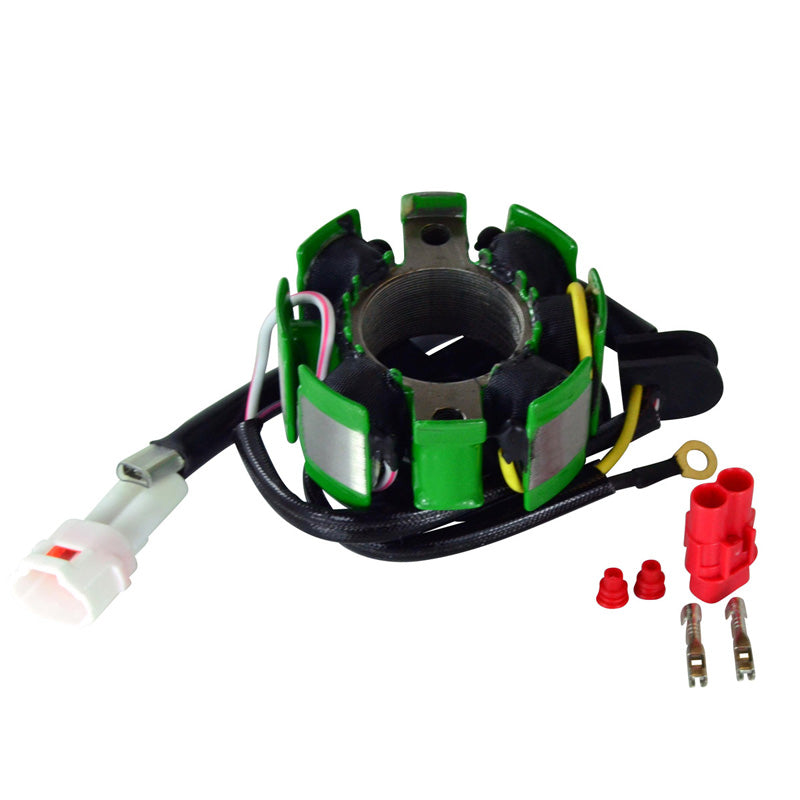

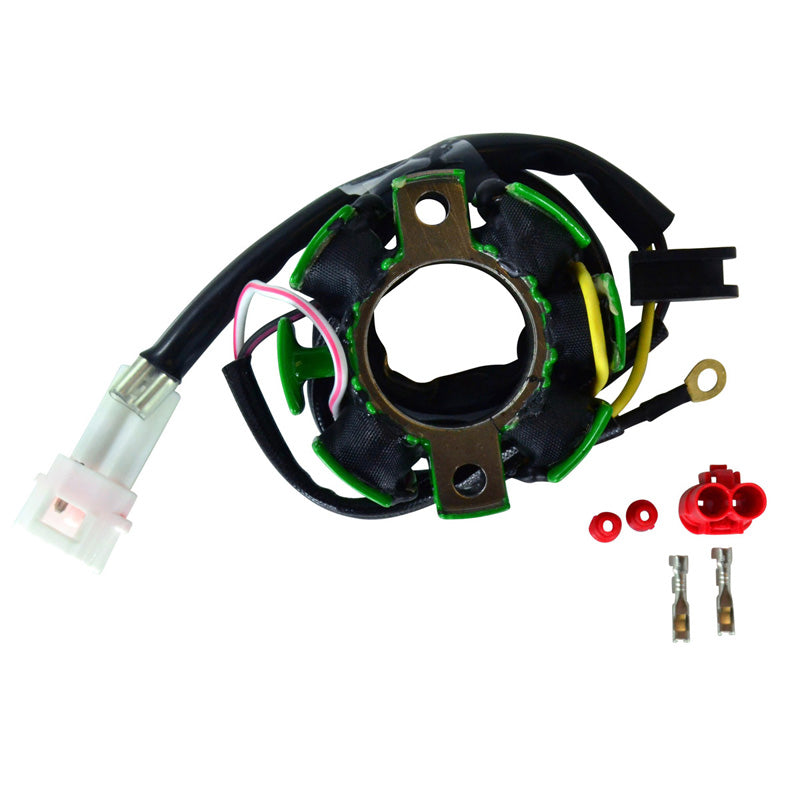

RMS STATOR KTM 250 SX-F|HUSABERG FC 450 00-10 RMS010-104489

Brand new aftermarket 50W lighting stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

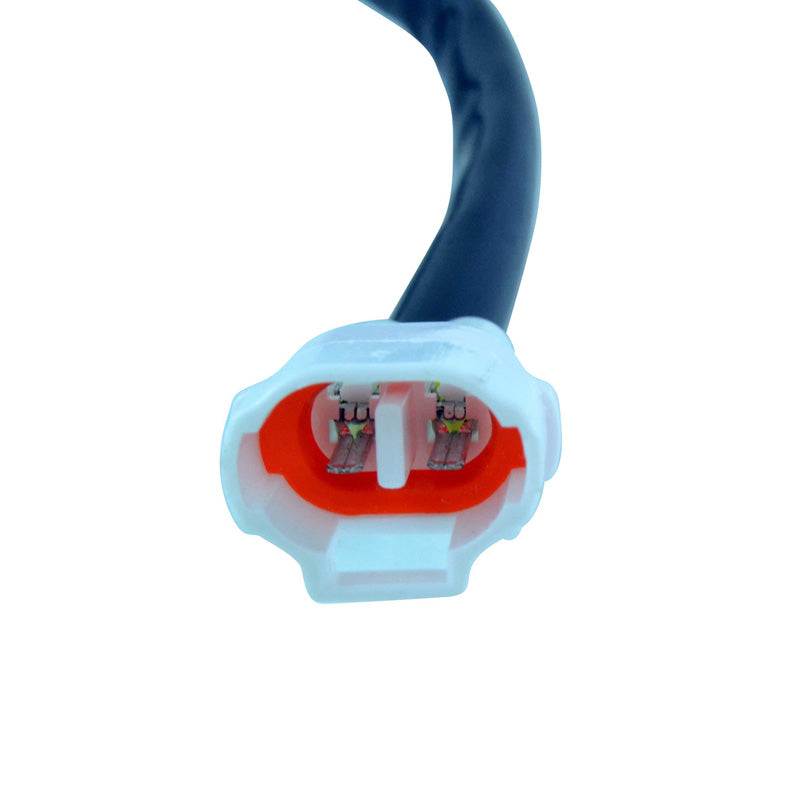

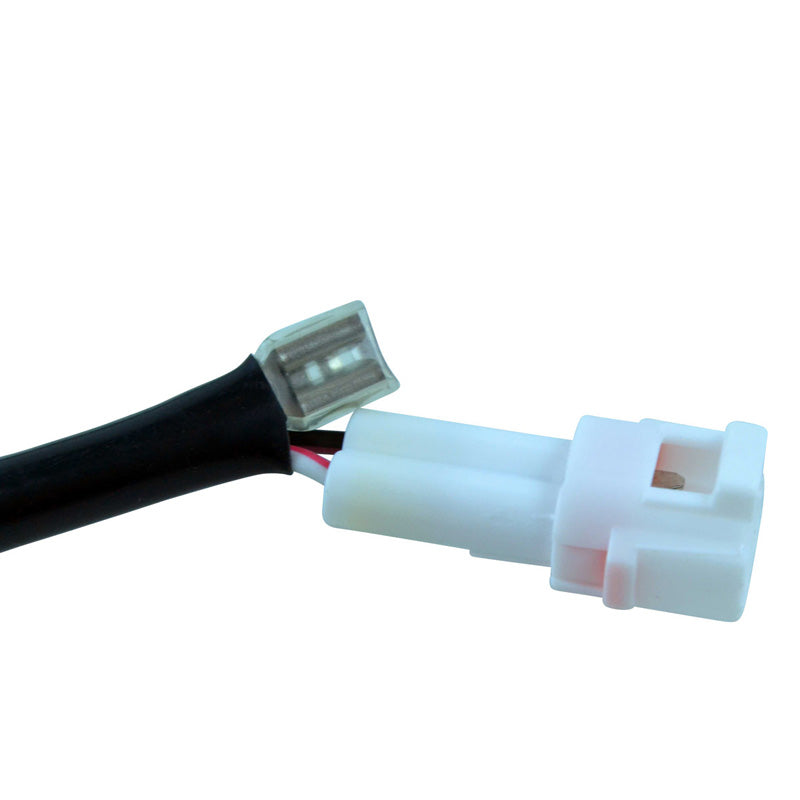

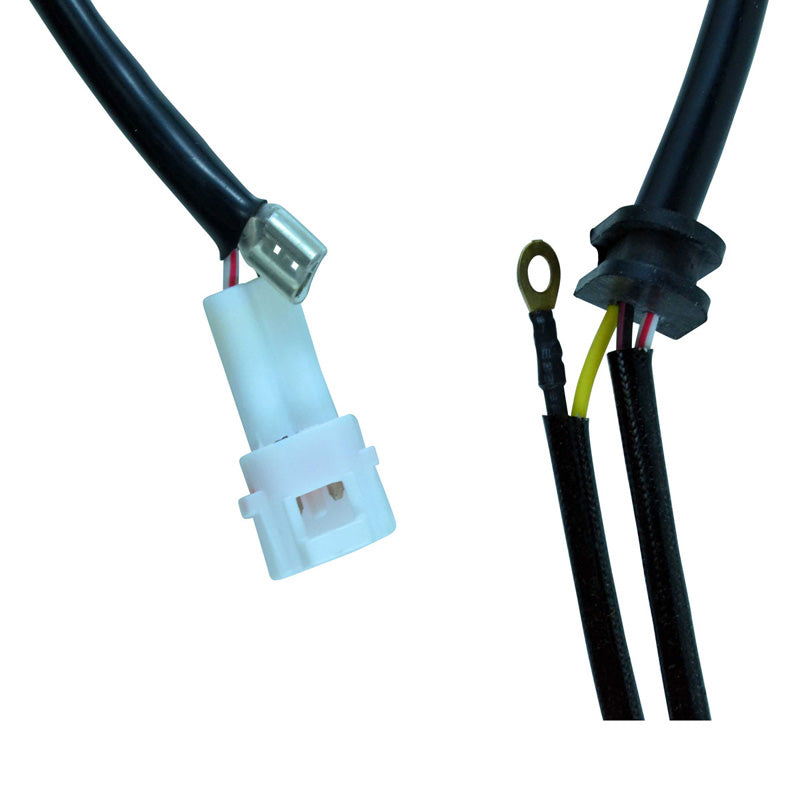

• Connector included

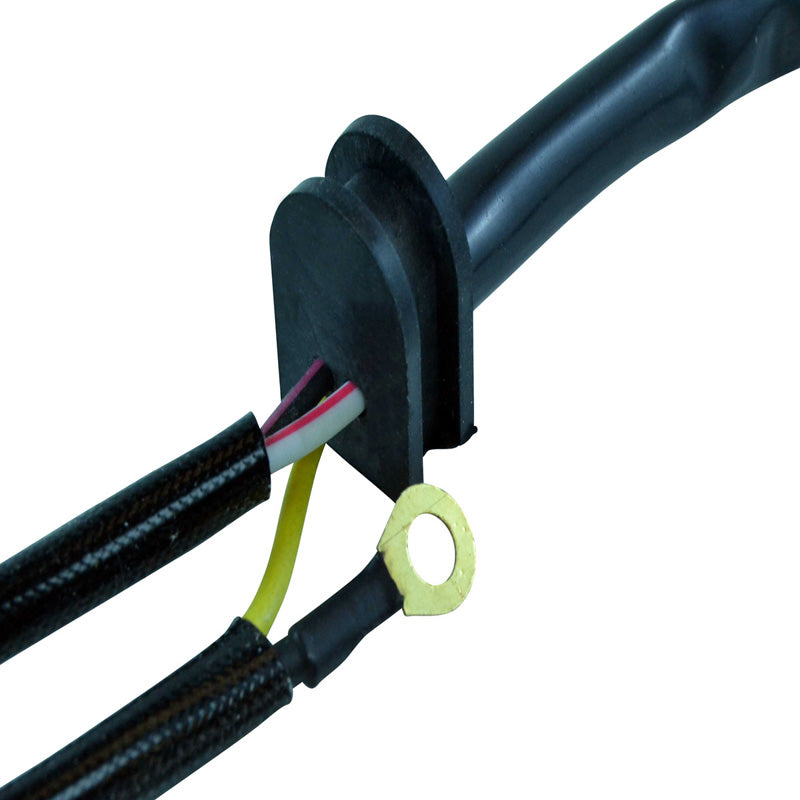

• Rubber grommet included
• All products shipped are tested

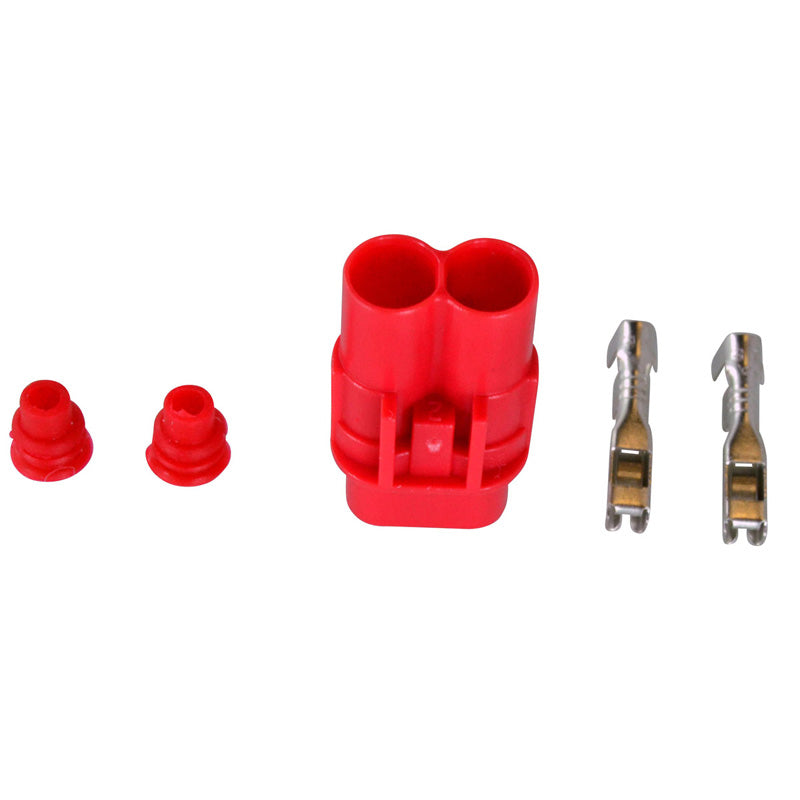

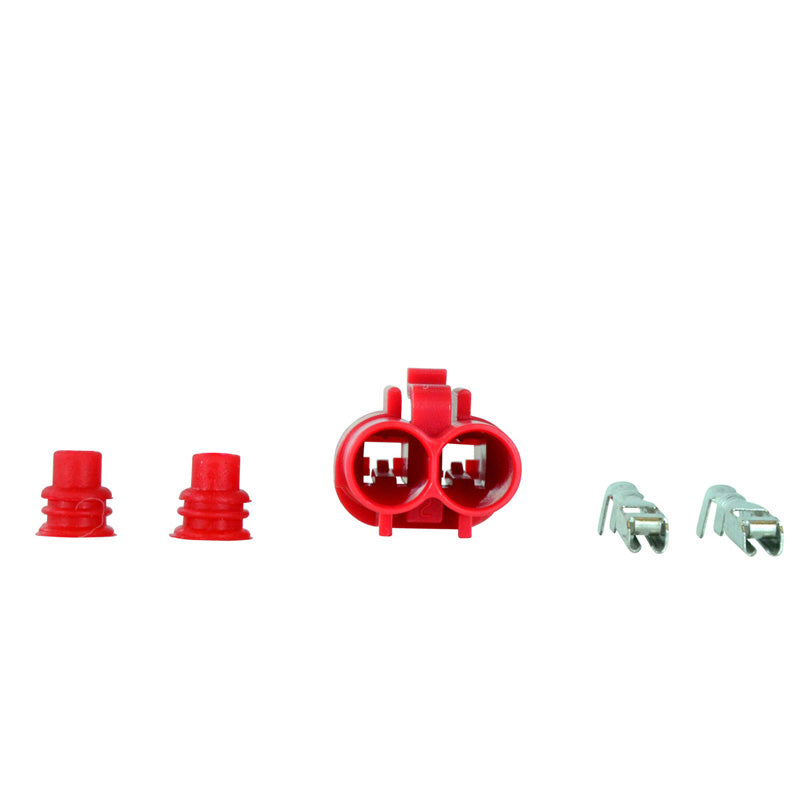

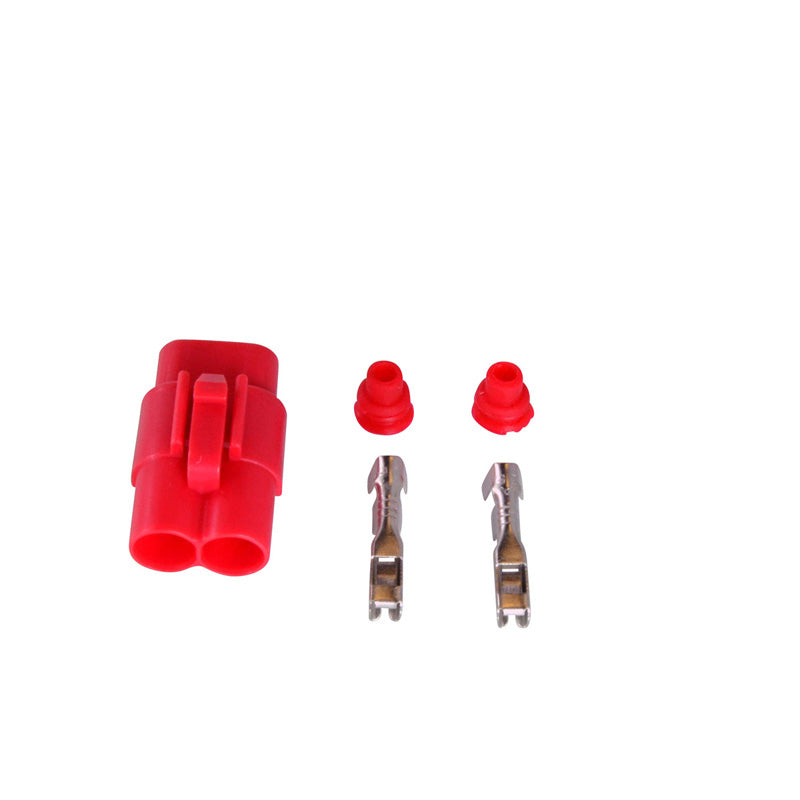

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 28 mm
Exterior diameter :58 mm
Thickness : 28 mm
Length of wires stator to grommet : 130 mm
Length of wires grommet to plug : 400 mm

Other specifications :
Number of wires : 3
Number of plugs : 2
Number of pins : 3
Number of poles : 6

Wire to wire resistance :
Alternator : Black/Red to White/Red = 0.02 ohms +-20%
Alternator to ground = O.L

Warning:

Please note : We suggest using a 35W halogen bulb in the headlight with a 12V AC regulator, which will ensure a good lighting output at most RPMs you will be running your KTM at.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
