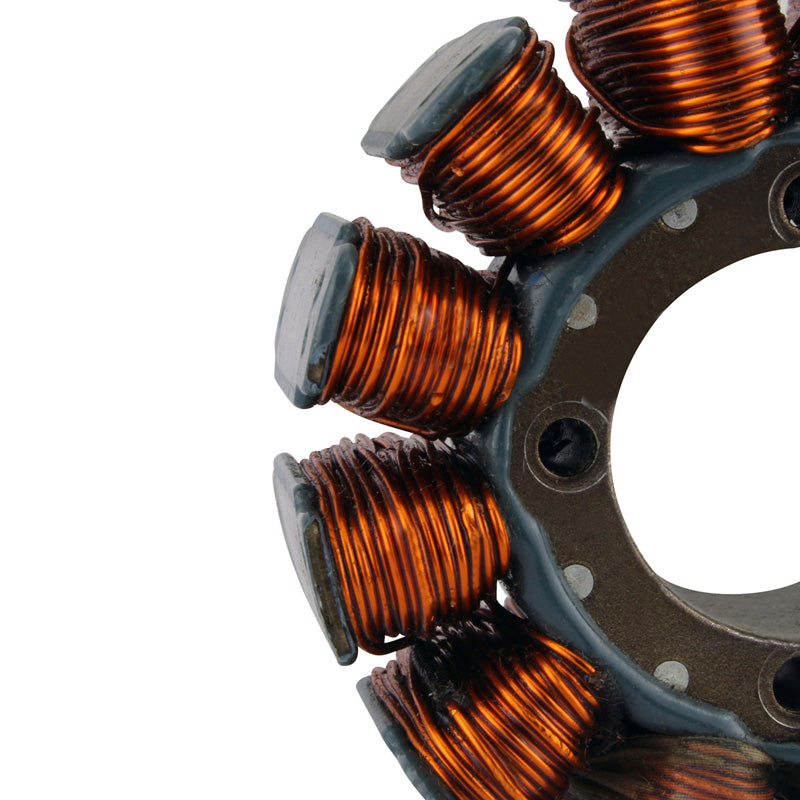

Highest grade of copper winding, resistant to 200 degrees Celsius

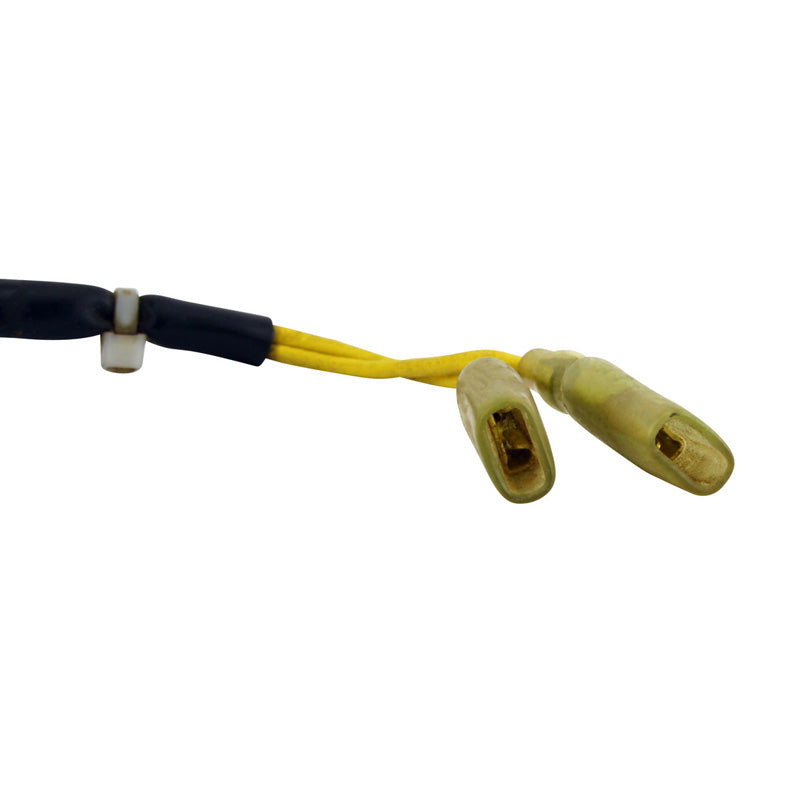

Connectors included

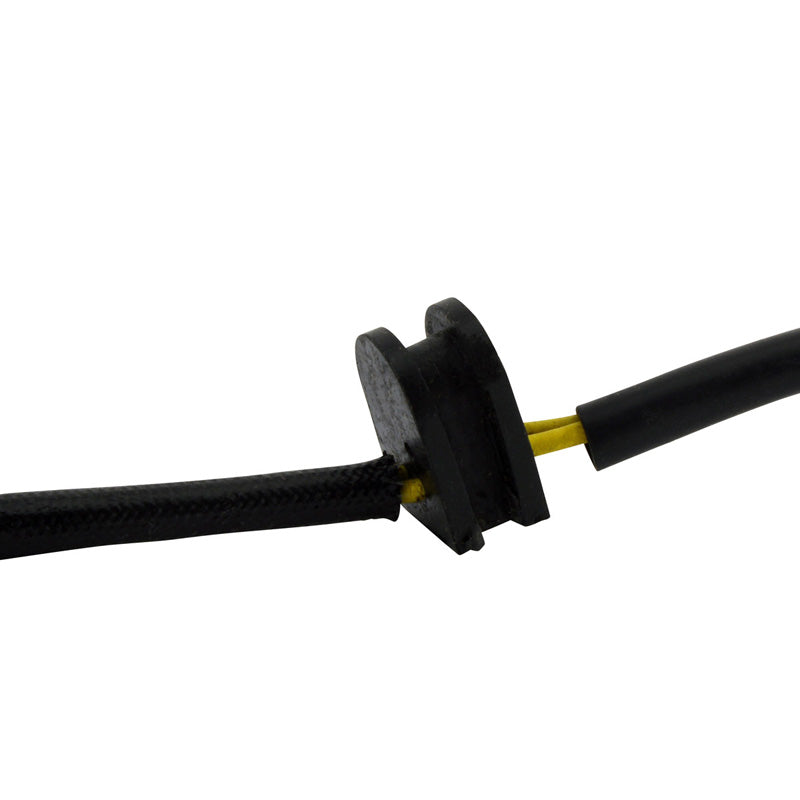

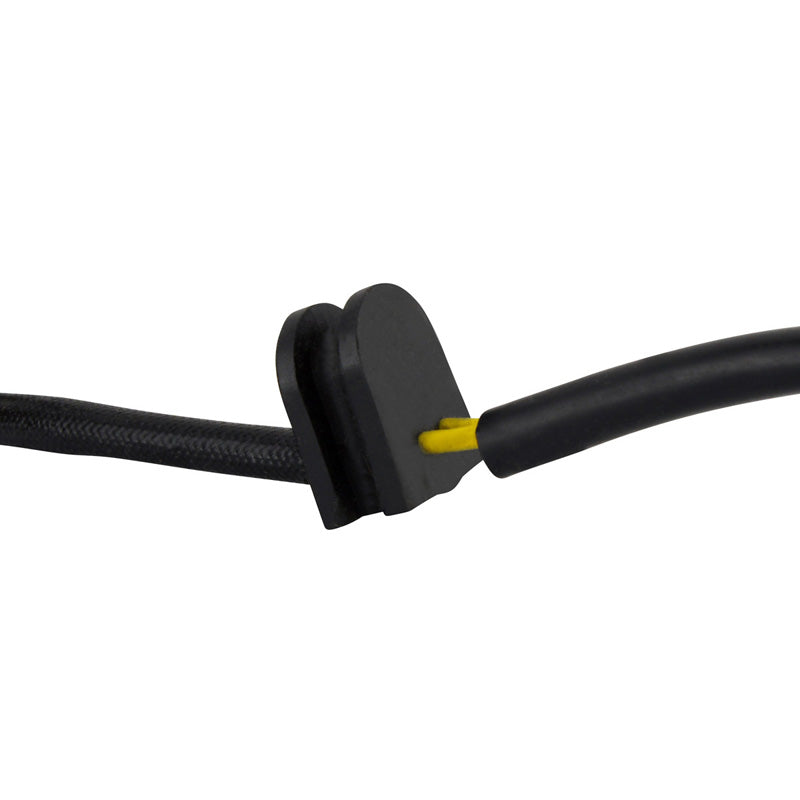

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 30 mm
Exterior diameter: 76 mm
Thickness: 19 mm
Length of wires stator to grommet: 80 mm
Length of wires grommet to plug: 510 mm
Other specifications:
Number of wires: 2
Number of plugs: 2
Number of pins: 2
Number of poles: 12
Wire to wire resistance:
Alternator: Yellow to Yellow = 1.9 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
