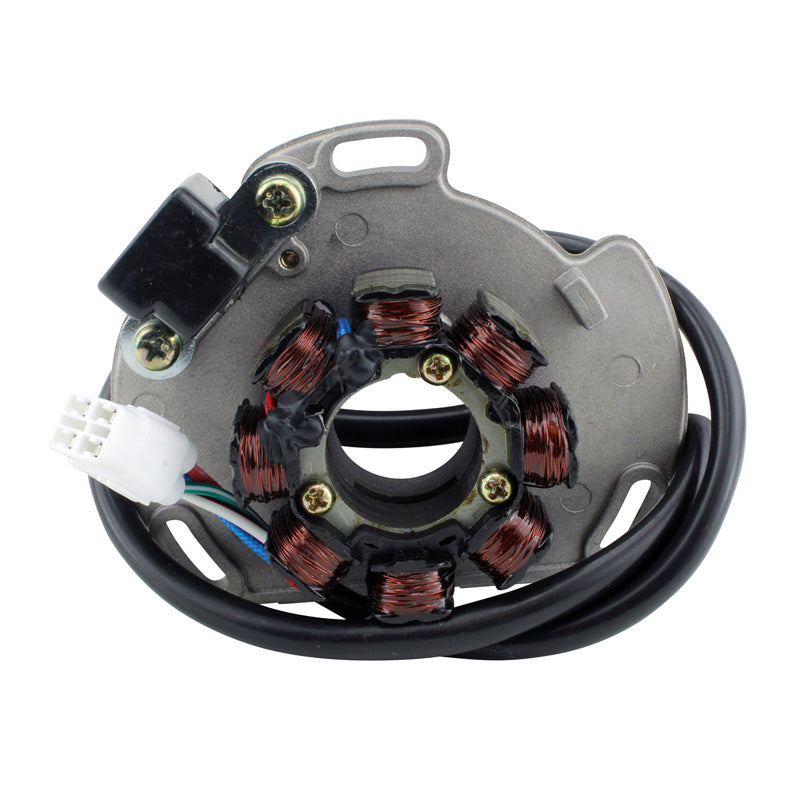

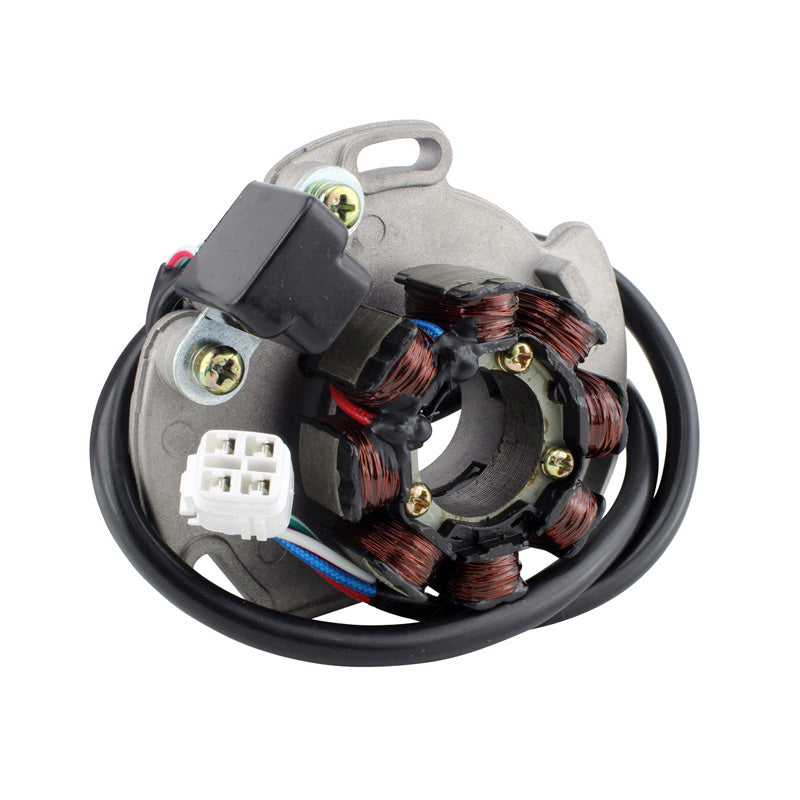

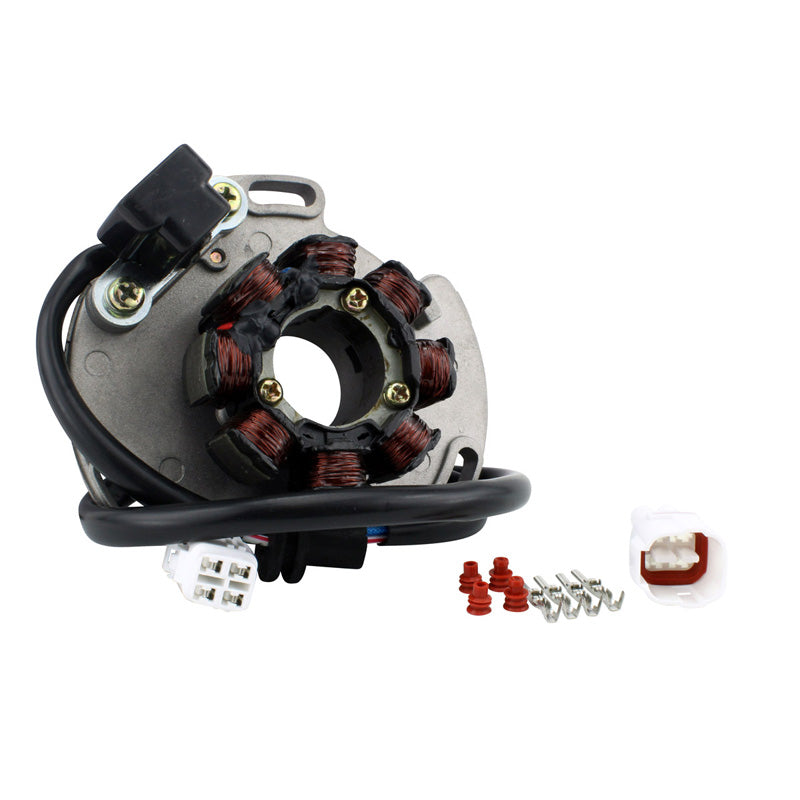

Highest grade of copper winding, resistant to 200 degrees Celsius

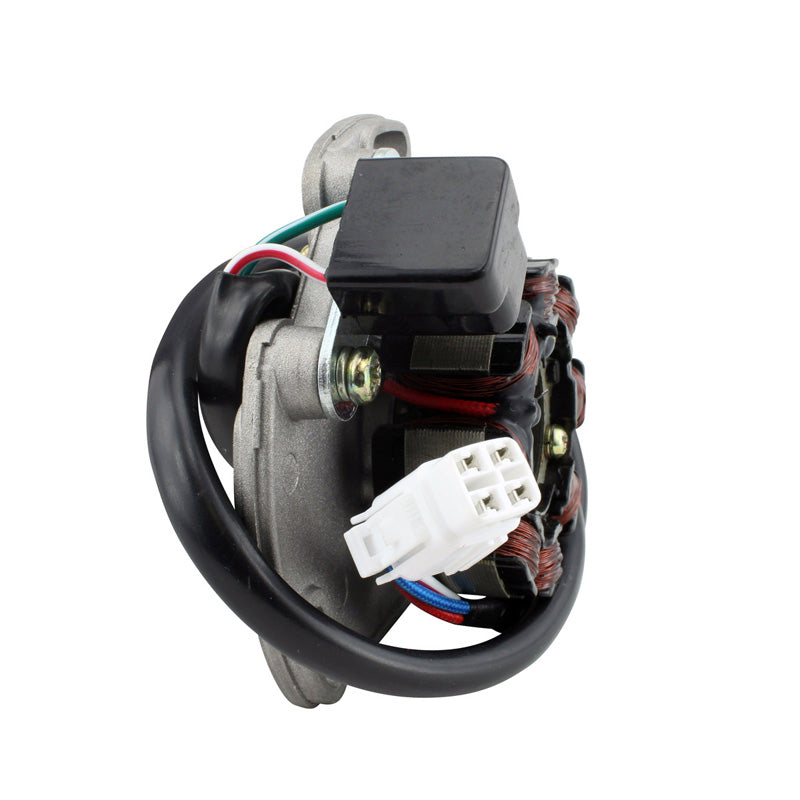

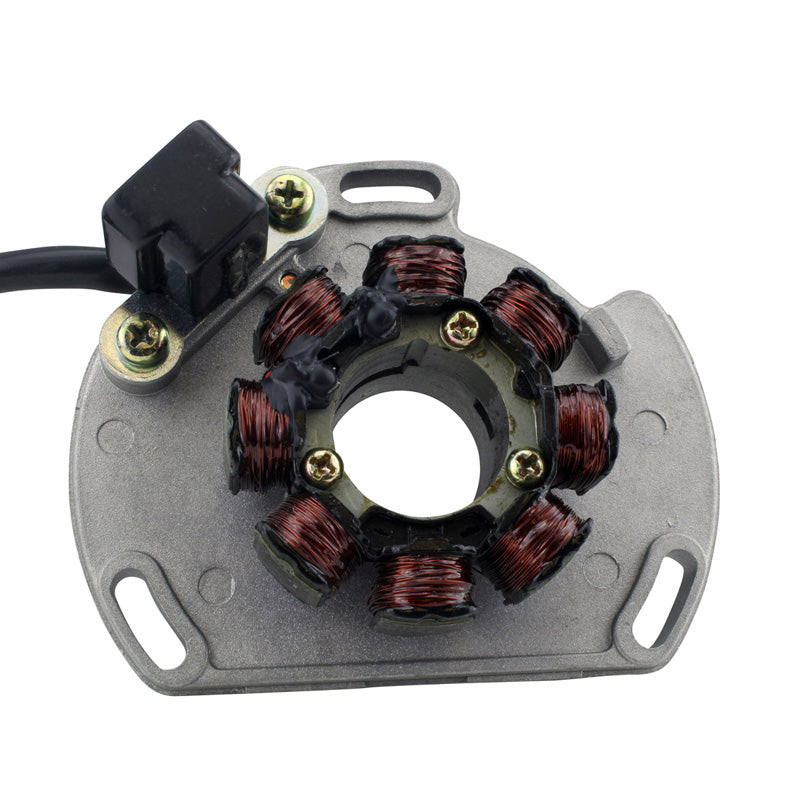

Pick up pulsar coil included

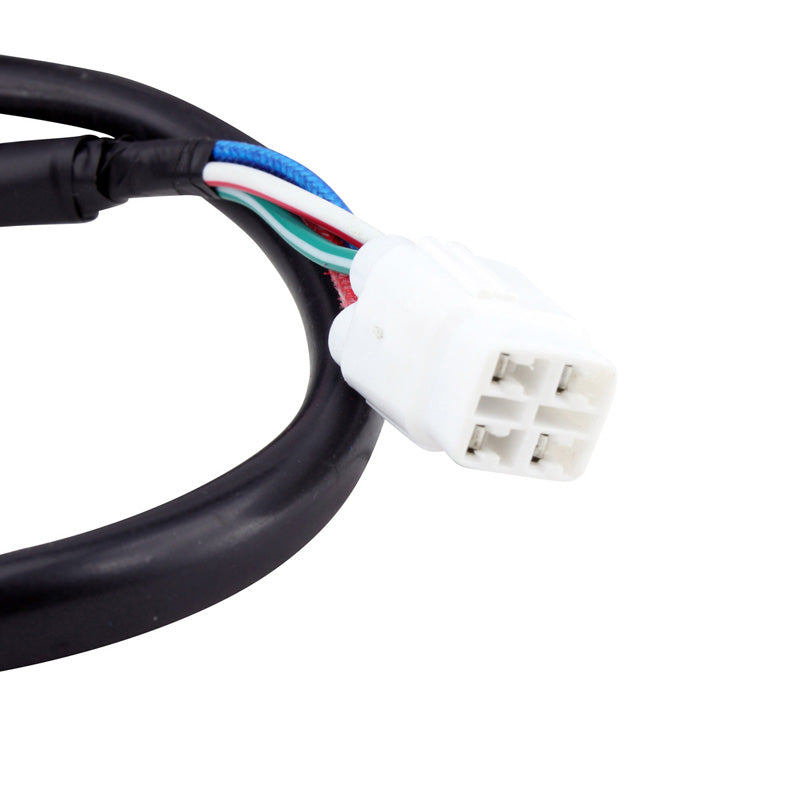

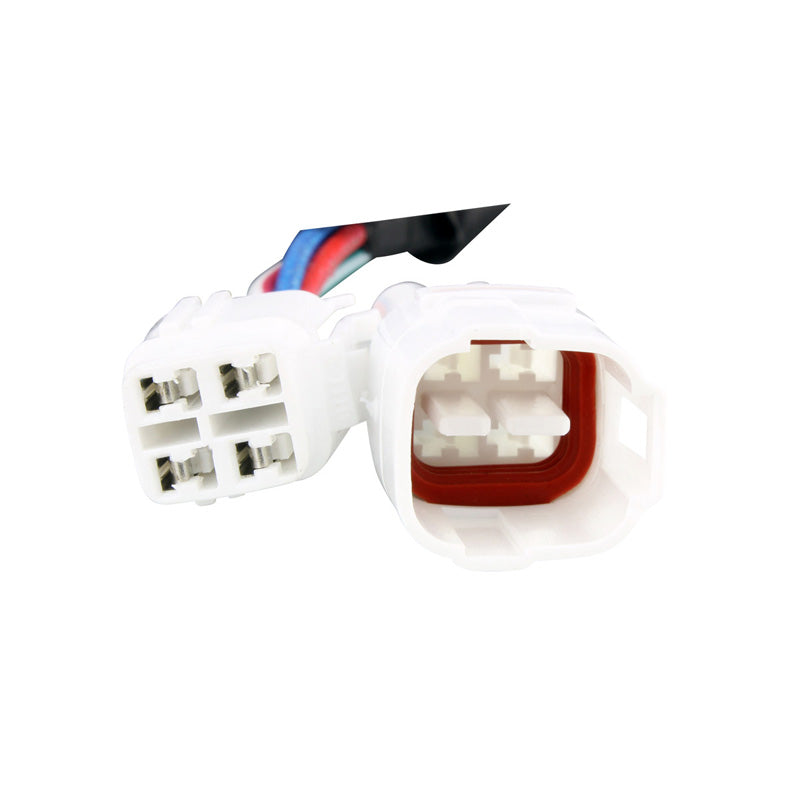

Connectors included

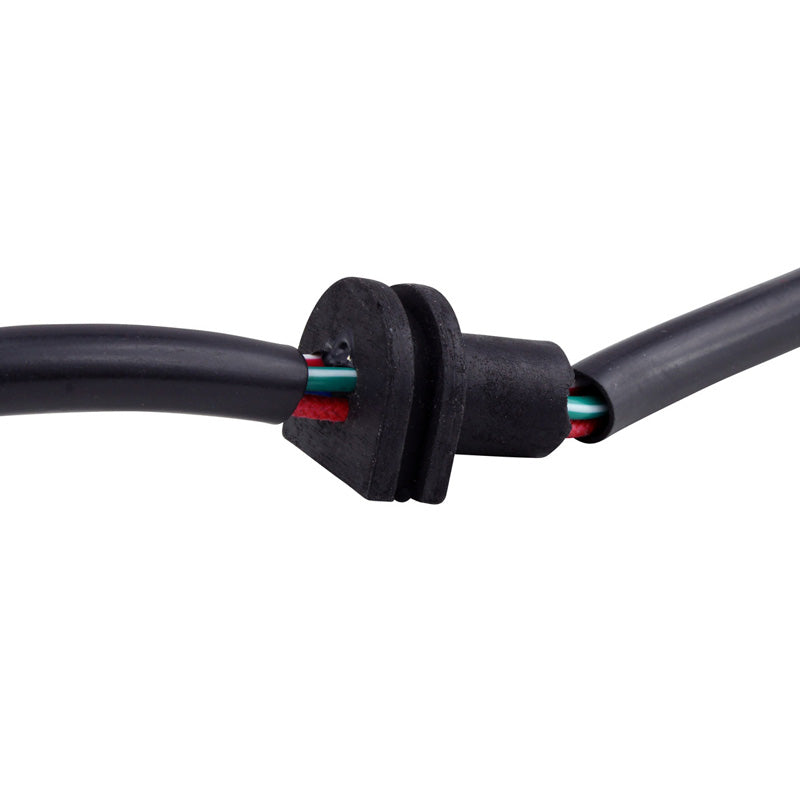

Rubber grommet included

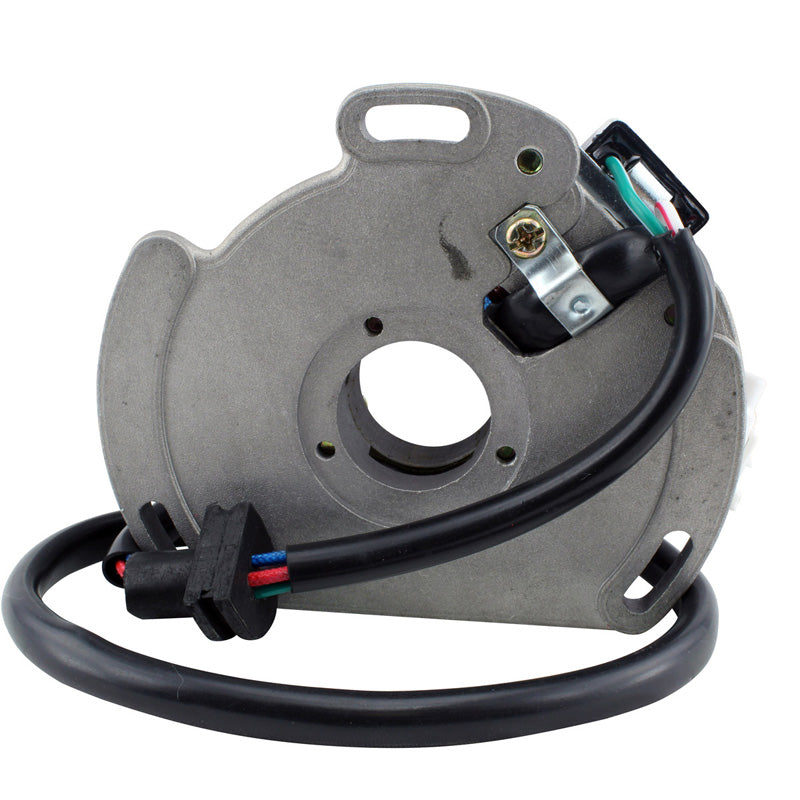

Back Plate included
All products shipped are tested

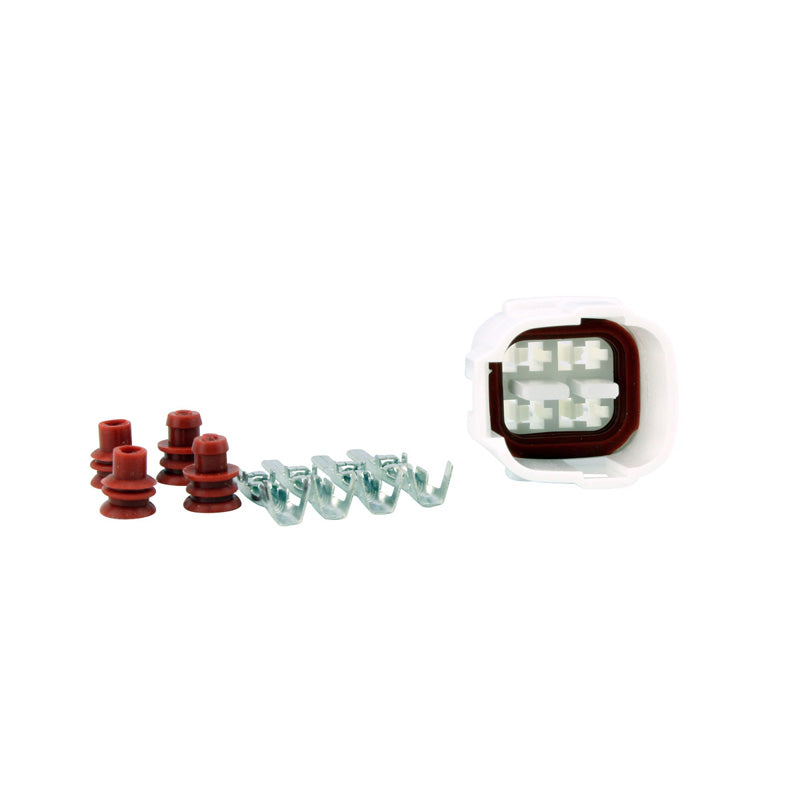

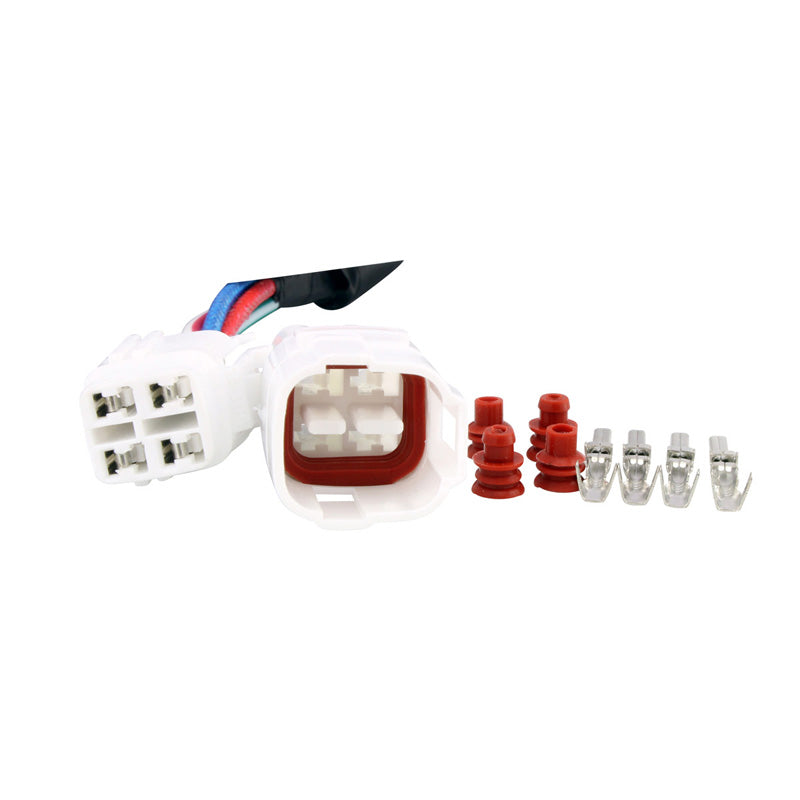

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 28 mm
Exterior diameter : 61 mm
Thickness : 14 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 500 mm
Other specifications :
Number of wires : 4
Number of plugs : 1
Number of pins : 4
Number of poles : 8
Wire to wire resistance :
Source : Red to Blue = 18 ohms +-20%
Pickup : White/Red to White/Green = 100 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
