Highest grade of copper winding, resistant to 200 degrees Celsius
Pick up pulsar coil included

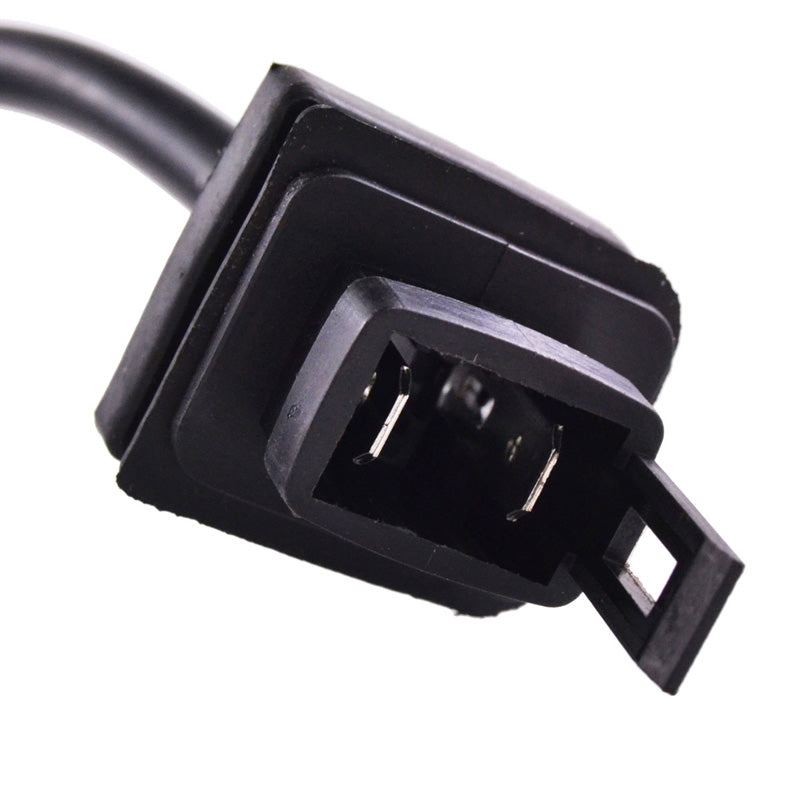

Connector included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 32 mm
Exterior diameter : 82 mm
Thickness : 10 mm
Length of wires stator to plug : 170 mm
Other specifications :
Number of wires : 2
Number of plugs : 1
Number of pins : 2
Wire to wire resistance :
Alternator : Black To Ground = 0.8 ohms +-20%
Pickup : Brown To Ground = 150 ohms +-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
