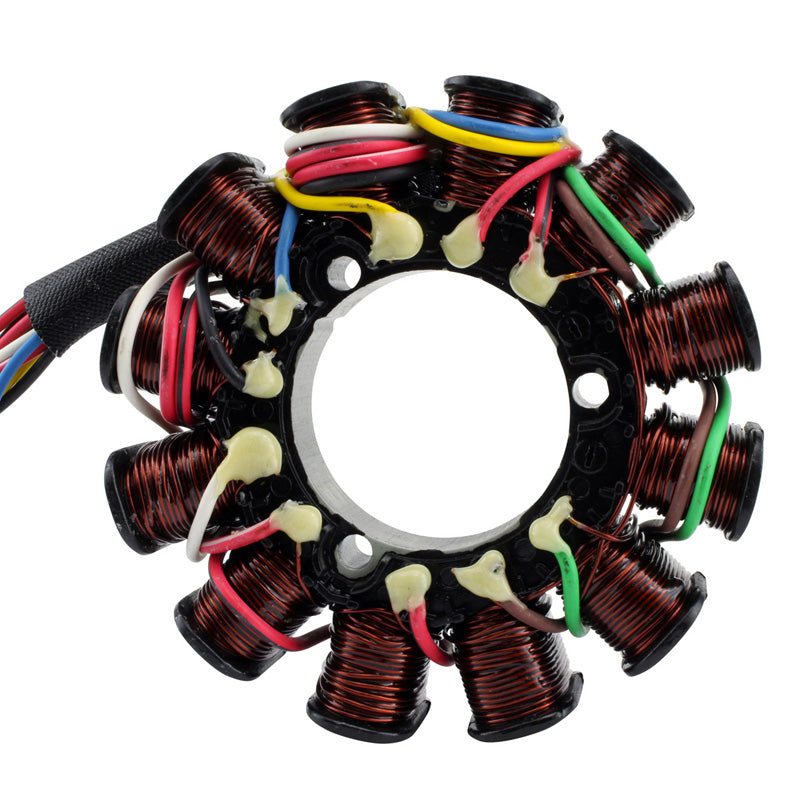

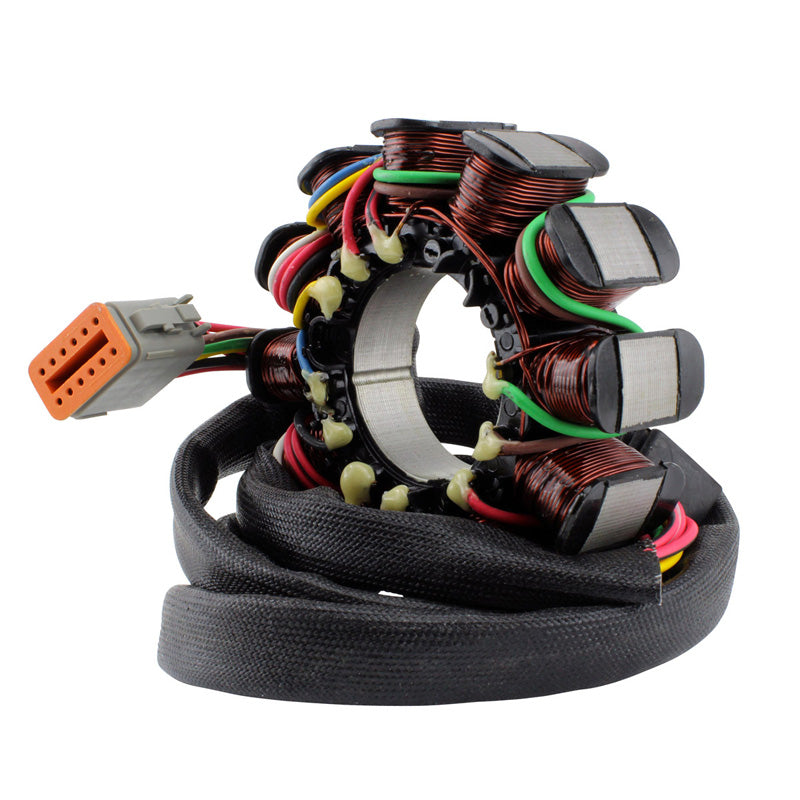

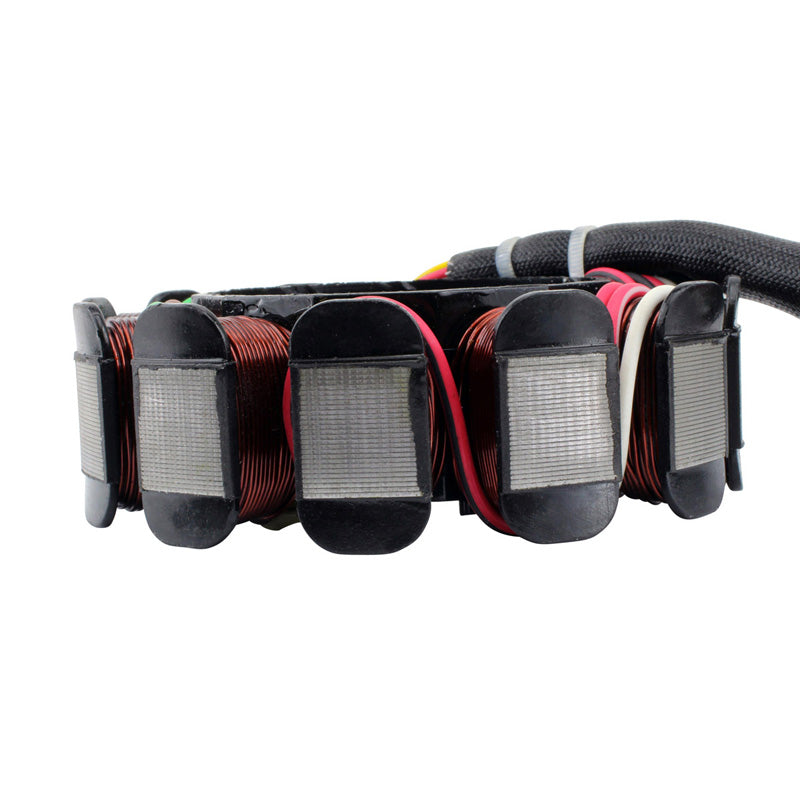

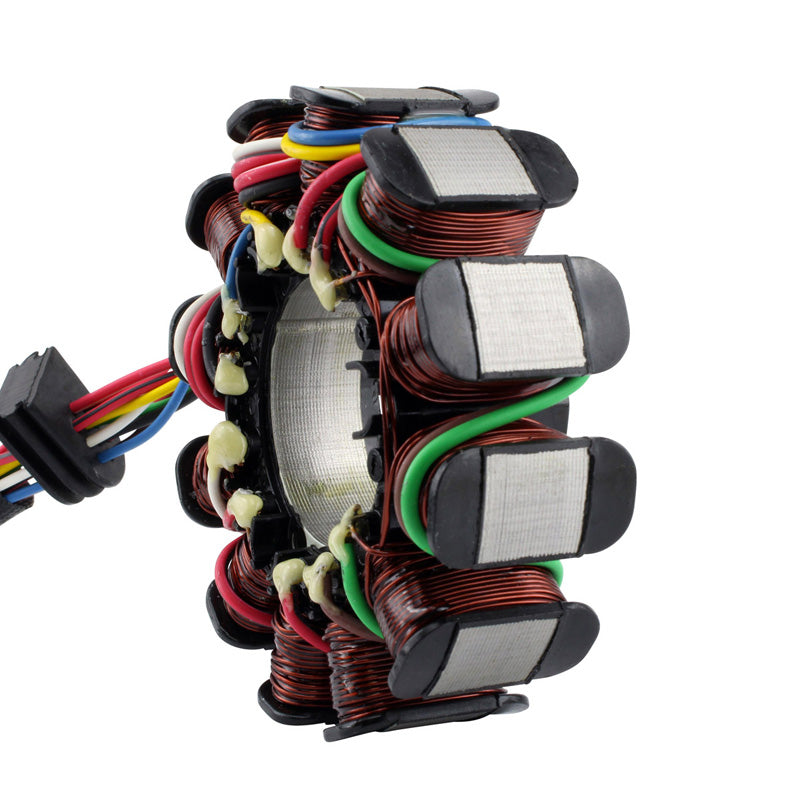

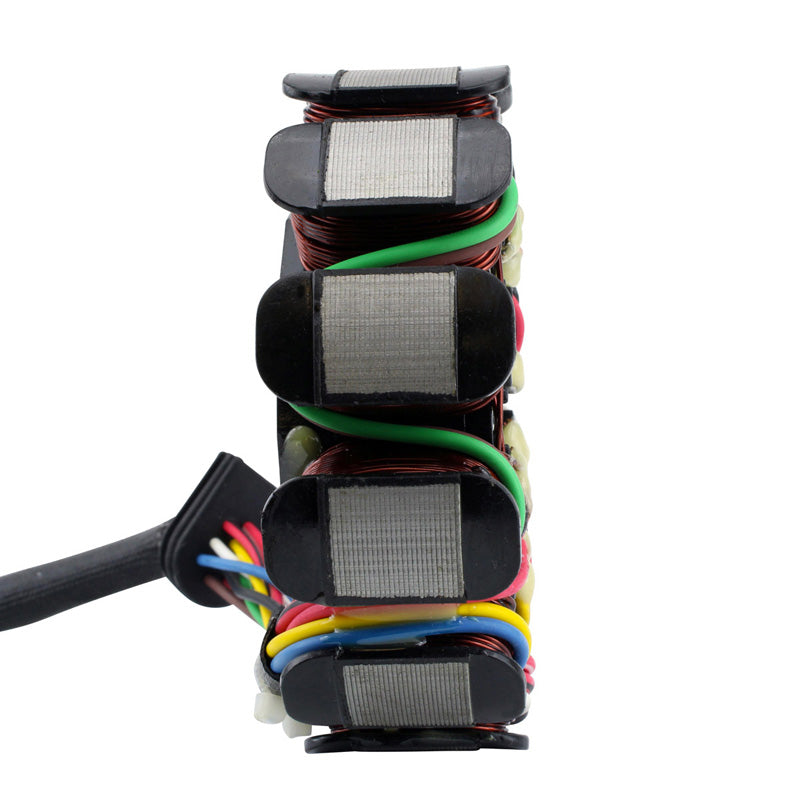

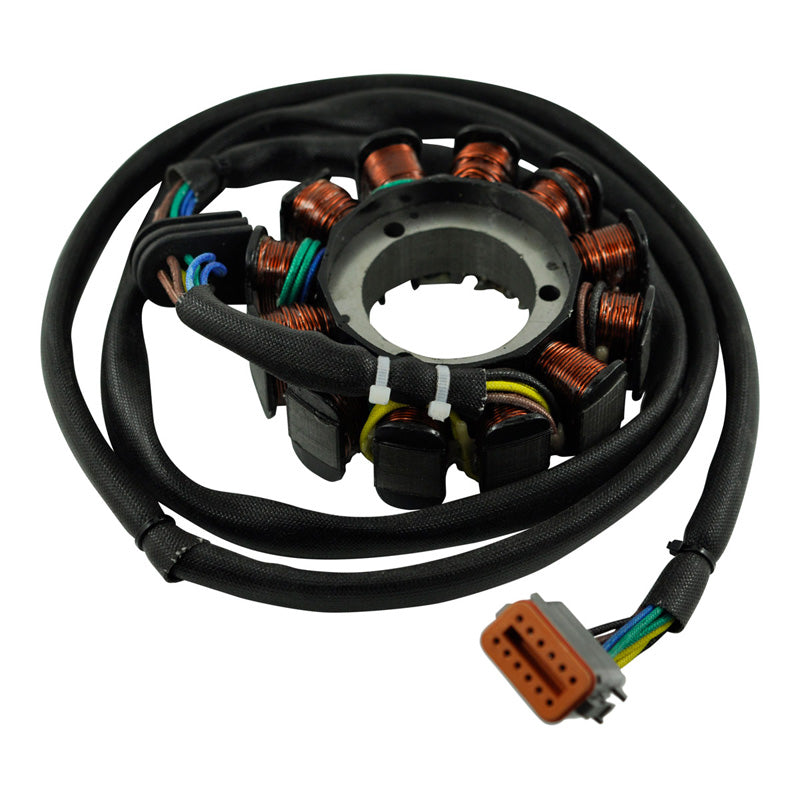

RMS STATOR POL GENESIS|MSX 140|VIRAGE 99-04 RM01507

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials

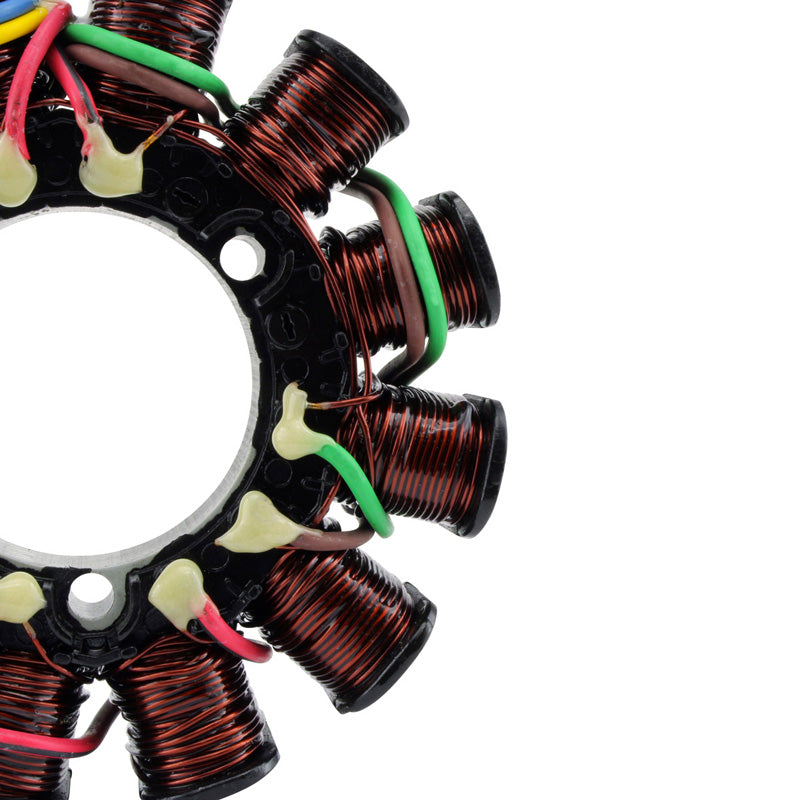

• Highest grade of copper winding, resistant to 200 degrees Celsius

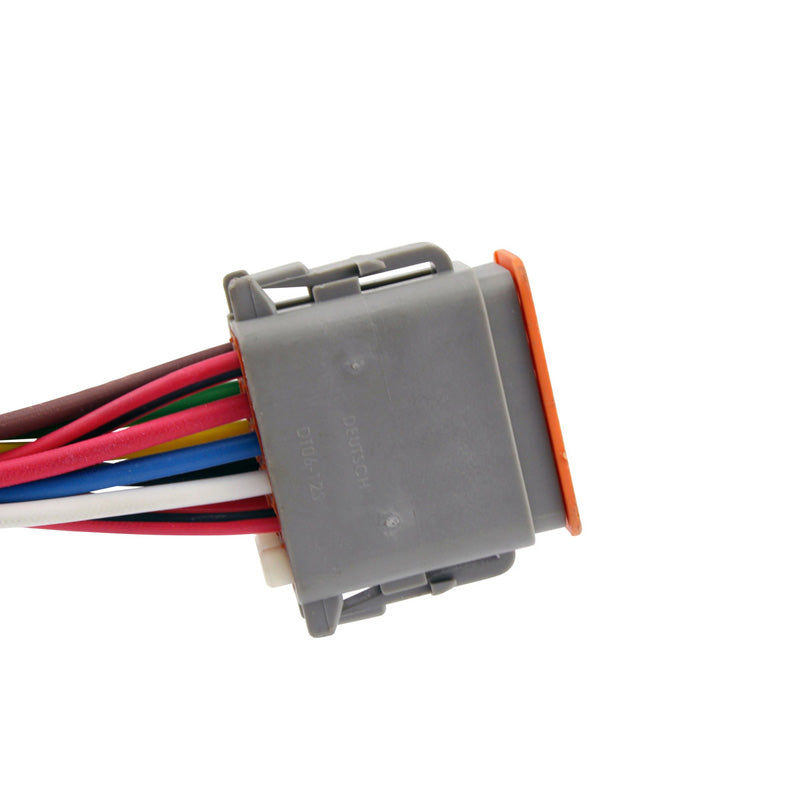

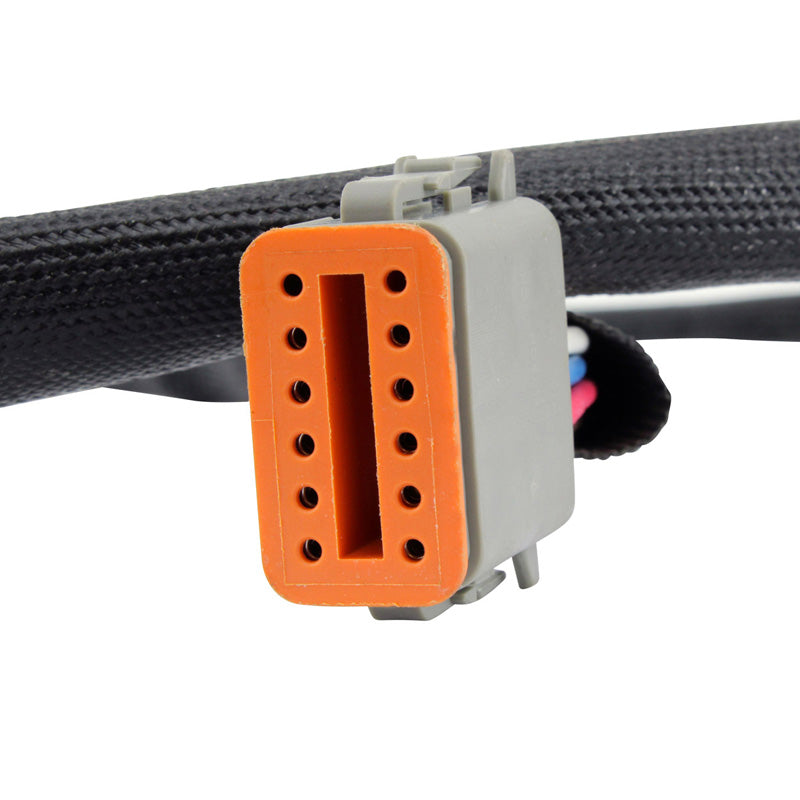

• Connector included

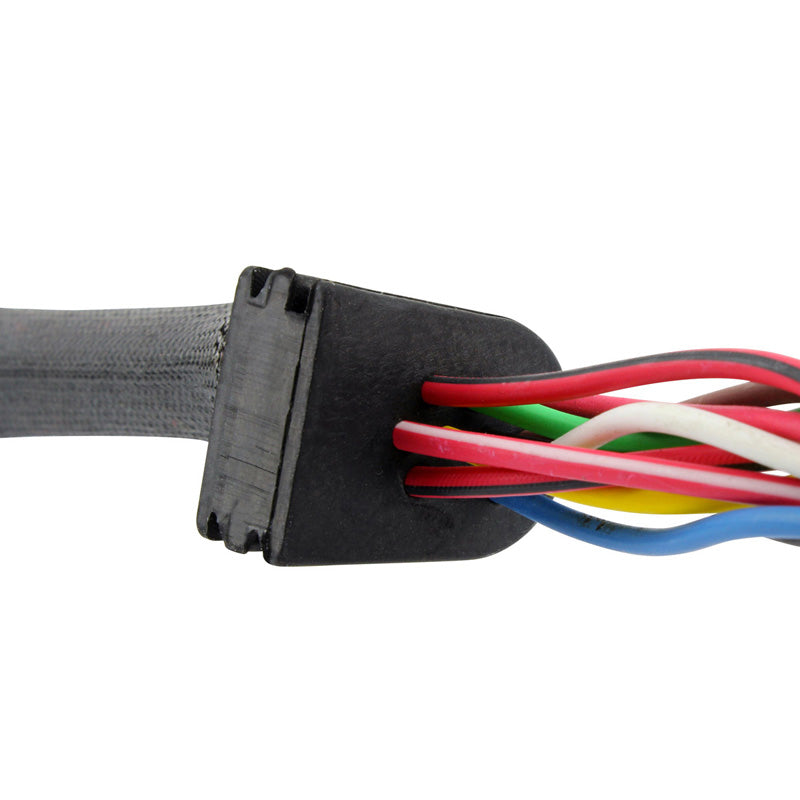

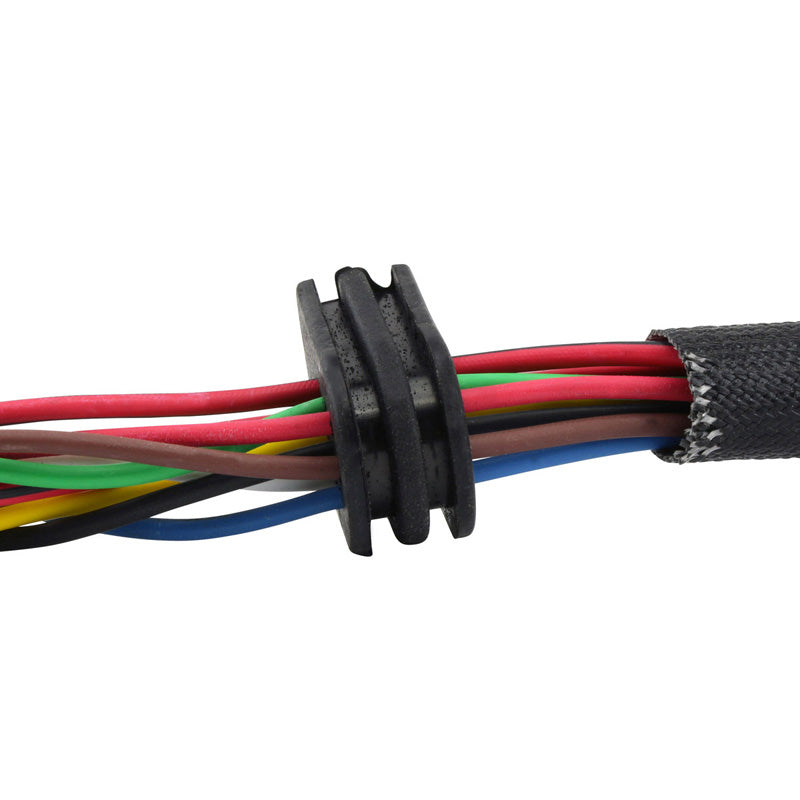

• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 127 mm
Thickness : 22 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 1800 mm

Other specifications :
Number of wires : 10
Number of plugs : 1

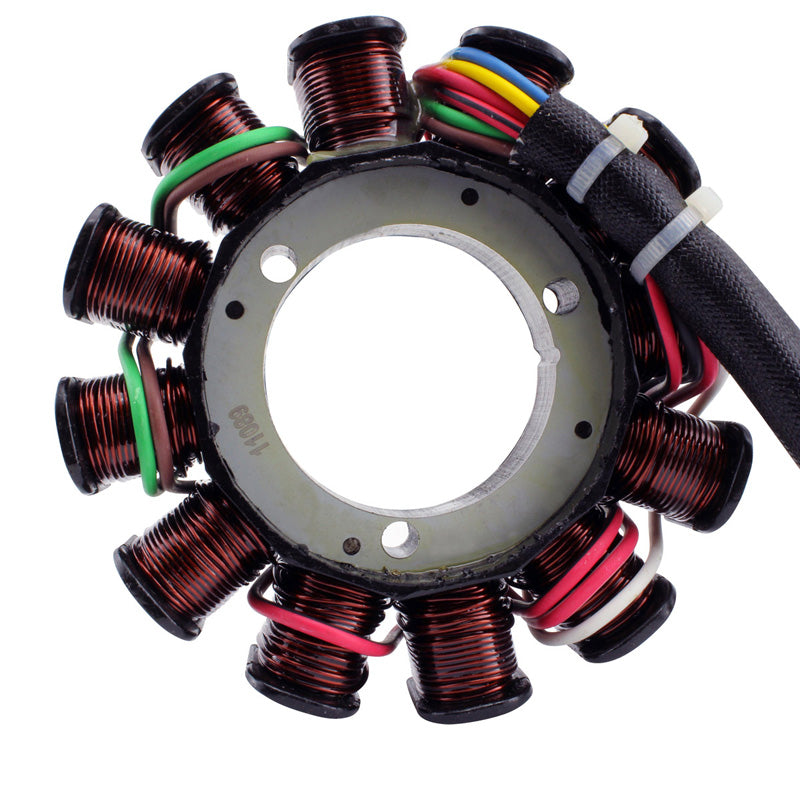

Number of poles : 12
Number of pins : 10

Wire to wire resistance :
Alternator 3p : Yellow/Green to Yellow/Gray = 1.2 ohms +-20%
Alternator : Yellow/Purple to Yellow/Black = 0.8 ohms +-20%
Alternator : Yellow/Blue to Yellow = 0.8 ohms +-20%
Alternator : Yellow/Black to Brown/Yellow = 0.9 ohms +-20%
Alternator : Brown/White to Brown = 0.9 ohms +-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
