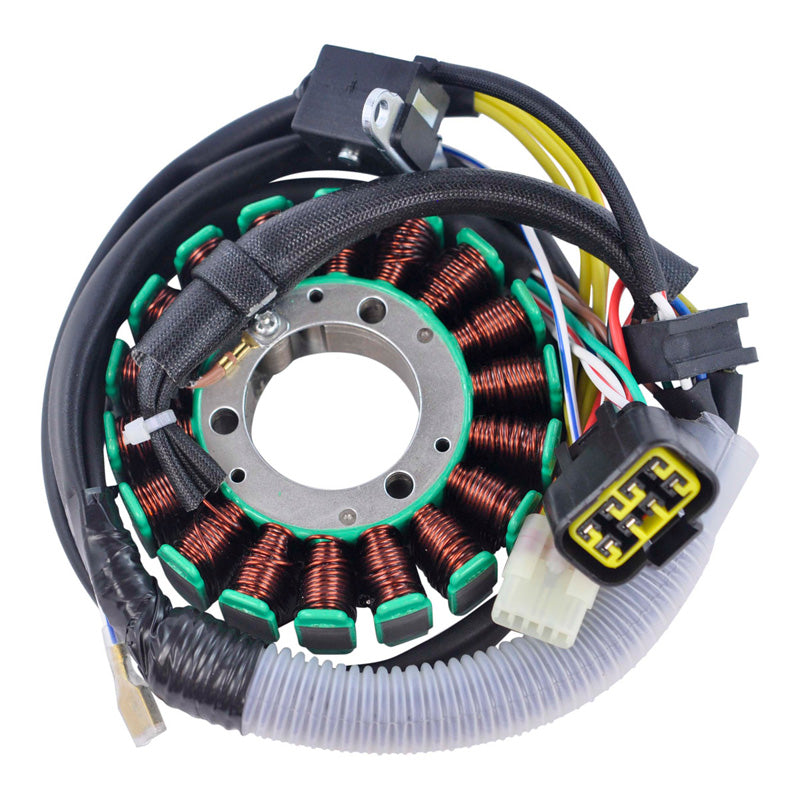

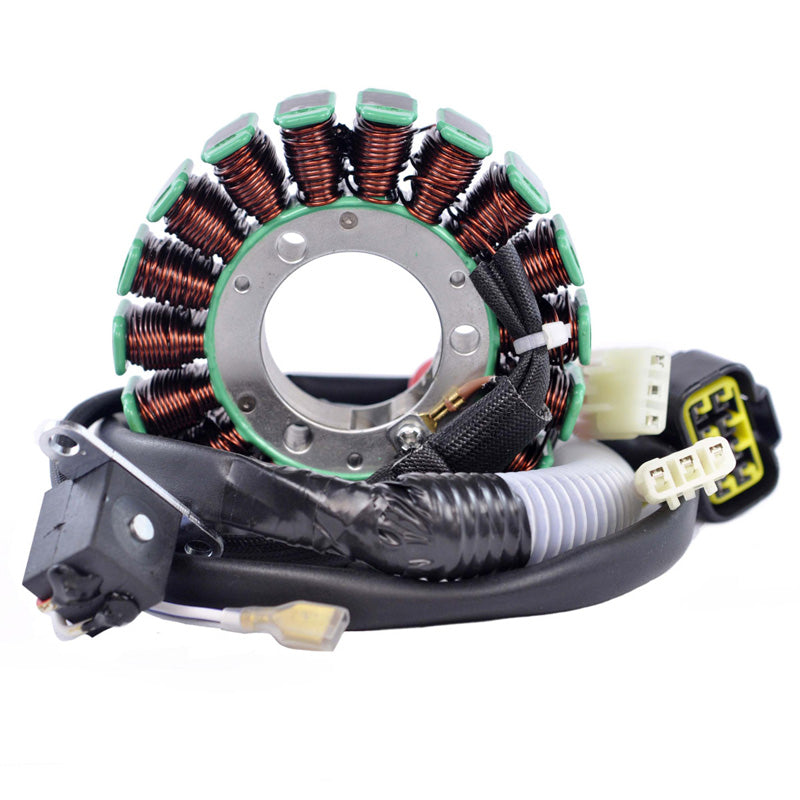

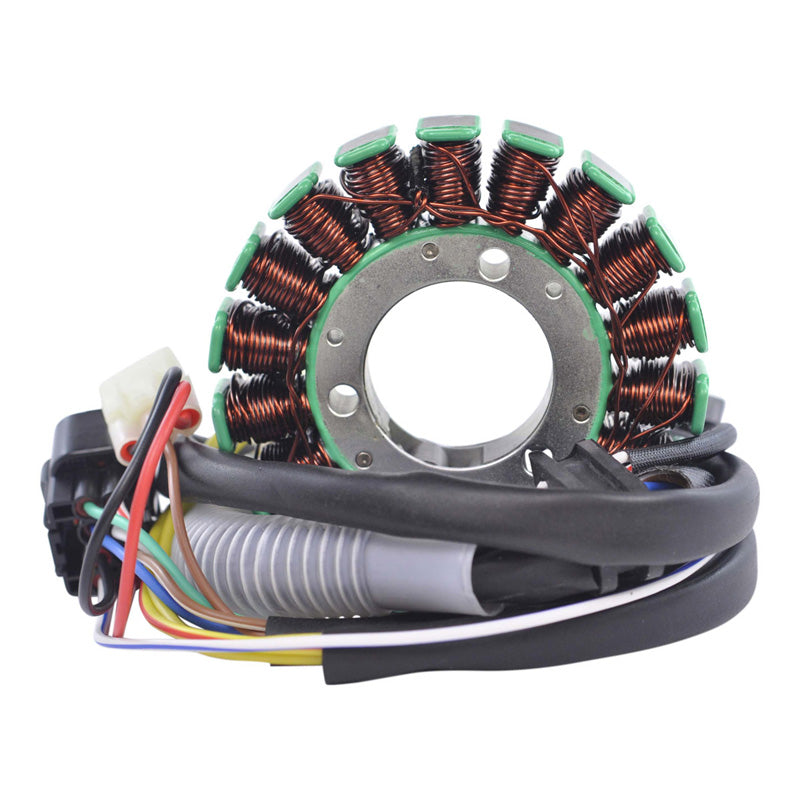

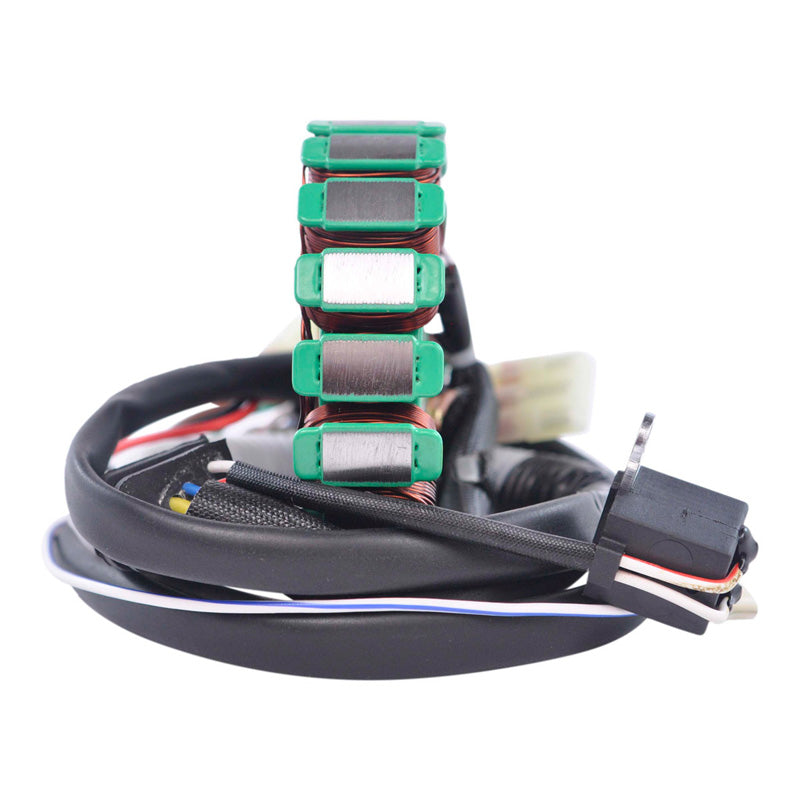

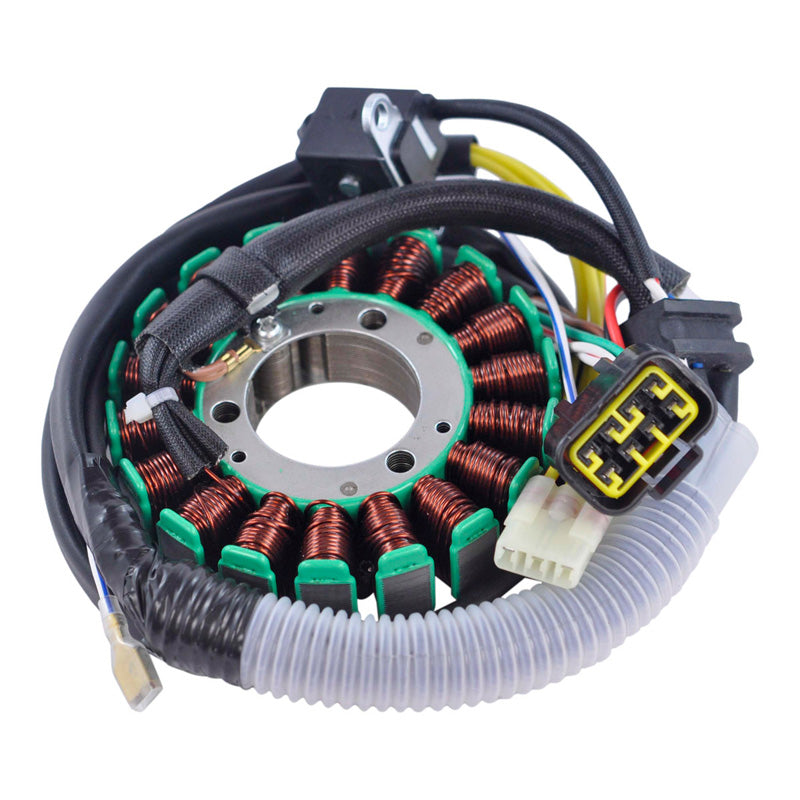

Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

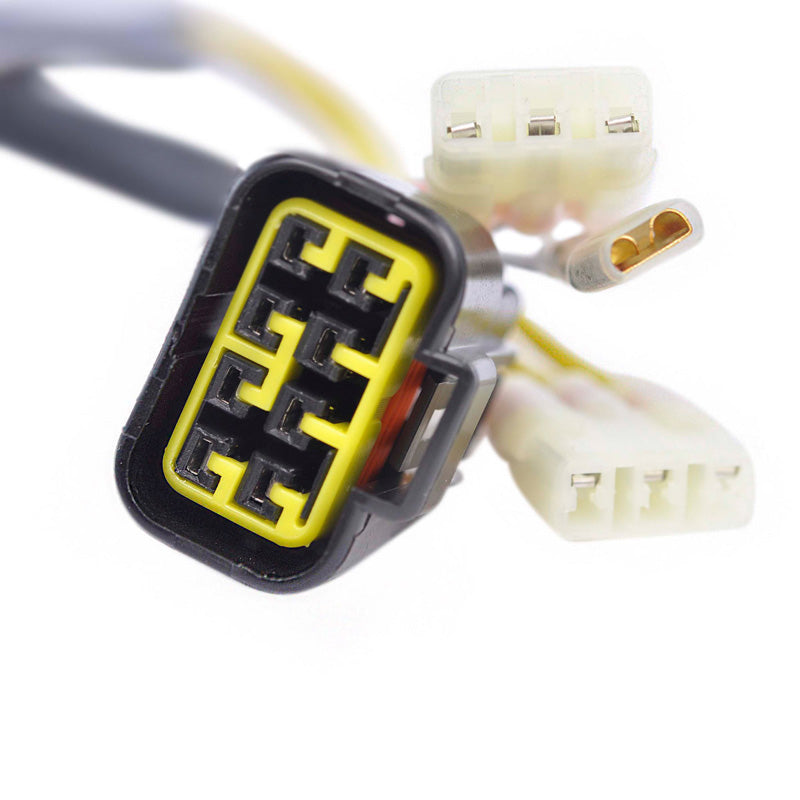

Connector included.
Rubber grommet included.
All products shipped are tested.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 93 mm
Thickness: 18 mm
Length of wires stator to grommet: 150 mm
Length of wires grommet to plug: 750 mm and 400 mm and 600 mm
Length of pickup coil's wire to grommet: 115 mm
Other specifications:
Number of wires: 9
Number of plugs: 4
Number of pins: 14
Wire to wire resistance:
Alternator: Yellow between each Yellow = 0.4 ohms +/-20%
Pickup: White to White/Red = 200 ohms +/-20%
Source: Green to Blue = 0.4 ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
