Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included

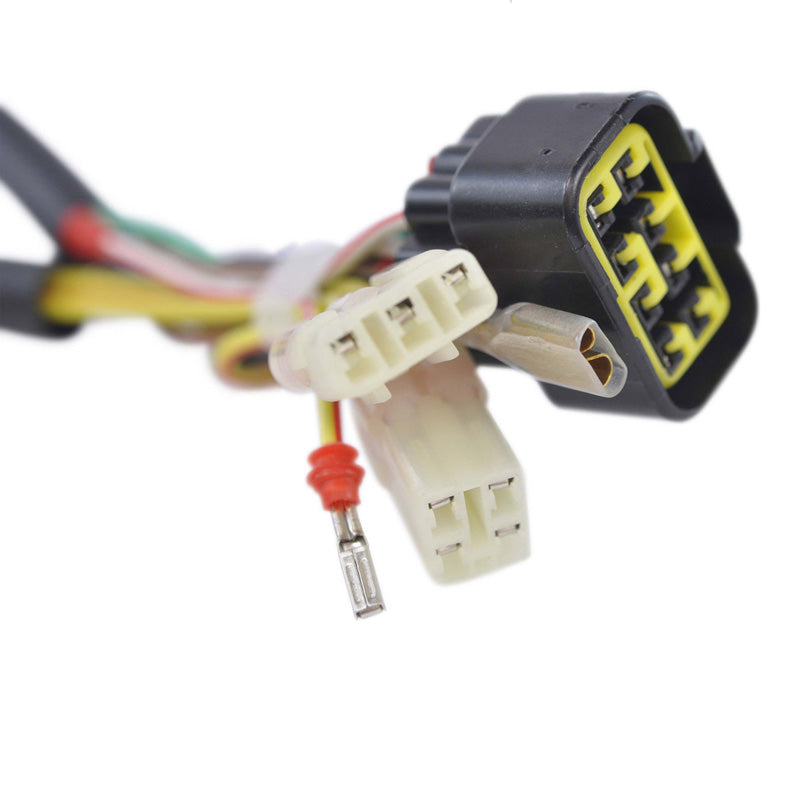

Connector included
Rubber grommet included
All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Alternator : Yellow to Yellow/Red = 1.3 ohms +/- 20%
Pick up : White to White/Red = 200 ohms +/- 20%
Position sensor : Blue to Green = 3.5 ohms +/- 20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
