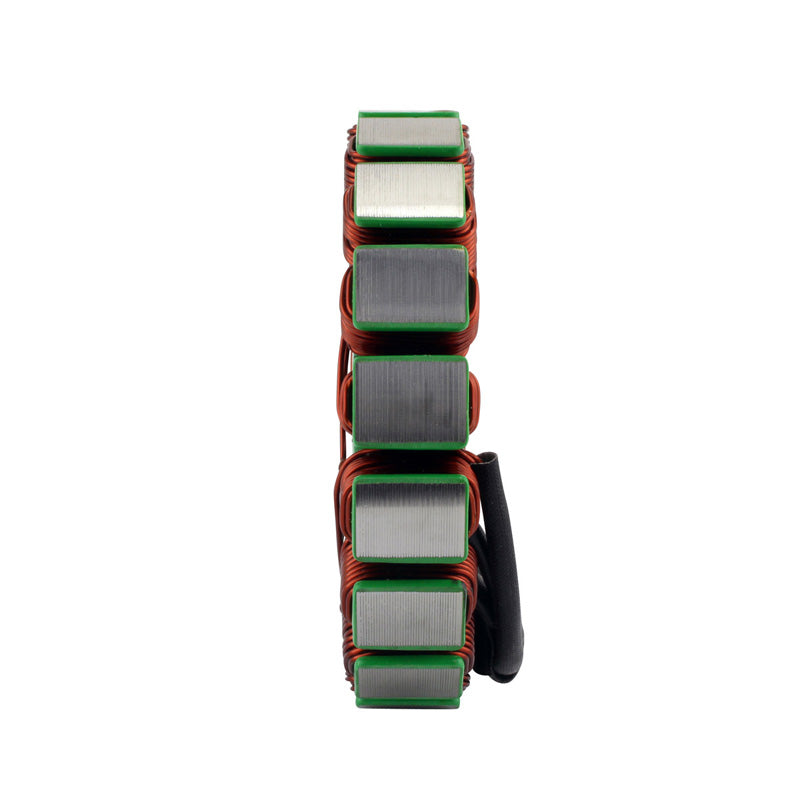

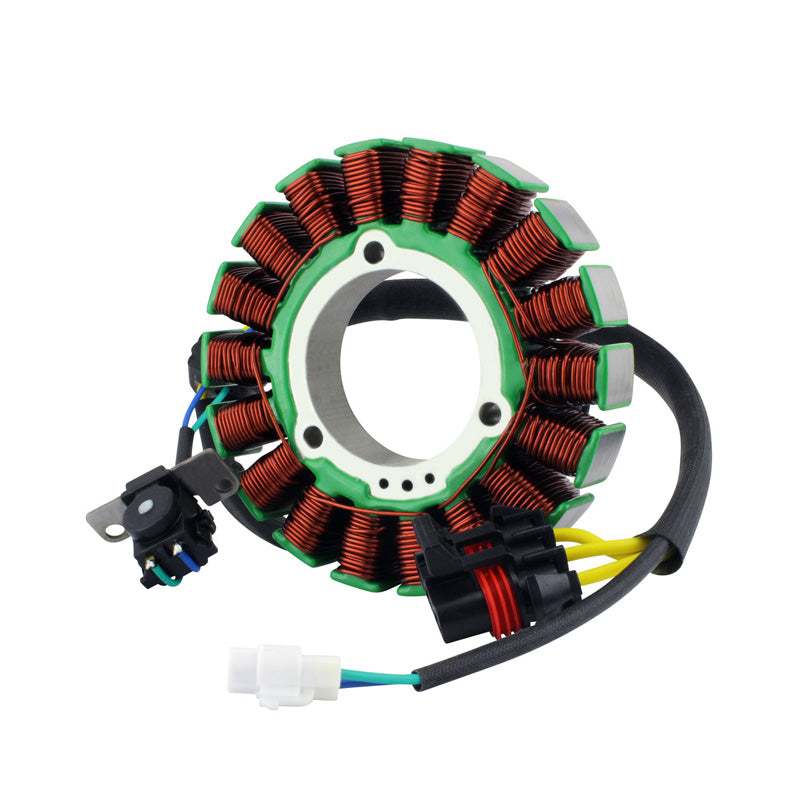

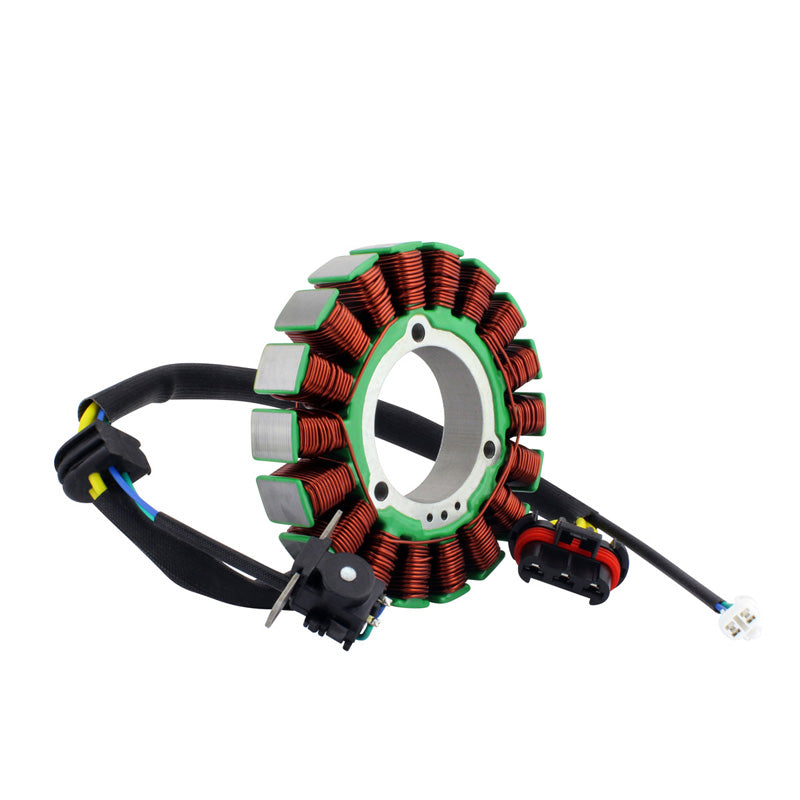

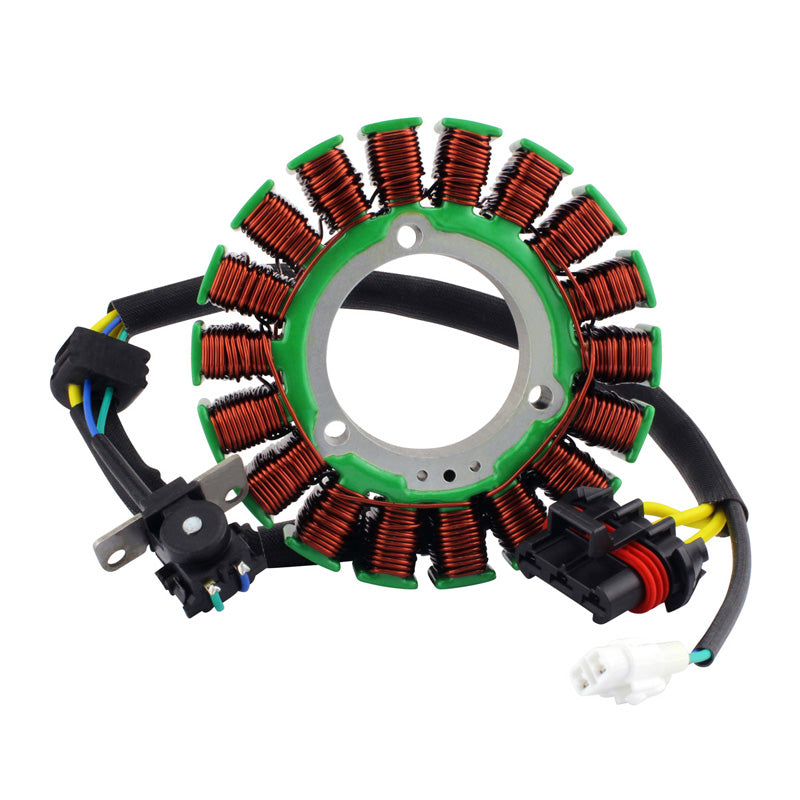

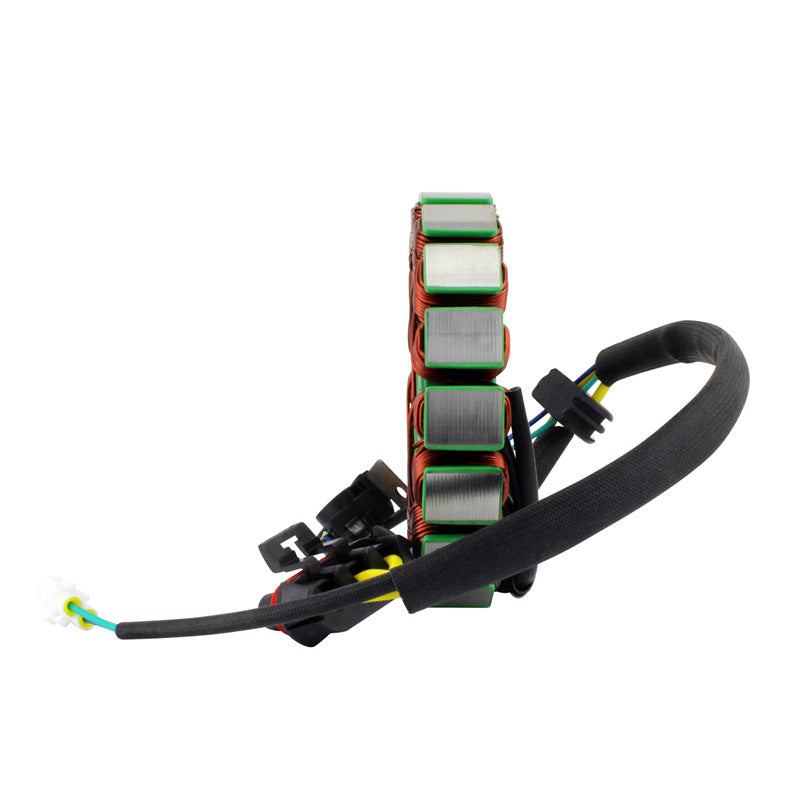

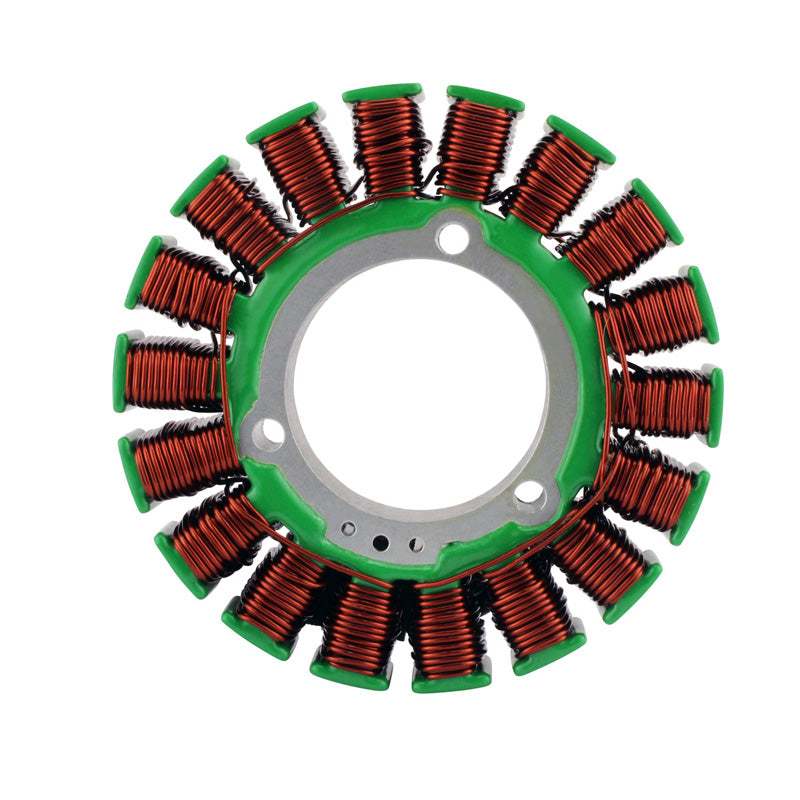

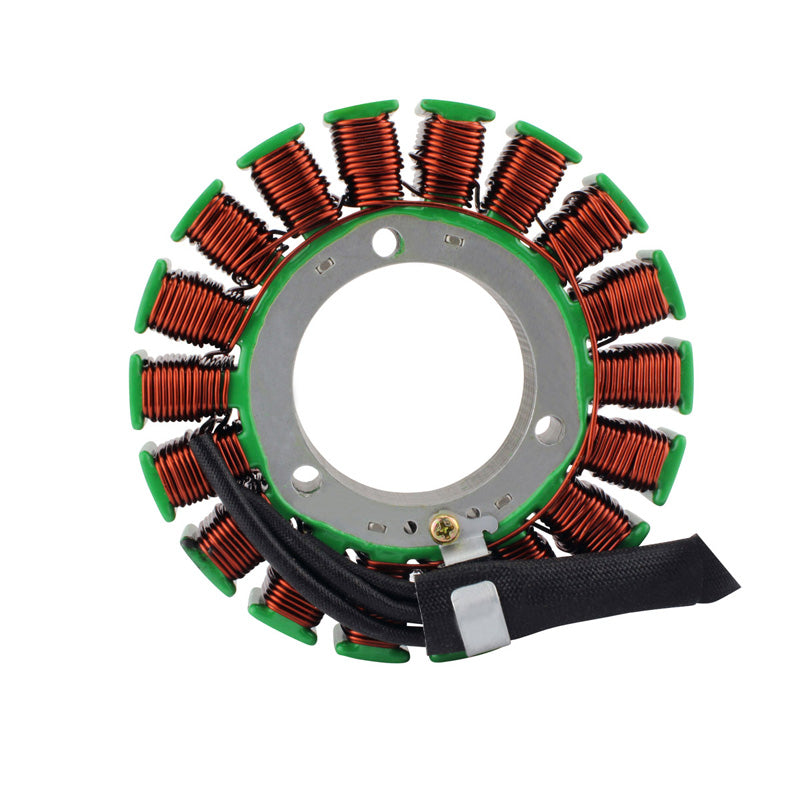

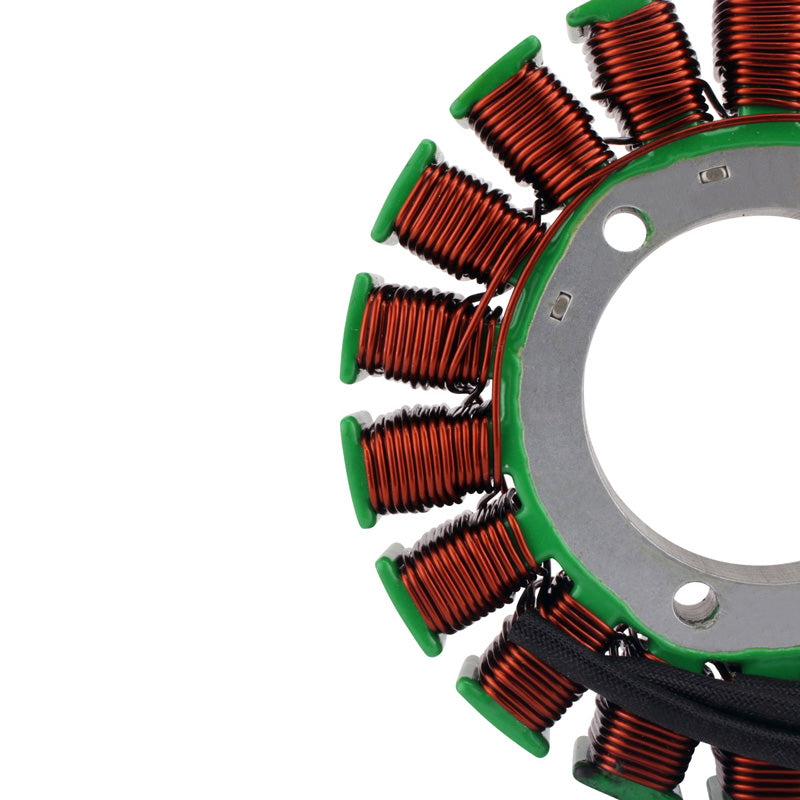

RMS STATOR POL SPORTSMAN|RANGER 450-570 21-23 RMS010-107775

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

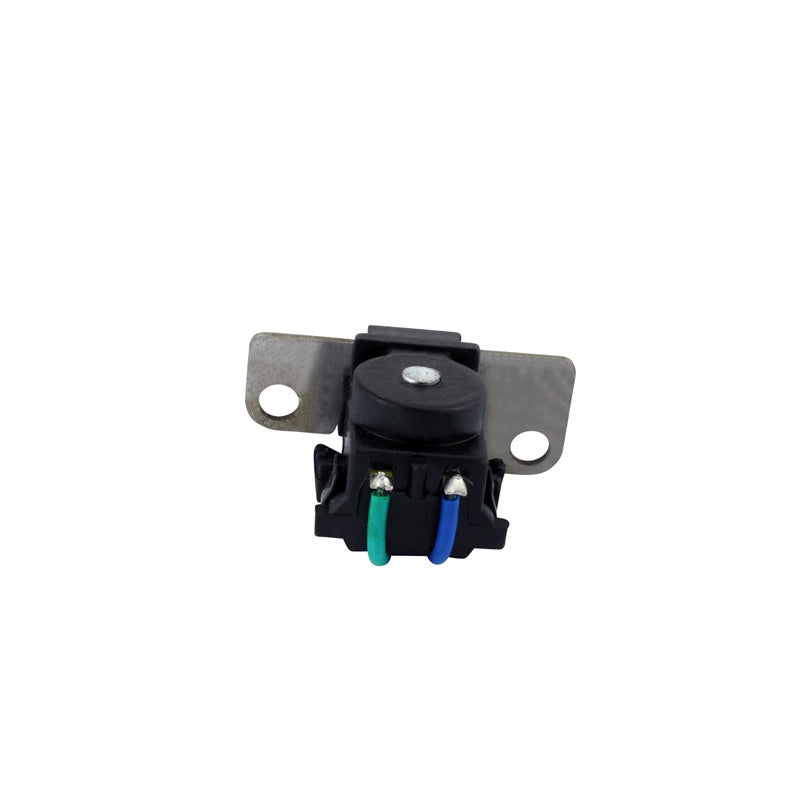

• Pick up pulsar coil included

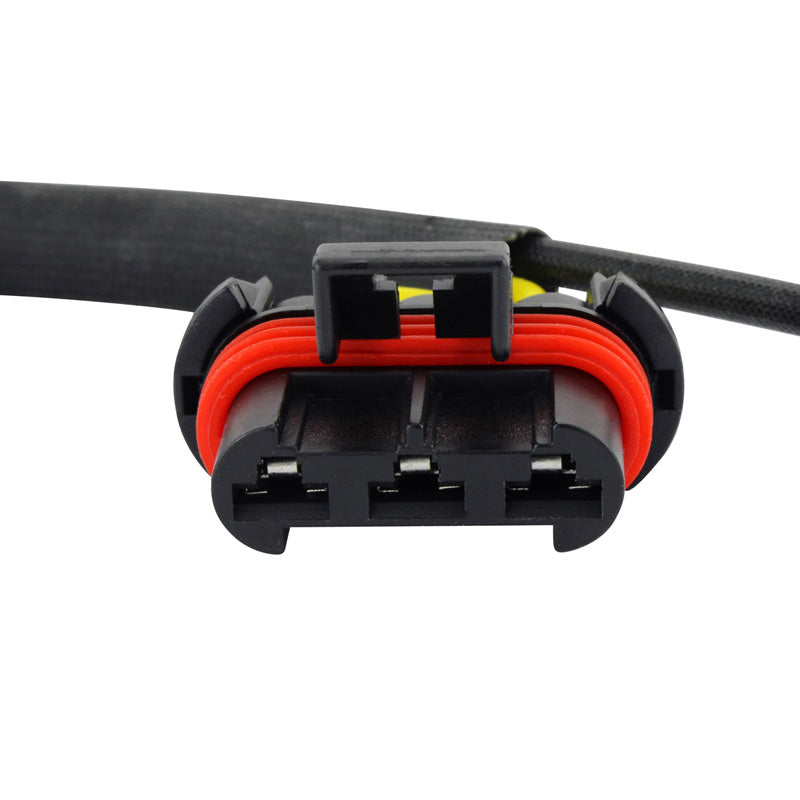

• Connectors included

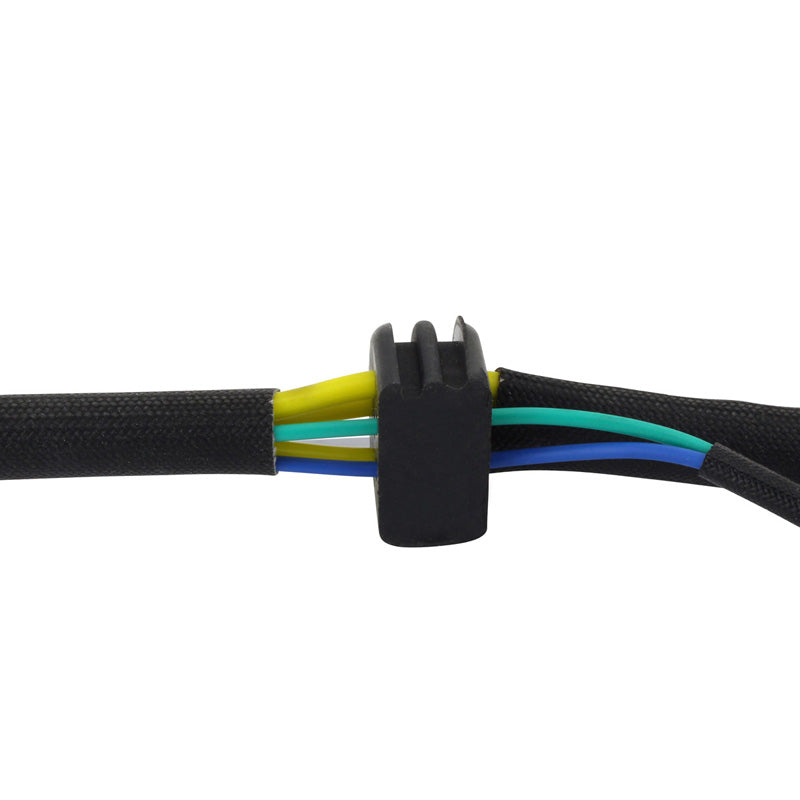

• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 126 mm
Thickness: 20 mm
Length of wires stator to grommet: 130 mm
Length of wires grommet to plug: 365 mm
Length of pickup coil's wire to grommet: 70 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Pickup: = 125 ohms +-20%
Source: =0.4 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
