RMS STATOR + REGULATOR KTM DUKE 125 200 11-21 RMS900-108897

RMS STATOR + REGULATOR KTM DUKE 125 200 11-21 RMS900-108897

Brand new aftermarket Stator + Voltage Regulator Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included

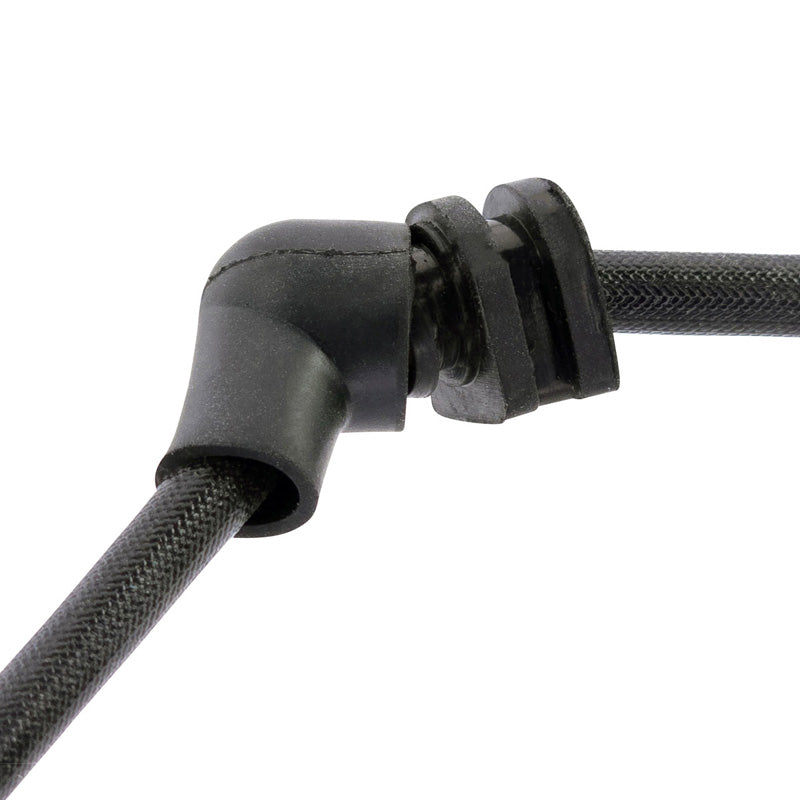

• Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Voltage Regulator Rectifier

• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Instructions:

Before installing your new Stator + Voltage Regulator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.

Specifications:

Stator:

Dimensions:
Interior diameter: 35 mm
Exterior diameter: 92 mm
Thickness: 20 mm
Length of wires stator to grommet: 200 mm
Length of wires grommet to plug: 420 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.8 ohms +/-20%
Alternator: Yellow to ground = O.L

Voltage Regulator:

Dimensions:
Width: 89 mm
Length: 83 mm
Height: 28 mm
Stator Wire length: 730 mm
Battery Wire Length: 100 mm & 200 mm
Distance between fixation holes center to center: 70 mm

Other specifications:
Number of plugs: 3
Number of pins: 6
Number of wires: 6
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20 °C to 85 °C

Warning:

Battery condition is extremely important. No stator or voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
