Highest grade copper windings, resistant to 200 degrees Celsius.

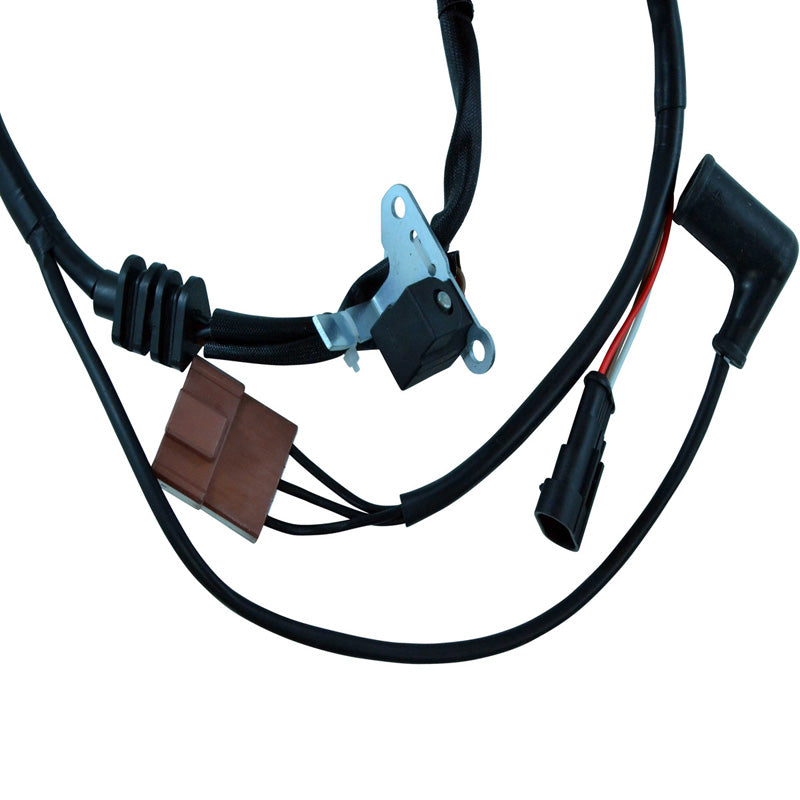

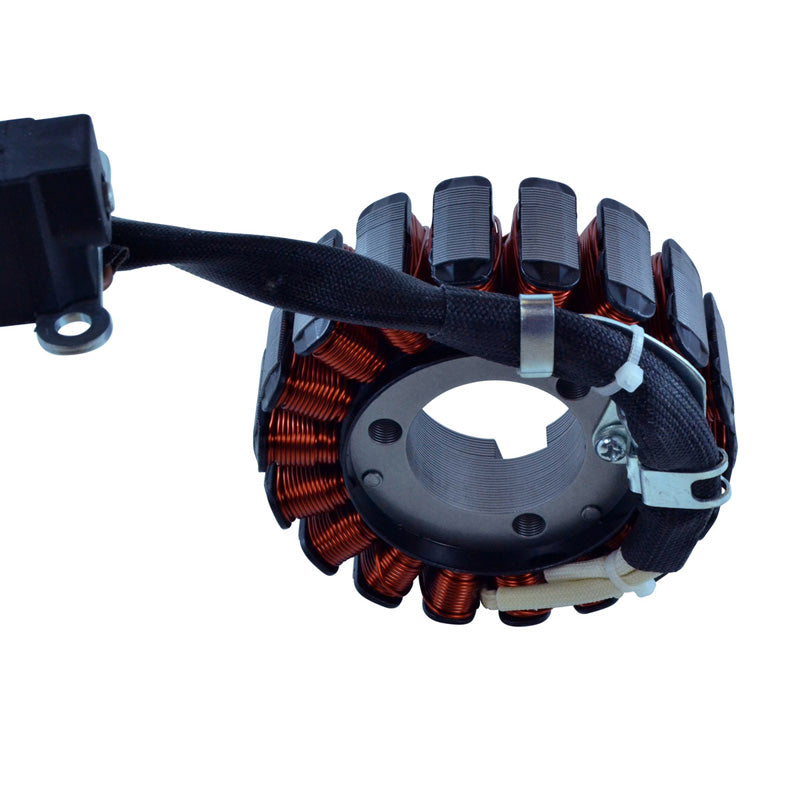

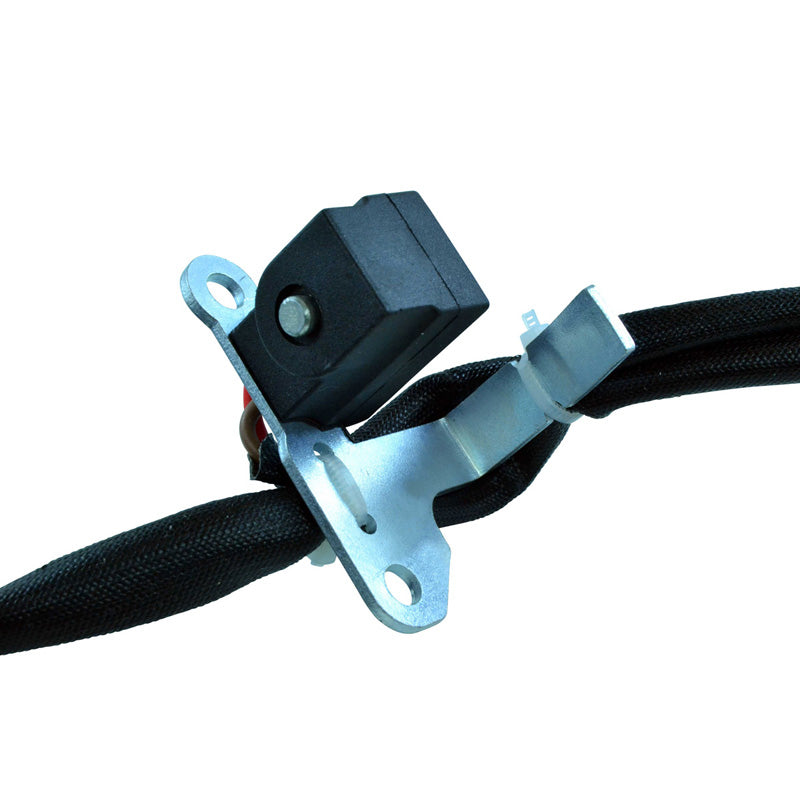

Pick up pulsar coil included

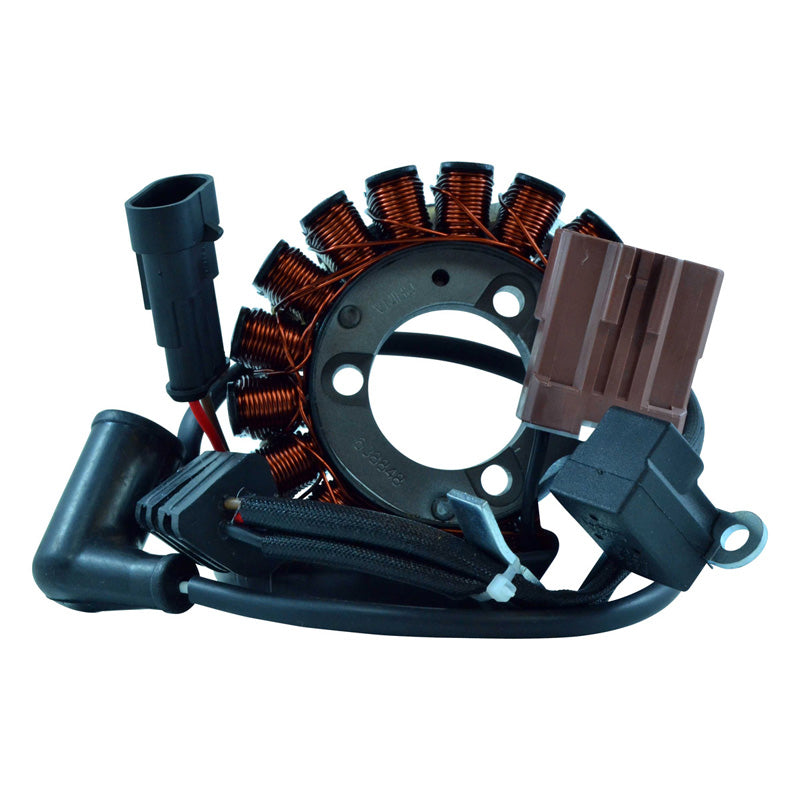

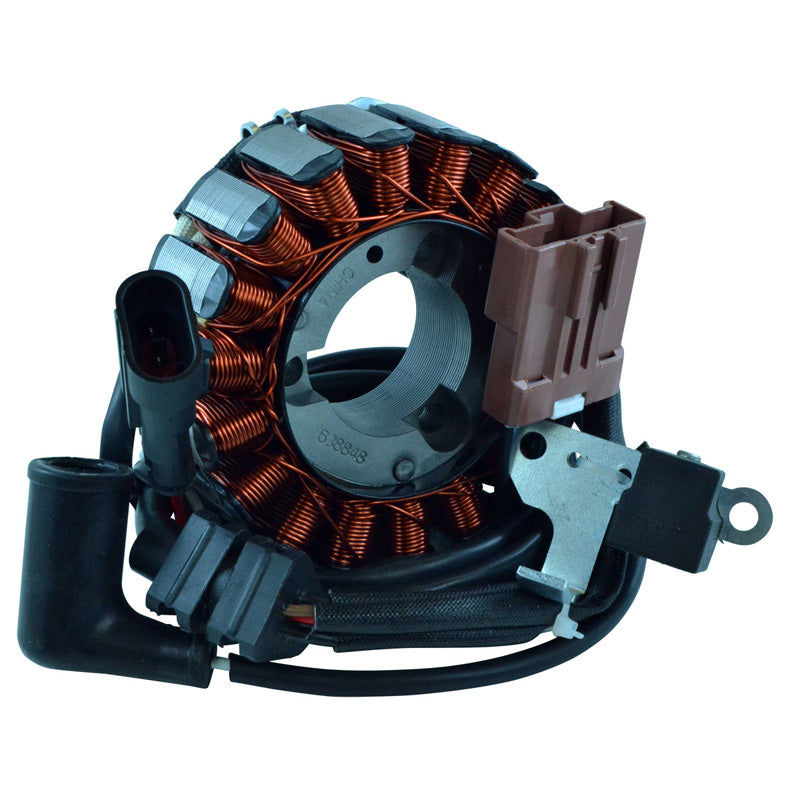

Connector included

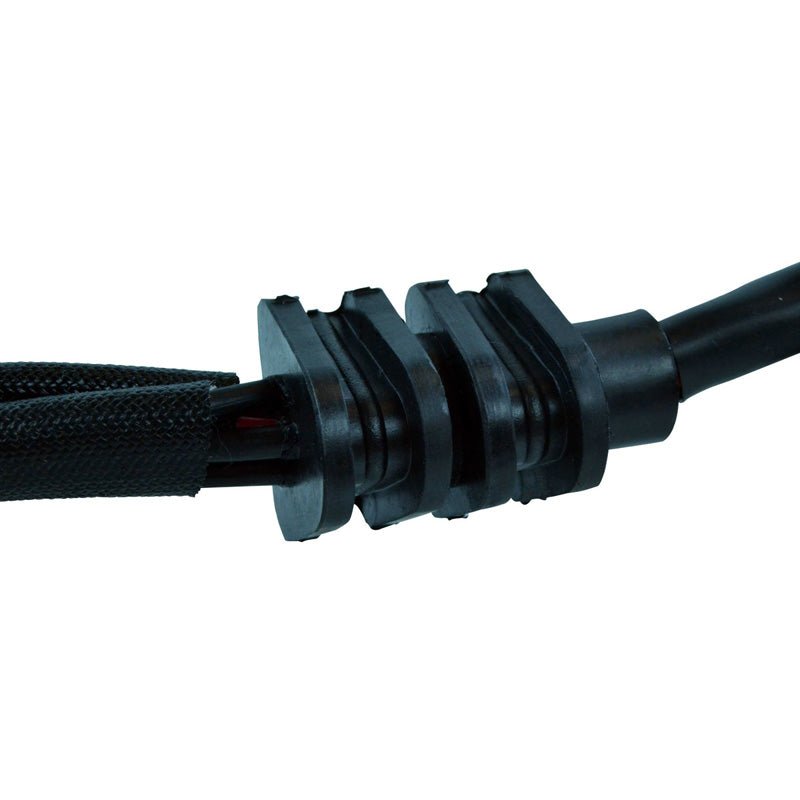

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 36 mm
Exterior diameter : 95 mm

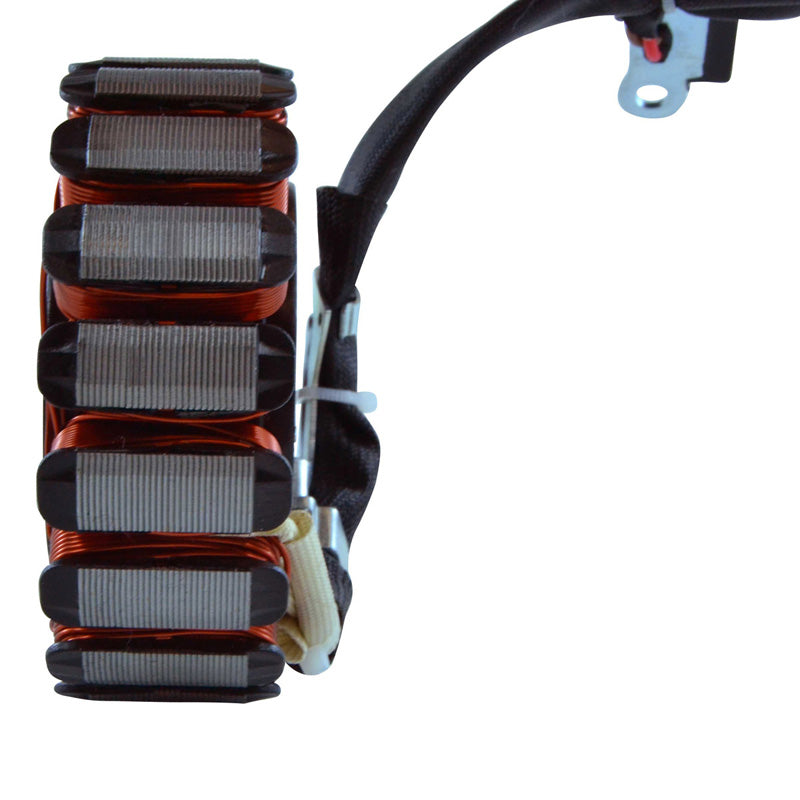

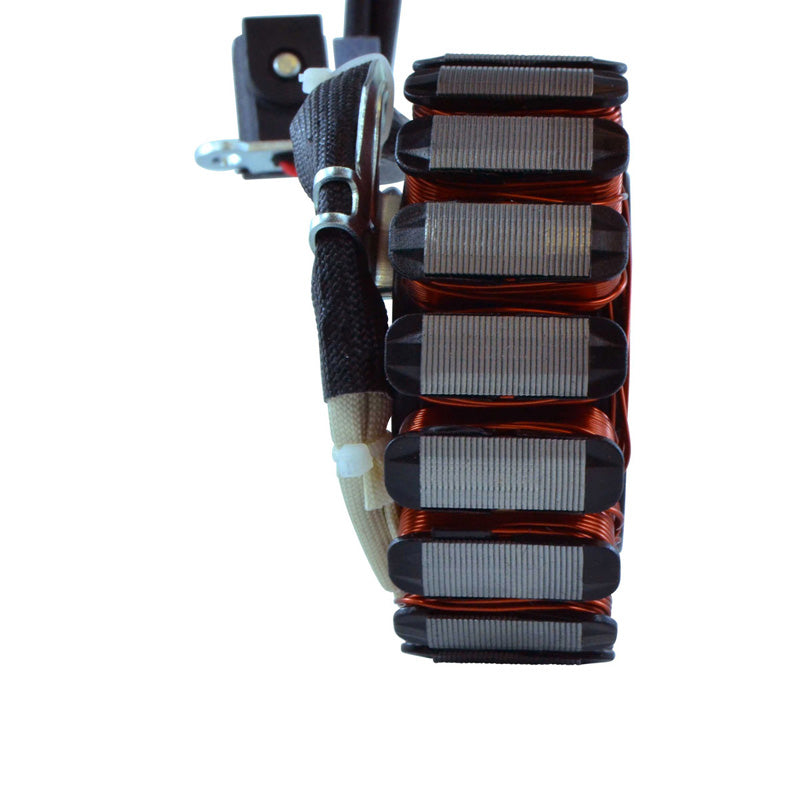

Thickness : 32 mm
Length of wires stator to grommet : 165 mm
Length of wires grommet to plug : 585 mm / 780 mm
Length of pickup coil's wire to grommet : 88 mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6

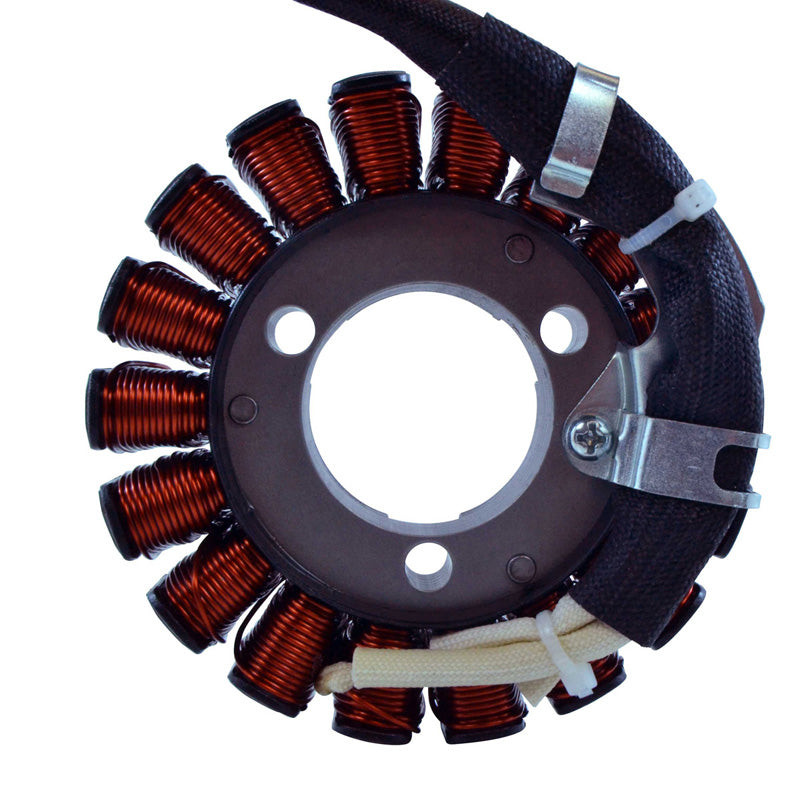

Number of poles : 18
Wire to wire resistance :
Alternator :Yellow between each Yellow = 0.4 ohms +-20%
Pickup : Green/White to Yellow/White = 125 ohms +-20%
Source : Black/Red to Ground = 210 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
