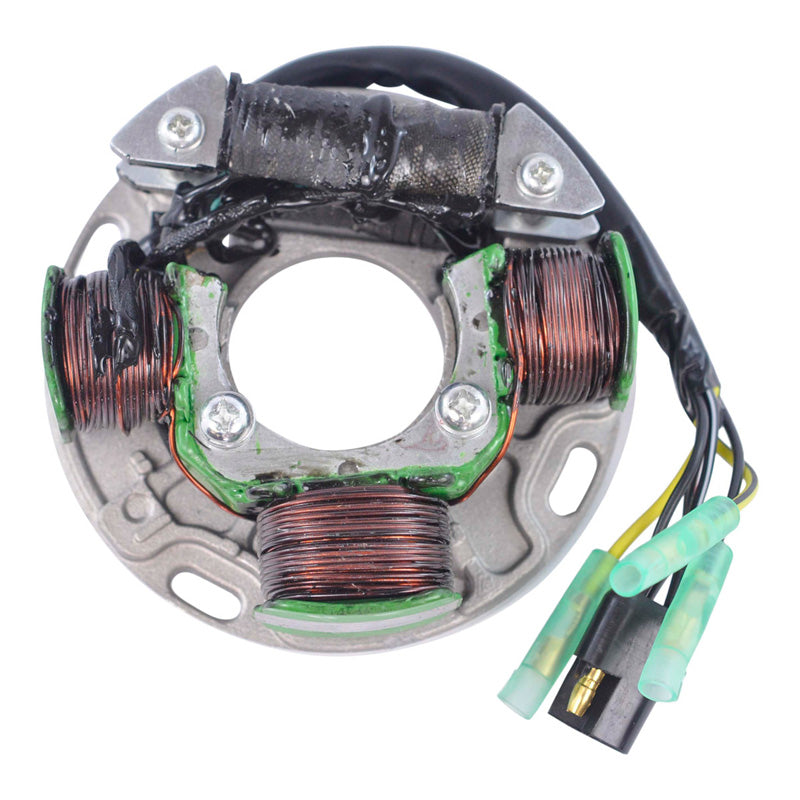

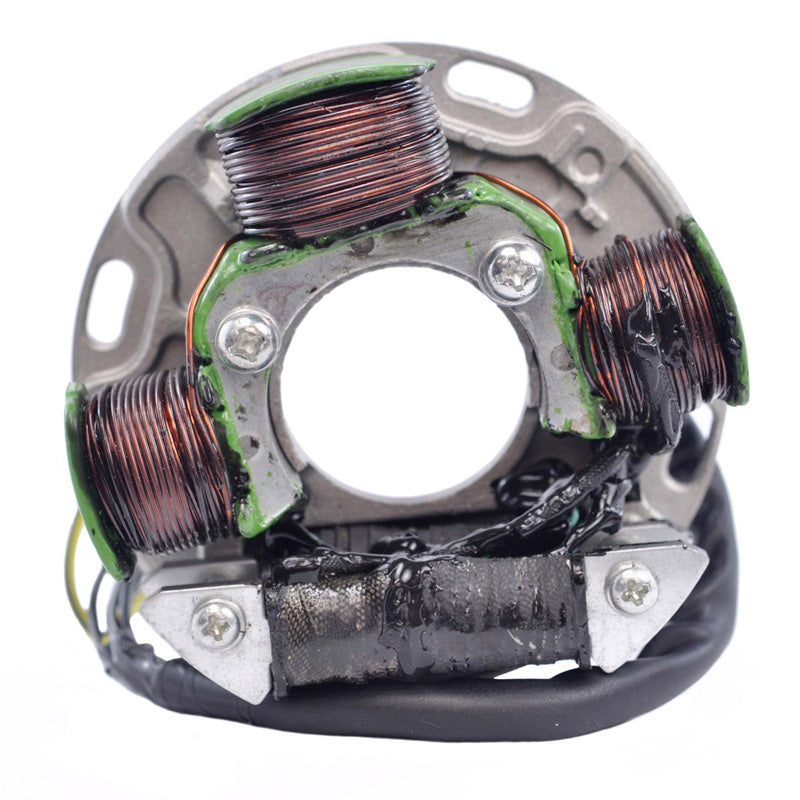

Highest grade copper windings, resistant to 200 degrees Celsius.

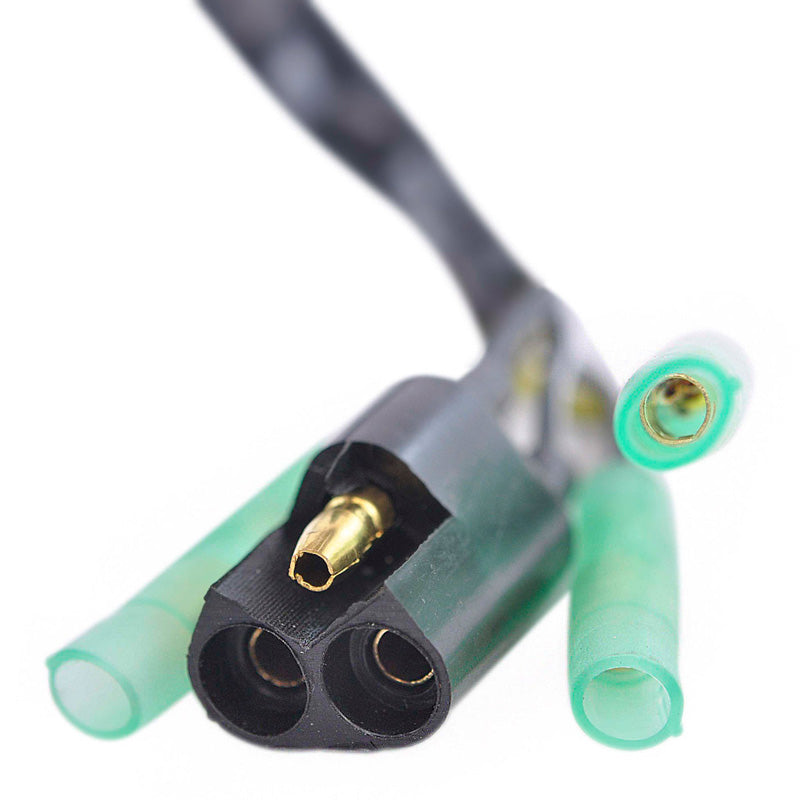

Connector included

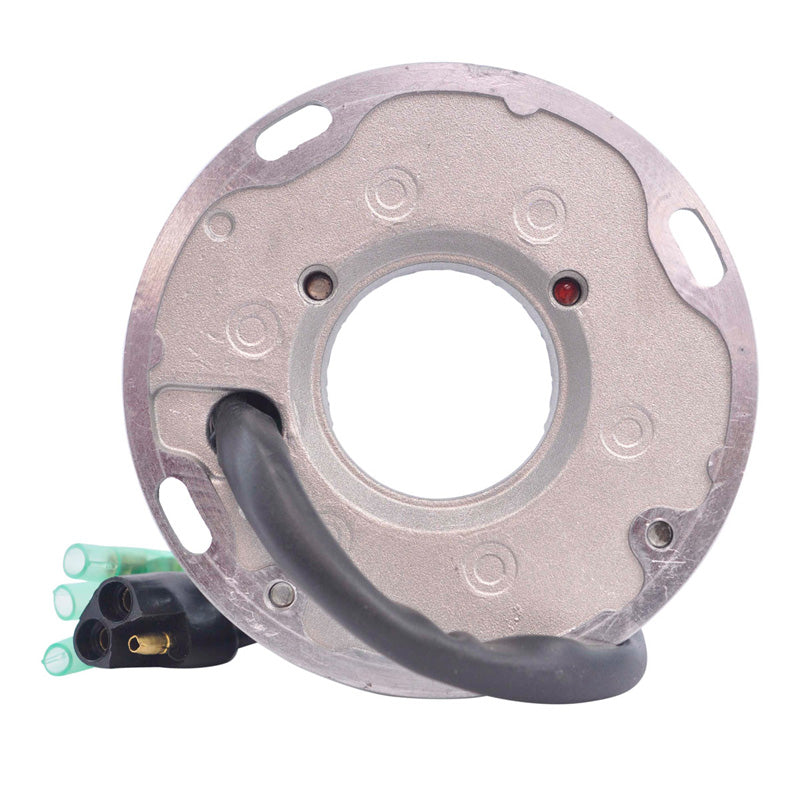

Back Plate included
All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 40 mm
Exterior diameter : 110 mm
Thickness : 32 mm
Length of wires stator to plug : 220 mm
Other specifications :
Number of wires : 6
Number of plugs : 1
Number of pins : 6
Wire to wire resistance :
Alternator :Yellow to Yellow = 0.9 ohms +-20%
Source 1 : Black/Red to White/Red = 4 ohms +-20%
Source 2 : Black to Black/red = 140 ohms +-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
