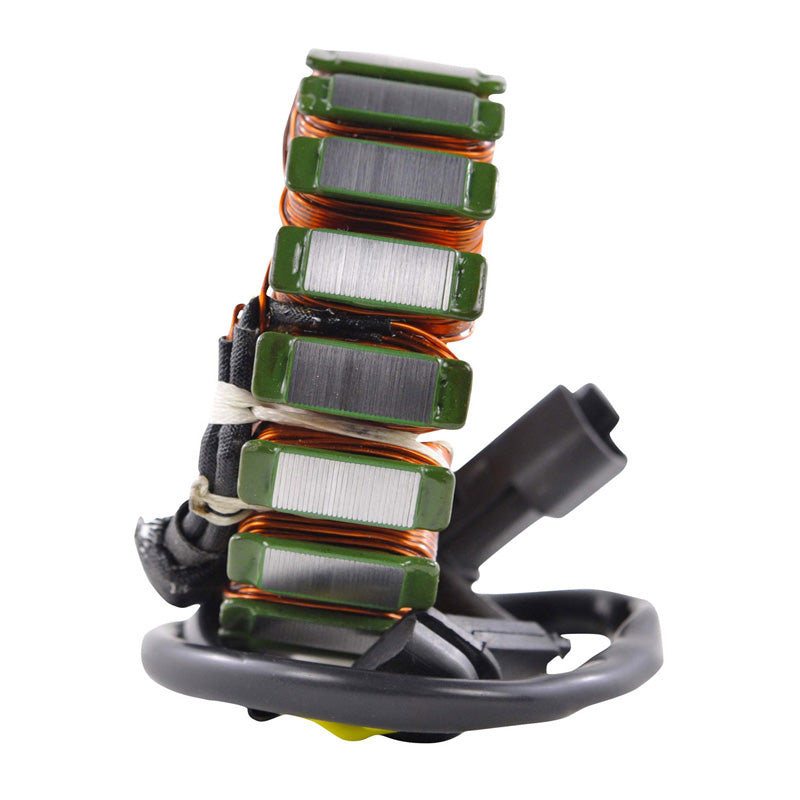

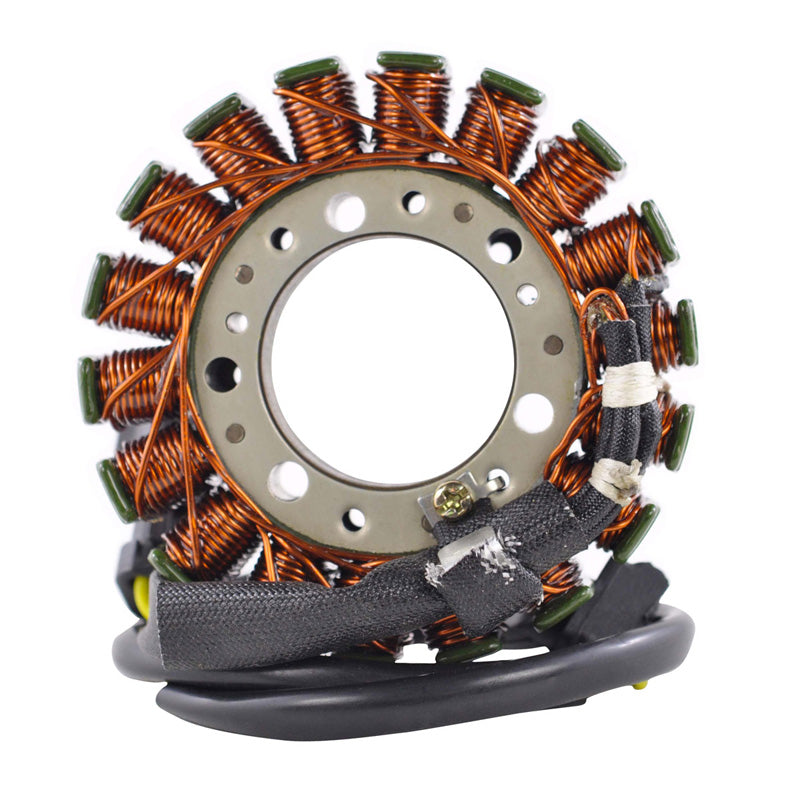

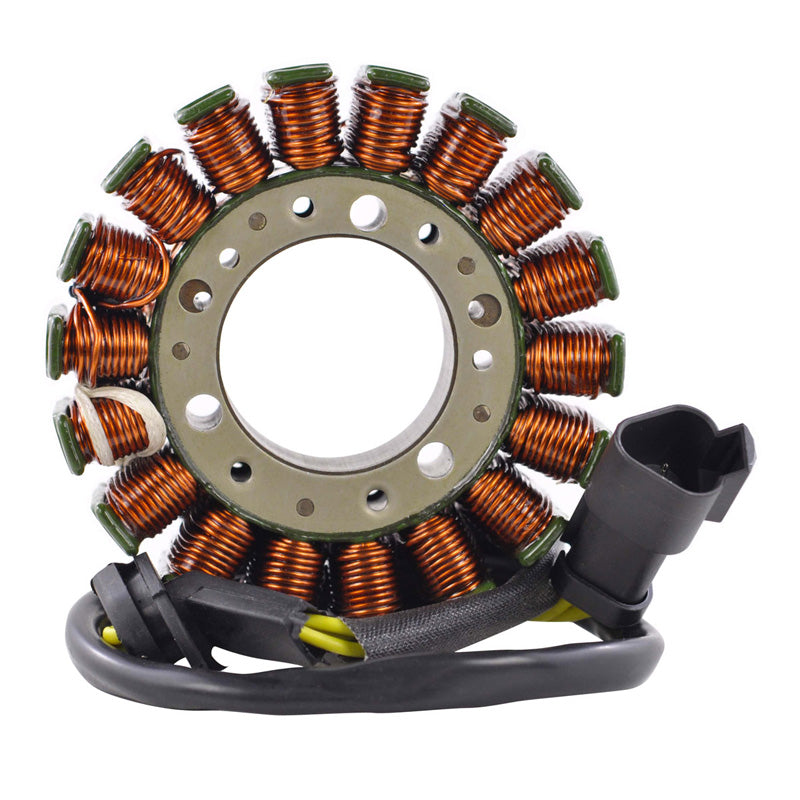

RMS STATOR SEA-DOO CHALLENGER GTI|GTX 02-17 RMS010-101538

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

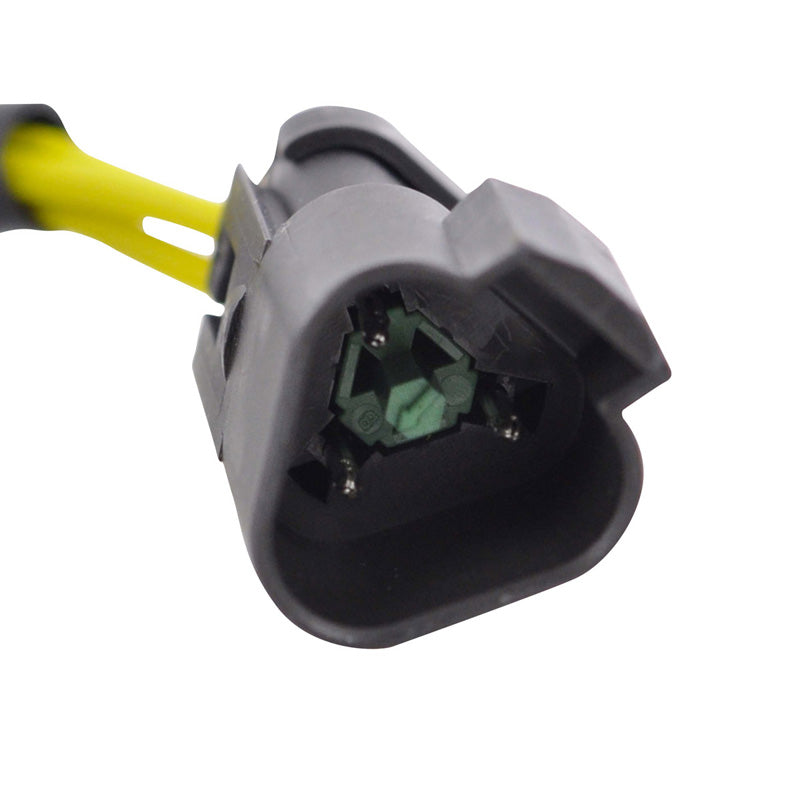

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 25 mm
Length of wires stator to grommet : 135 mm
Length of wires grommet to plug : 400 mm

Other specifications :
Number of wires :3
Number of plugs : 1
Number of pins :3

Wire to wire resistance :
Alternator : Yellow between Yellow = 0.5 ohms +-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
