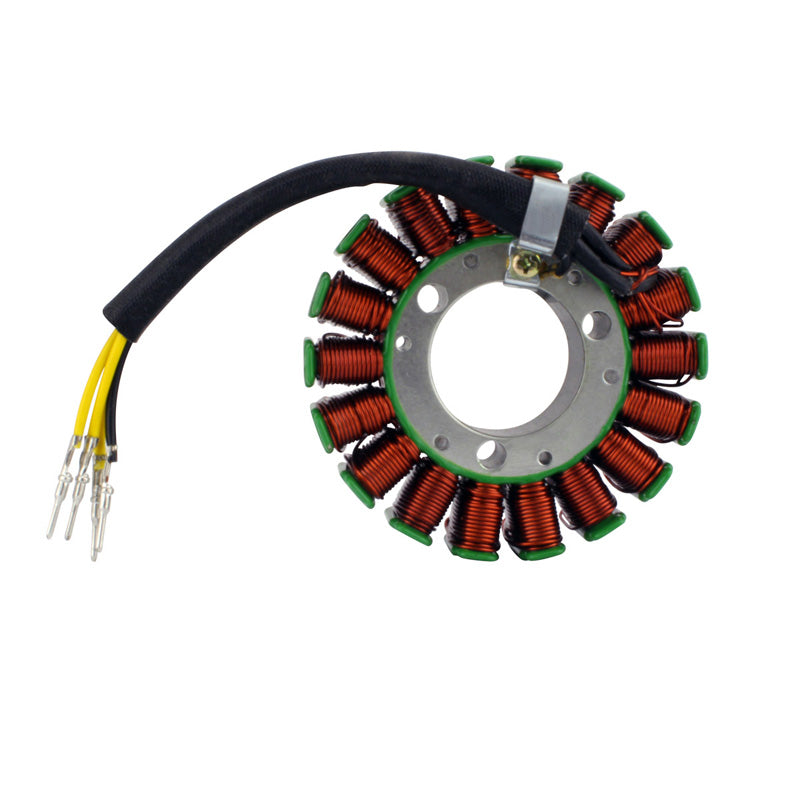

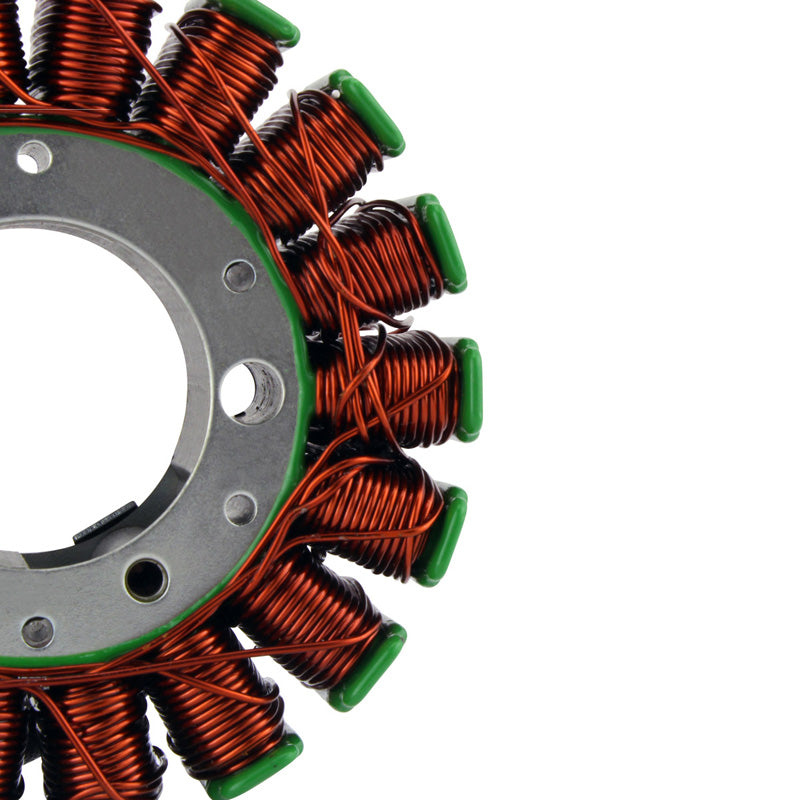

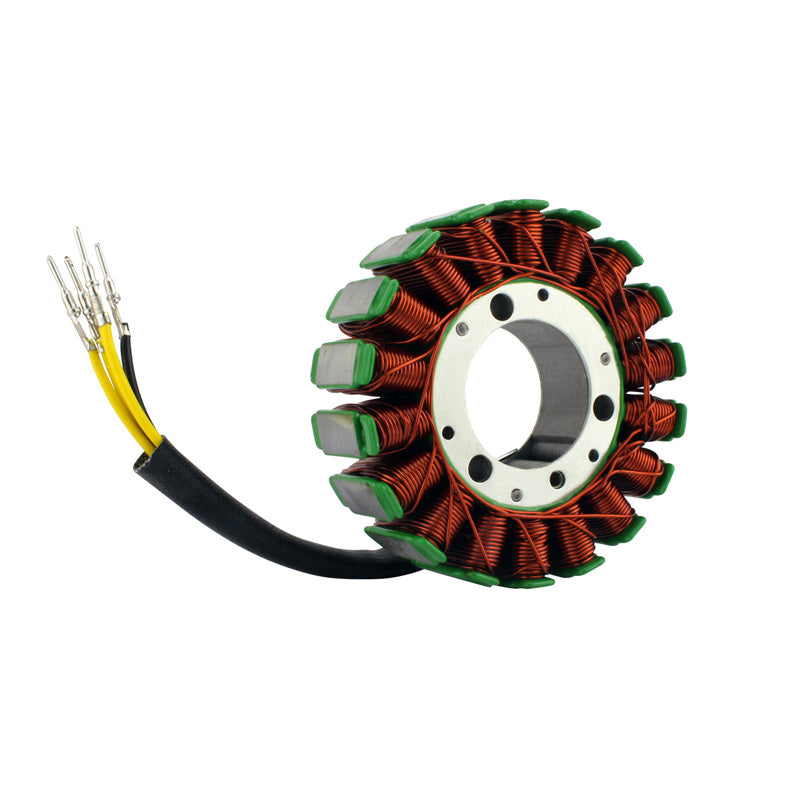

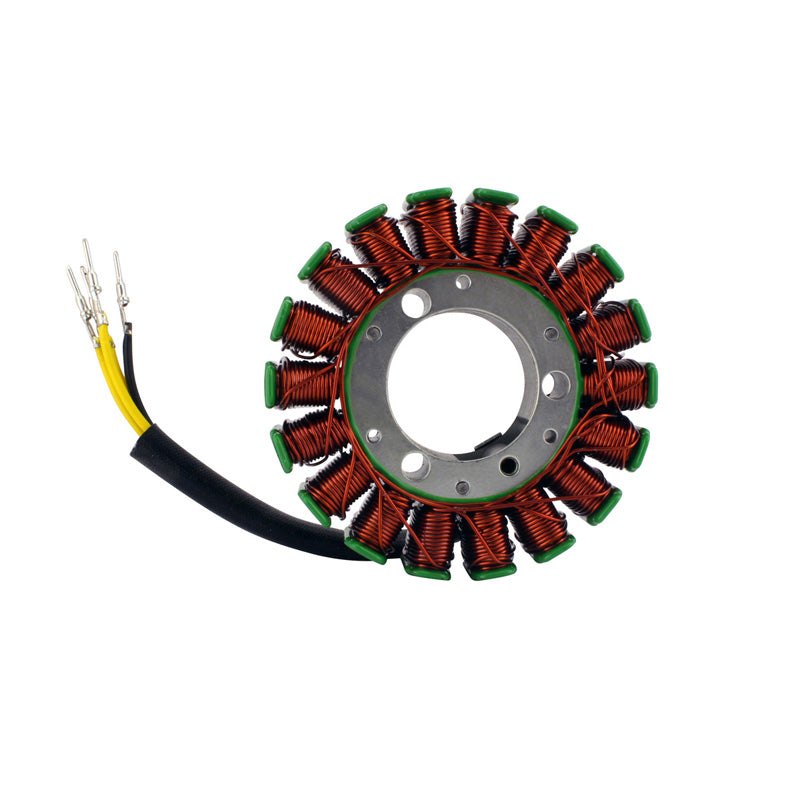

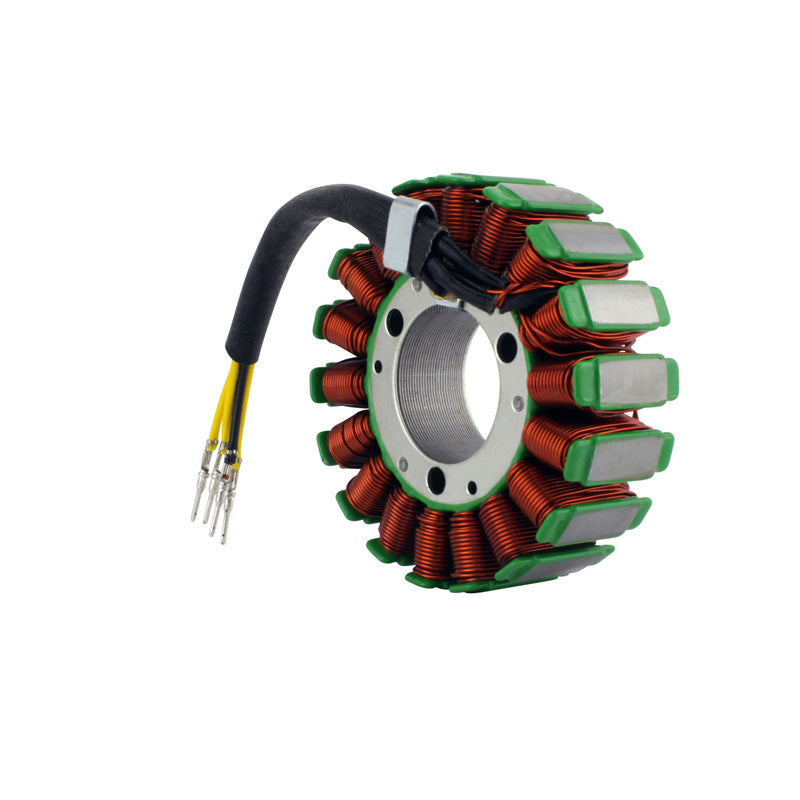

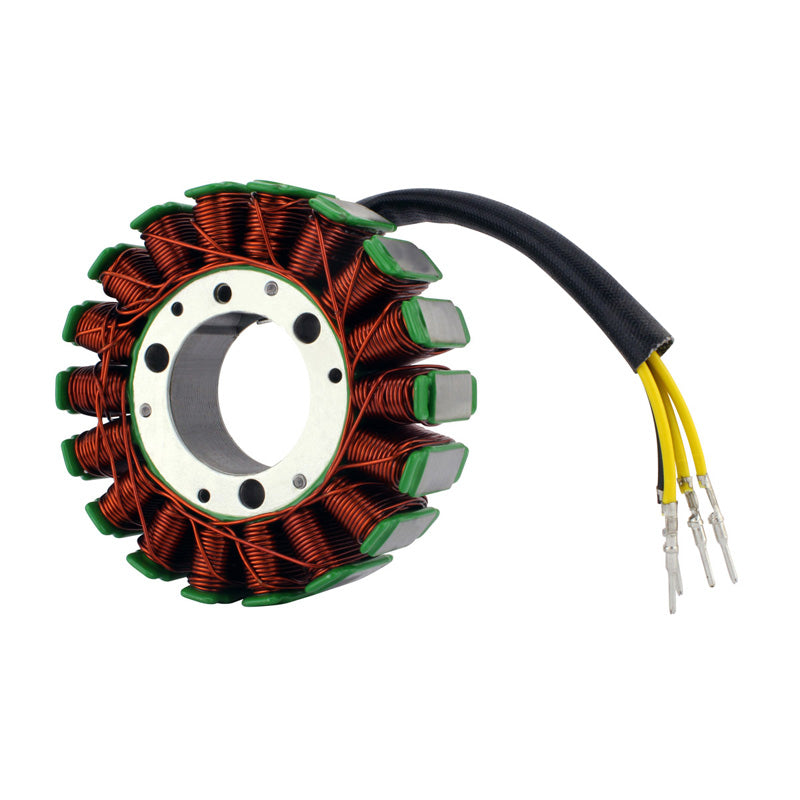

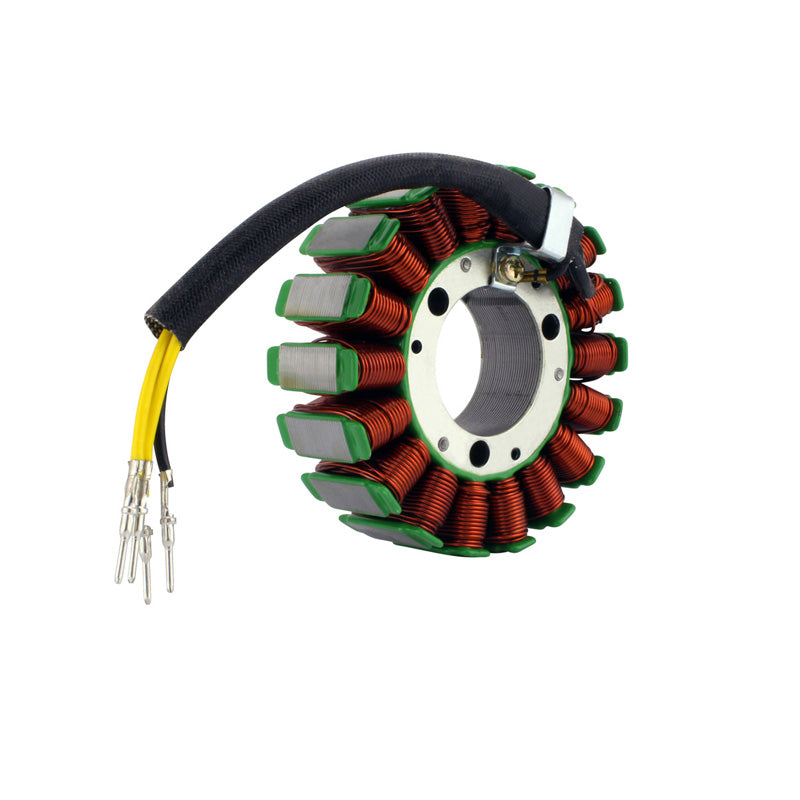

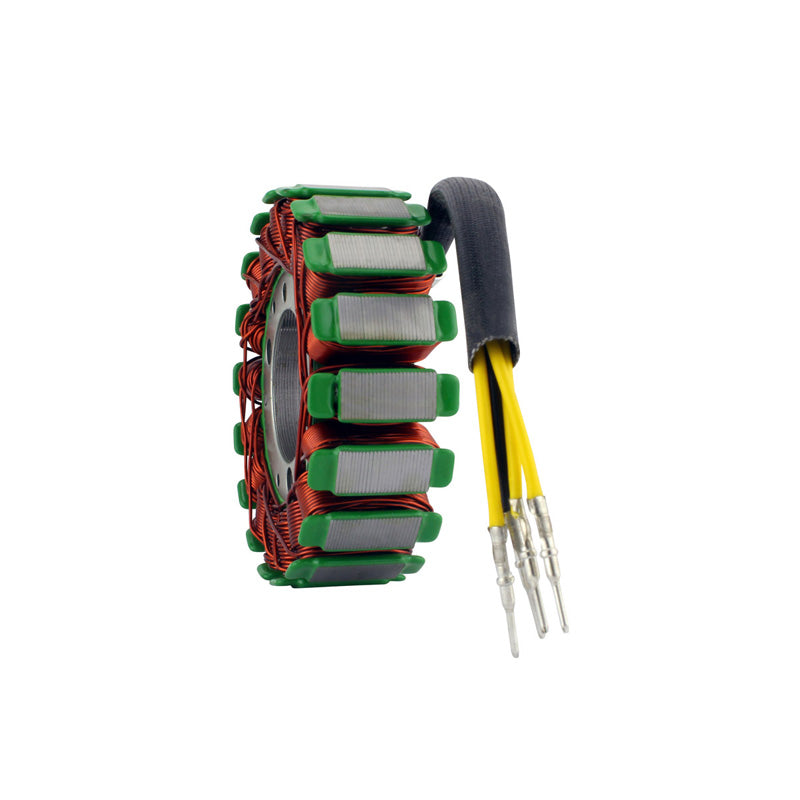

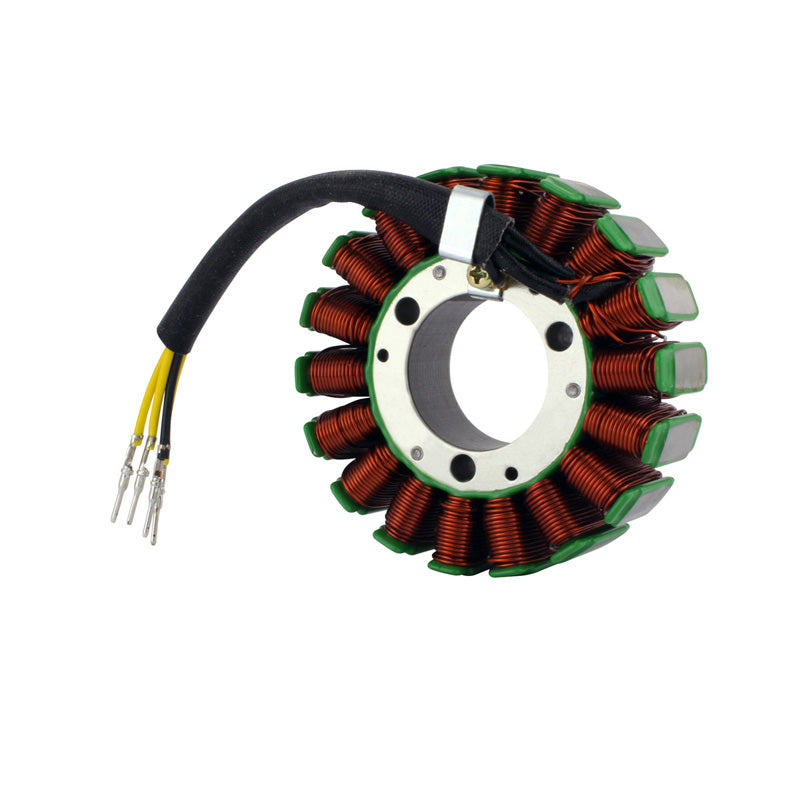

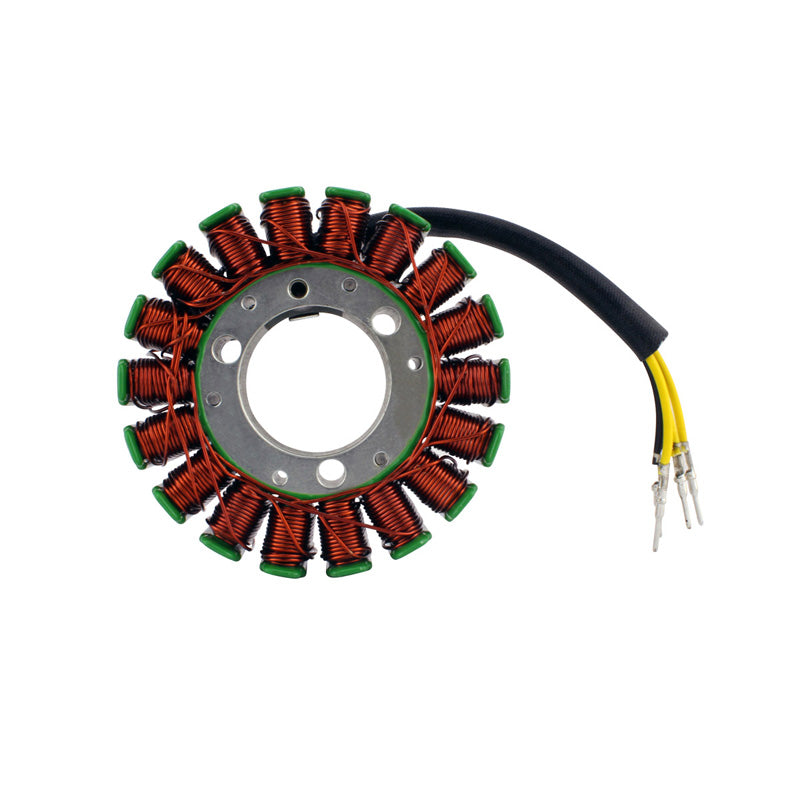

RMS STATOR SEA-DOO GSX800/951|SPX 95-05 RM01530

Brand new aftermarket stator

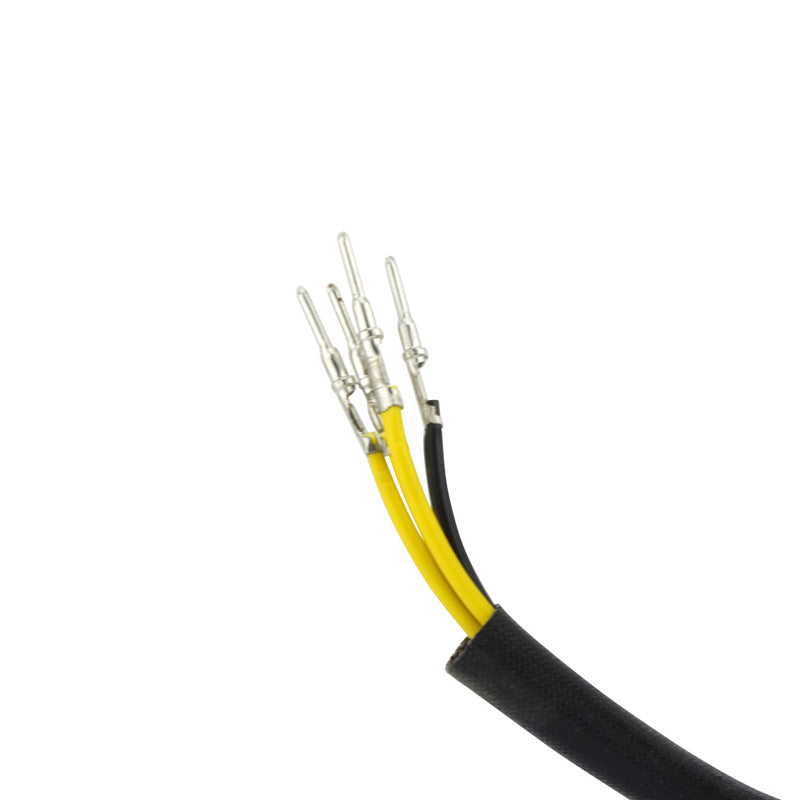

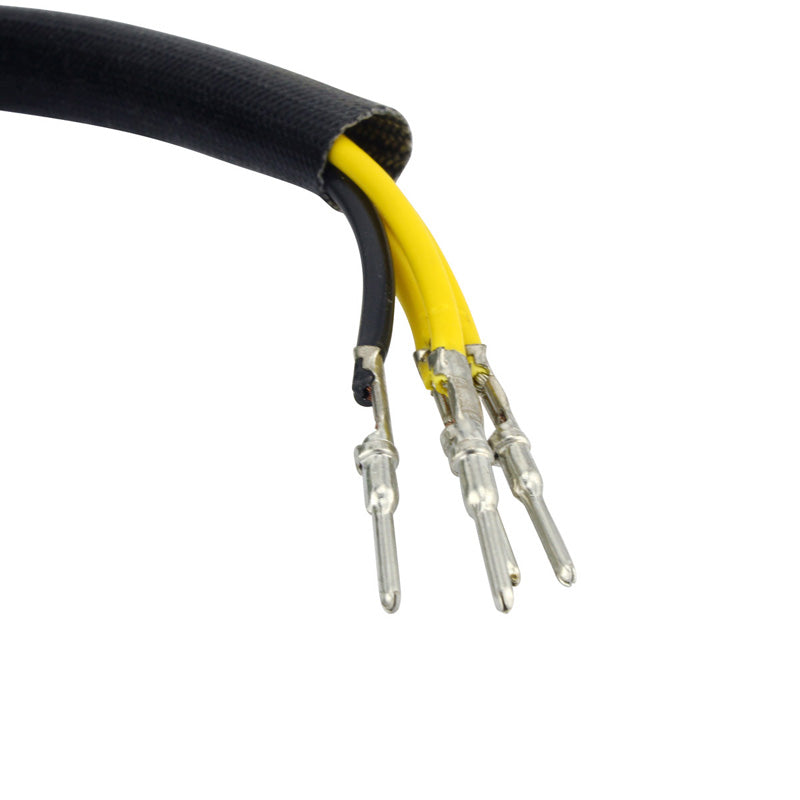

• You must re-install your original connector and grommet (see picture).
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
• Higher grade of electric components.
• Highest grade copper windings, resistant to 200 degrees Celsius.
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 35mm
Exterior diameter : 93mm
Thickness : 22mm
Length of wires stator to grommet : 102mm

Other specifications :
Number of wires : 4
Number of plugs : 1

Wire to wire resistance :
Alternator : Yellow to Yellow = 0.6ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
