Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install
Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius

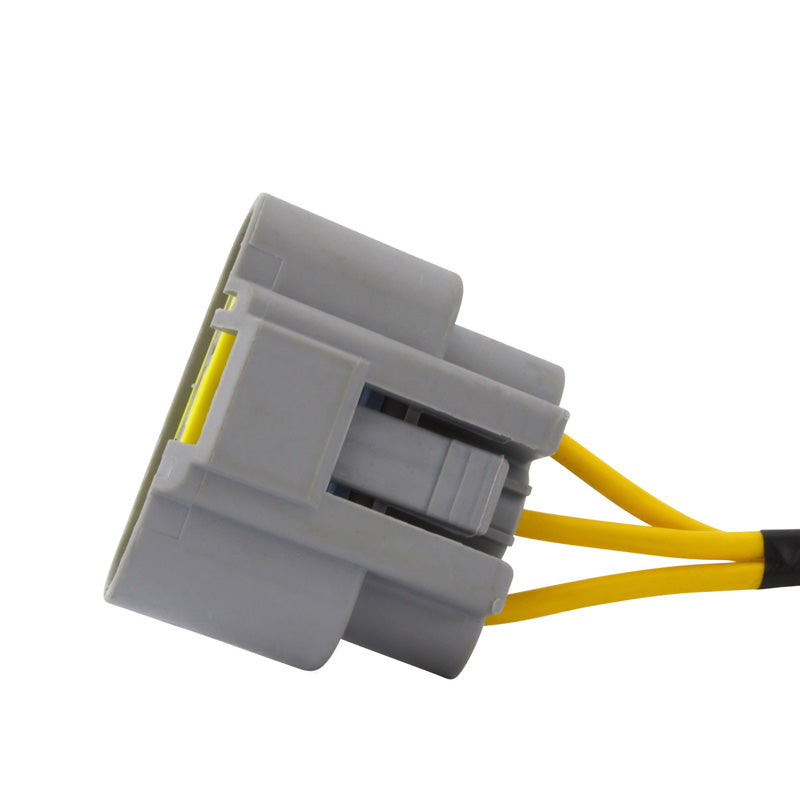

Connectors included
Rubber grommet included
All products shipped are tested

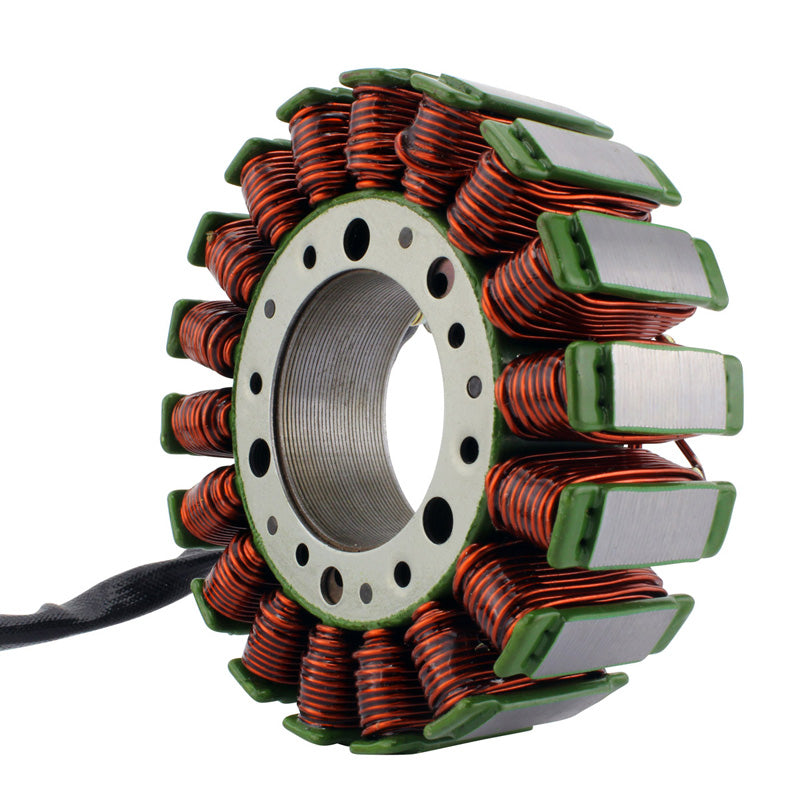

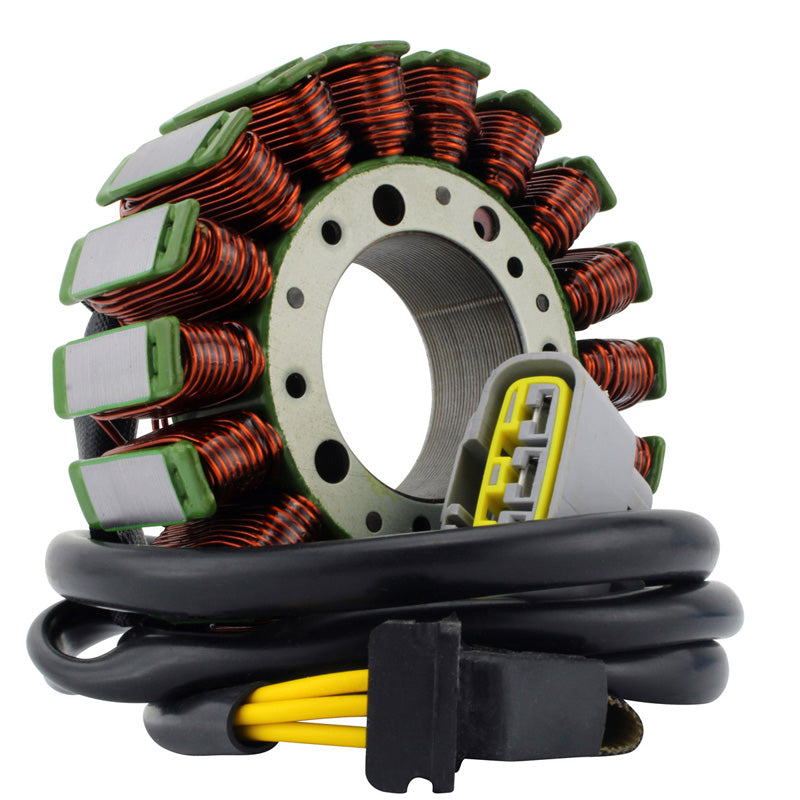

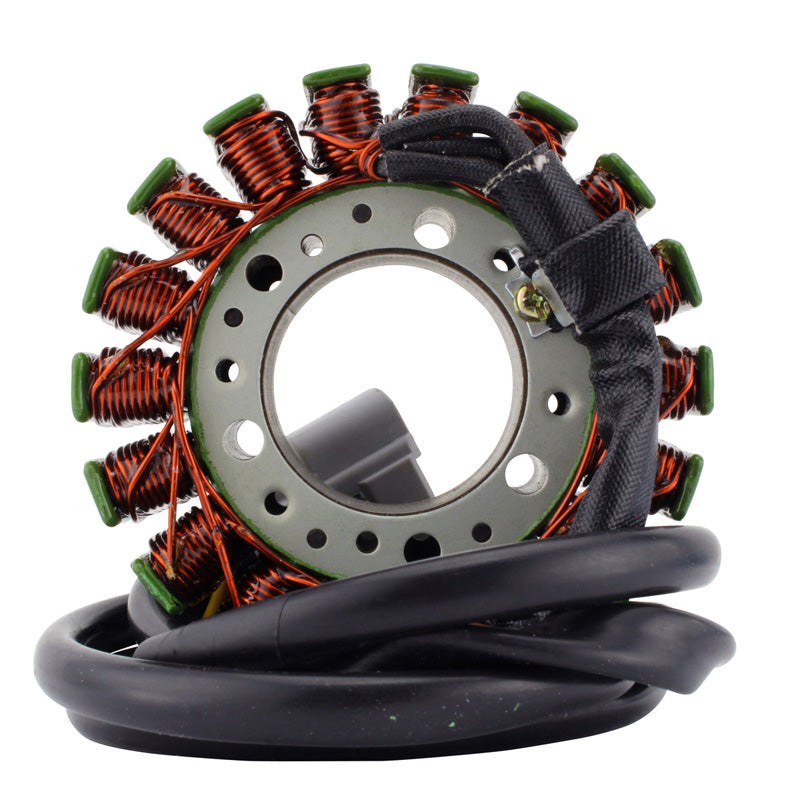

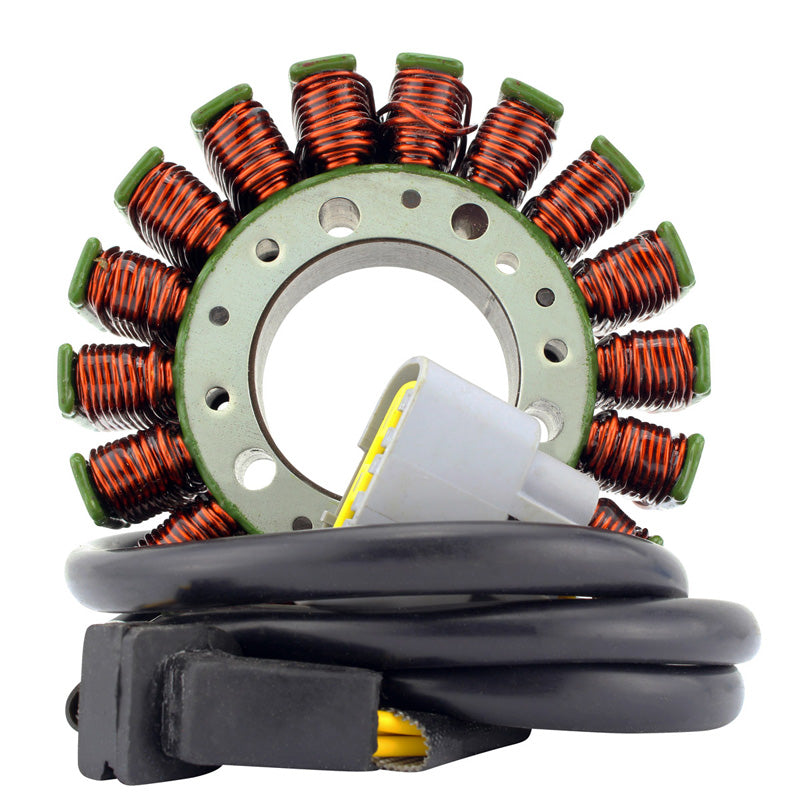

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 104 mm
Thickness: 24 mm
Length of stator to grommet: 130 mm
Length of wires grommet to plug: 1160 mm
Other specifications:
Number of wires: 3
Number of plugs: 1

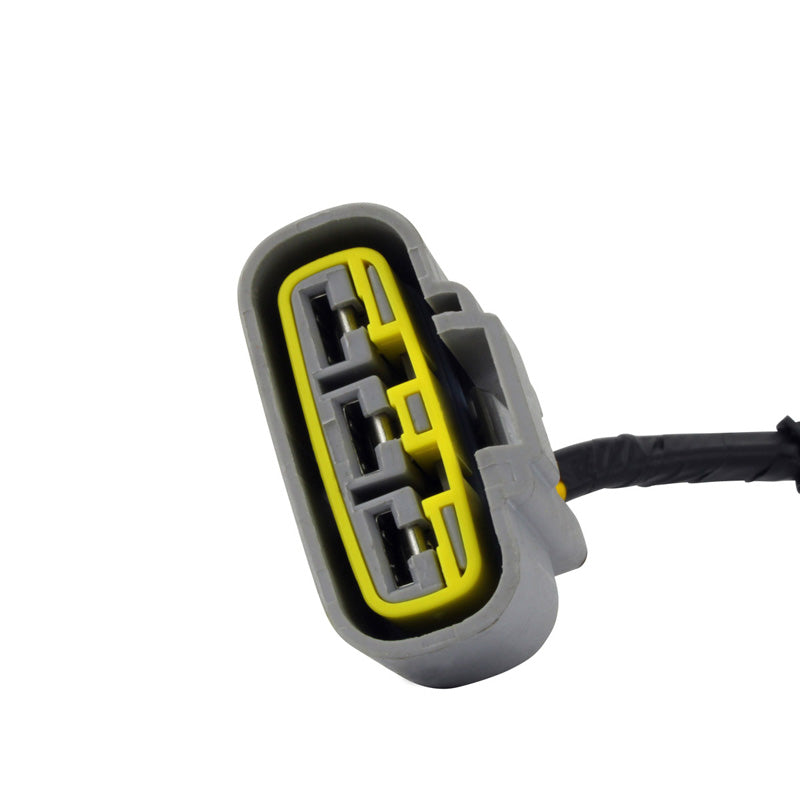

Number of pins: 3

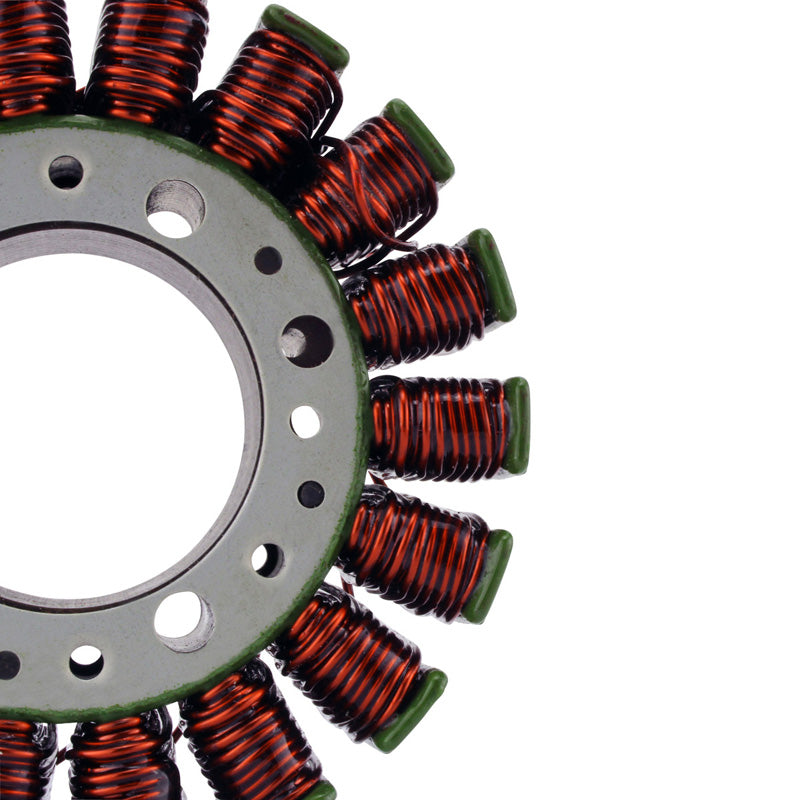

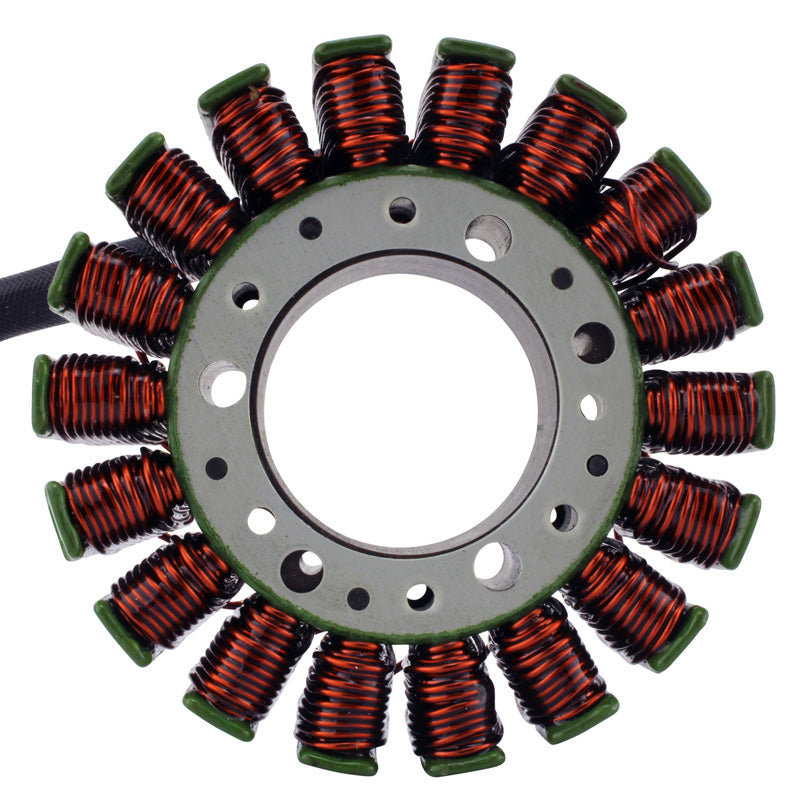

Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.8 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
