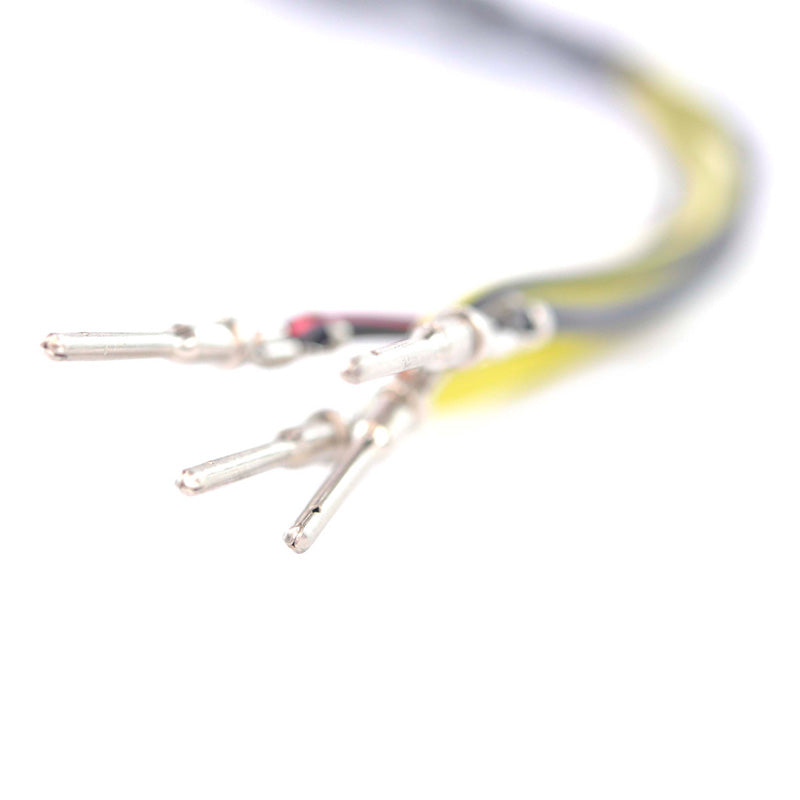

You must re-install your original connector and grommet (see picture).
Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
Higher grade of electric components.
Highest grade copper windings, resistant to 200 degrees Celsius.

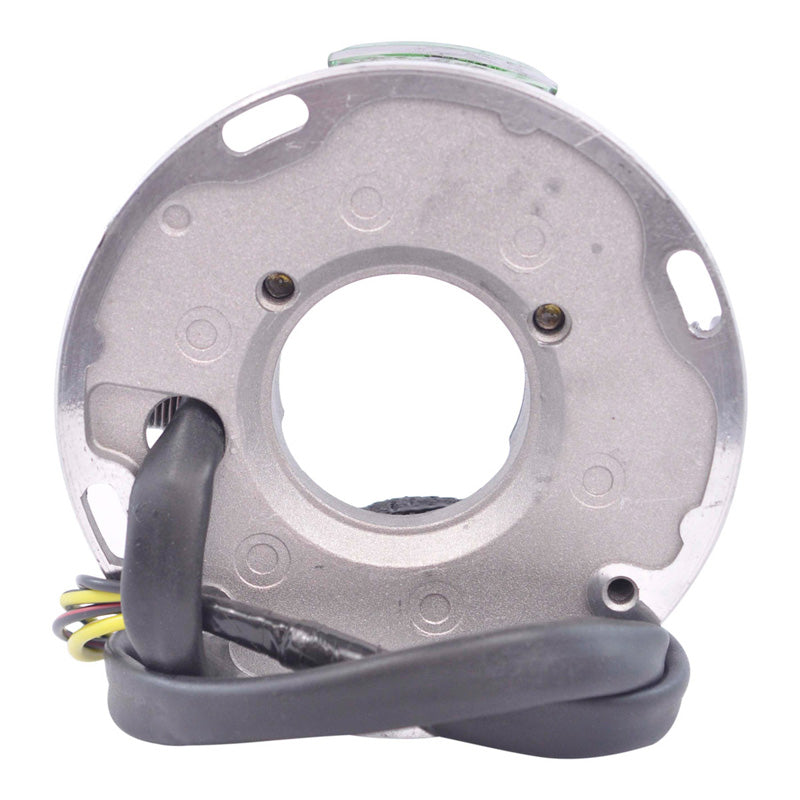

Back Plate included
All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 40 mm
Exterior diameter : 110 mm
Thickness : 27 mm
Length of wires stator to terminals : 515 mm
Other specifications :
Number of wires : 4
Number of plugs : 0
Number of pins : 4
Wire to wire resistance :
Alternator : Yellow to Yellow/Black = 0.4 ohms +/-20%
Source : Black to Black/Red = 67 ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
