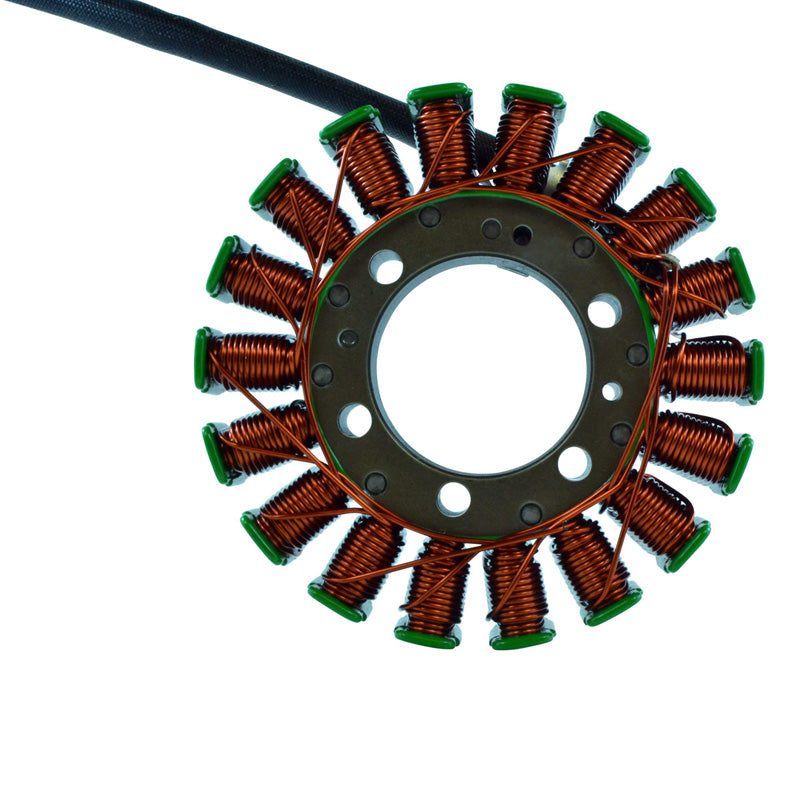

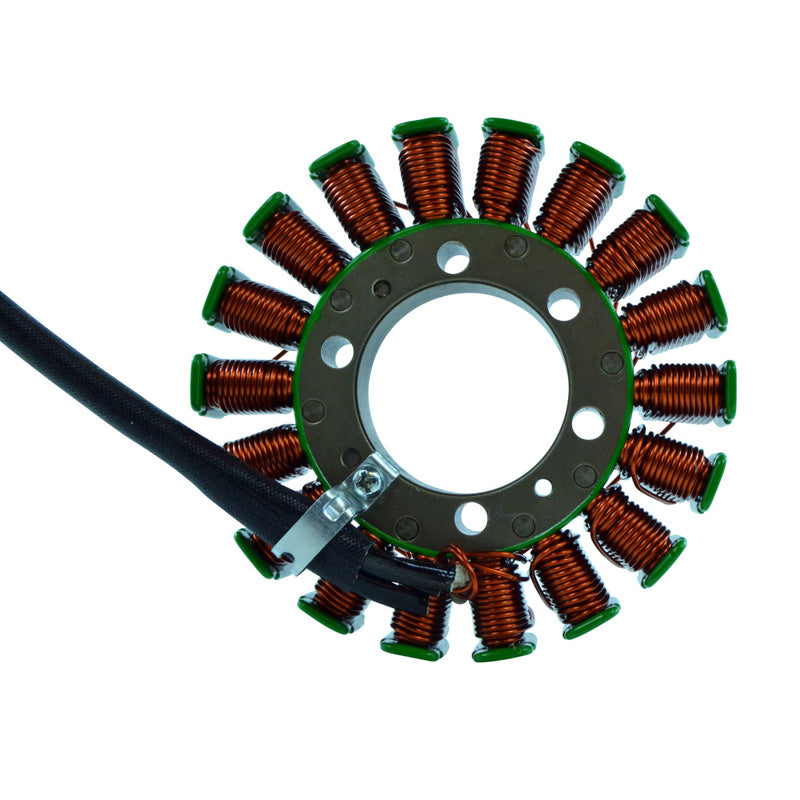

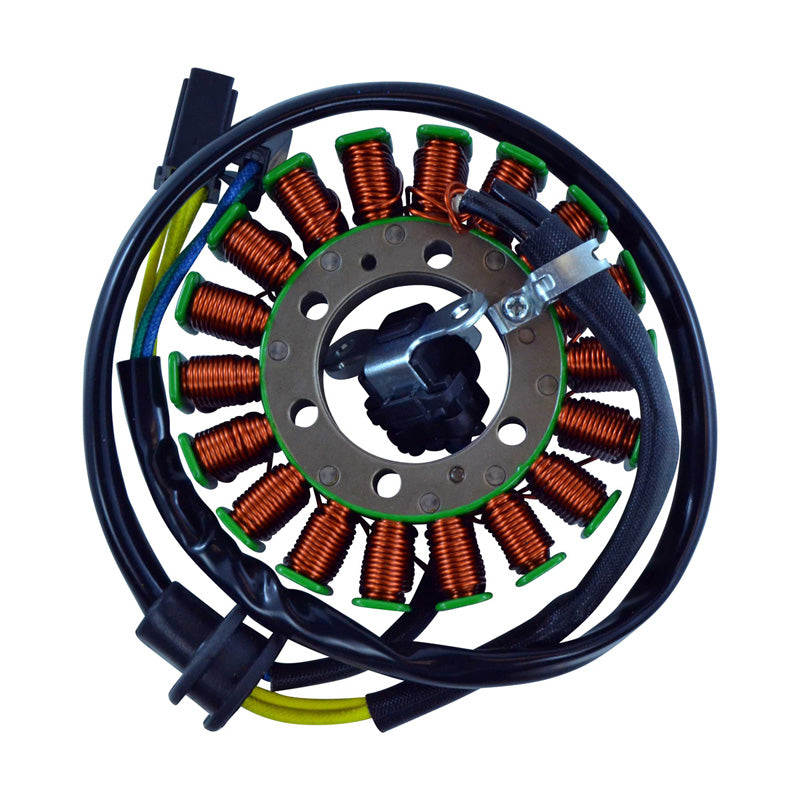

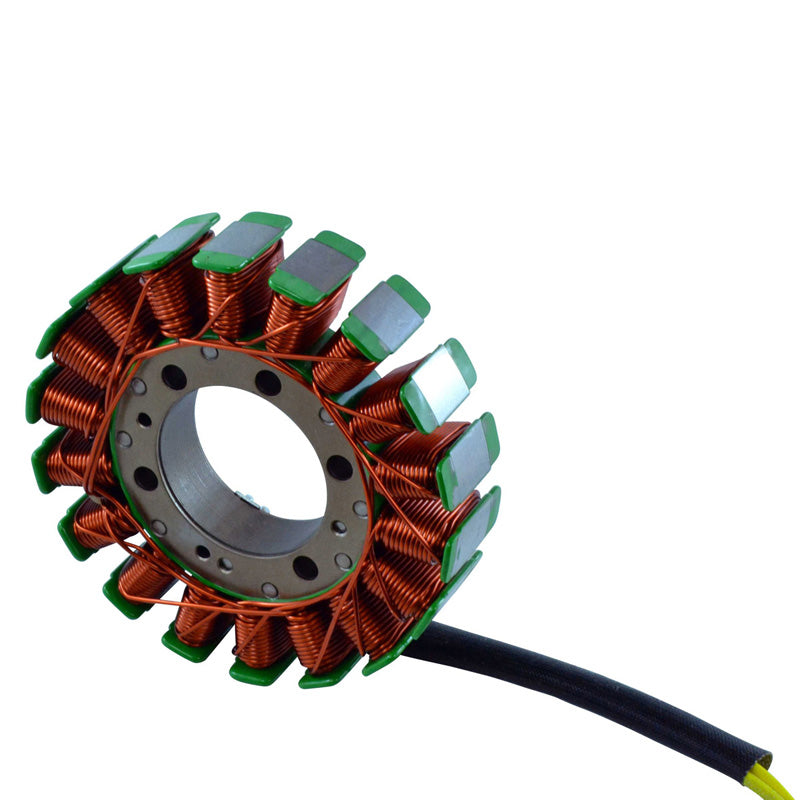

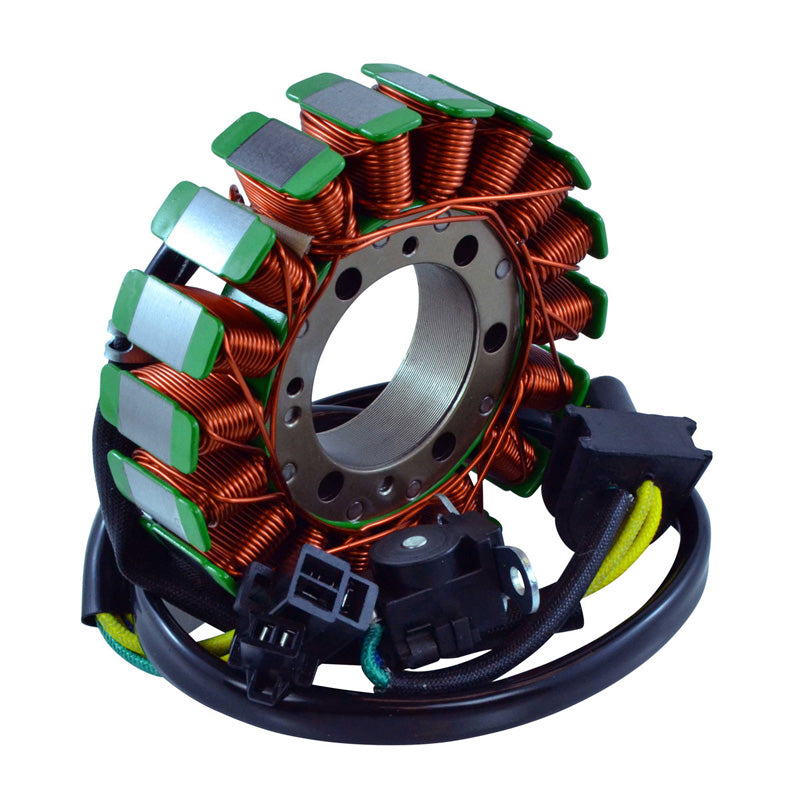

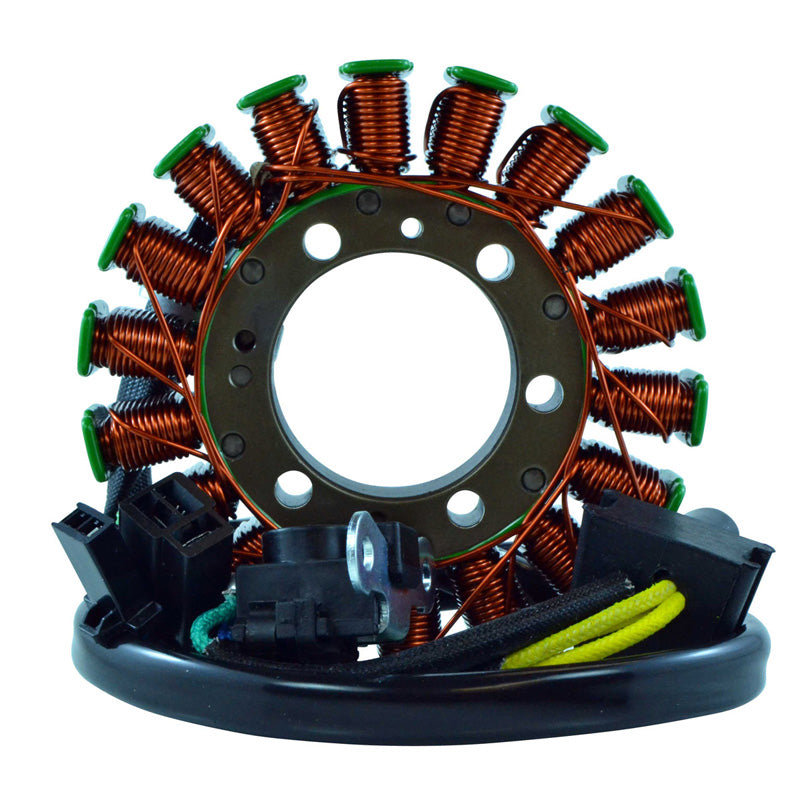

Highest grade of copper winding, resistant to 200 degrees Celsius.

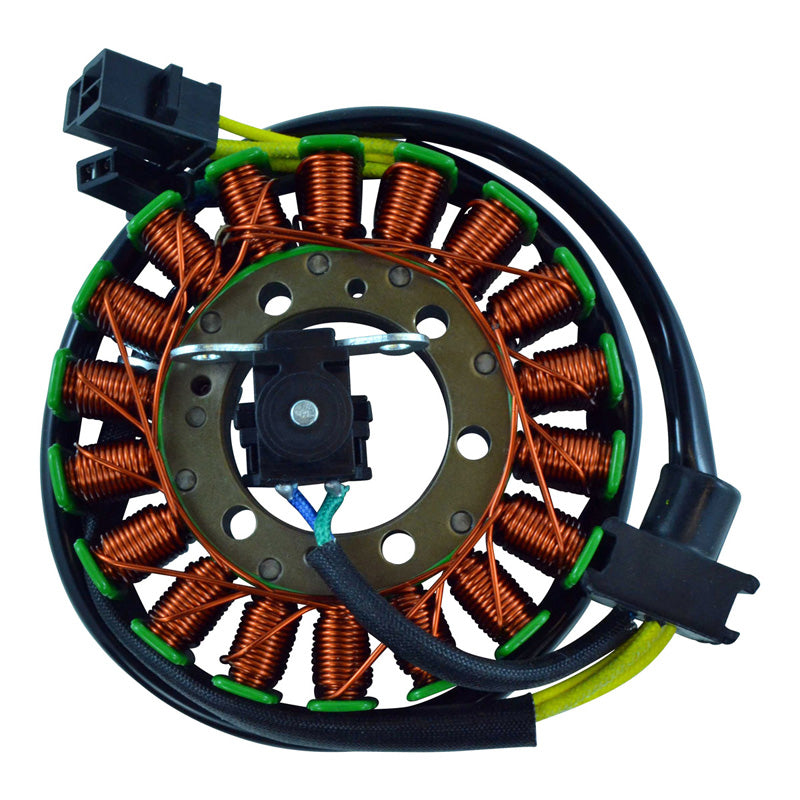

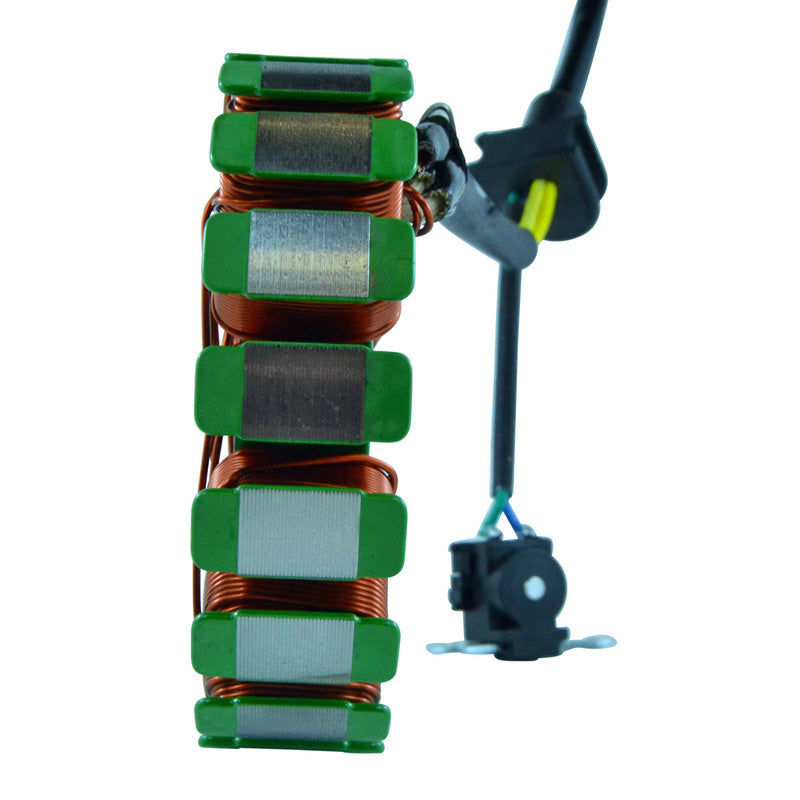

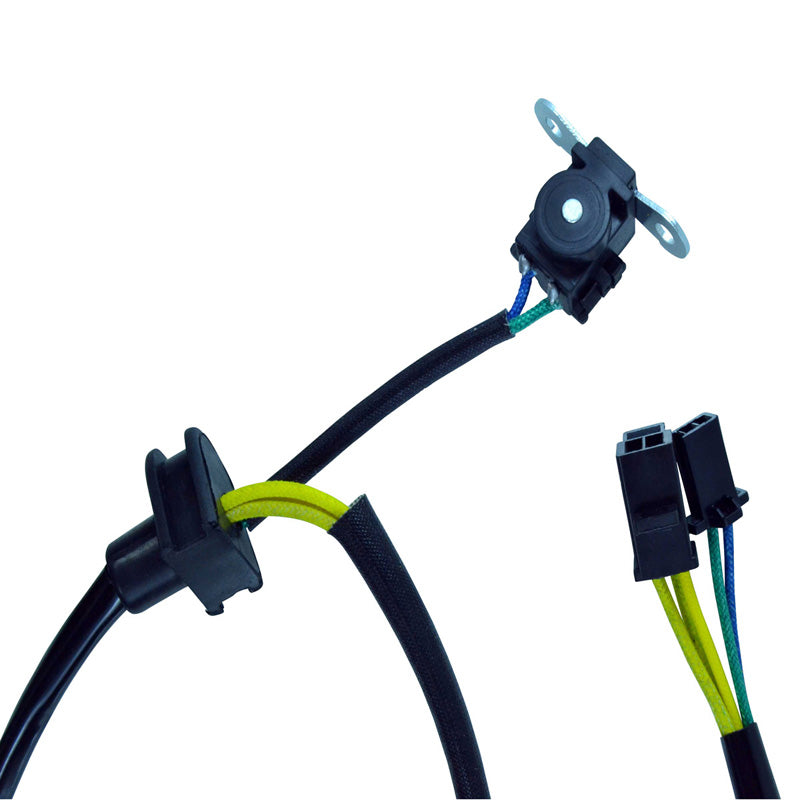

Pick up pulsar coil included

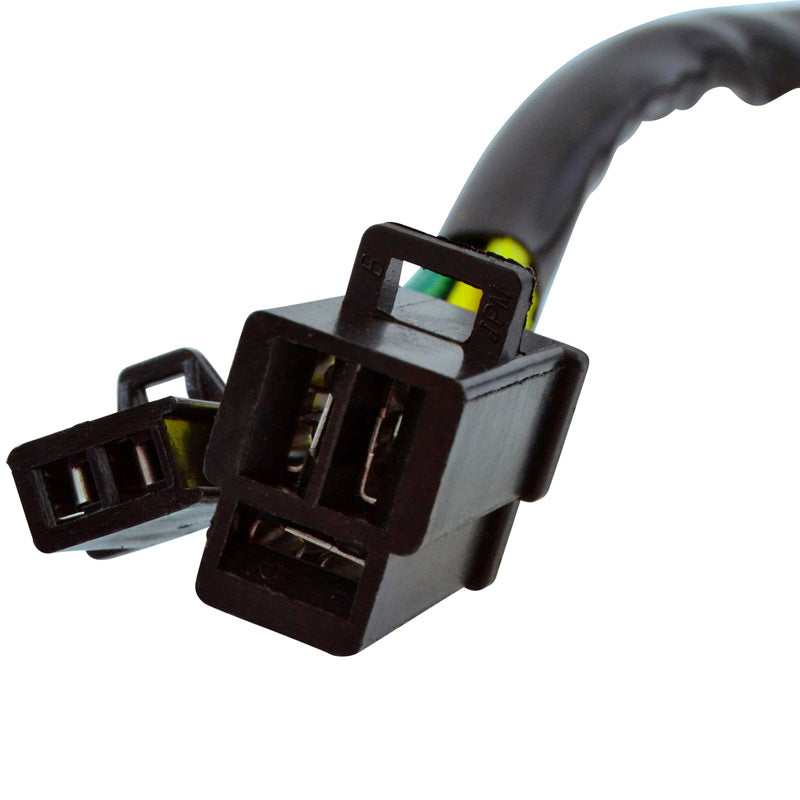

Connector included

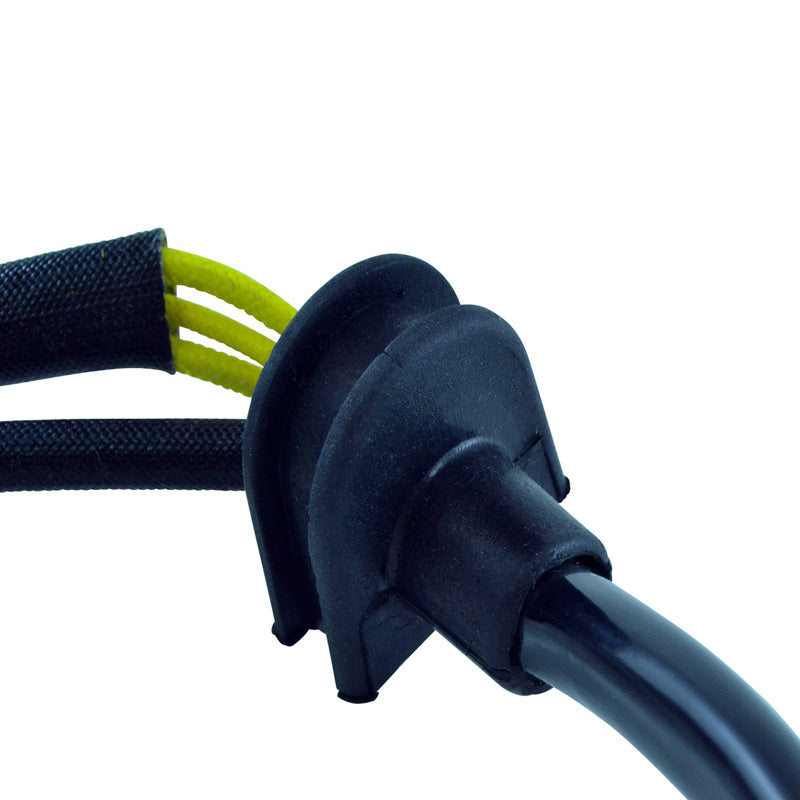

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

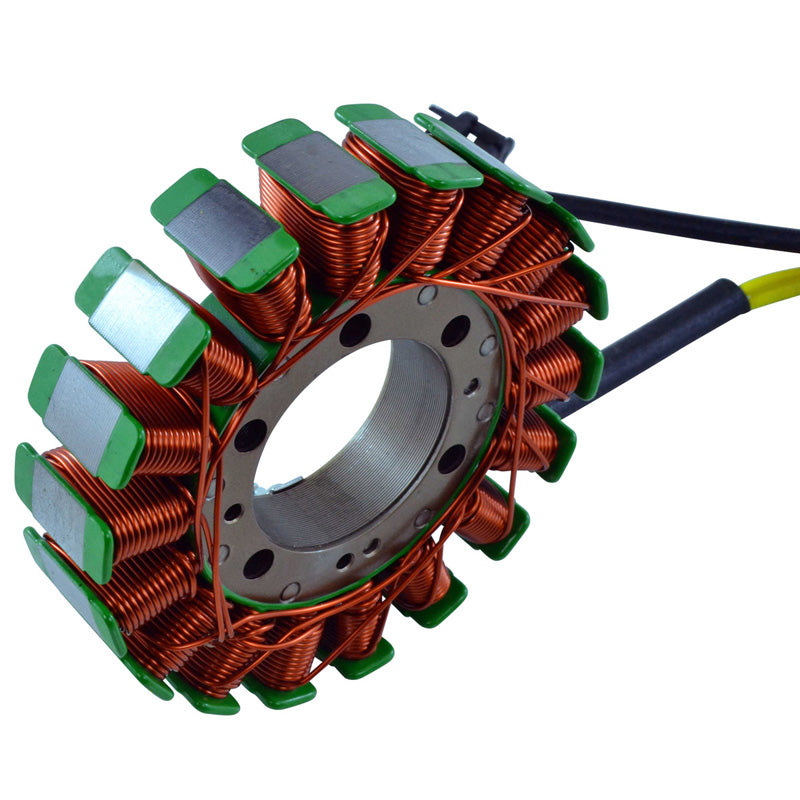

Specifications:
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 18 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 550 mm
Length of pickup coil's wire to grommet : 50 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator :Yellow between each Yellow = 0.4 ohms +-20%
Pickup : Blue to Green = 250 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
