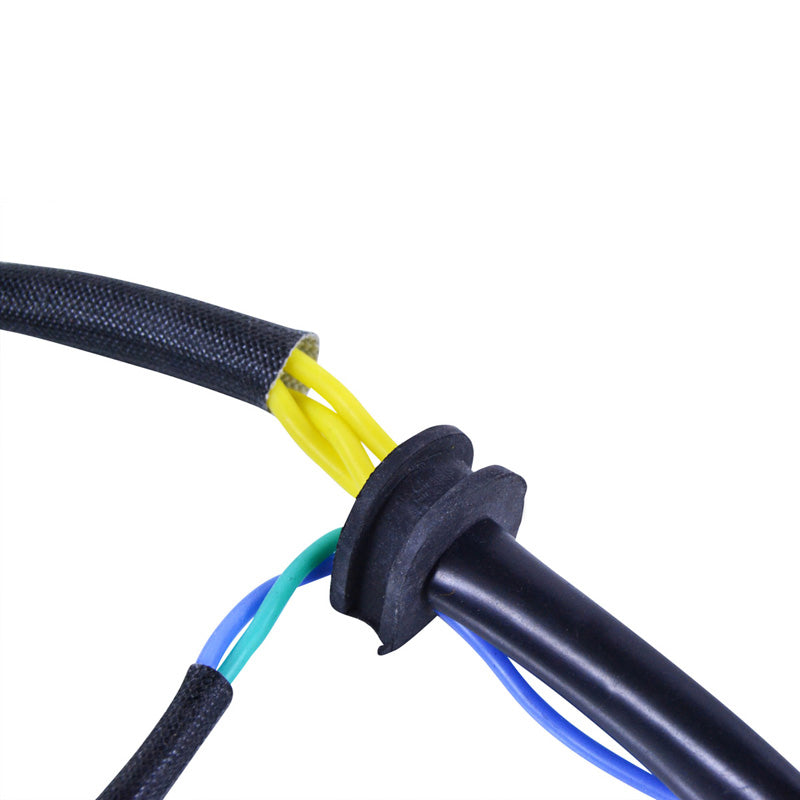

You must re-install your original grommet (see picture).
Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
Plug-and-play, direct fit, easy installation
Highest grade lamination materials

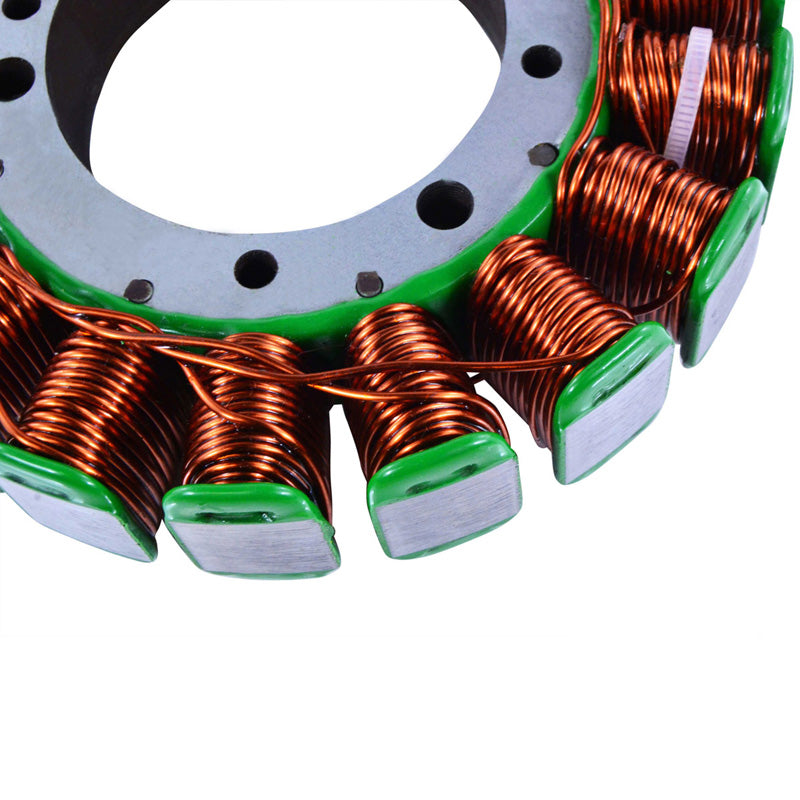

Highest grade copper windings, resistant to 200 degrees Celsius.

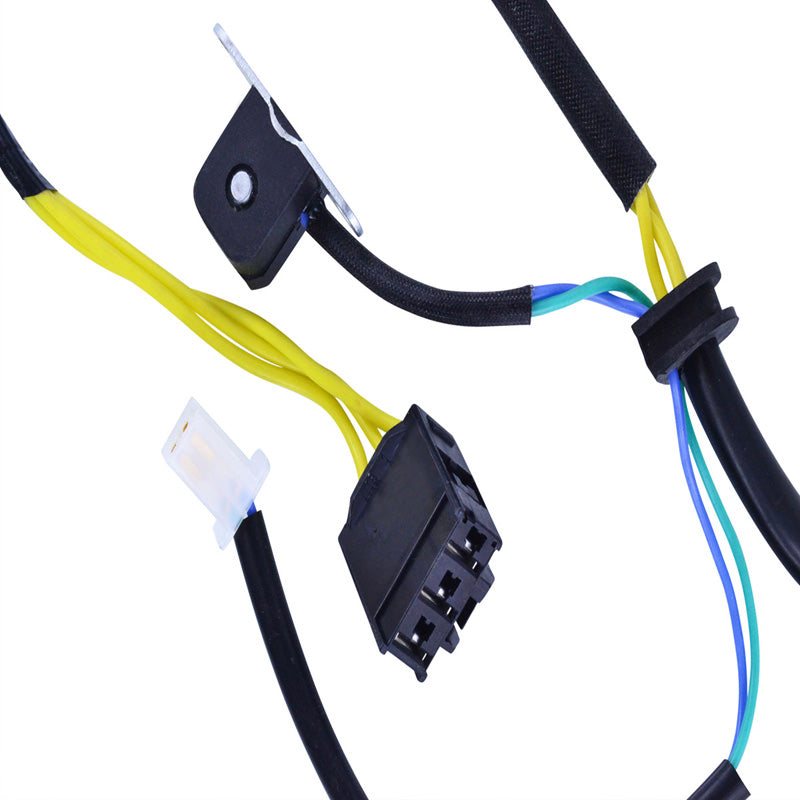

Pick up pulsar coil included

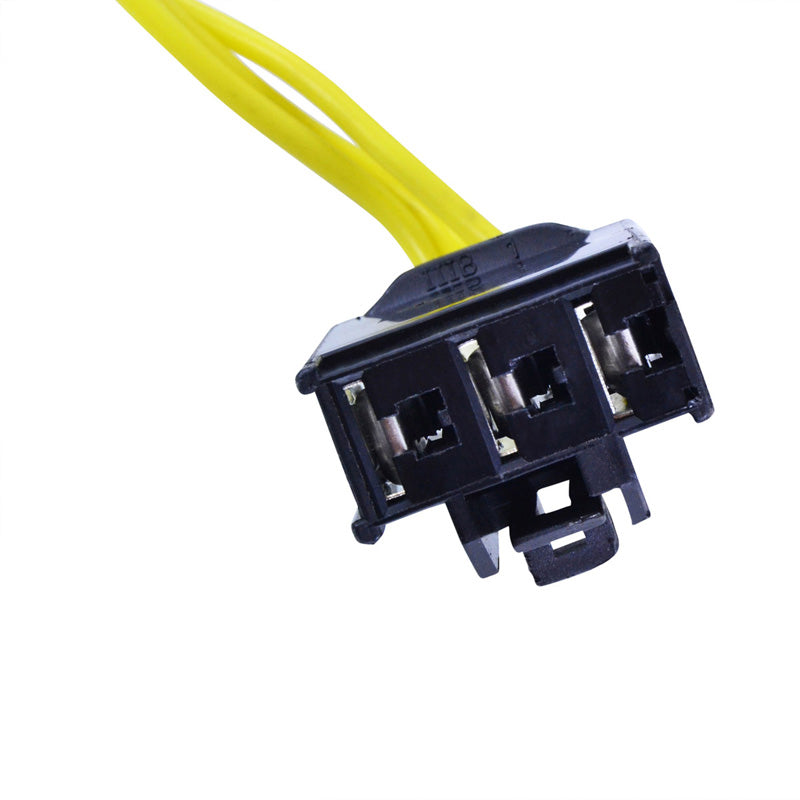

Connector included
Rubber grommet included
All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 58 mm
Exterior diameter : 130 mm
Thickness : 20 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 800 mm
Length of pickup coil's wire to grommet : 100 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +-20%
Pickup : Blue to Green = 500 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
