Highest grade copper windings, resistant to 200 degrees Celsius.

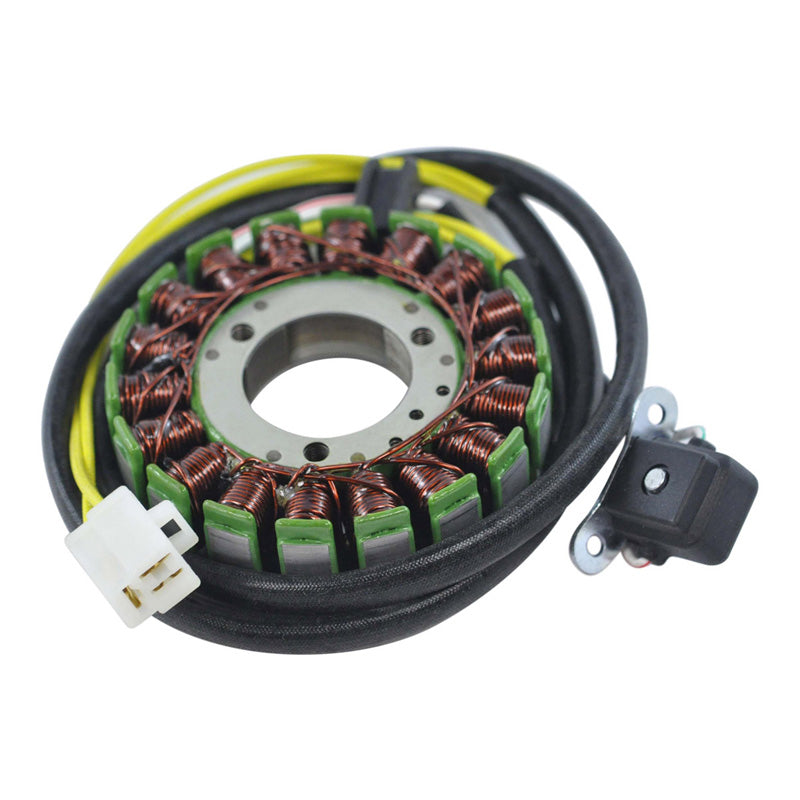

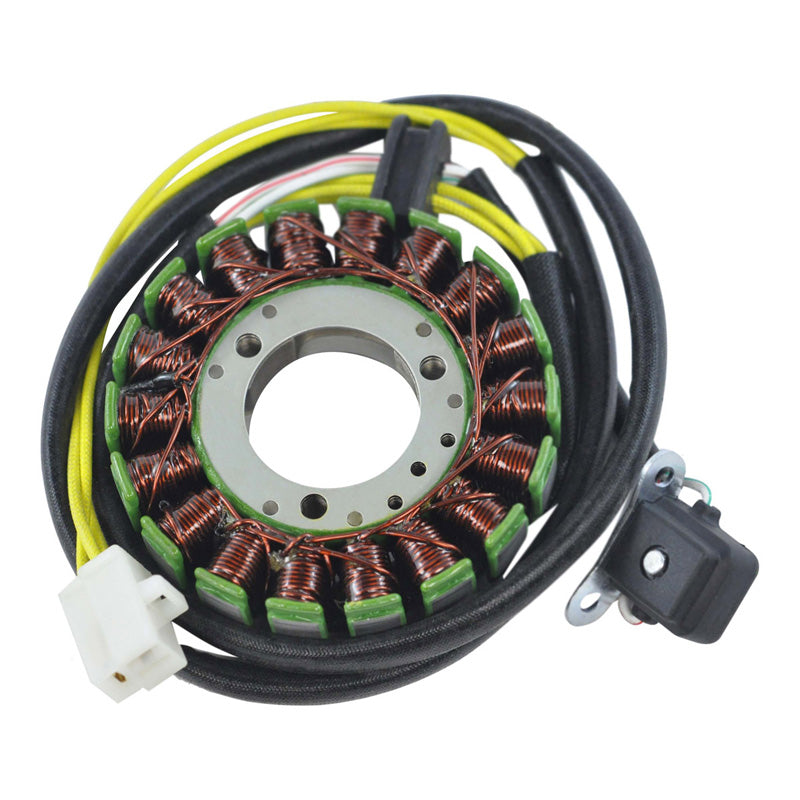

Pick up pulsar coil included

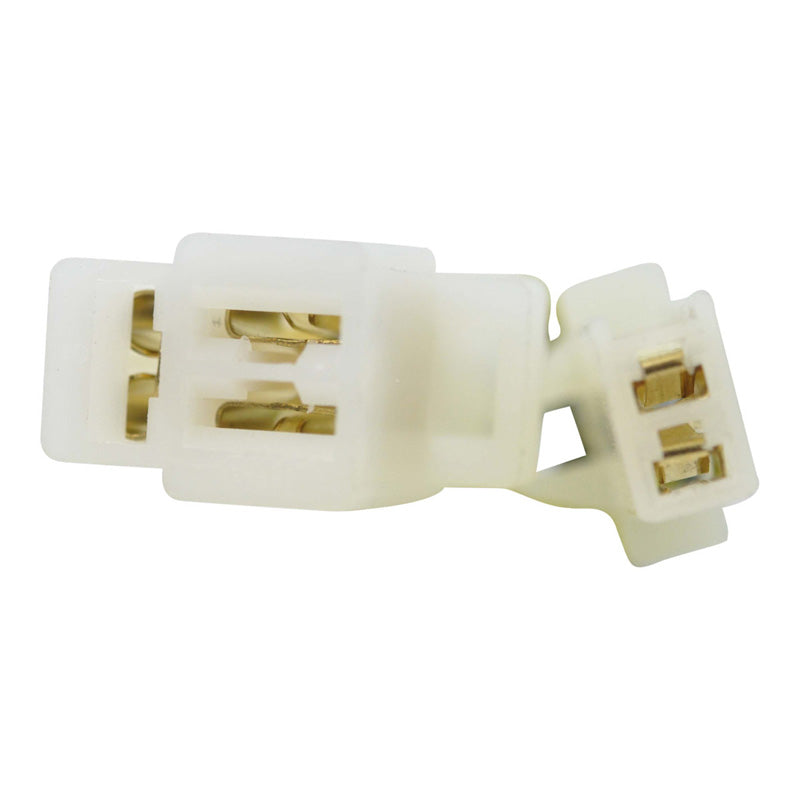

Connector included
Rubber grommet included
All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 35.52mm
Exterior diameter : 92.97mm
Thickness : 16mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 900mm
Length of pickup coil's wire to grommet : 100mm
Fixation holes center to center: 30mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.6ohms +/-20%
Pickup : White/Green to White/Red = 100ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
