Highest grade copper windings, resistant to 200 degrees Celsius.
All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

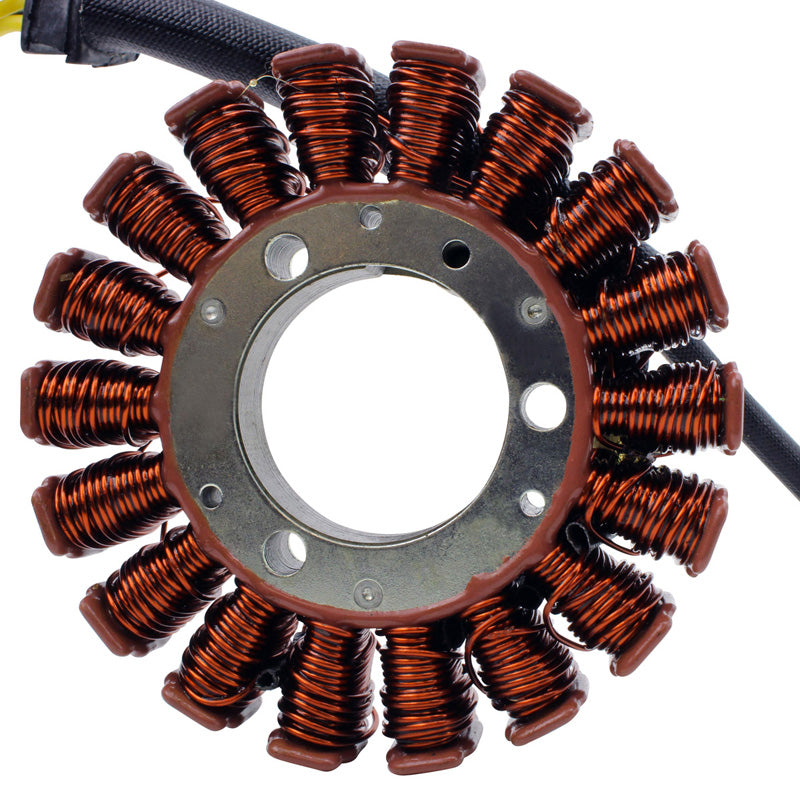

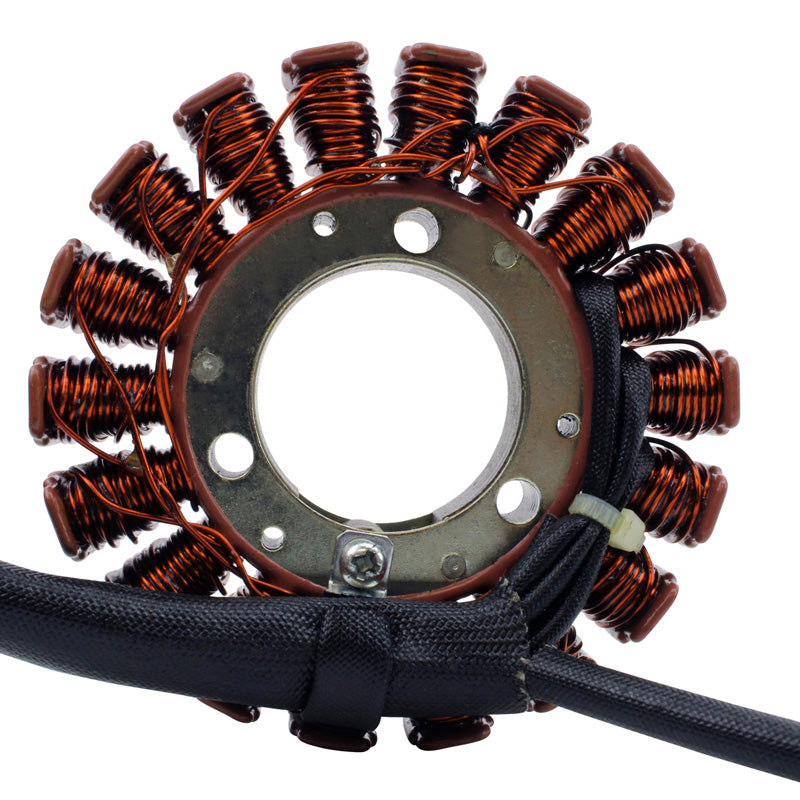

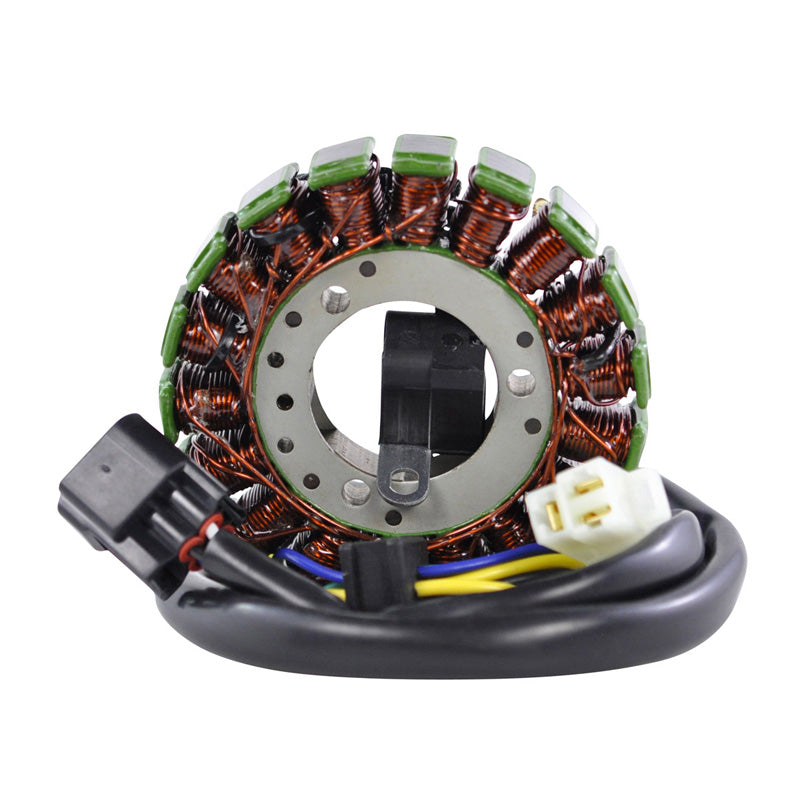

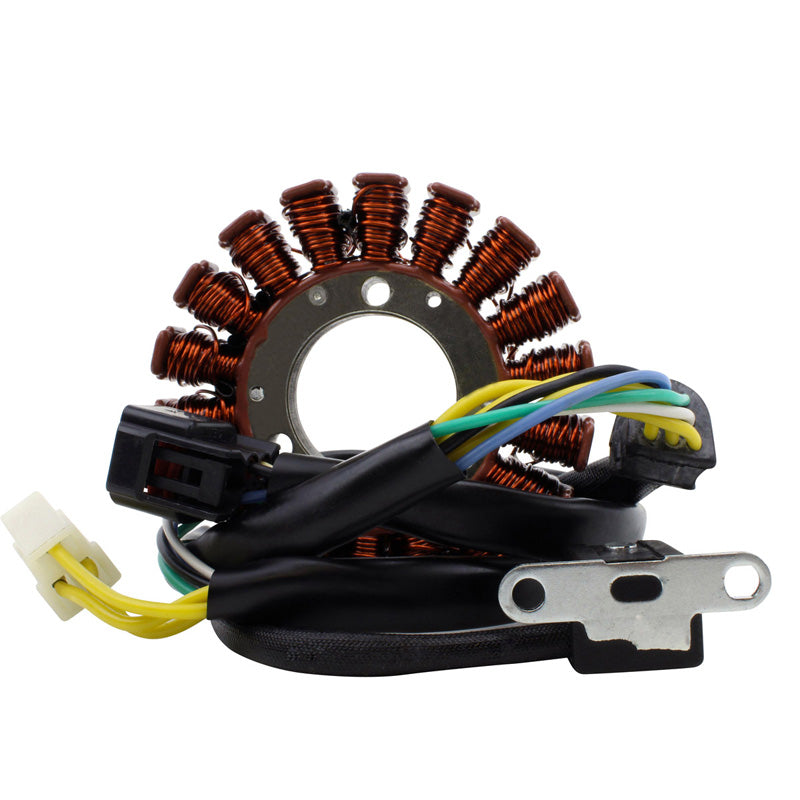

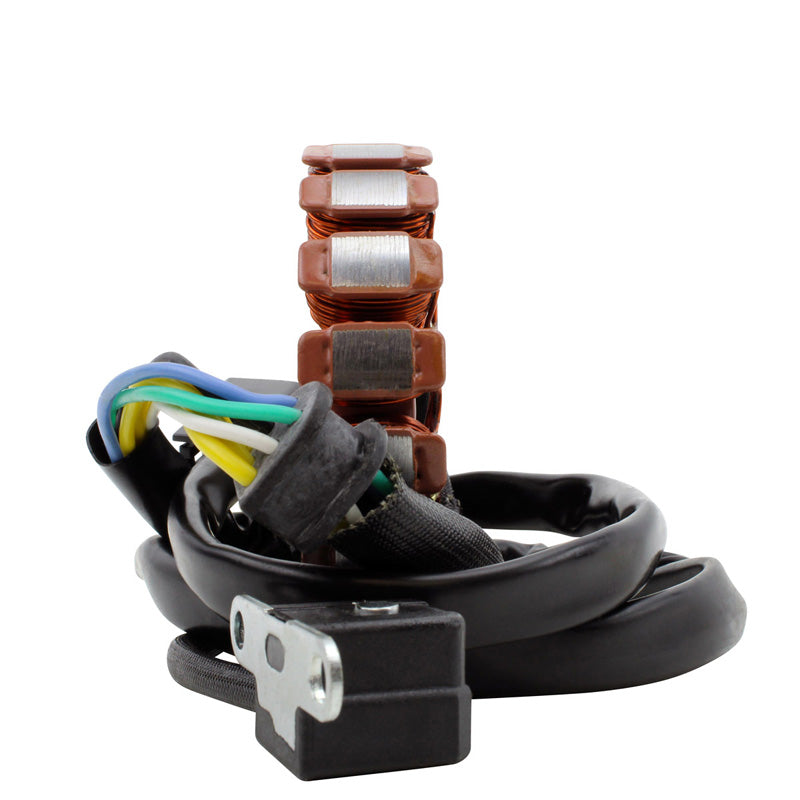

Specifications:
Dimensions:
Interior diameter: 34 mm
Exterior diameter: 93 mm
Thickness: 14 mm

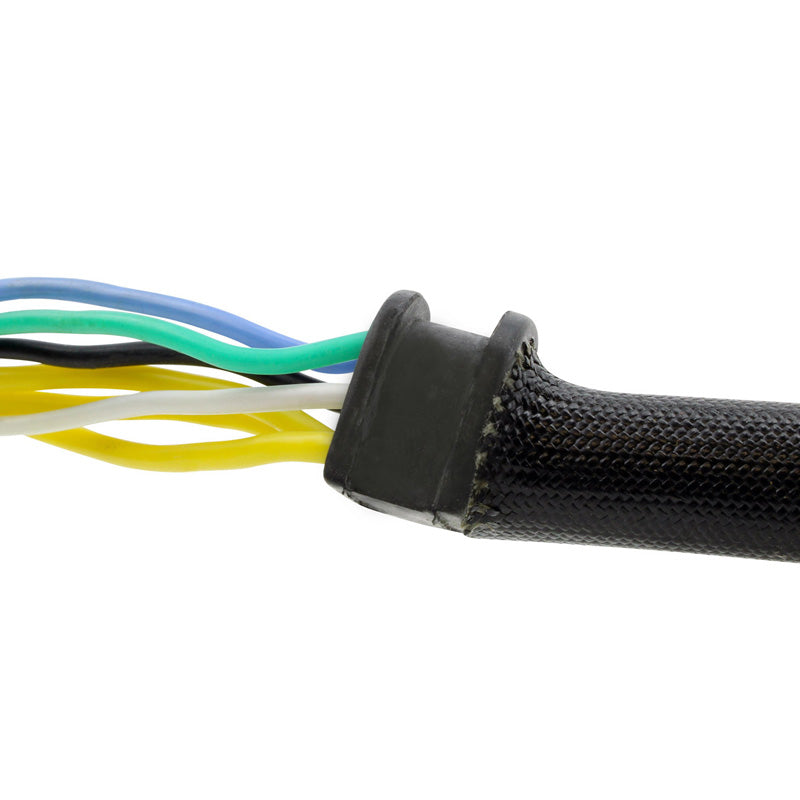

Length of wires stator to grommet: 100 mm
Length of wires grommet to plug: 400 mm & 600 mm
Length of pickup coil's wire to grommet: 110 mm
Other specifications:
Number of wires: 7

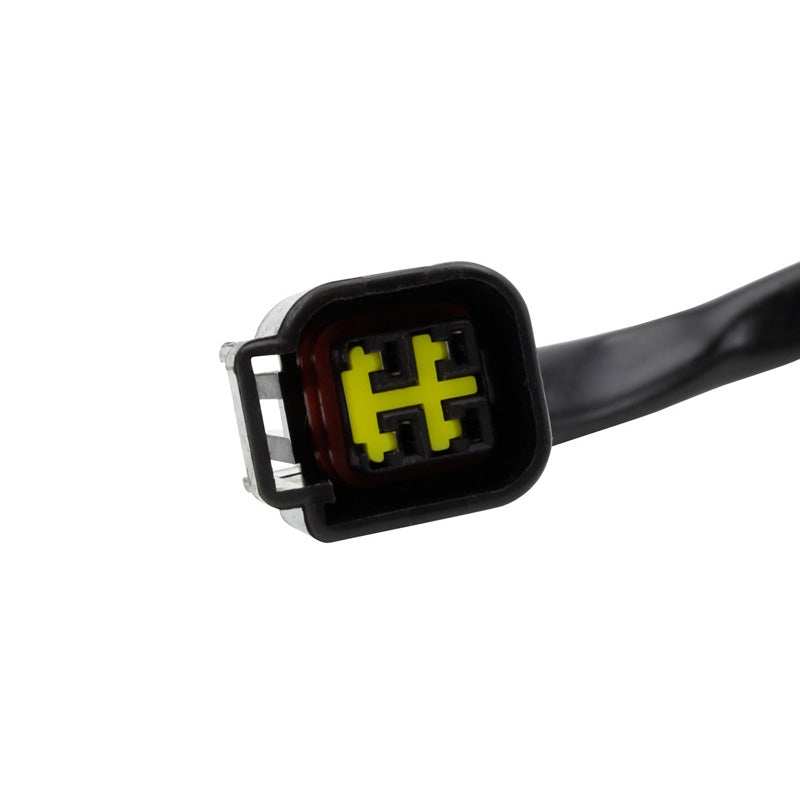

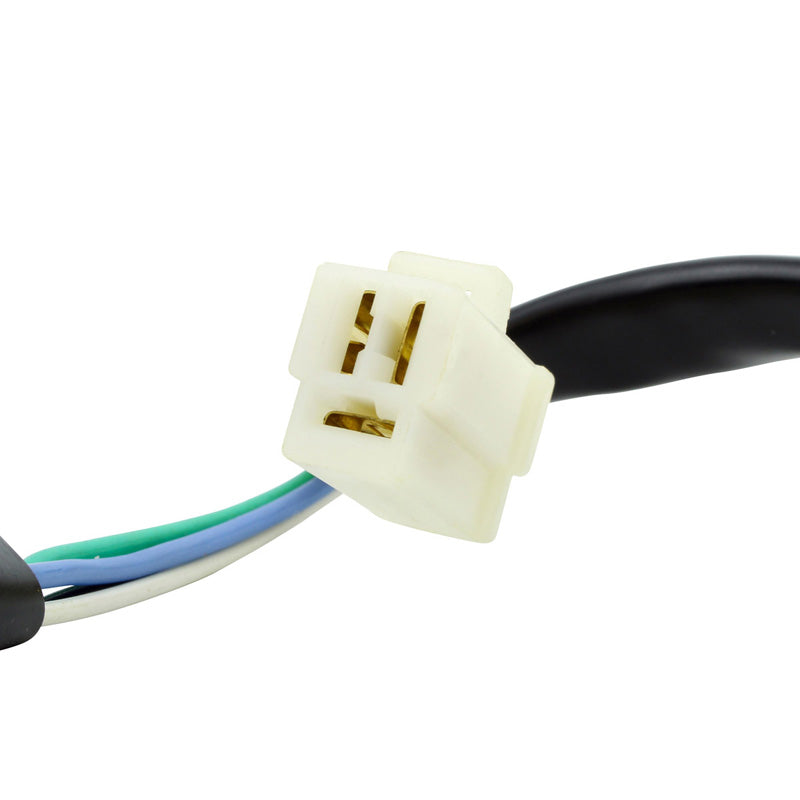

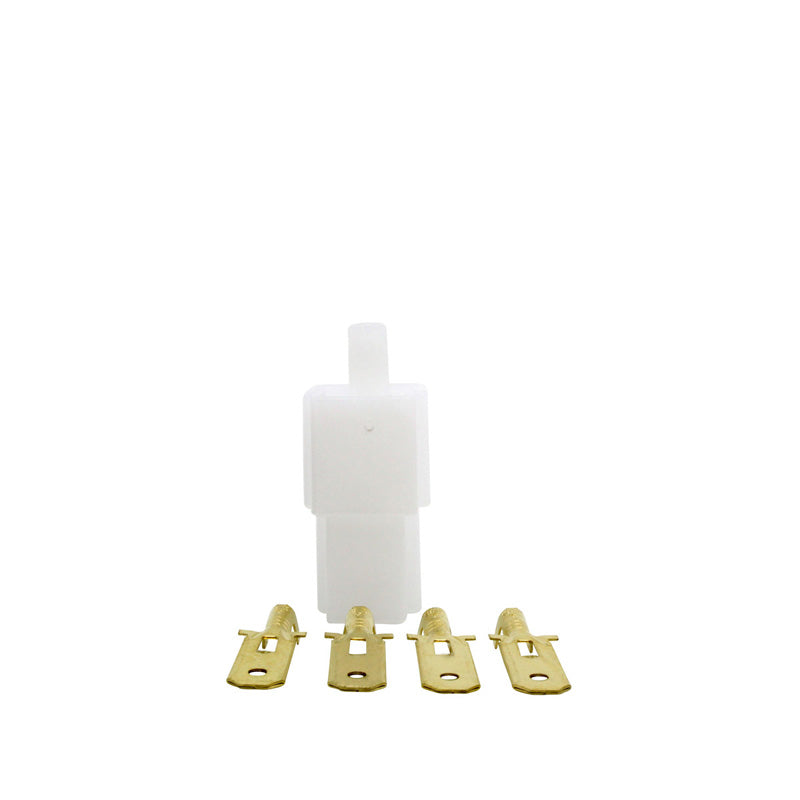

Number of plugs: 2
Number of pins: 7
Wire to wire resistance:
Alternator: Yellow Between each Yellow = 0.7 ohms +/-20%
Alternator: Yellow to Ground O.L on display

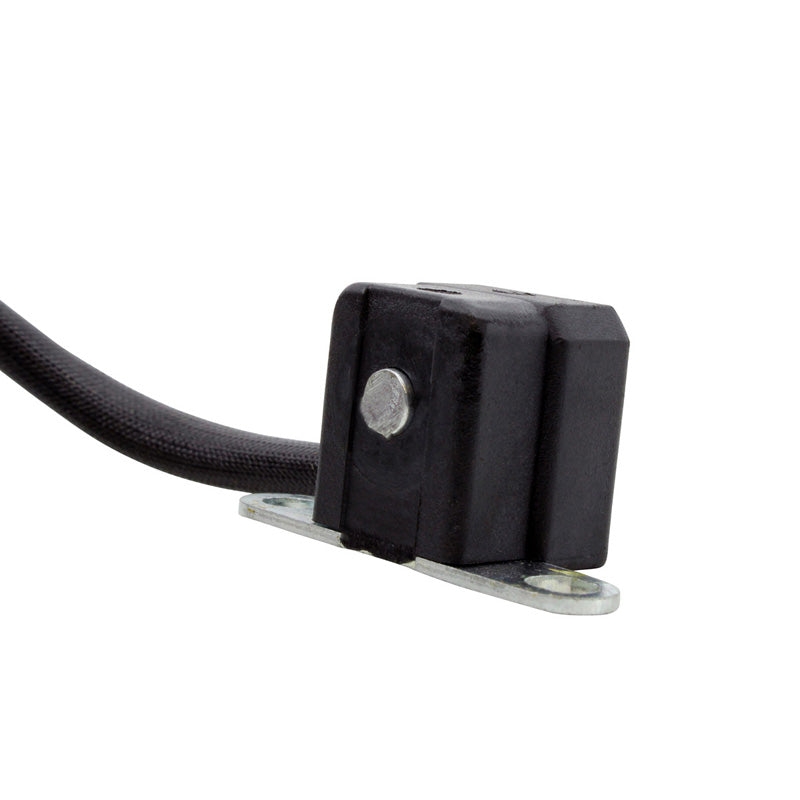

Pickup: Blue to Green = 200 ohms +/-20%
Position Sensor: Black to White = 0.3 ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
