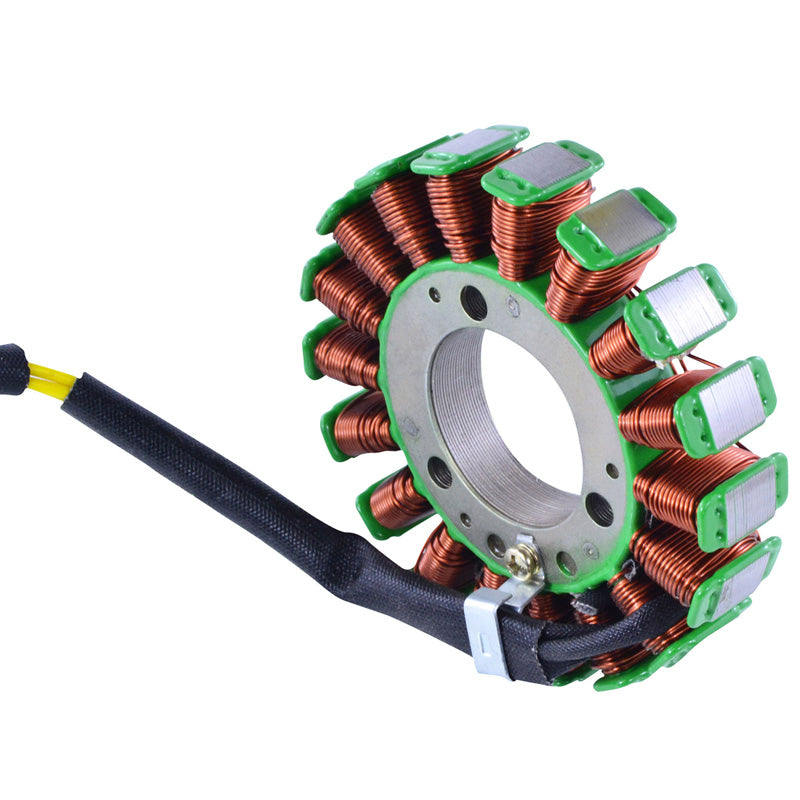

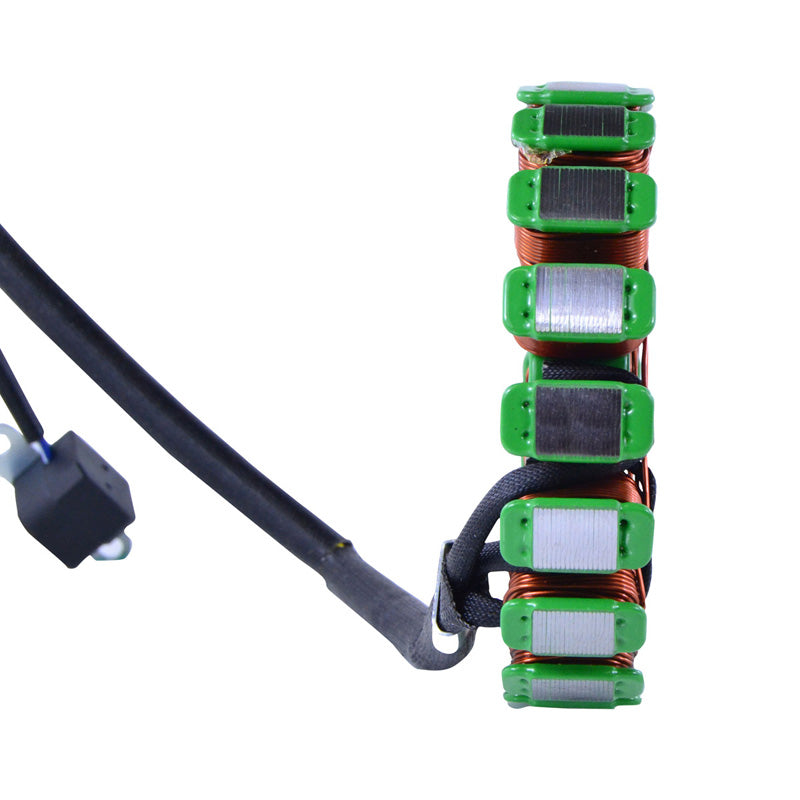

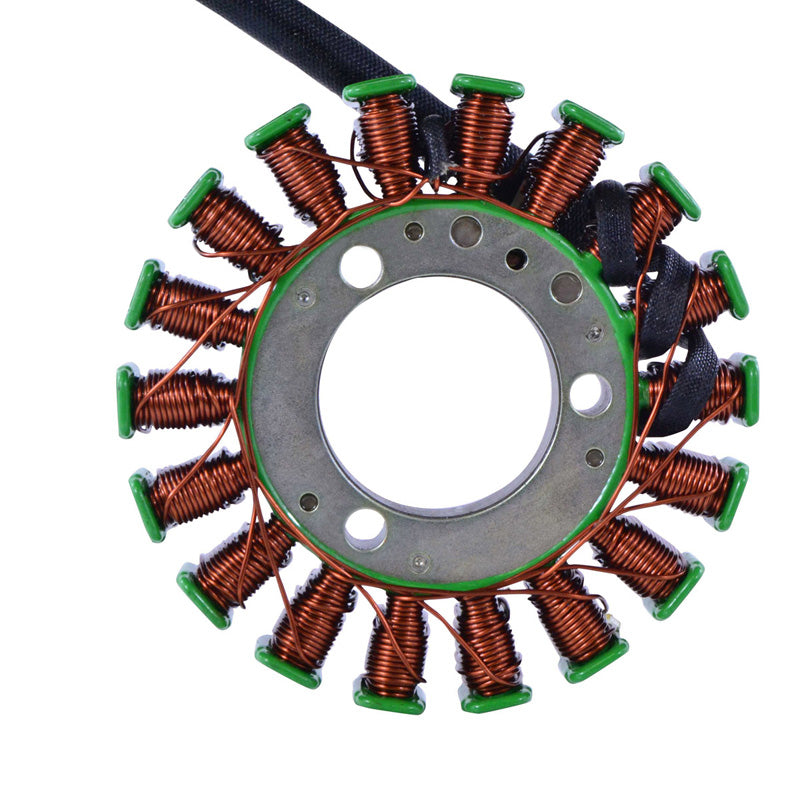

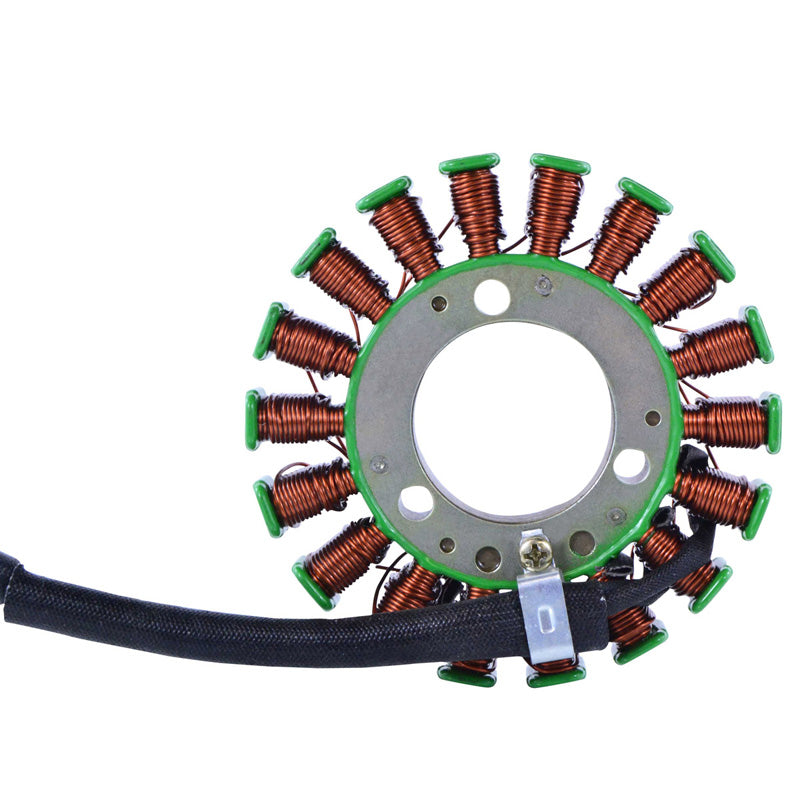

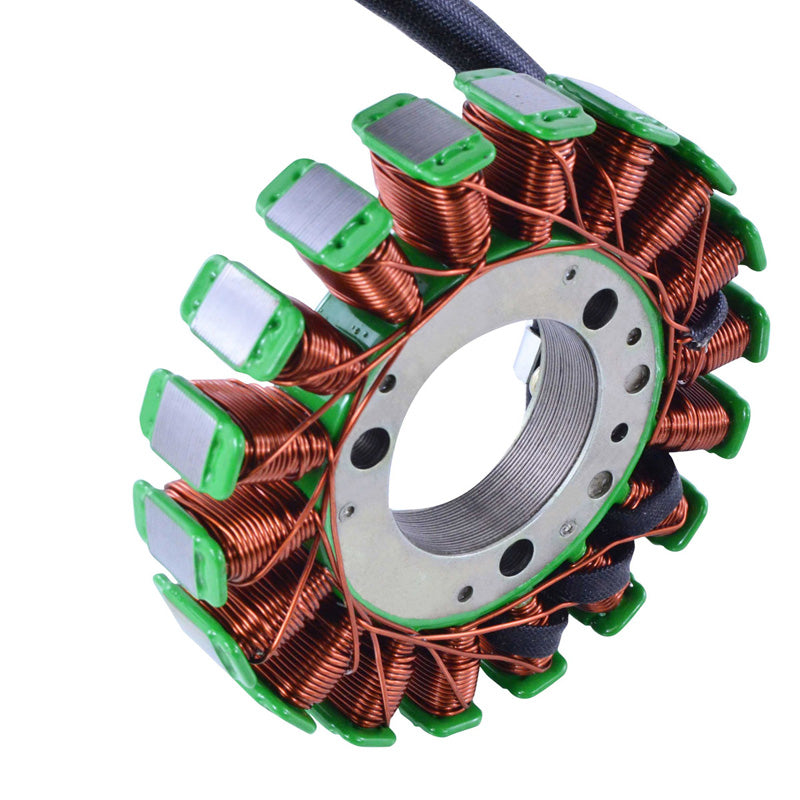

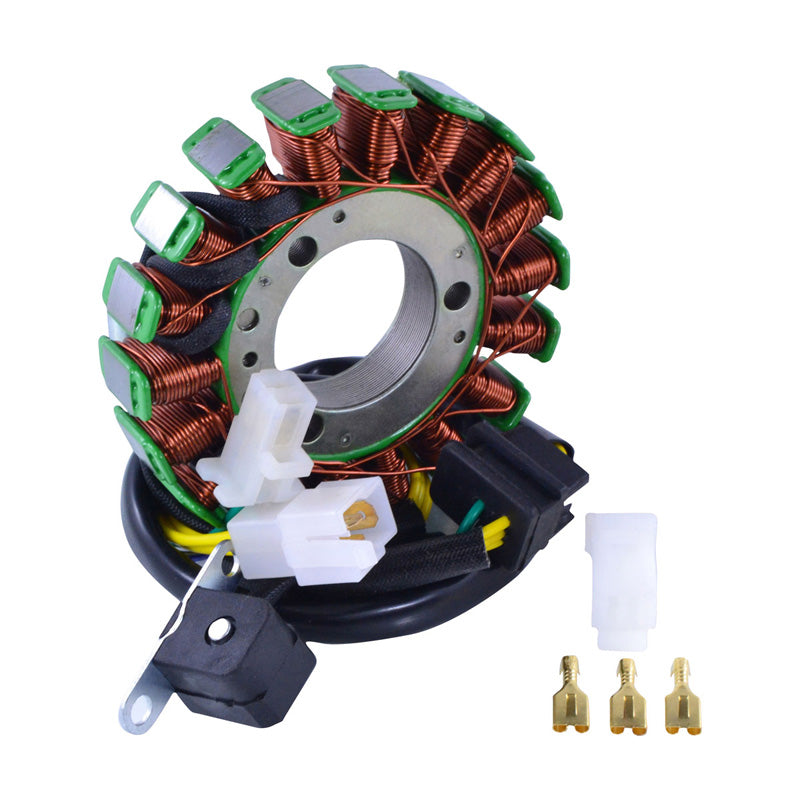

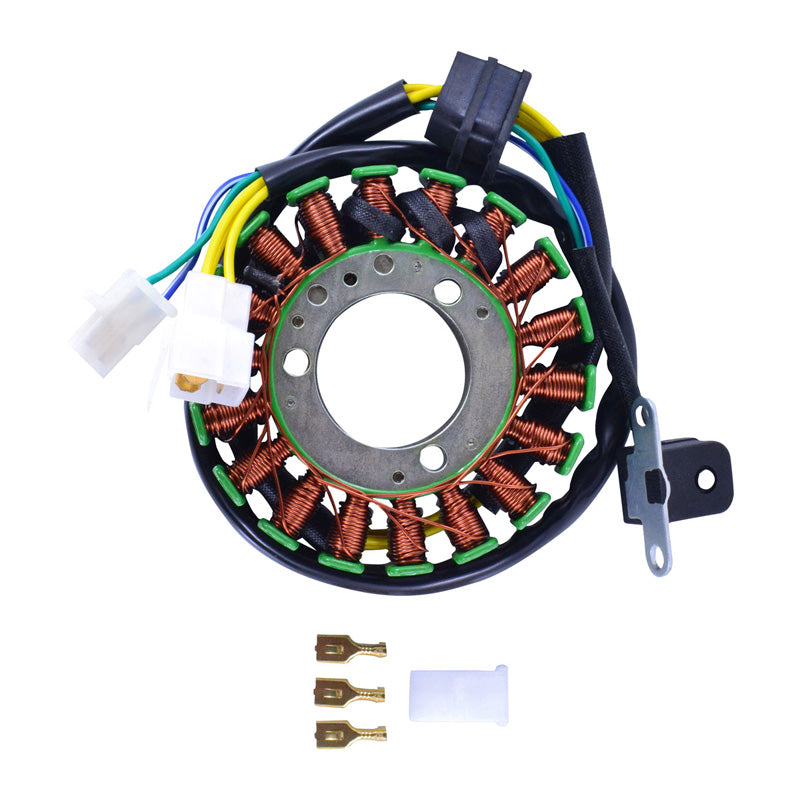

Highest grade of copper winding, resistant to 200 degrees Celsius.

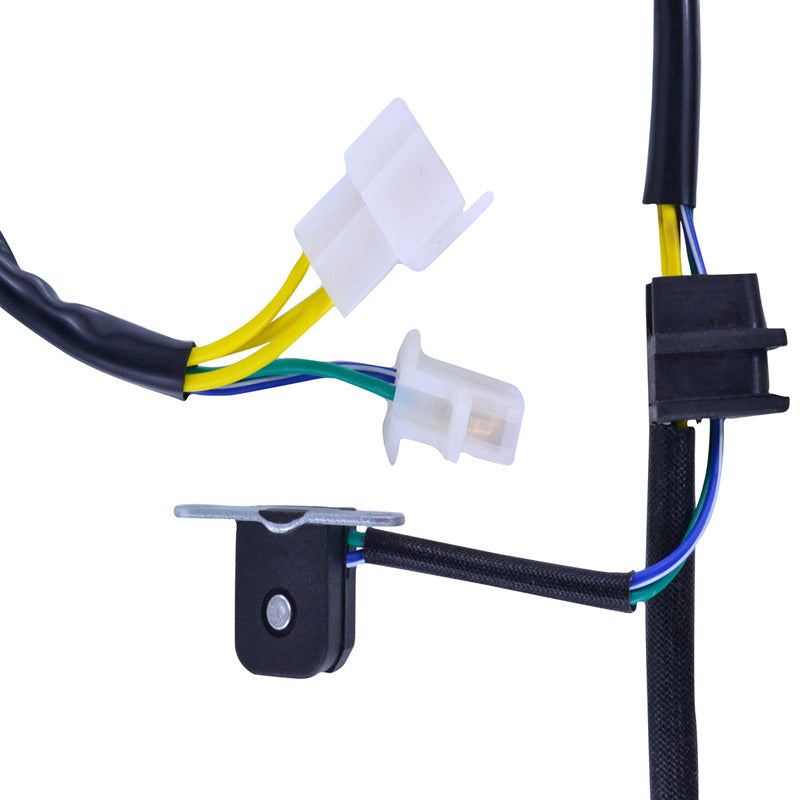

Pick up pulsar coil included

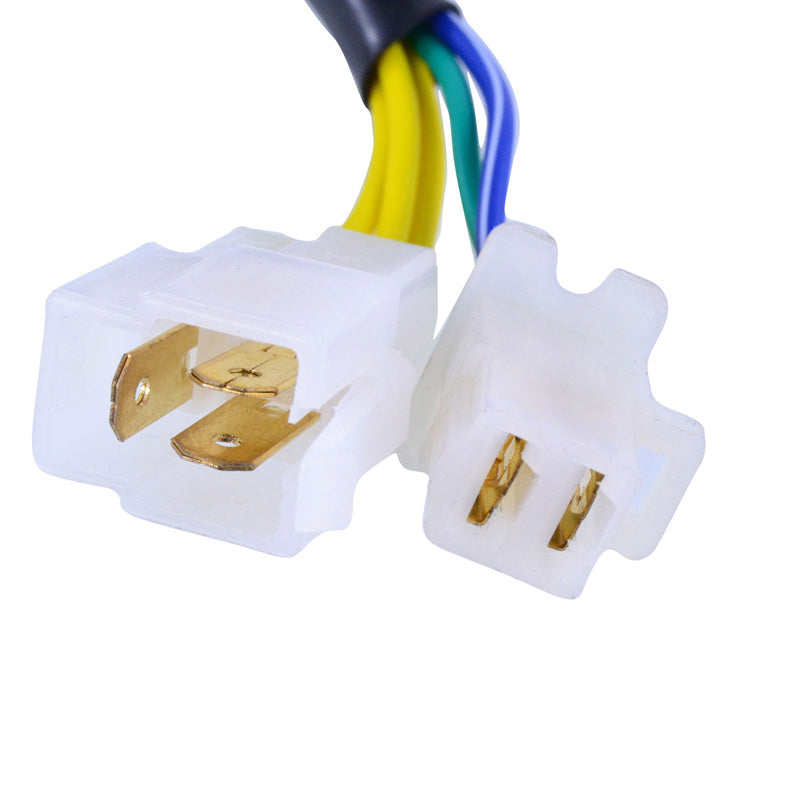

Connector included
Rubber grommet included
All products shipped are tested

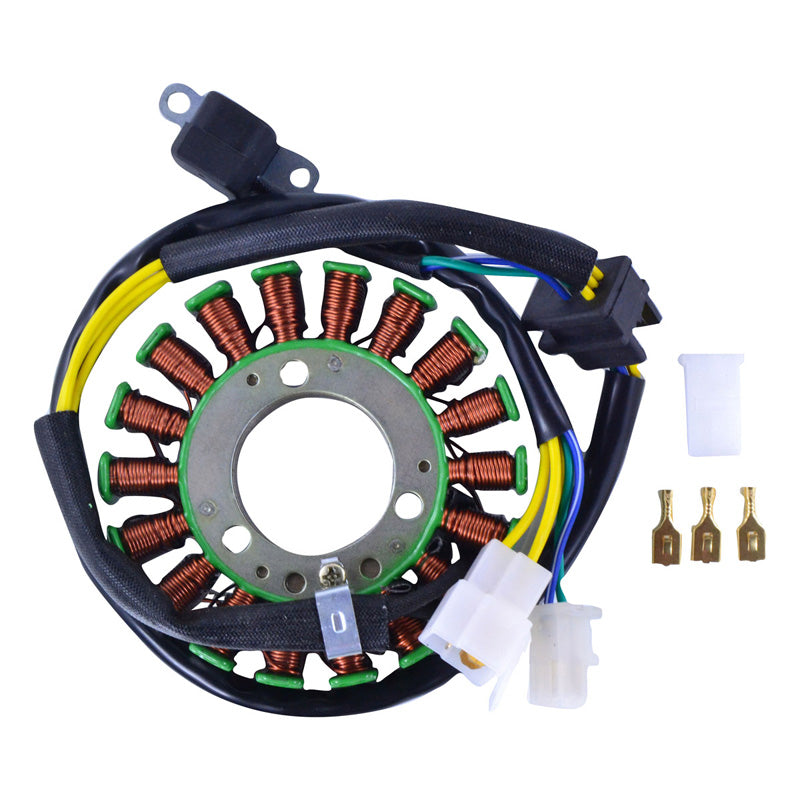

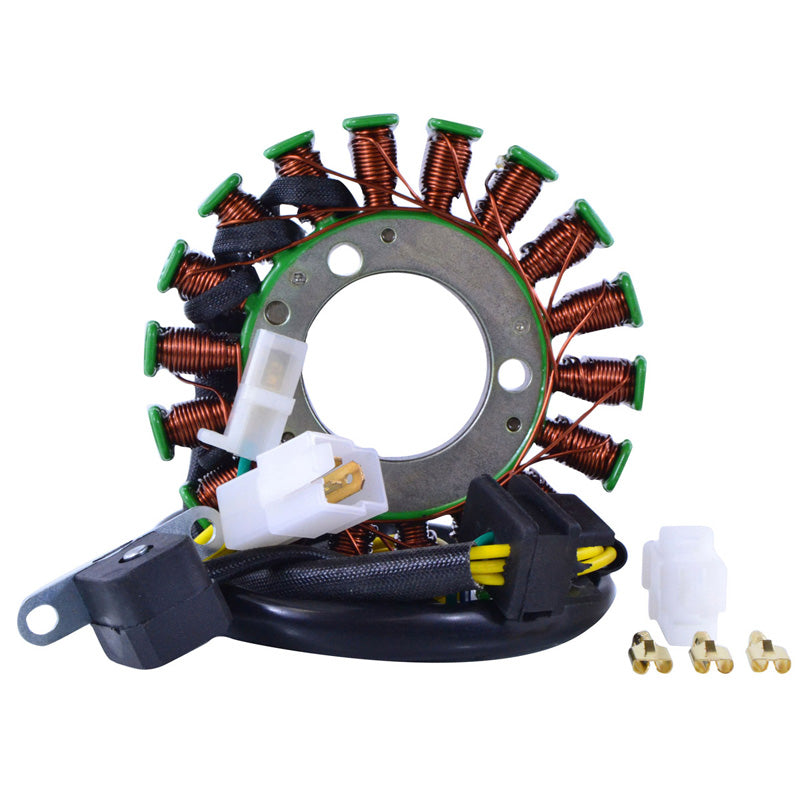

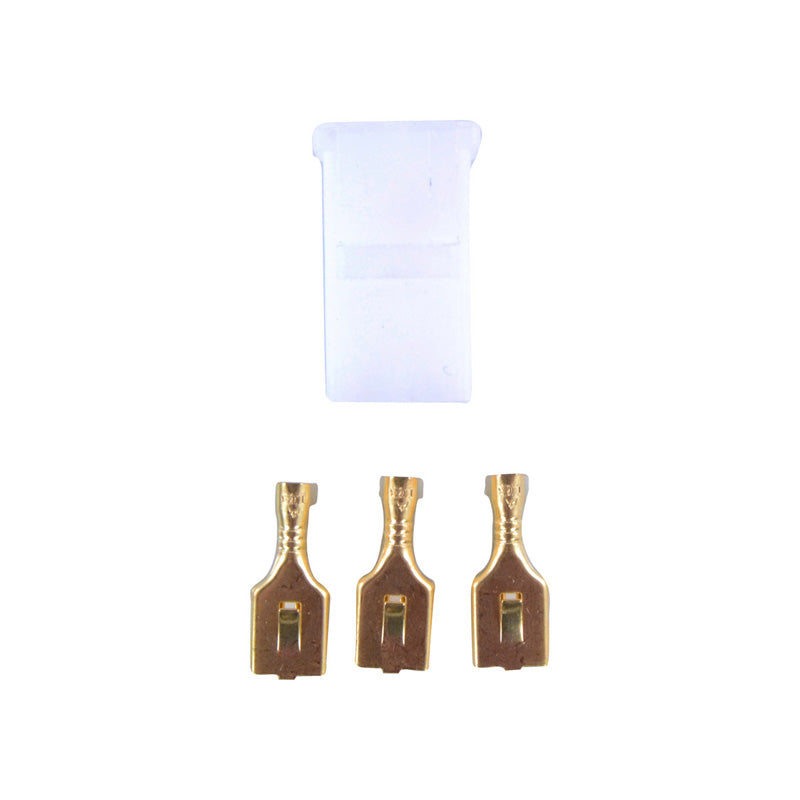

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 38 mm
Exterior diameter : 102 mm
Thickness : 14 mm
Length of wires stator to grommet : 260 mm
Length of wires grommet to plug : 430 mm
Length of pickup coil's wire to grommet : 90 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator 3p : Between each Yellow = 0.4 ohms +-20%
Pickup : Green to Blue/White = 200 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
