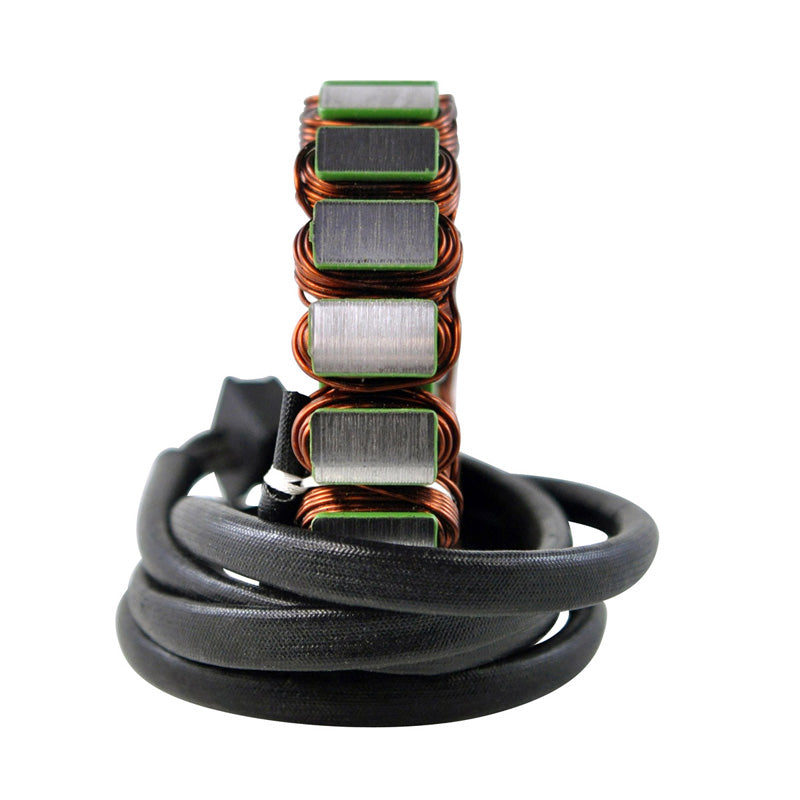

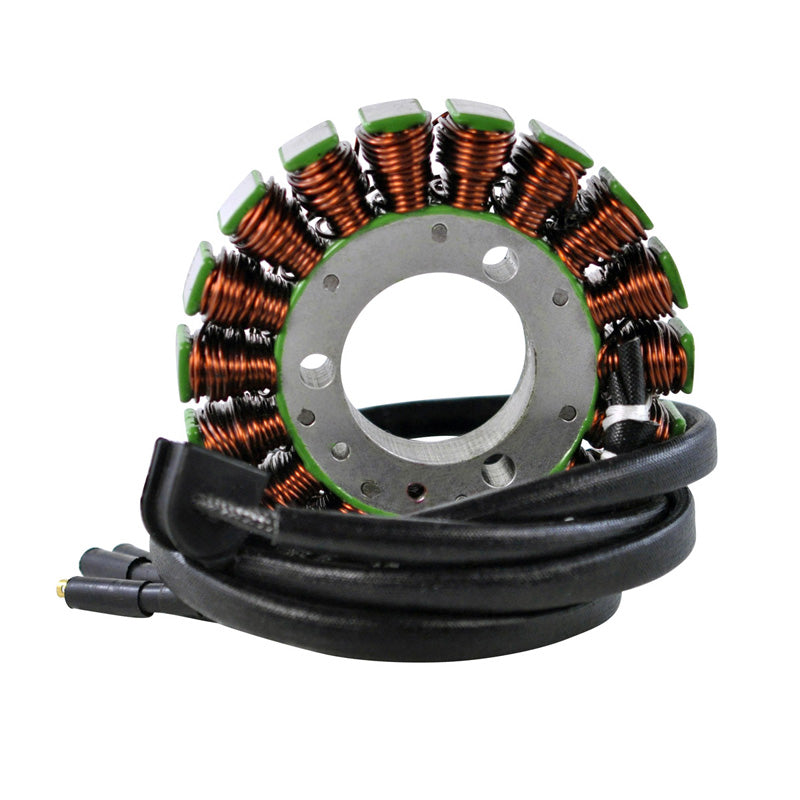

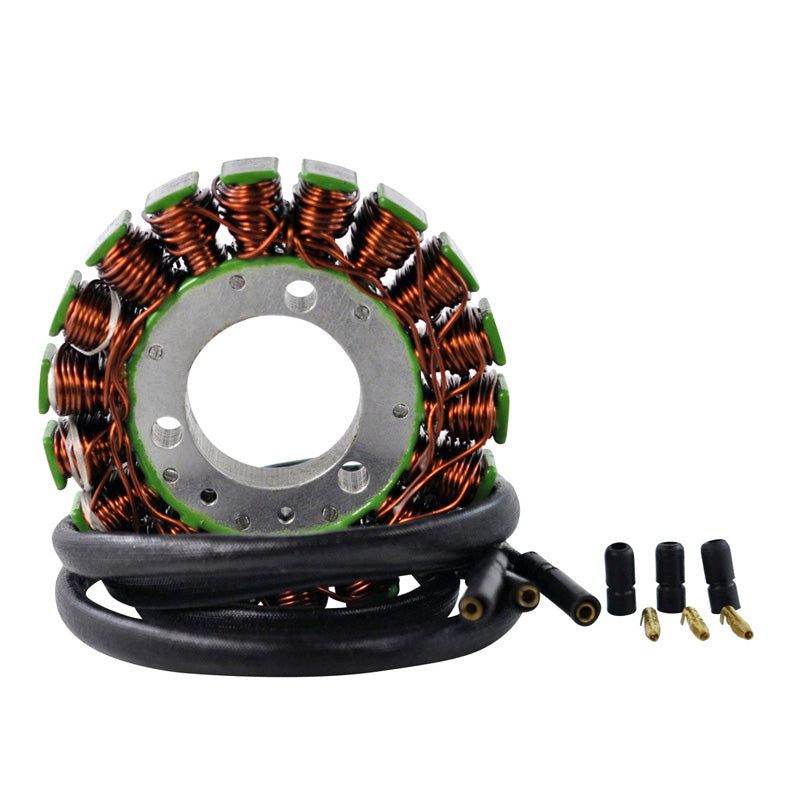

RMS STATOR SUZ GS750-1150|XN85 78-86 RM01083

Brand new aftermarket stator.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest-grade lamination materials.
• Highest-grade copper windings, resistant to 200 degrees Celsius.

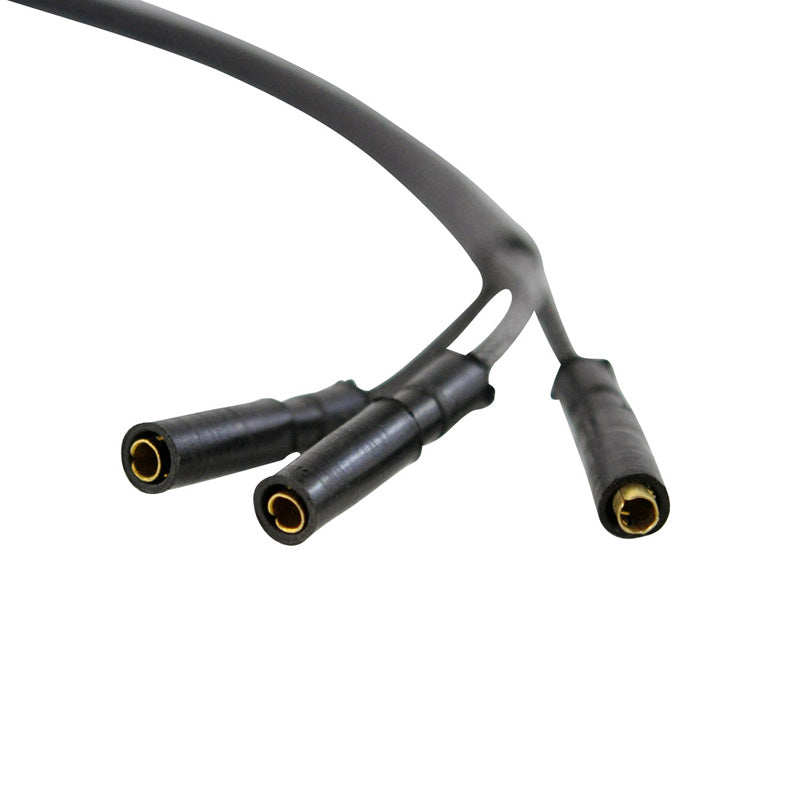

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

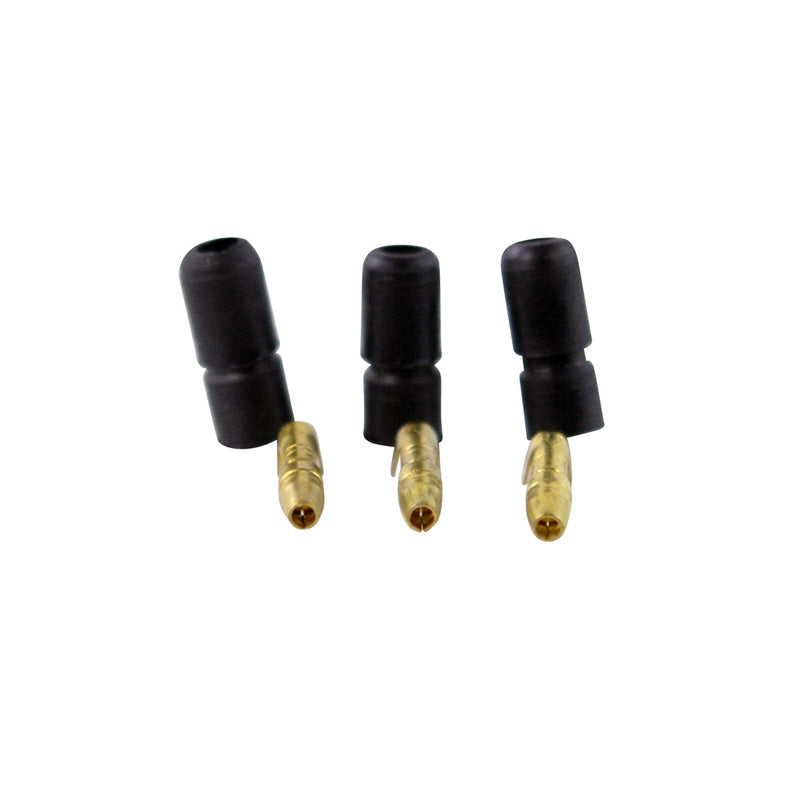

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 37 mm
Exterior diameter: 102 mm
Thickness: 18 mm
Length of wires stator to grommet: 240 mm
Length of wires grommet to plug: 800 mm


Other specifications:
Number of wires: 3
Number of plugs: 3
Number of pins: 3

Wire to wire resistance:
Alternator: White between each White = 0.4 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
