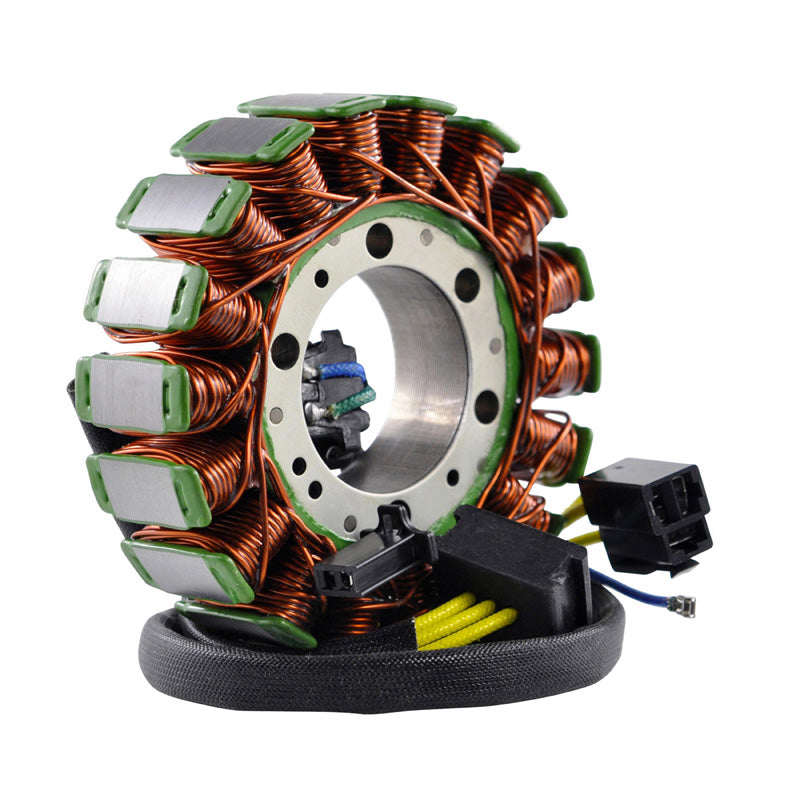

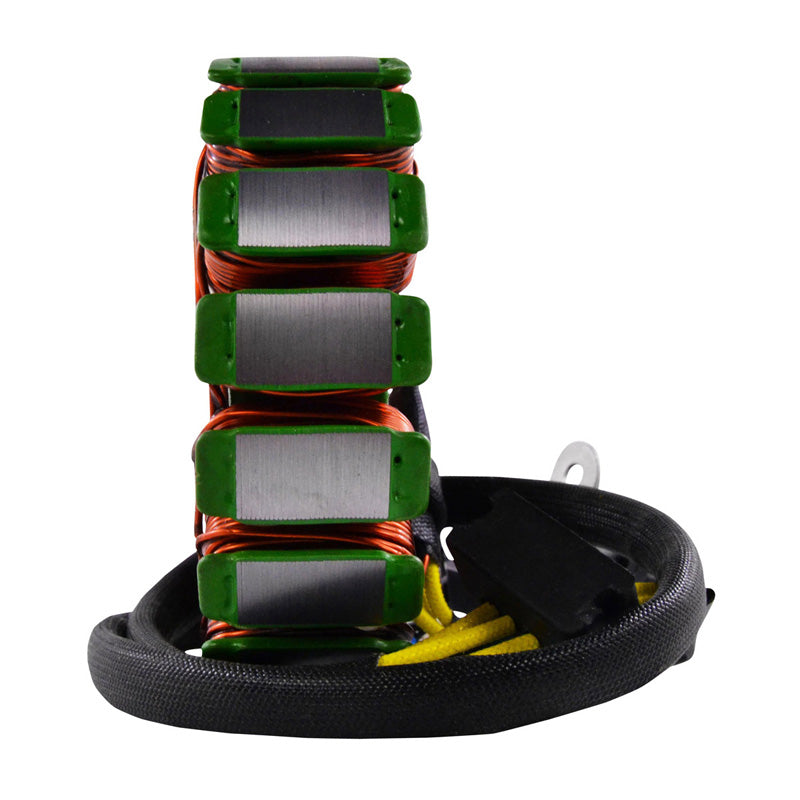

Highest grade copper windings, resistant to 200 degrees Celsius.

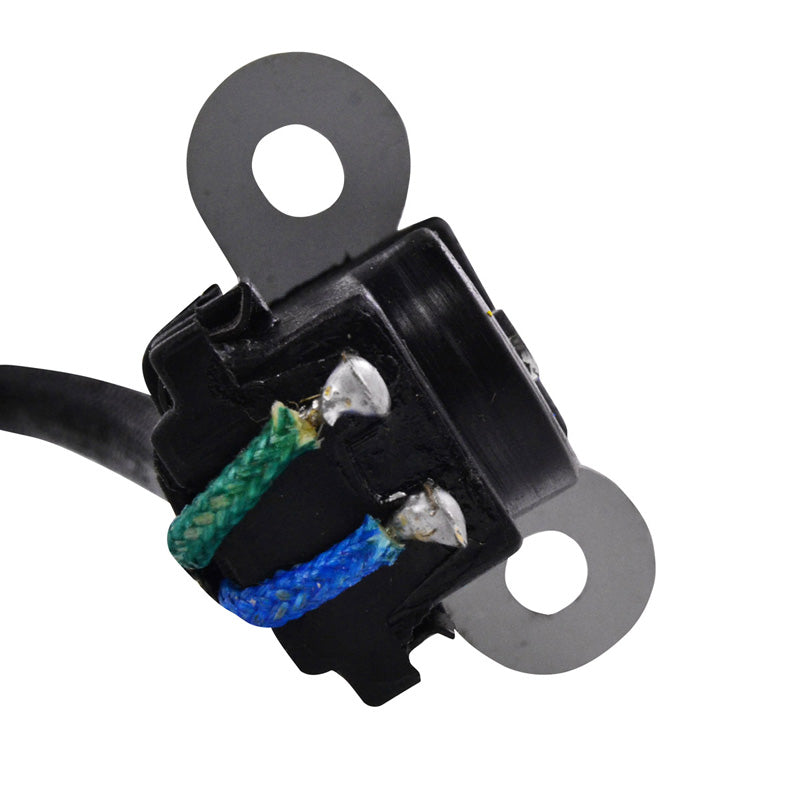

Pick up pulsar coil included

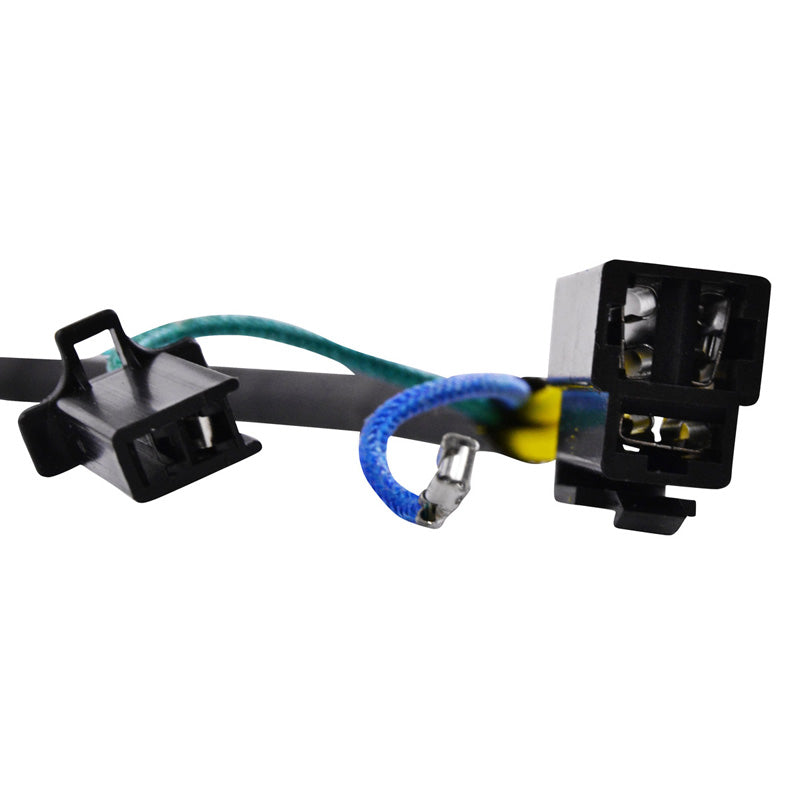

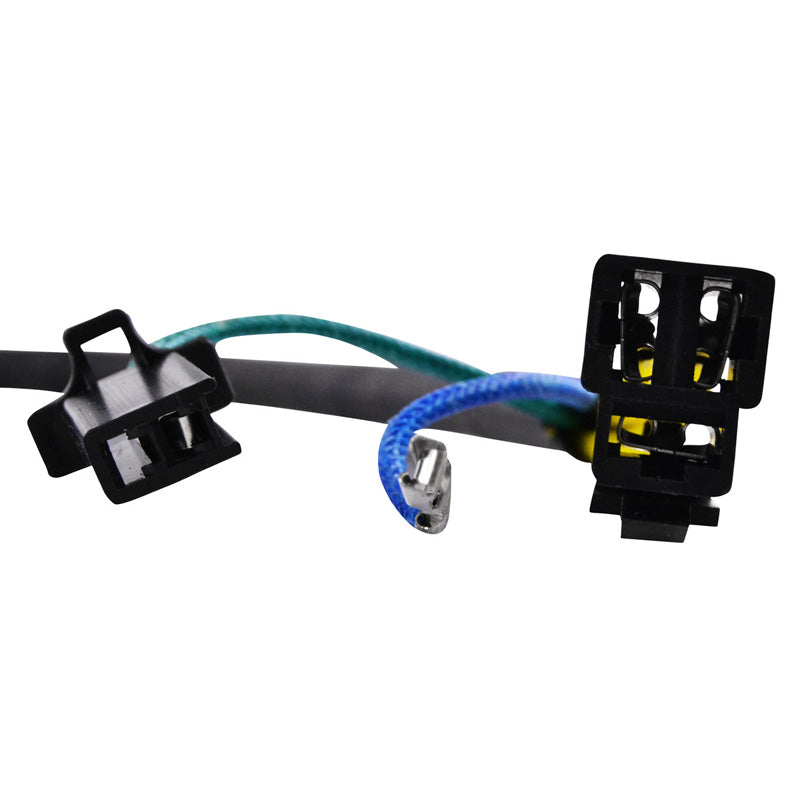

Connector included
Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 106 mm
Thickness : 22 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 490 mm
Length of pickup coil's wire to grommet : 55 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow Between Yellow = 0.6 ohms +-20%
Pickup : Green To Blue = 238 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
