Highest grade of copper winding, resistant to 200 degrees Celsius

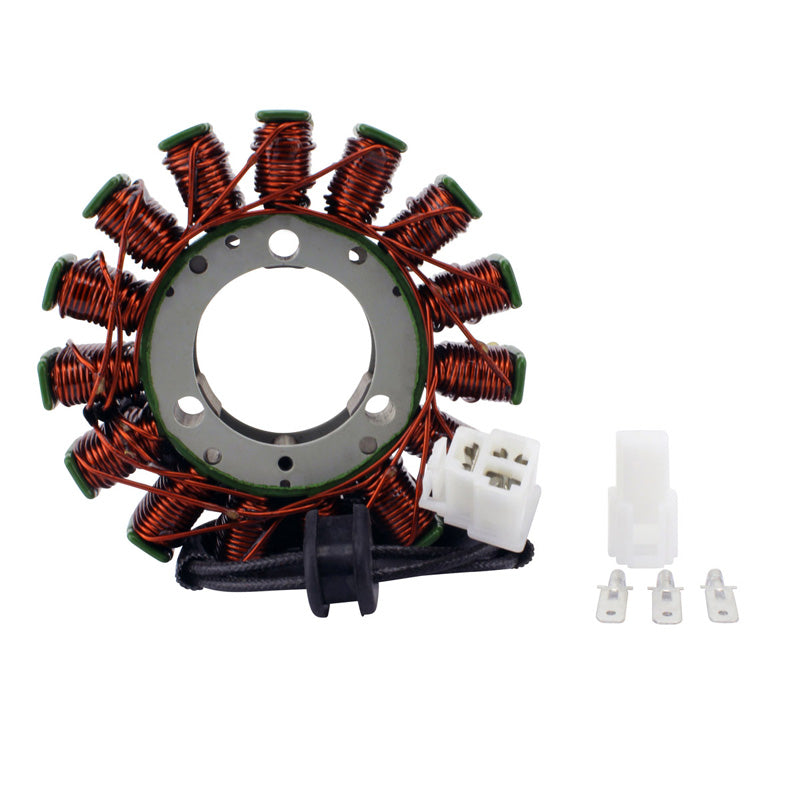

Connectors included
Rubber grommet included
All products shipped are tested
Specifications:
Dimensions:
Interior diameter: 39 mm
Exterior diameter: 105 mm
Thickness: 16 mm
Length of clamp to grommet: 85 mm
Length of wires grommet to plug: 180 mm
Other specifications:
Number of wires: 3

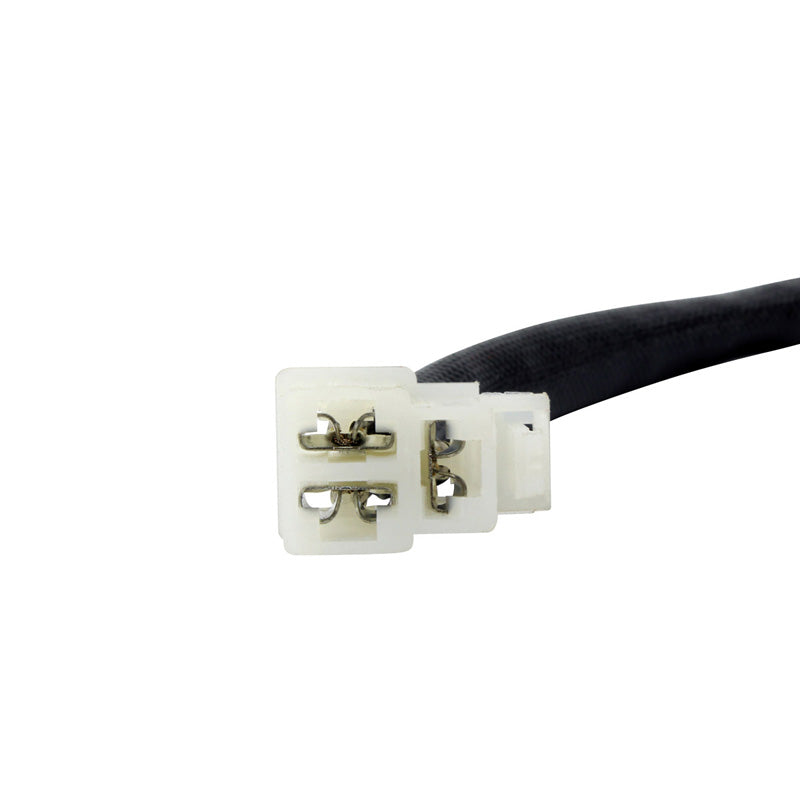

Number of plugs: 1
Number of pins: 3
Number of poles: 15
Wire to wire resistance:
Alternator: Black to Black = 0.4 ohms +-20%
Alternator: to ground = O.L
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
