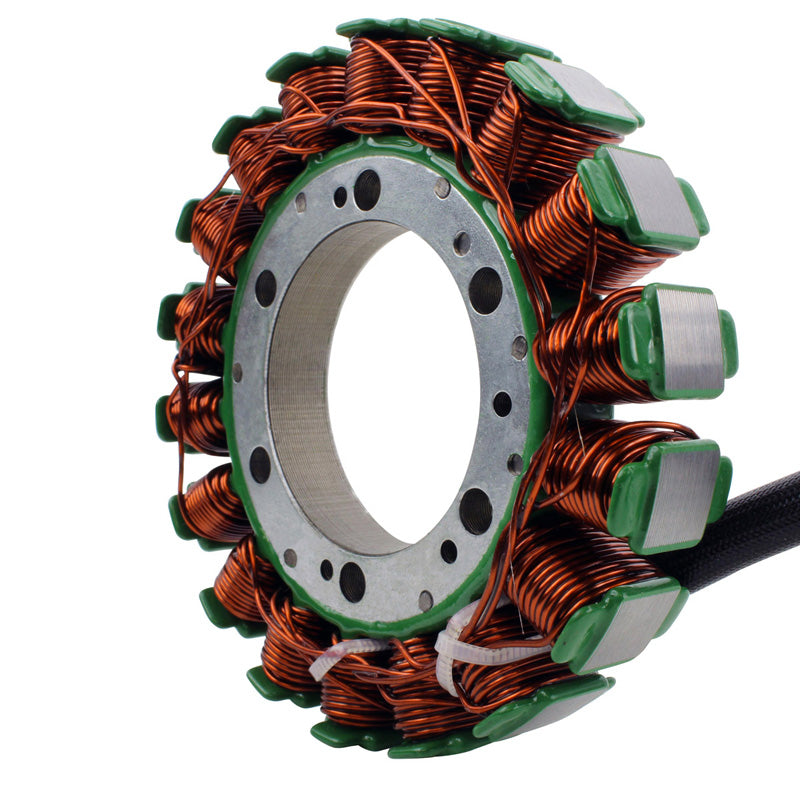

Highest-grade copper windings, resistant to 200 degrees Celsius.

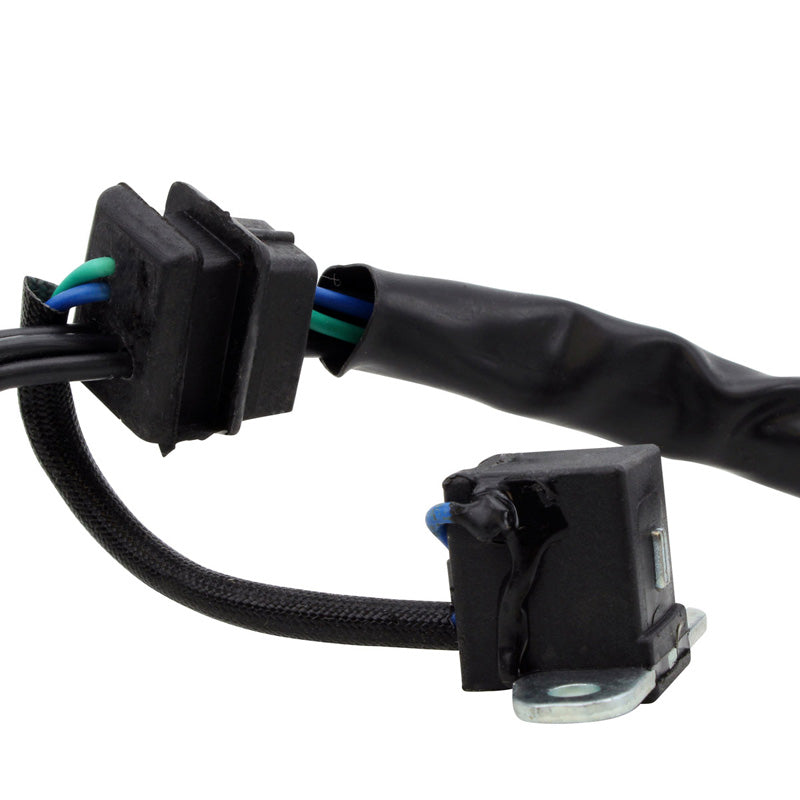

Pick up pulsar coil included.

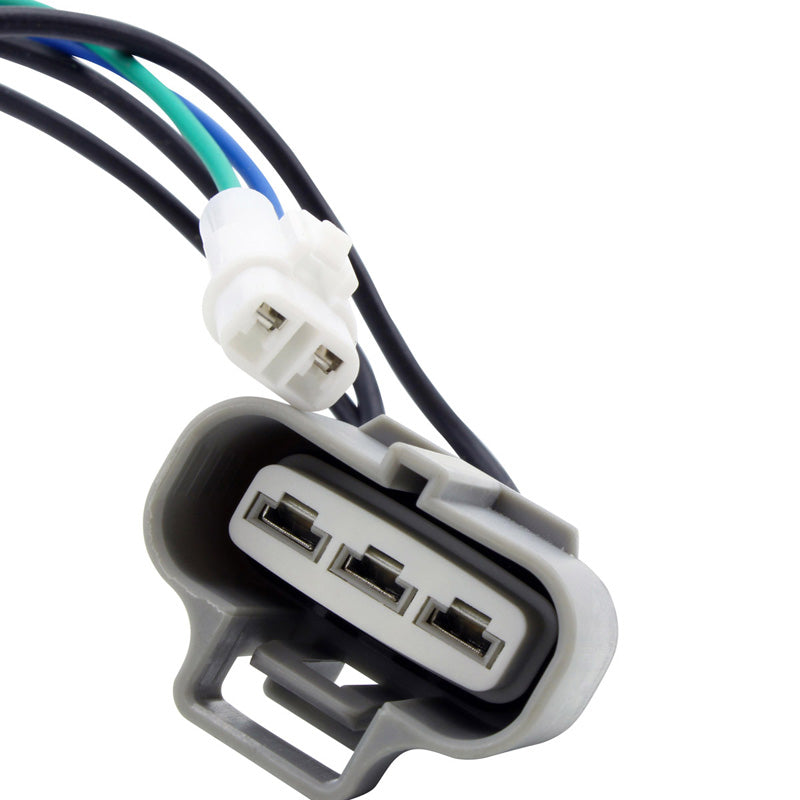

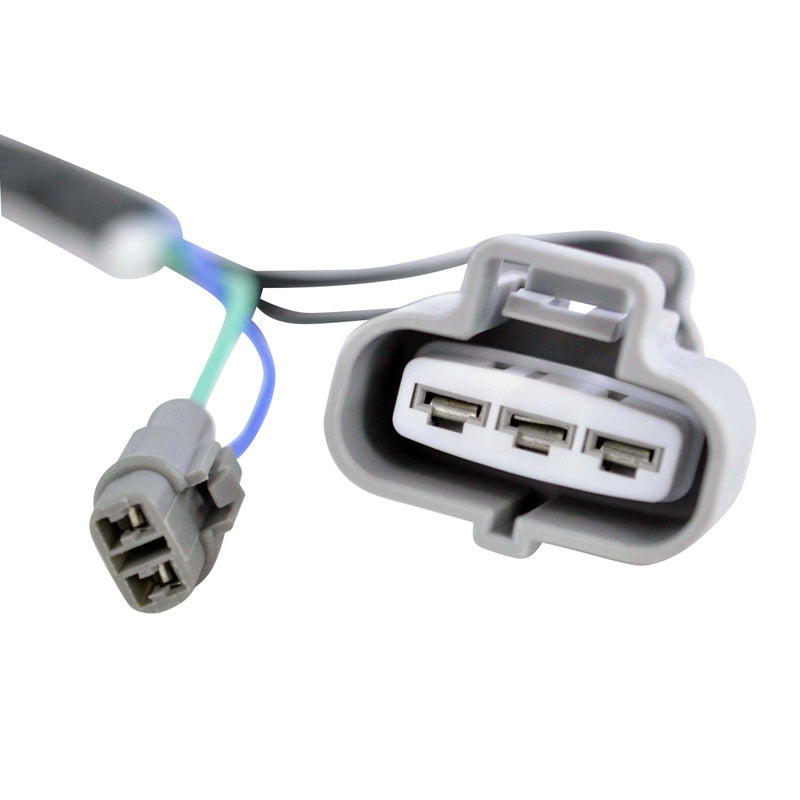

Connector included.
Rubber grommet included.
All products shipped are tested.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 118 mm
Thickness: 15 mm
Length of wires stator to grommet: 112 mm
Length of wires grommet to plug: 380 mm
Length of pickup coil's wire to grommet: 50 mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Wire to wire resistance:
Alternator: Black between each Black = 0.4 ohms +/-20%
Pickup: Blue to Green = 196 ohms =+/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
