Highest grade copper windings, resistant to 200 degrees Celsius.

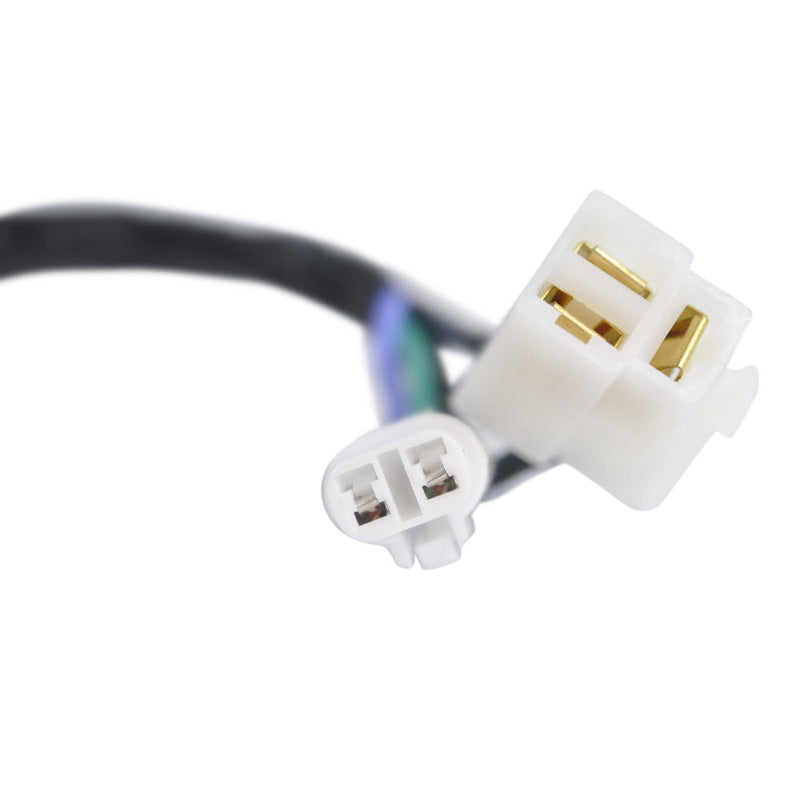

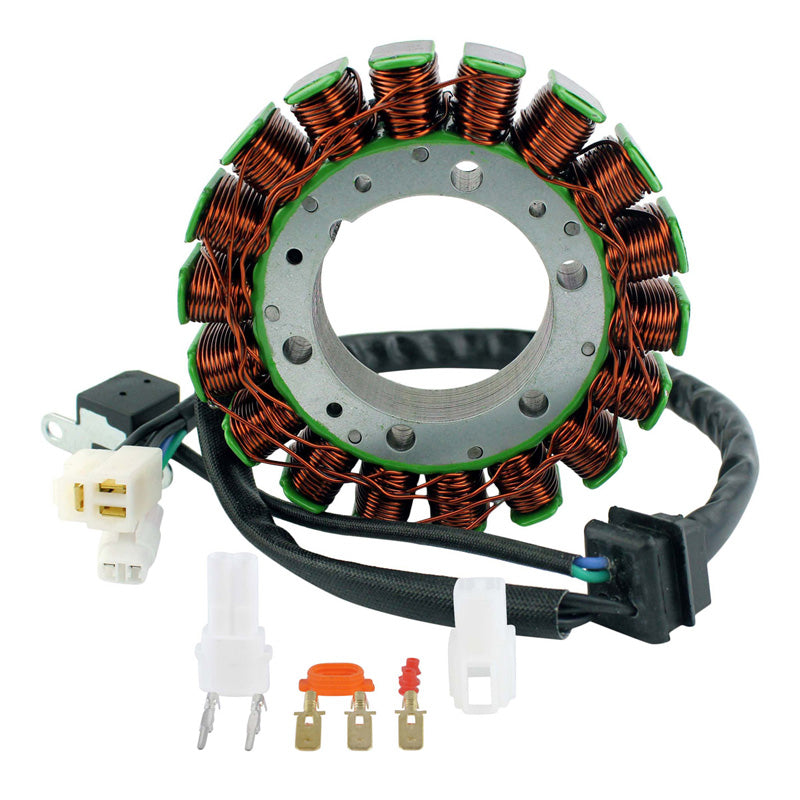

Connector included
Rubber grommet included

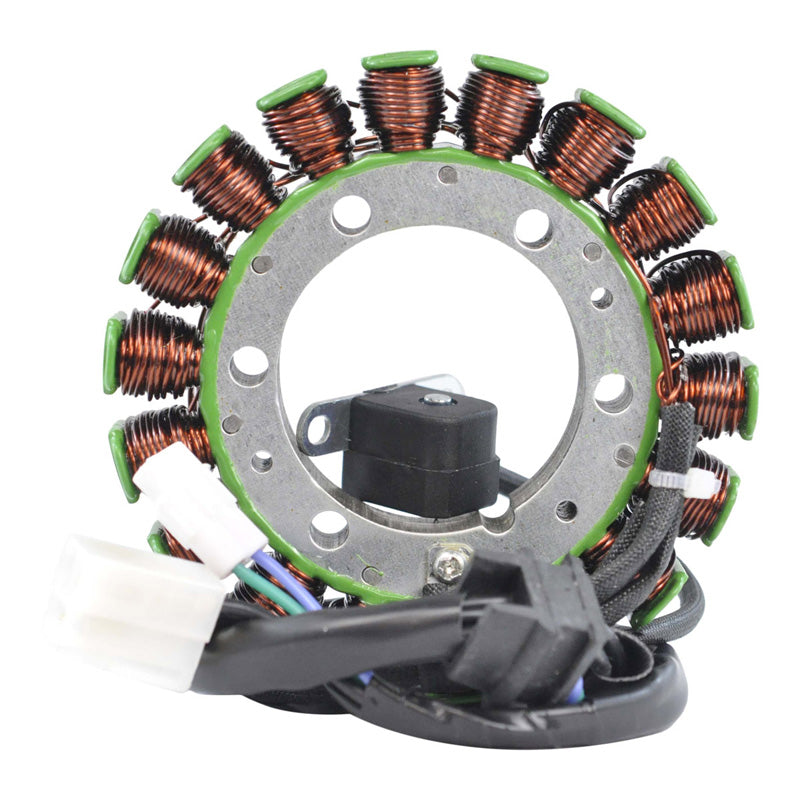

Pick-up Pulsar Coil included
All product shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Alternator resistance (Yellow to Yellow) : 0.4 ohms +/- 20%
Pick-up 1 resistance (Blue to White) : 220 ohms +/- 20%
Number of wires : 5
Number of plugs : 2
Number of terminals : 5
Harness length - Stator to grommet (mm) : 150
Harness length - Grommet to plug (mm) : 240
Pick-up coil wire length - Coil to grommet (mm) : 100
Inside diameter (mm) : 53
Outside diameter (mm) : 115
Thickness (mm) : 18
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
