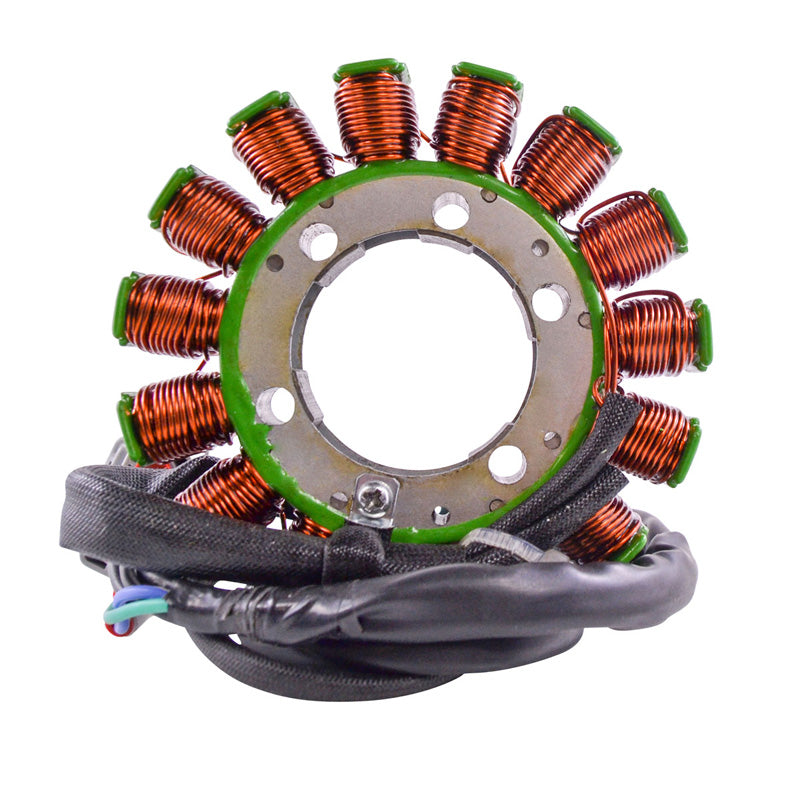

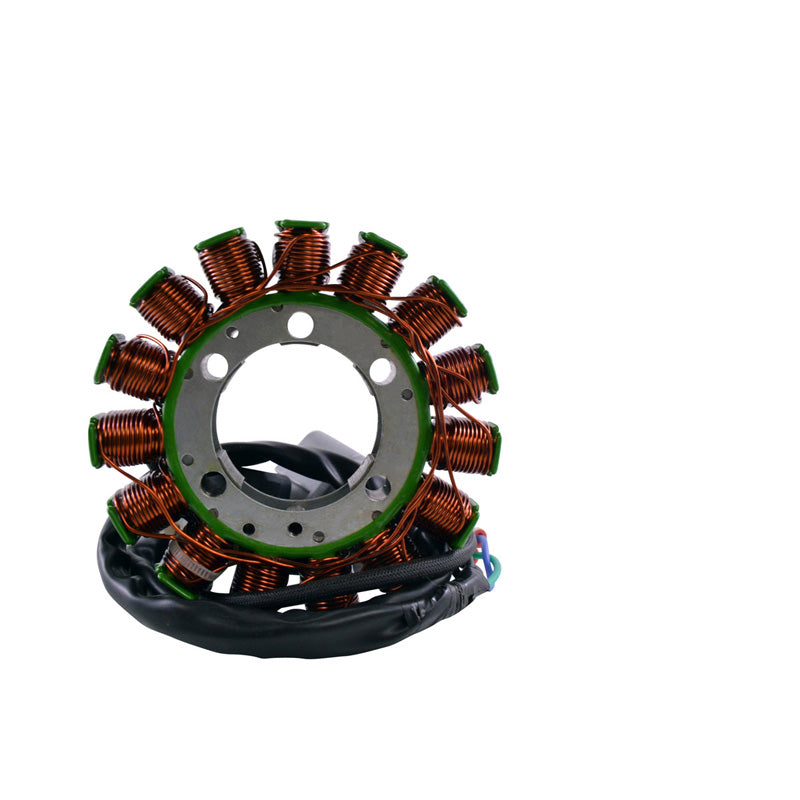

Highest grade copper windings, resistant to 200 degrees Celsius.

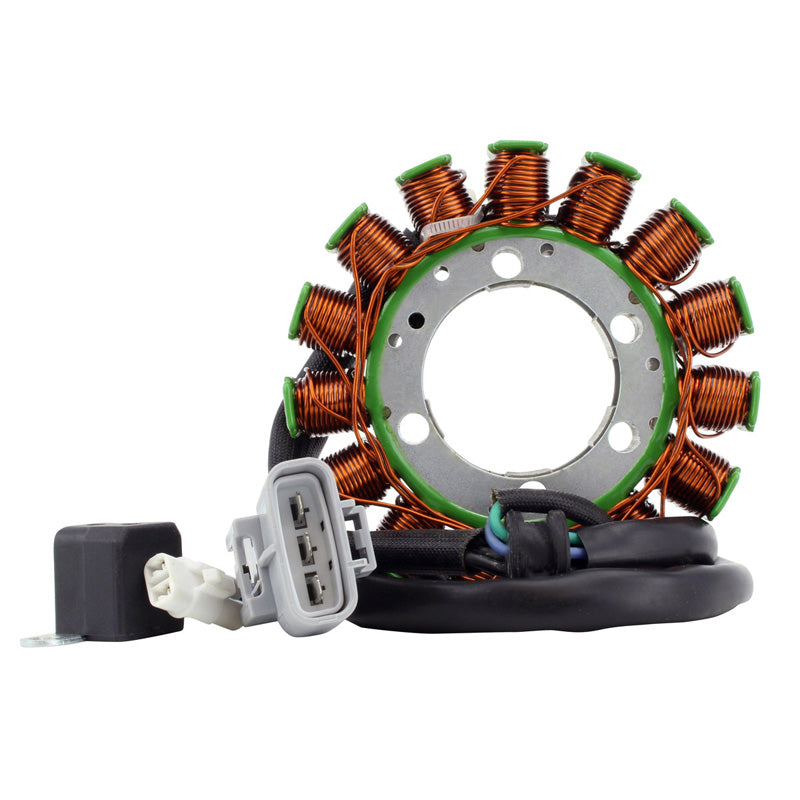

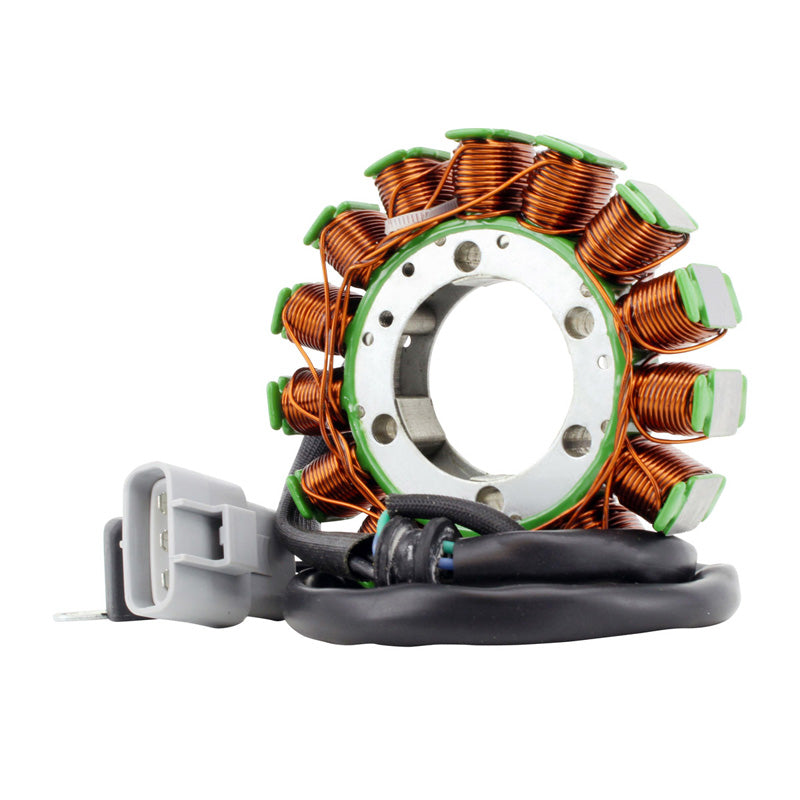

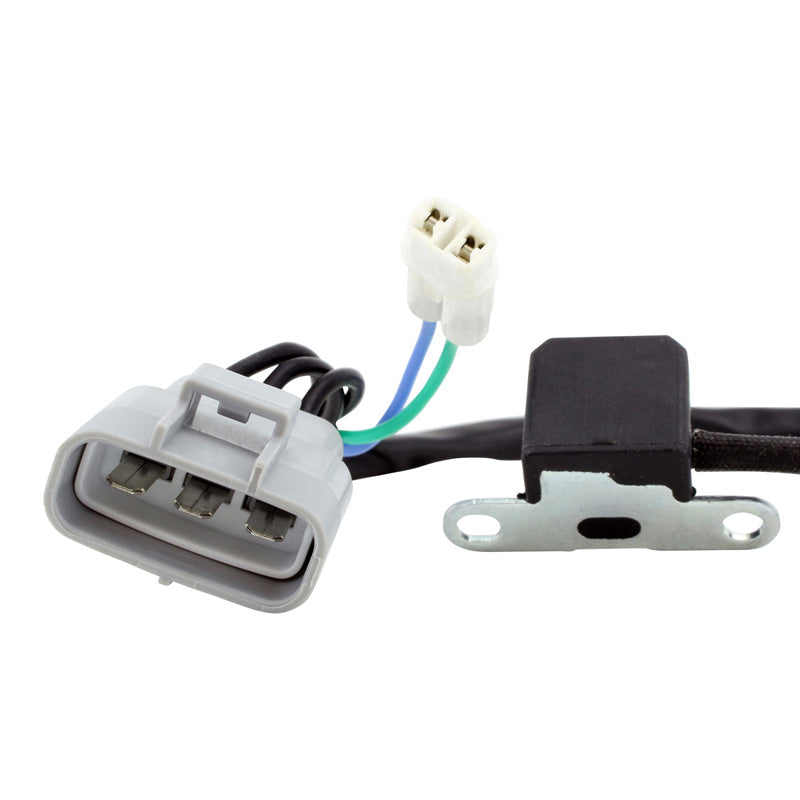

Pick up pulsar coil included

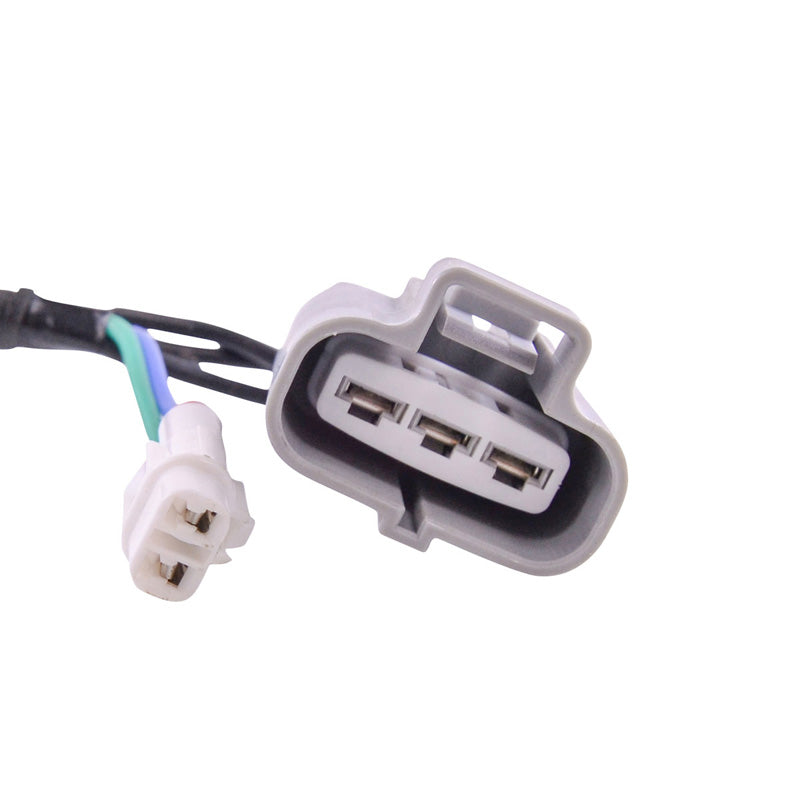

Connector included
Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 42mm
Exterior diameter : 105mm
Thickness : 15mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 180mm
Length of pickup coil's wire to grommet : 450mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Blue to Black = 0.4ohms +/-20%
Pickup : Green to Blue = 500ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
