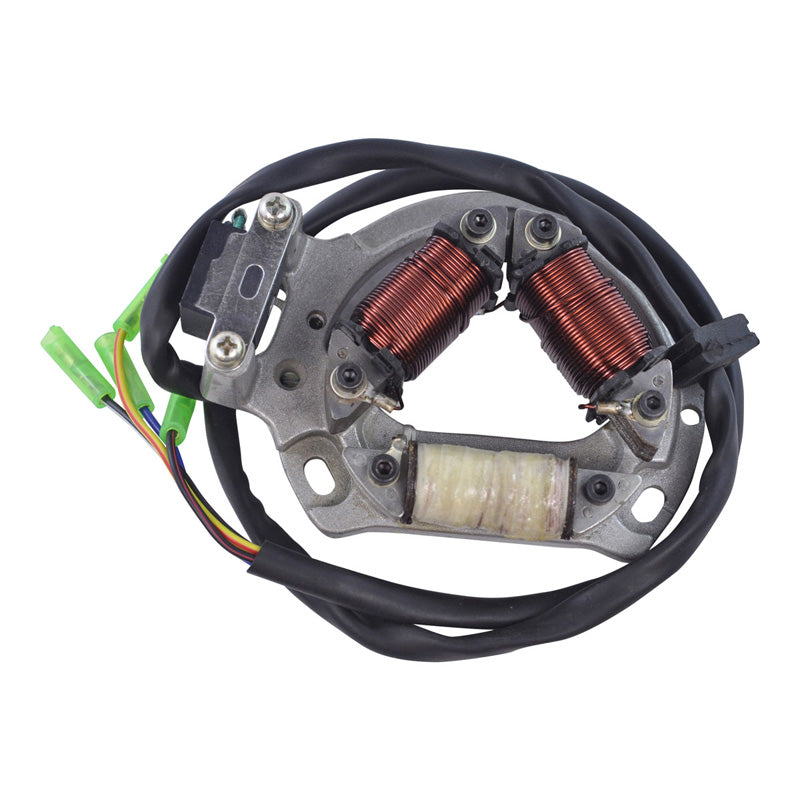

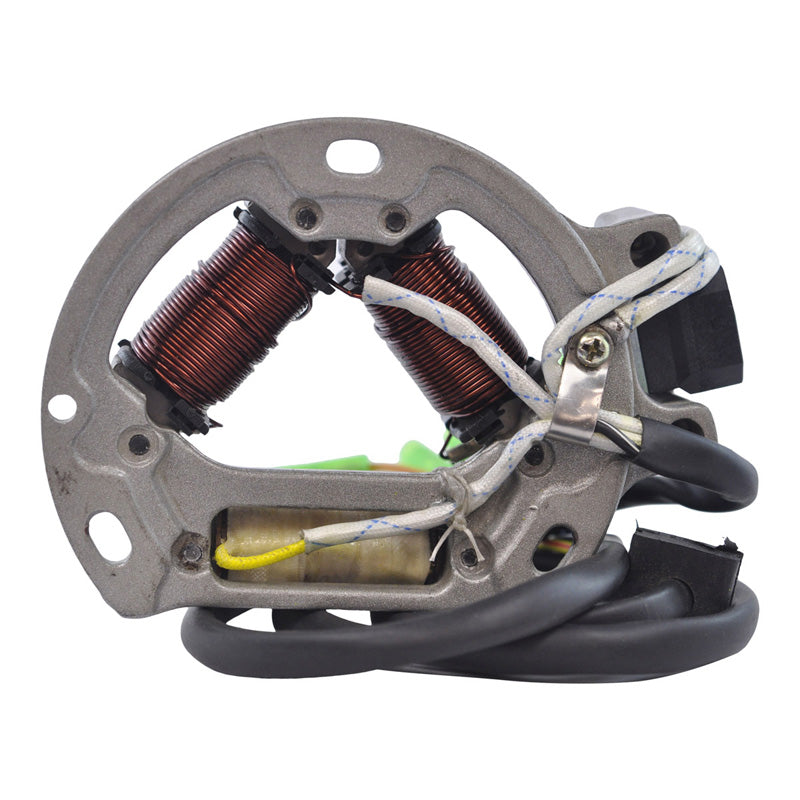

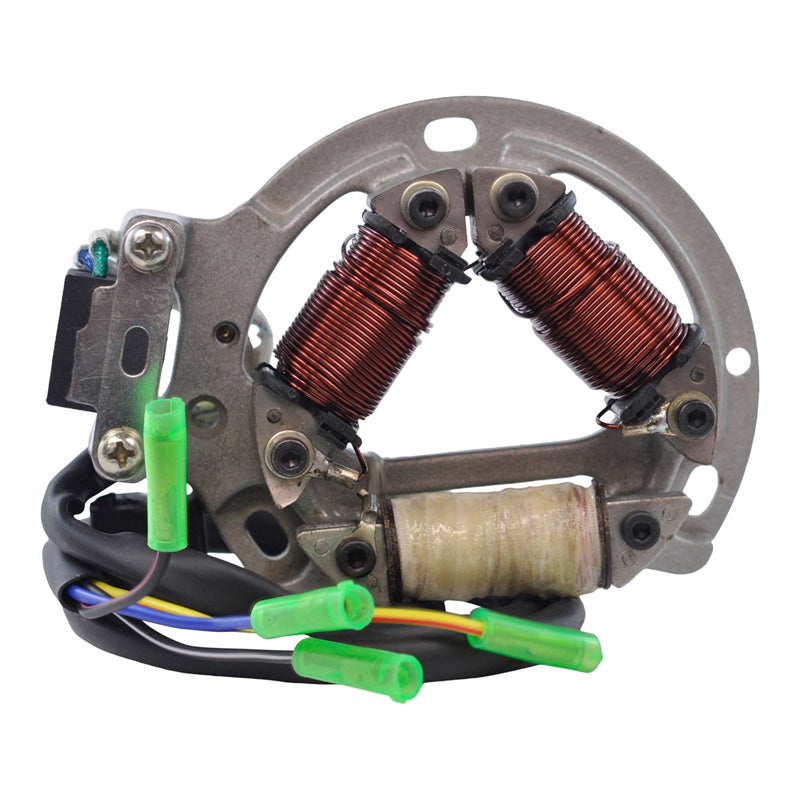

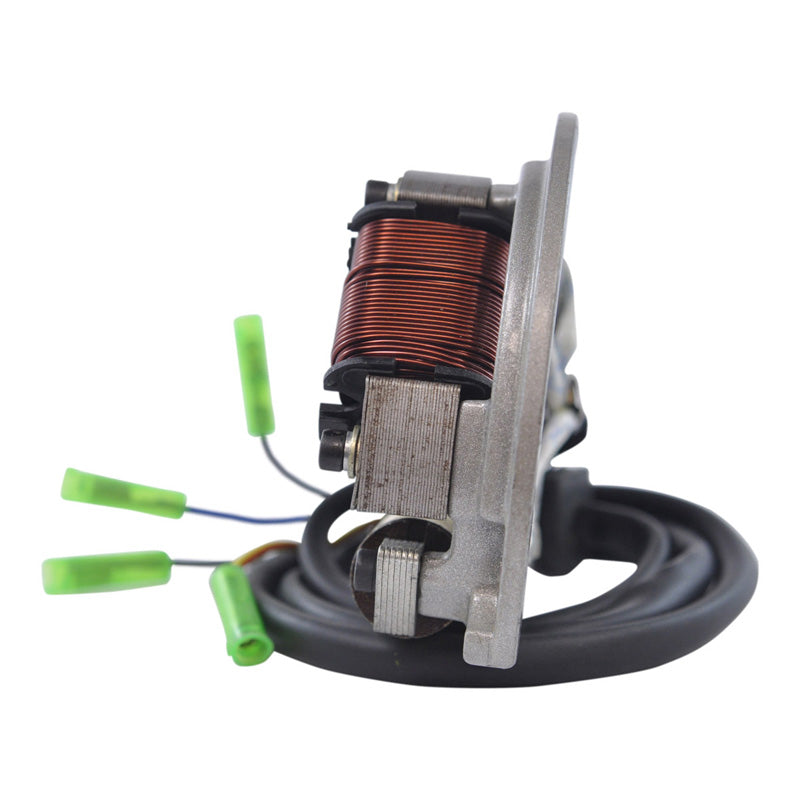

RMS STATOR SUZ LT250/500R QUADRACER 85-92 RM01012

Brand new 130 W high output aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

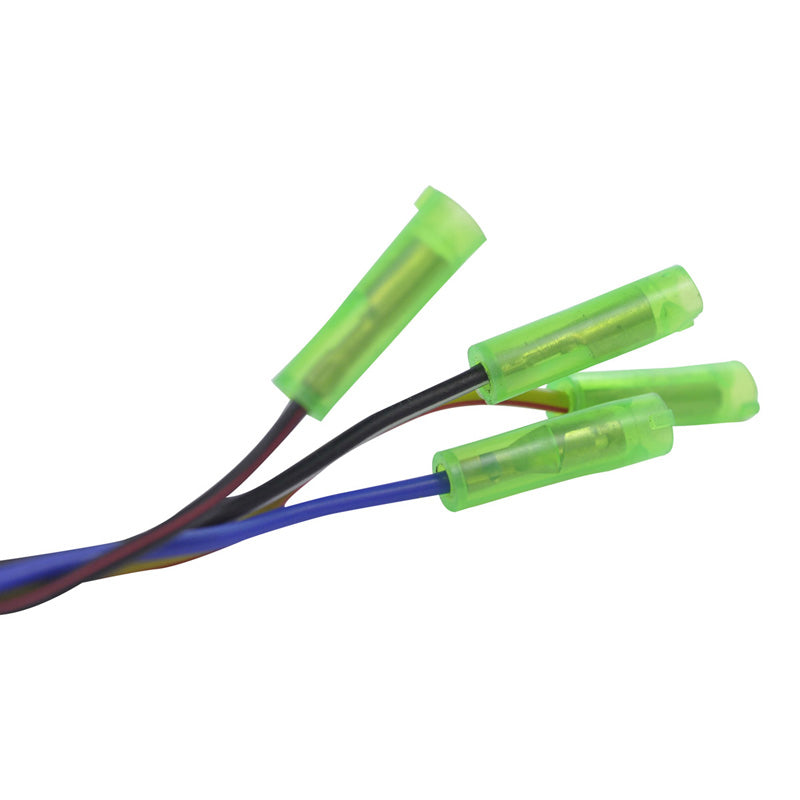

• Connector included
• Rubber grommet included
• Back Plate included
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 30 mm
Exterior diameter: 83 mm
Thickness: 35 mm

Other specifications:
Number of wires: 4
Number of plugs: 4
Number of pins: 4

Wire to wire resistance:
Alternator: Yellow/Red to Black/White = 1.6 ohms +/-20%
Pickup: Blue to Black/White = 142 ohms +/-20%
Source: Black/Red to Black/White = 367 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
