Highest grade copper windings, resistant to 200 degrees Celsius.

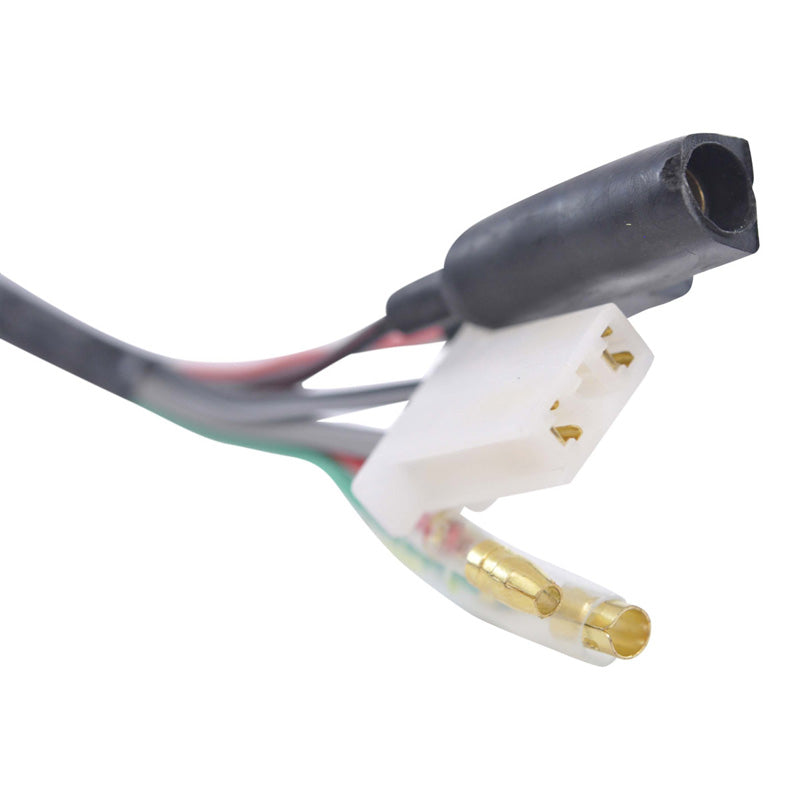

Connector included
Rubber grommet included
All product shipped are tested
*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 29 mm
Exterior diameter : 84 mm
Thickness : 14 mm
Length of wires stator to grommet : 20 mm
Length of wires grommet to plug : 500 mm
Other specifications :
Number of wires : 6
Number of plugs : 4
Number of pins : 6
Wire to wire resistance :
Alternator : Grey to Black/White = 0.04 ohms +-20%
Source : Black/Red to White/Red = 134 ohms +-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
