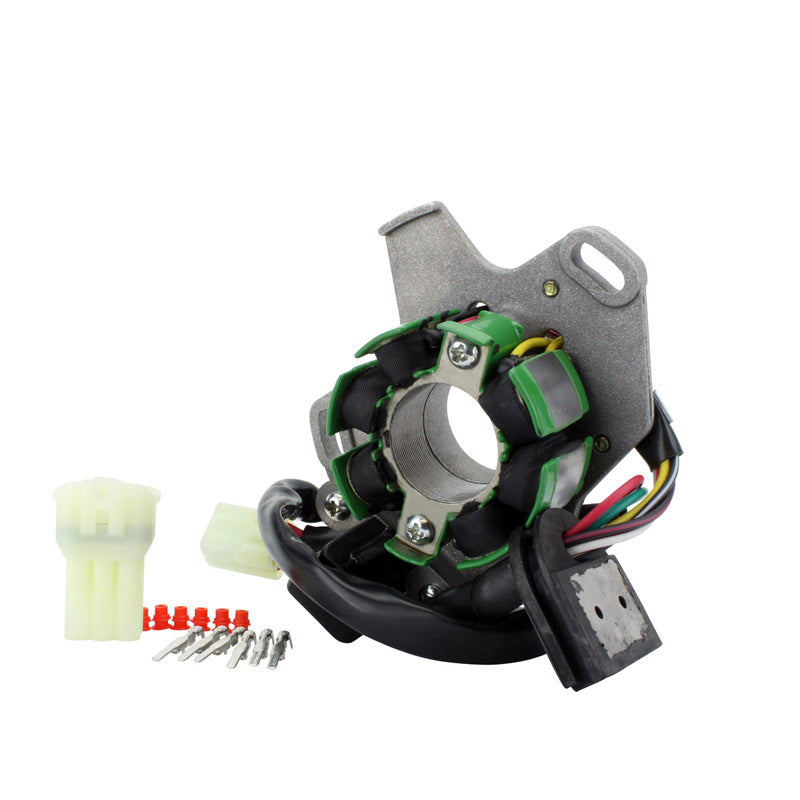

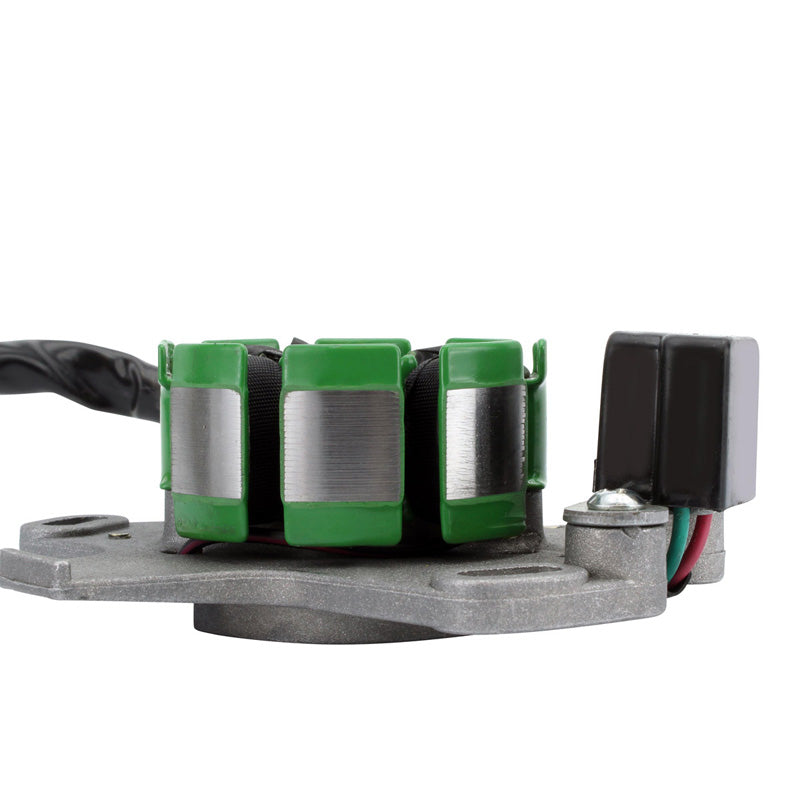

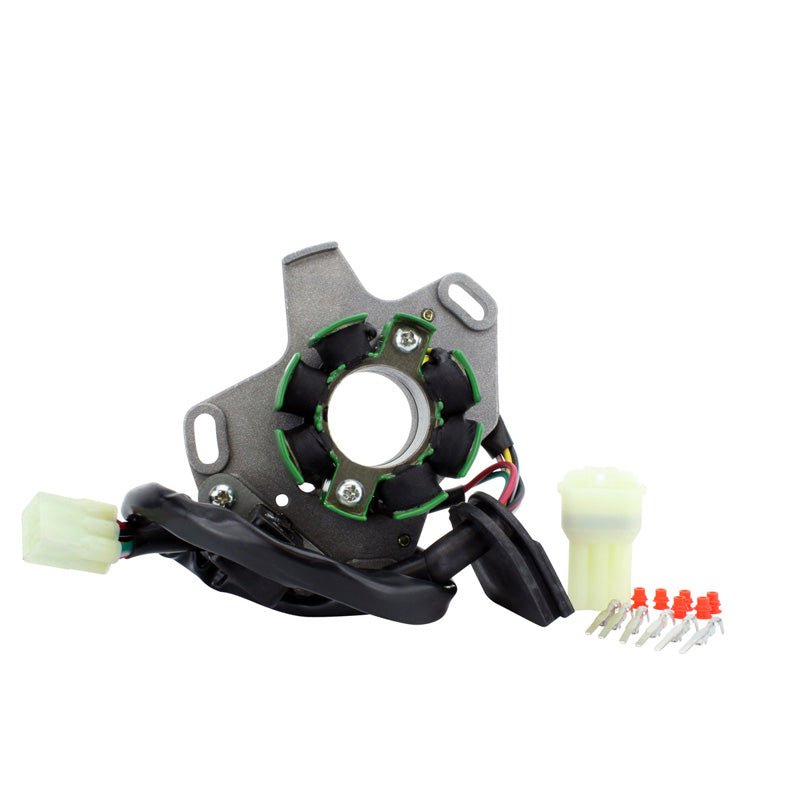

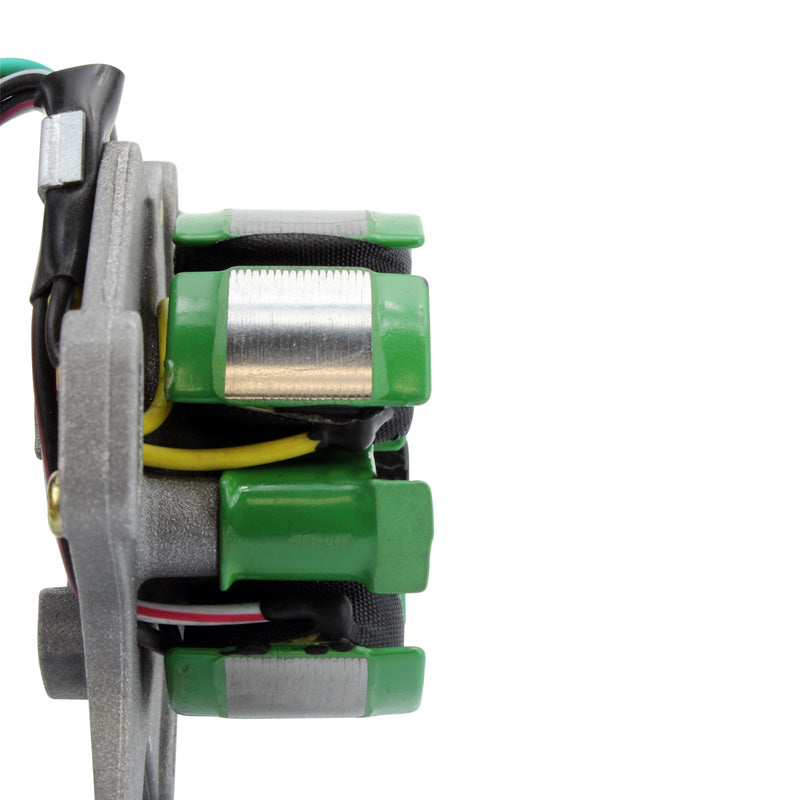

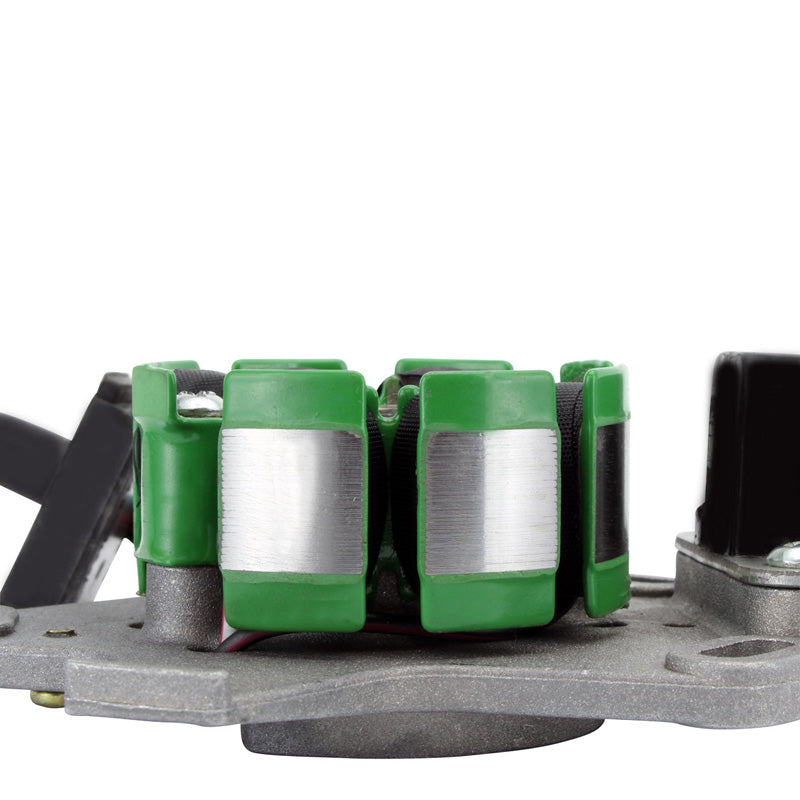

Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included

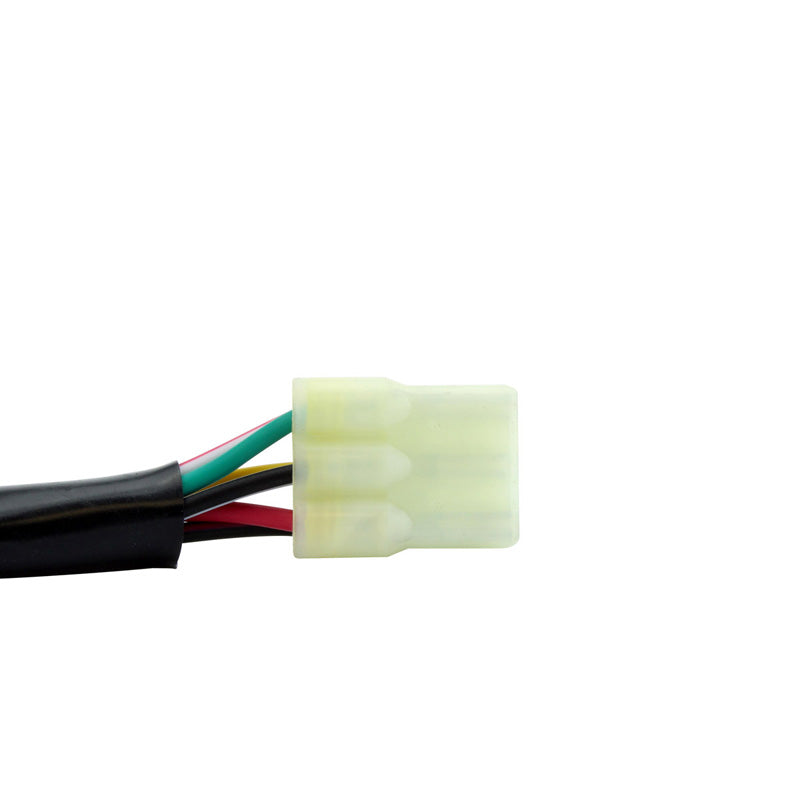

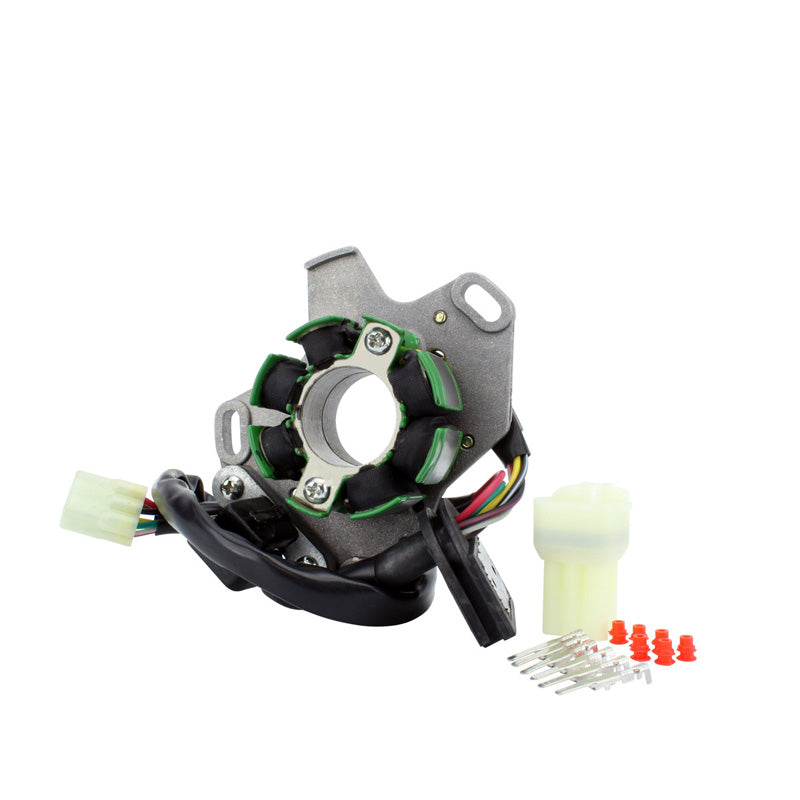

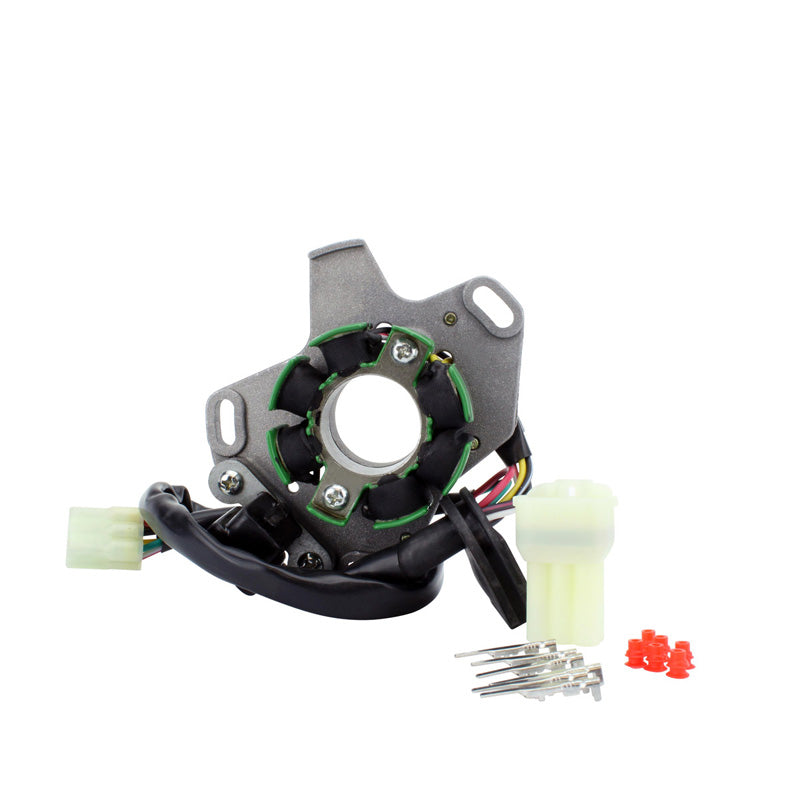

Connector included

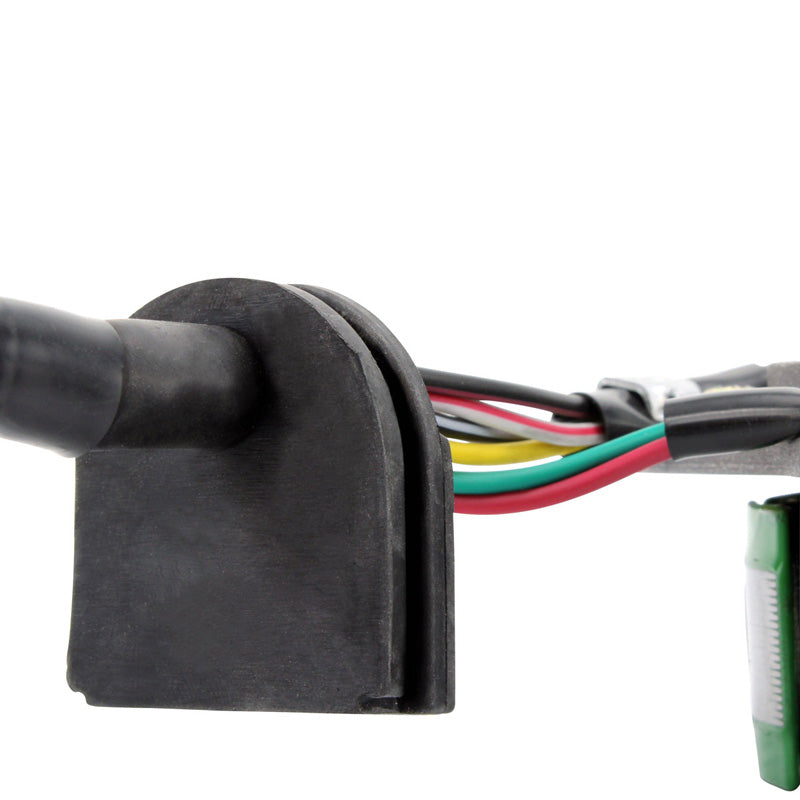

Rubber grommet included

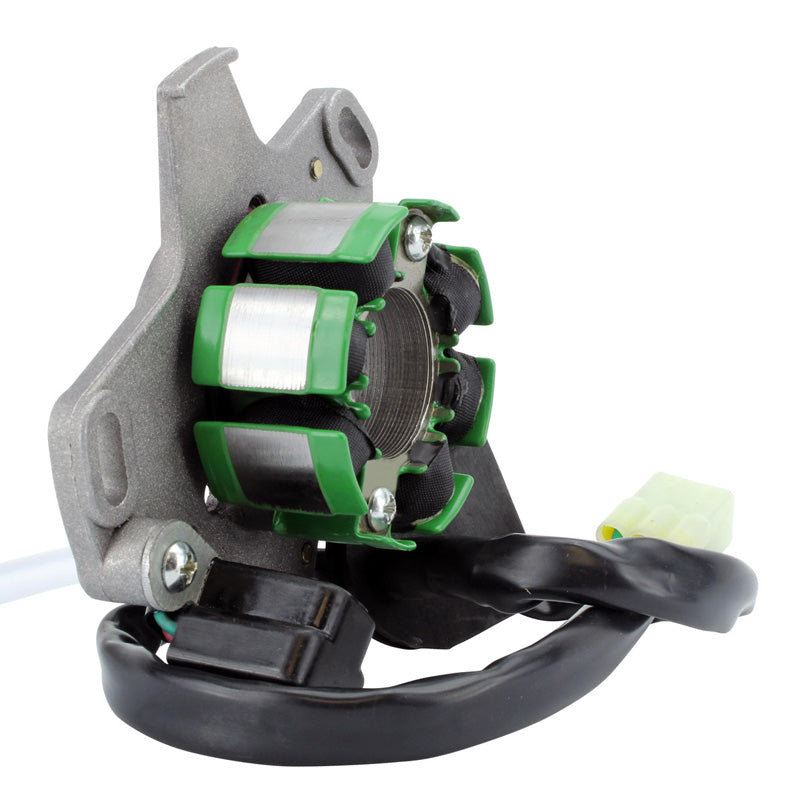

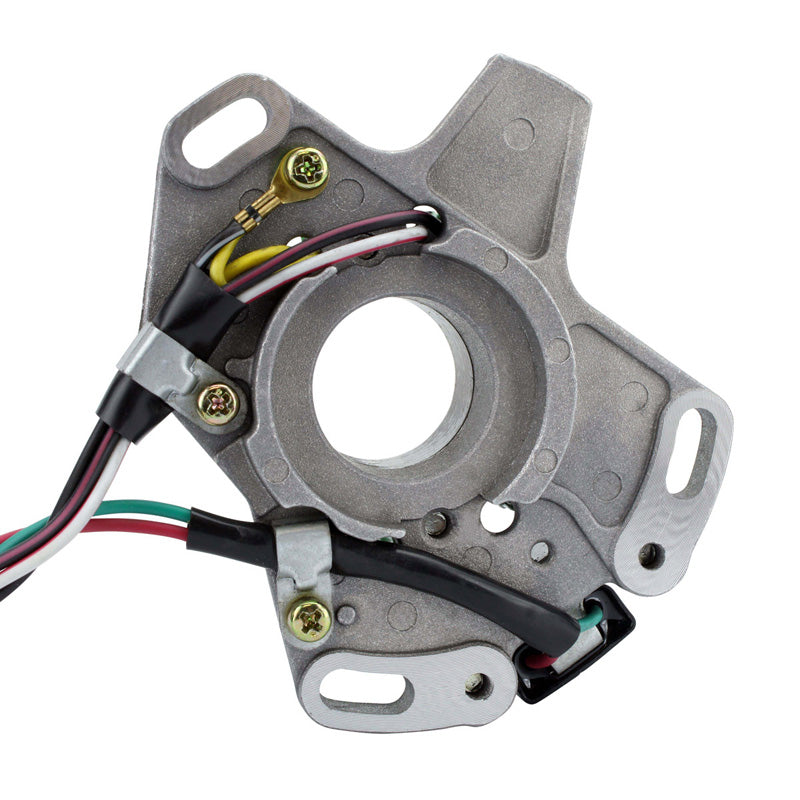

Back Plate included
All products shipped are tested

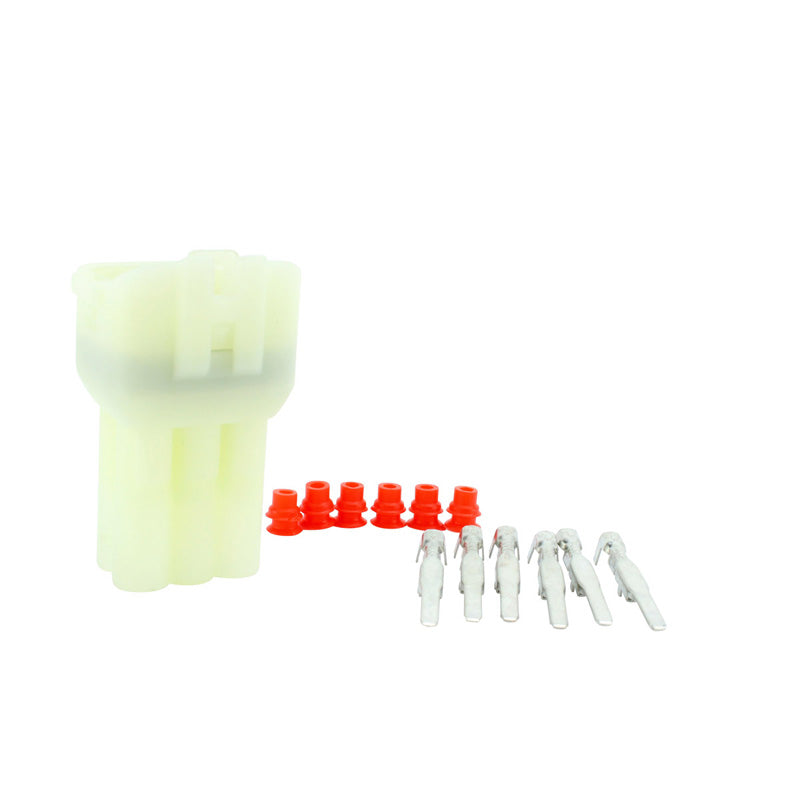

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 28 mm
Exterior diameter : 58 mm
Thickness : 12 mm
Length of wires stator to grommet : 15 mm
Length of wires grommet to plug : 530 mm
Other specifications :
Number of wires : 6
Number of plugs : 1
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow to Black/White = 0.4 ohms +-20%
Pickup : Red to Green = 100 ohms +-20%
Source : Black/Red to Red/White = 32 ohms +-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
