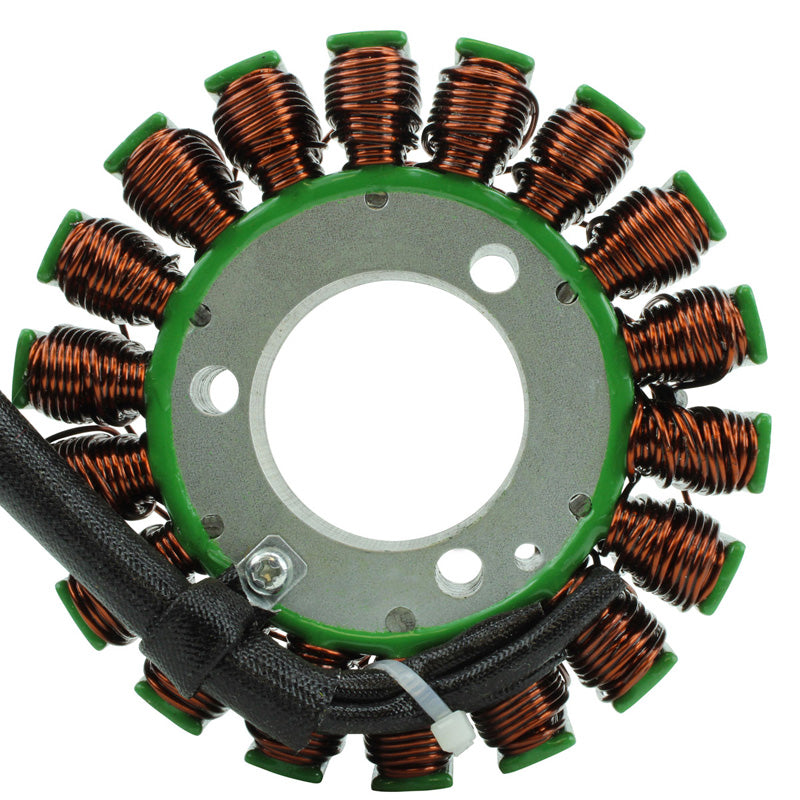

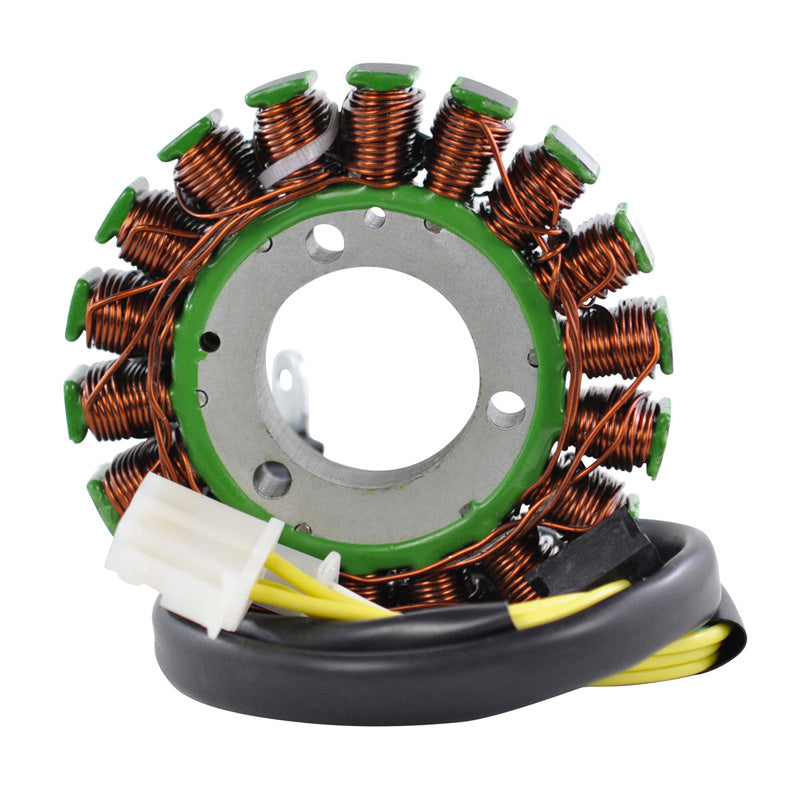

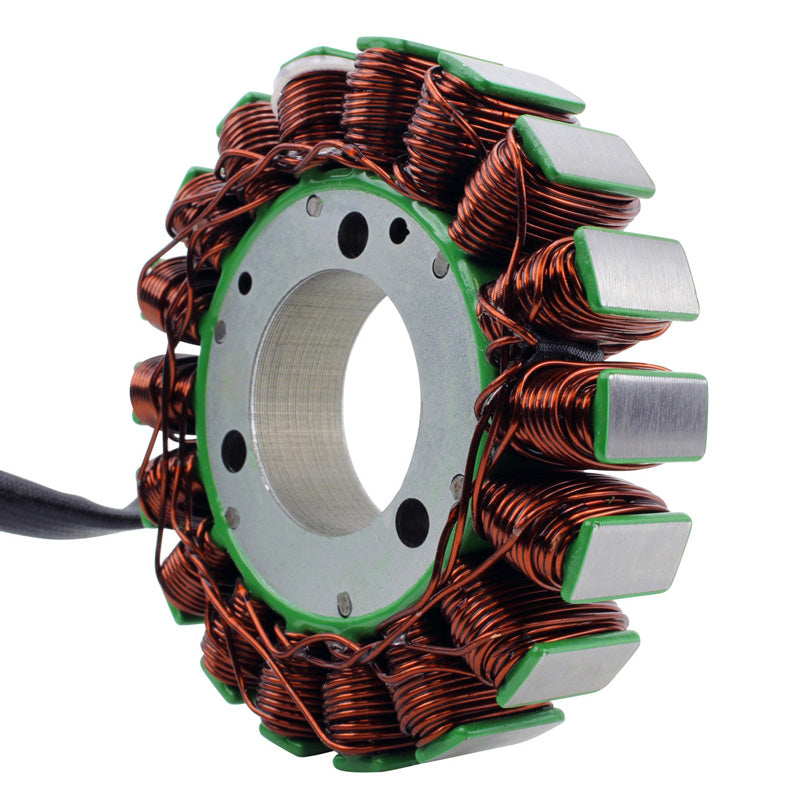

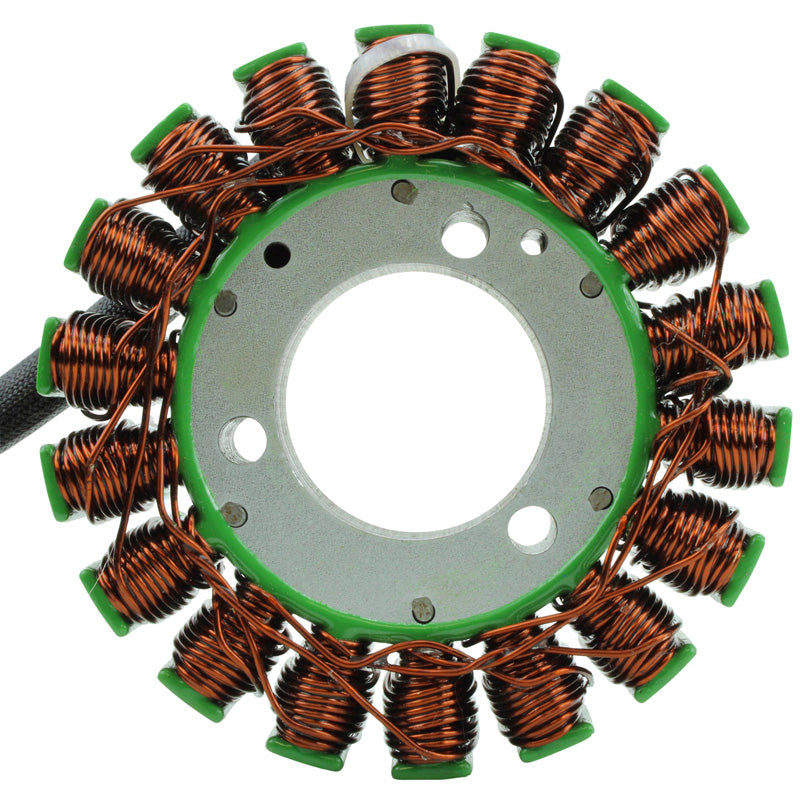

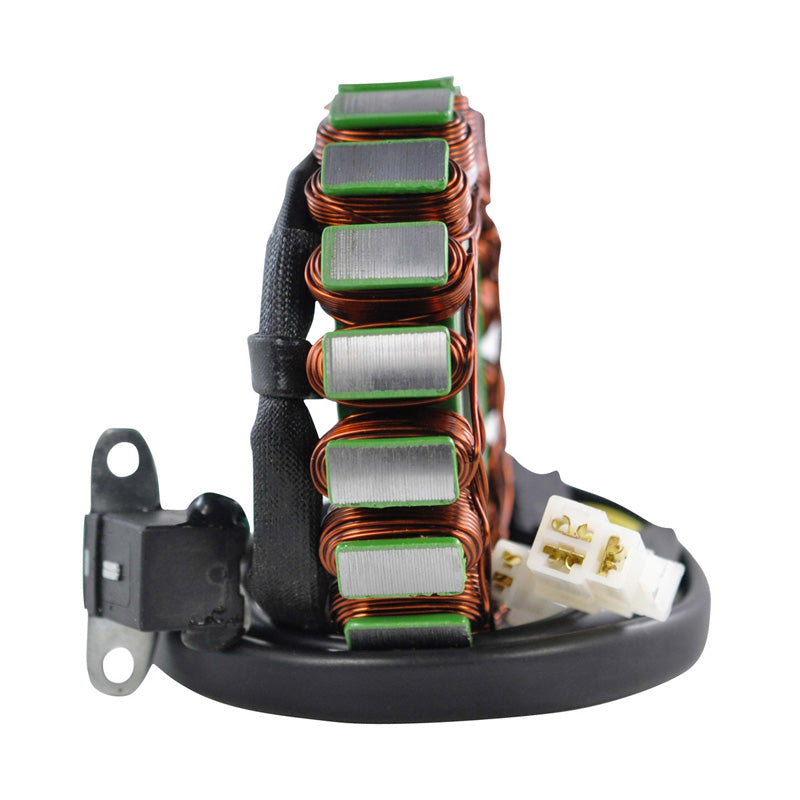

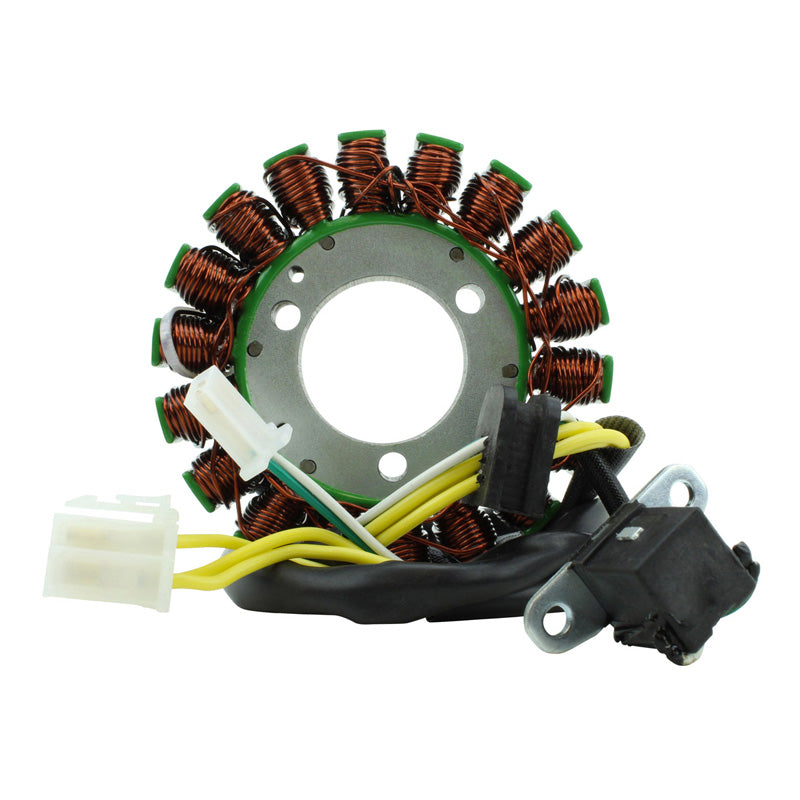

Highest grade copper windings, resistant to 200 degrees Celsius.

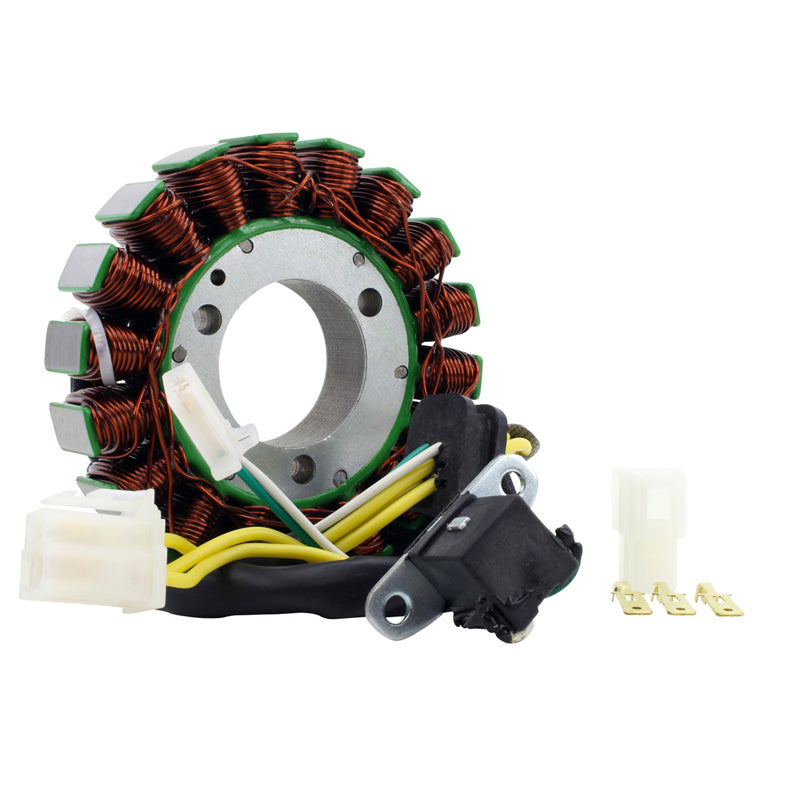

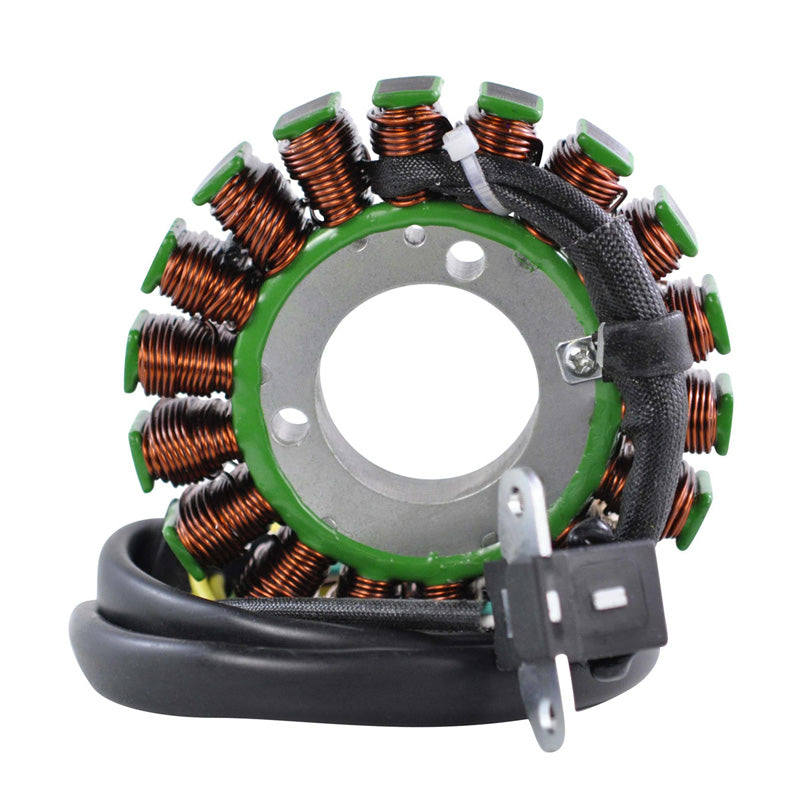

Pick up pulsar coil included

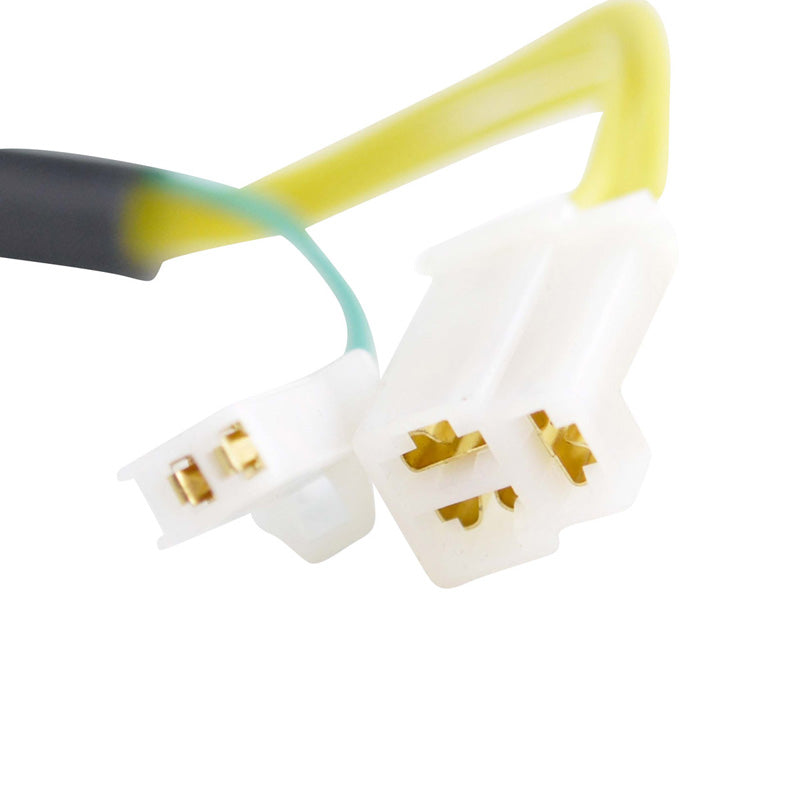

Connector included
Rubber grommet included
All products shipped are tested

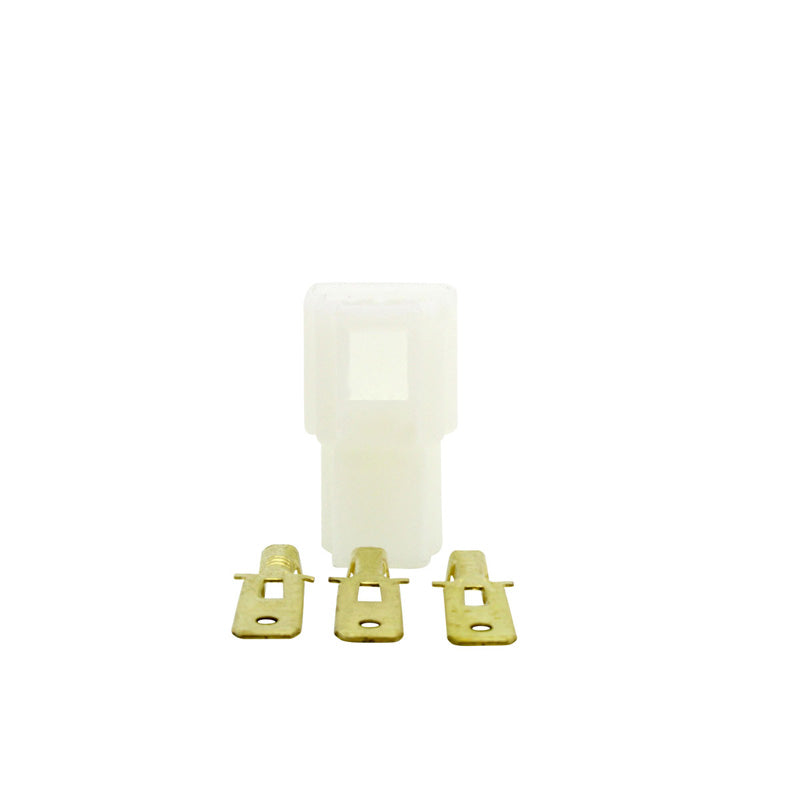

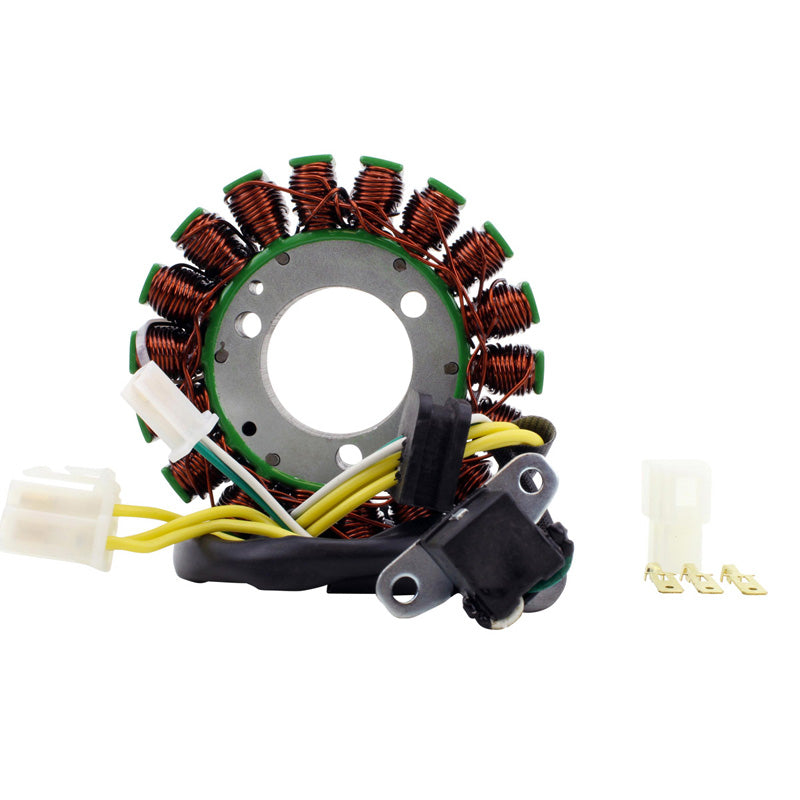

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 38 mm
Exterior diameter : 105 mm
Thickness : 19 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 650 mm
Length of pickup coil's wire to grommet : 60 mm
Other specifications :
Number of wires : 5

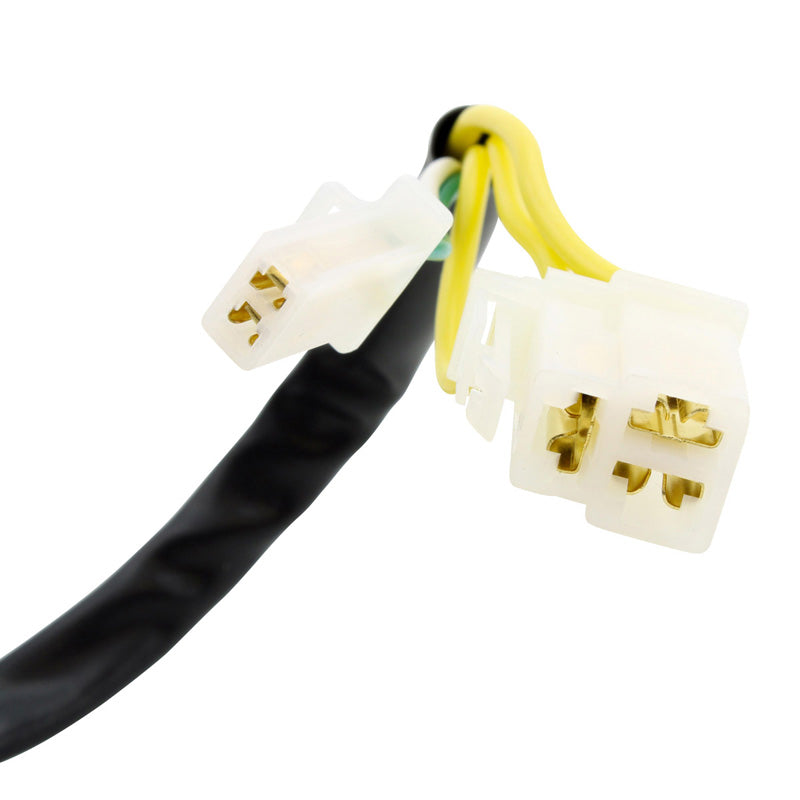

Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.7 ohms +/-20%
Pickup : Green to White = 195 ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
