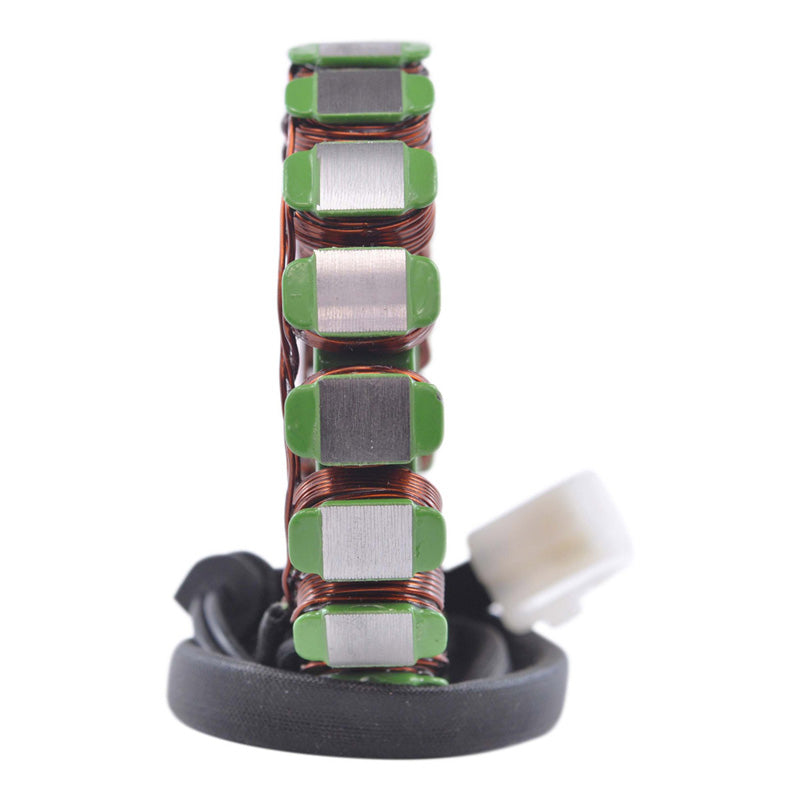

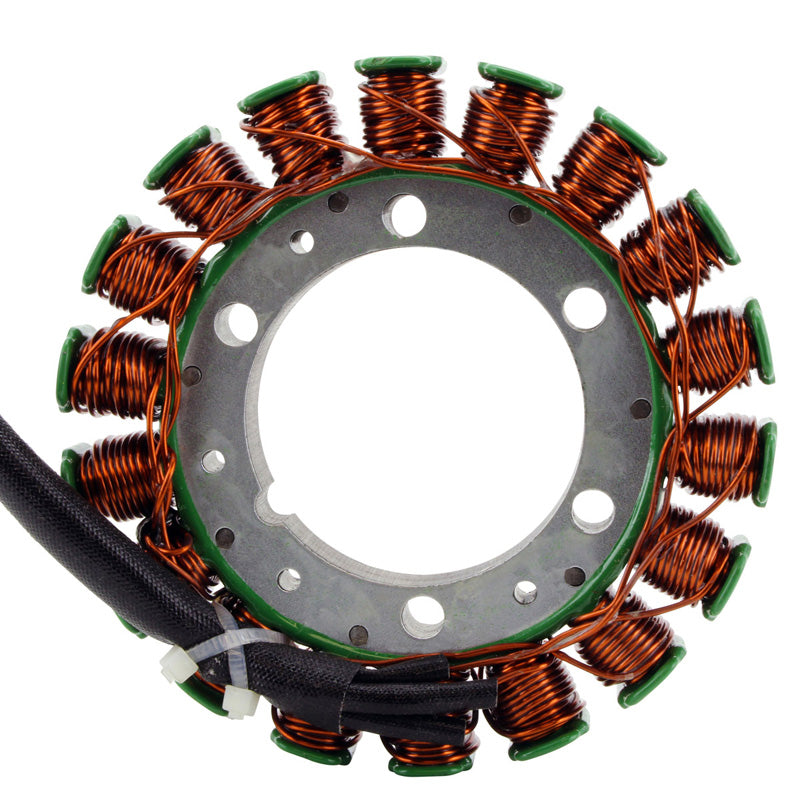

RMS STATOR TRI DAYTONA 600/650|TT 600 00-05 RM01386S

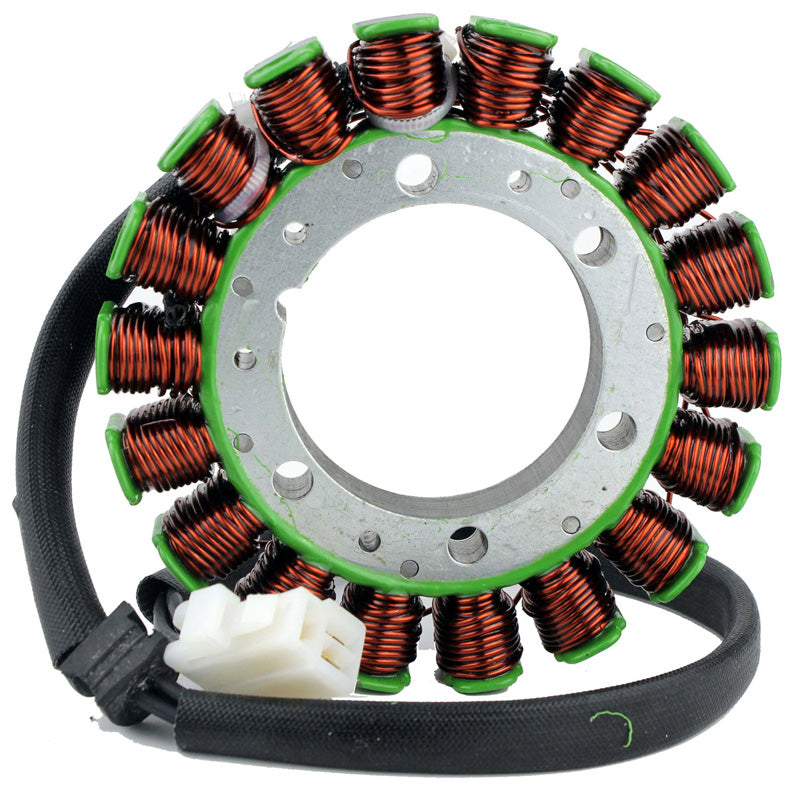

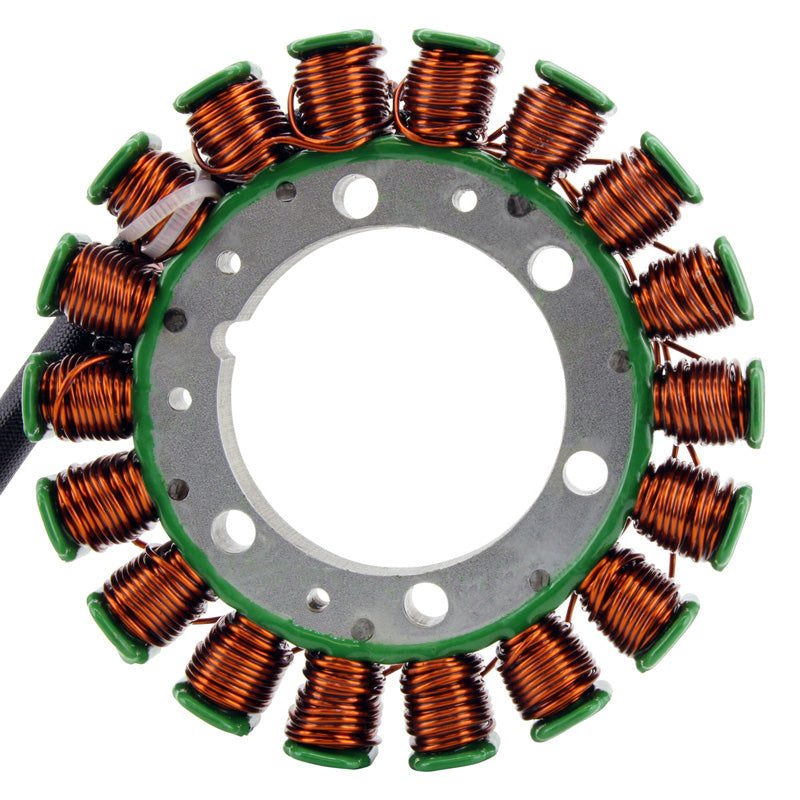

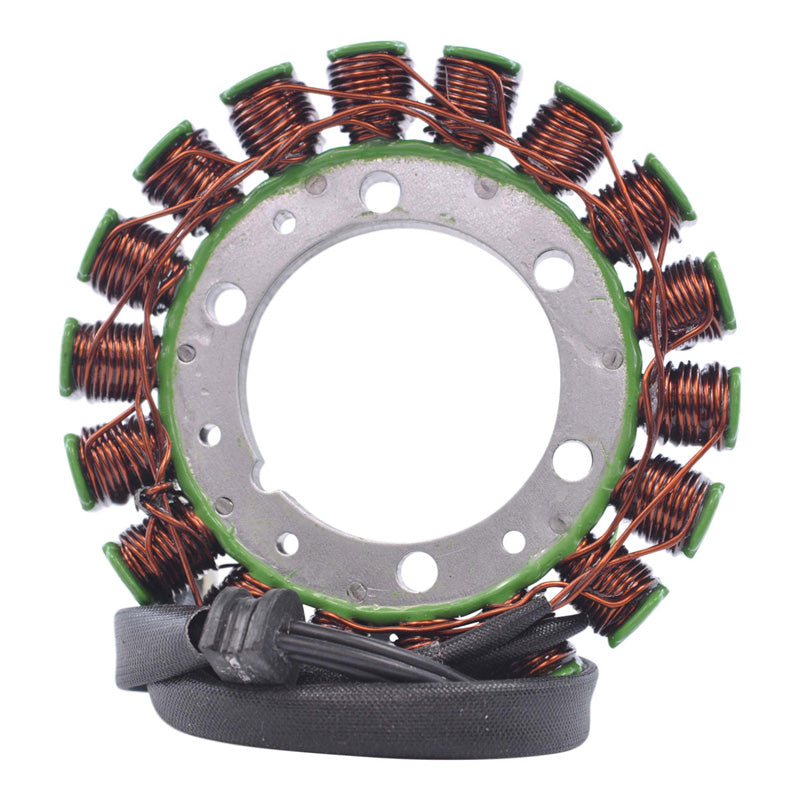

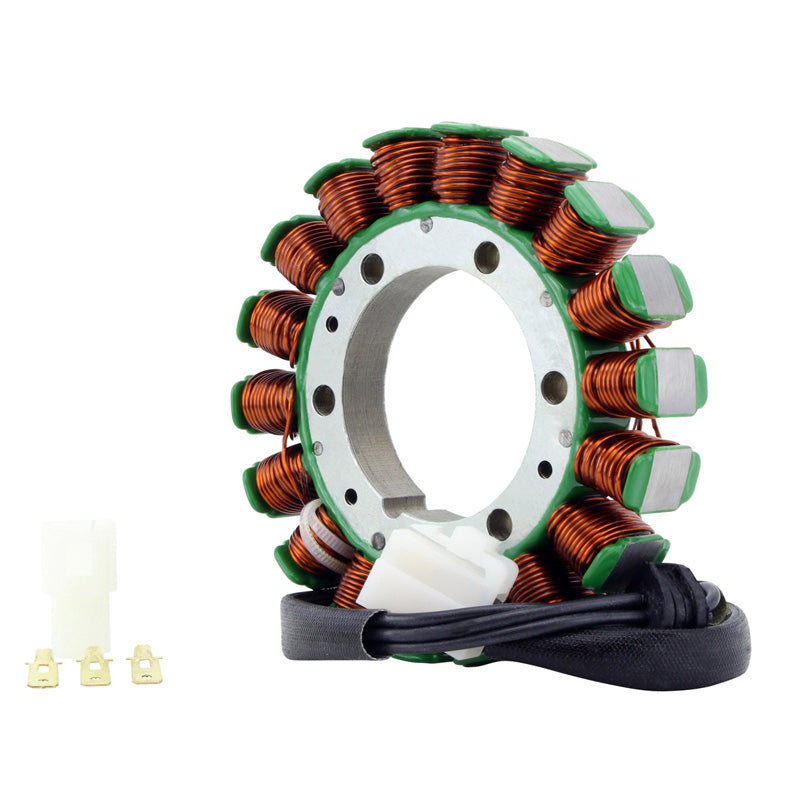

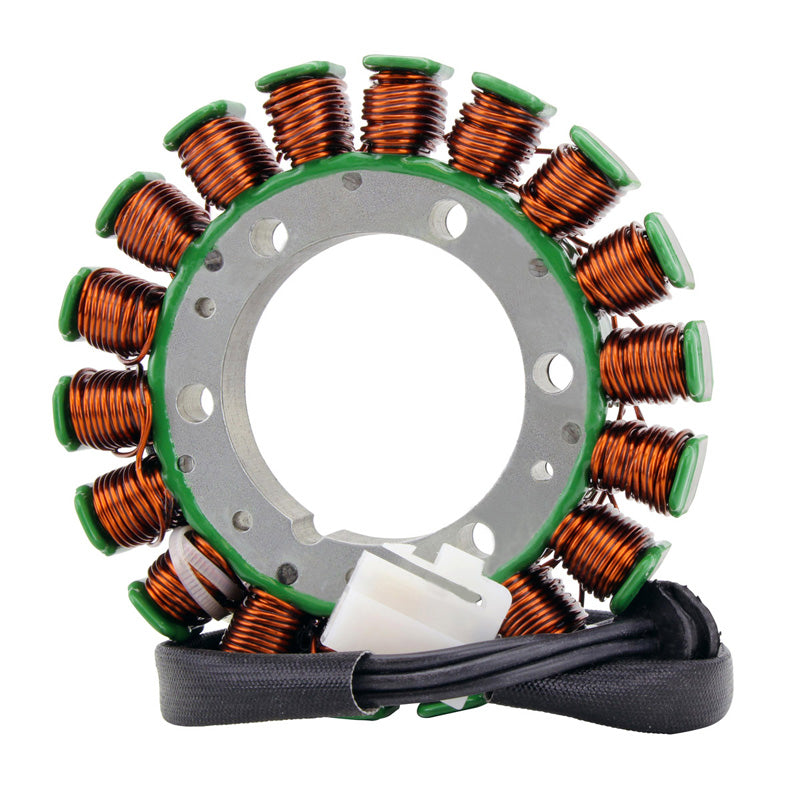

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius
• The quality exceeds the OEM equipment

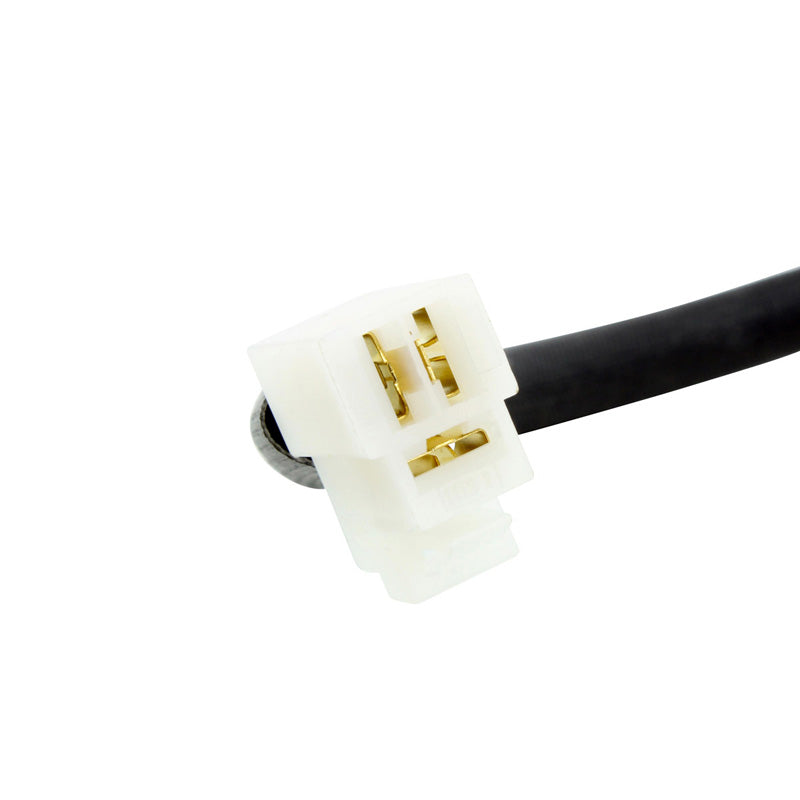

• Connector included
• Rubber grommet included
• All products shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

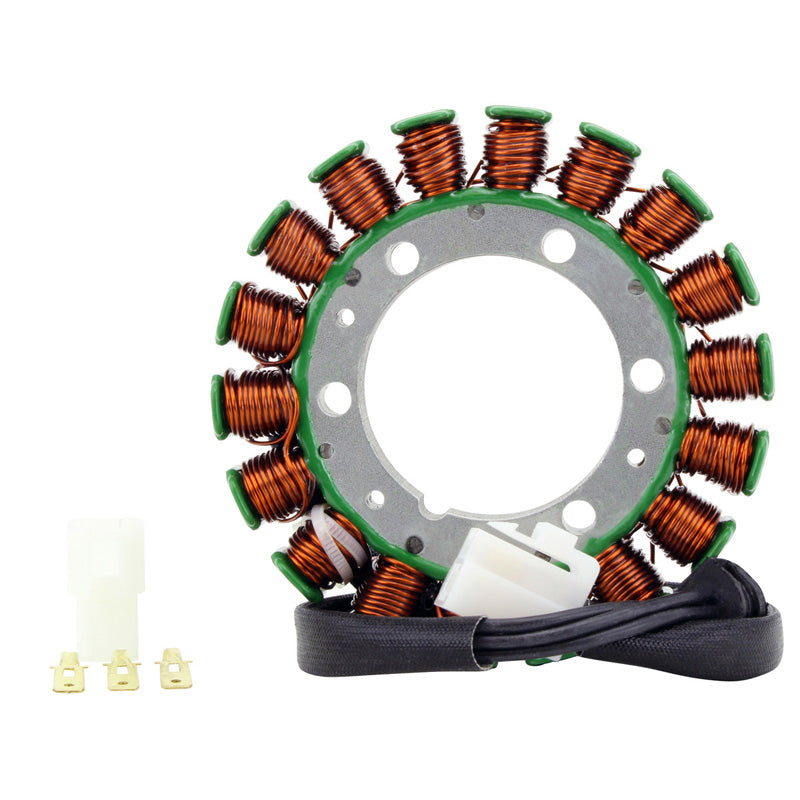

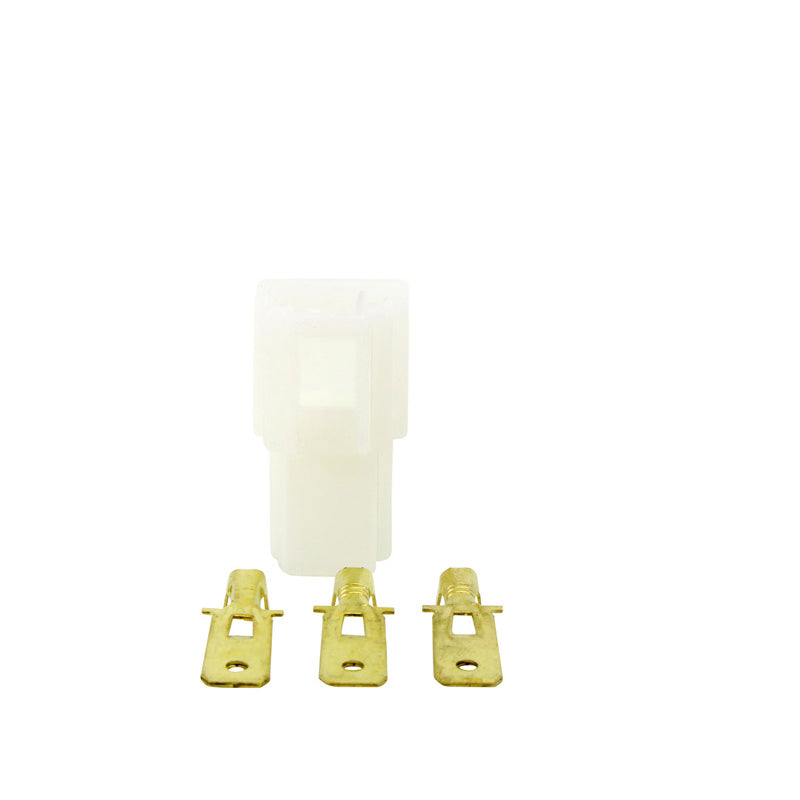

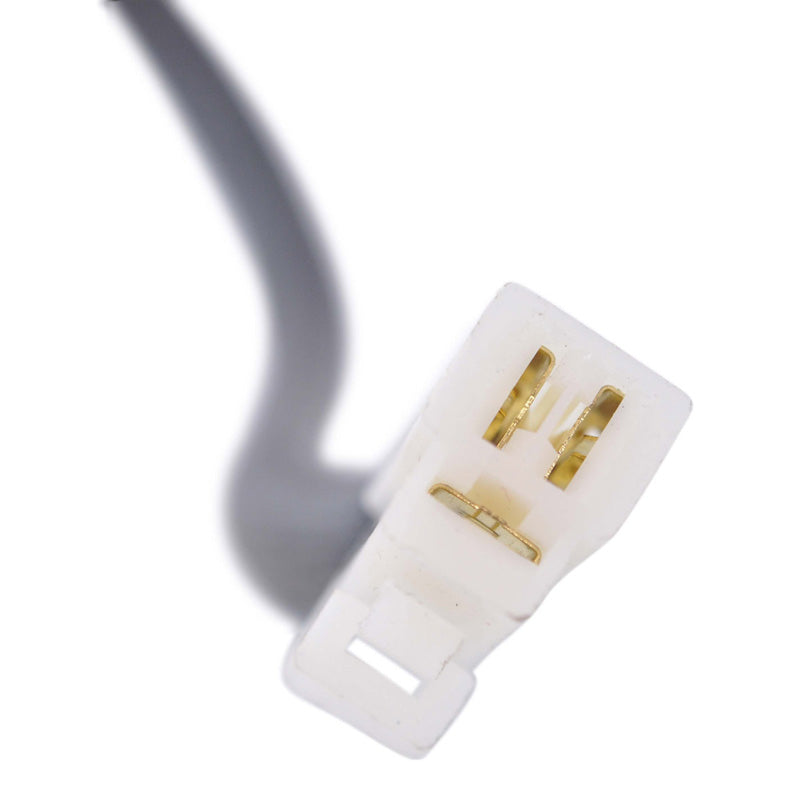

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Specifications:

Dimensions:
Interior diameter: 55 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wires stator to grommet: 80 mm
Length of wires grommet to plug: 300 mm

Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3

Wire to wire resistance:
Alternator: Between each Black = 0.4 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
