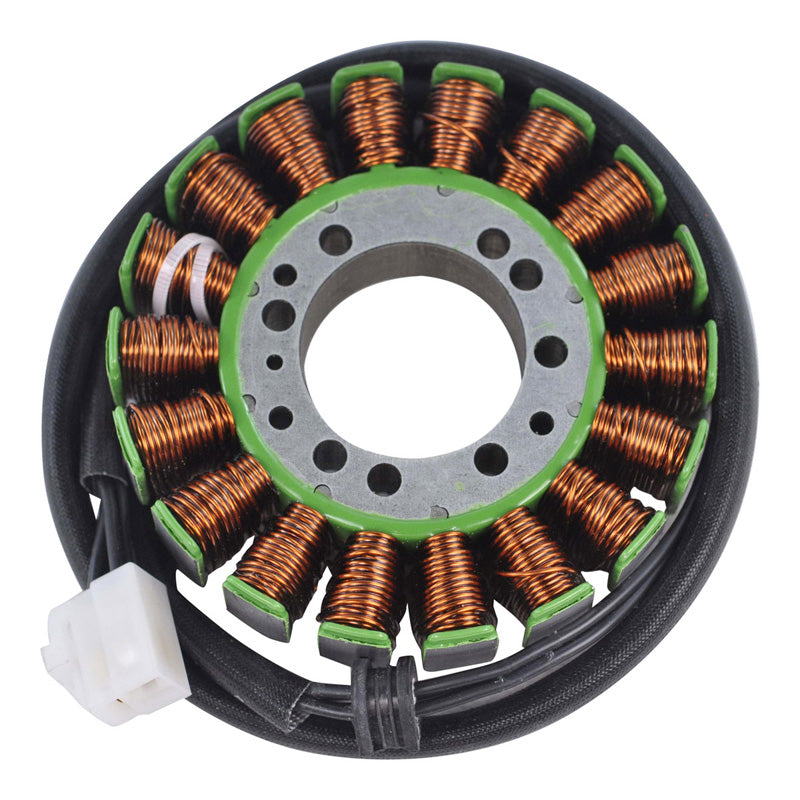

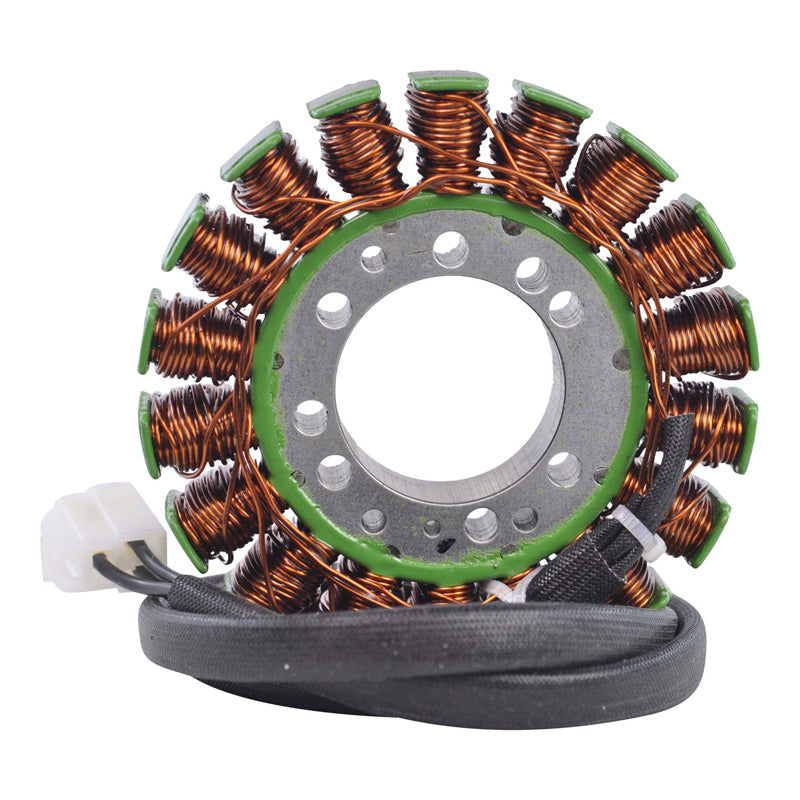

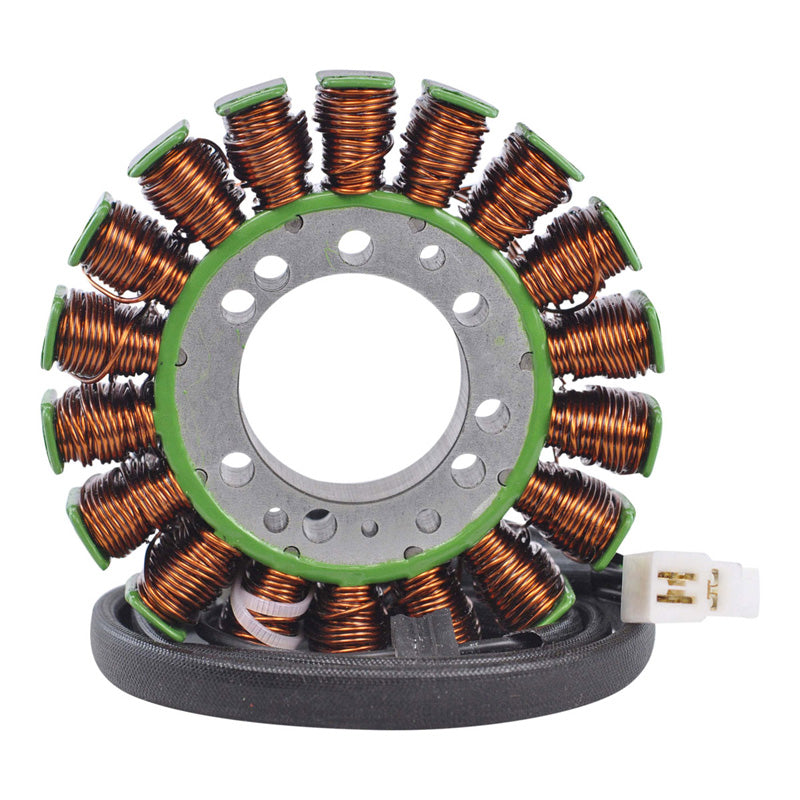

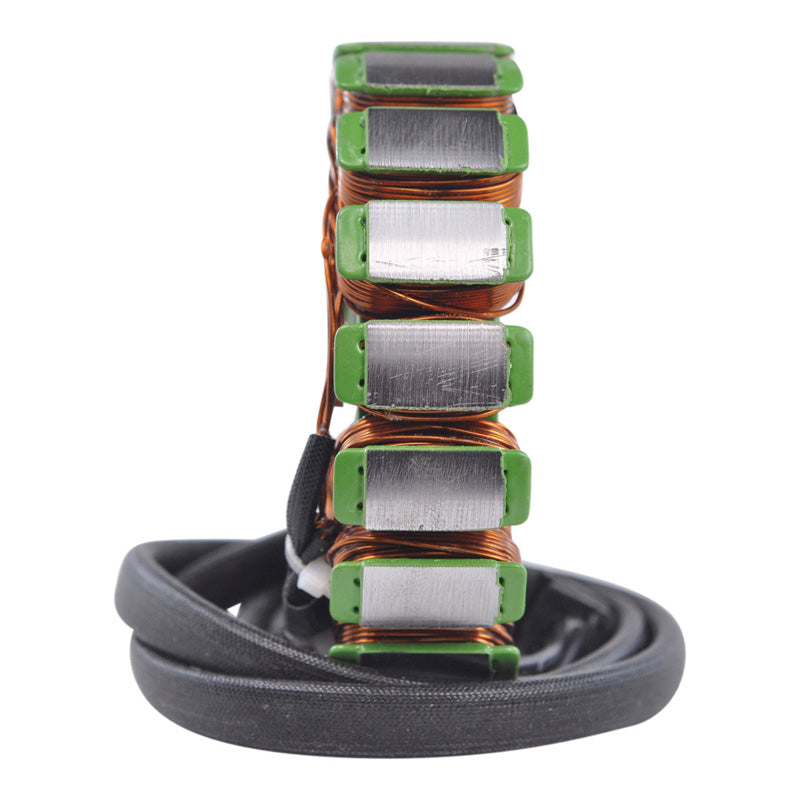

RMS STATOR TRI DAYTONA 955I 02-06 RM01388S

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest of grade lamination materials
• Highest of grade copper winding, resistant to 200 degrees Celsius.

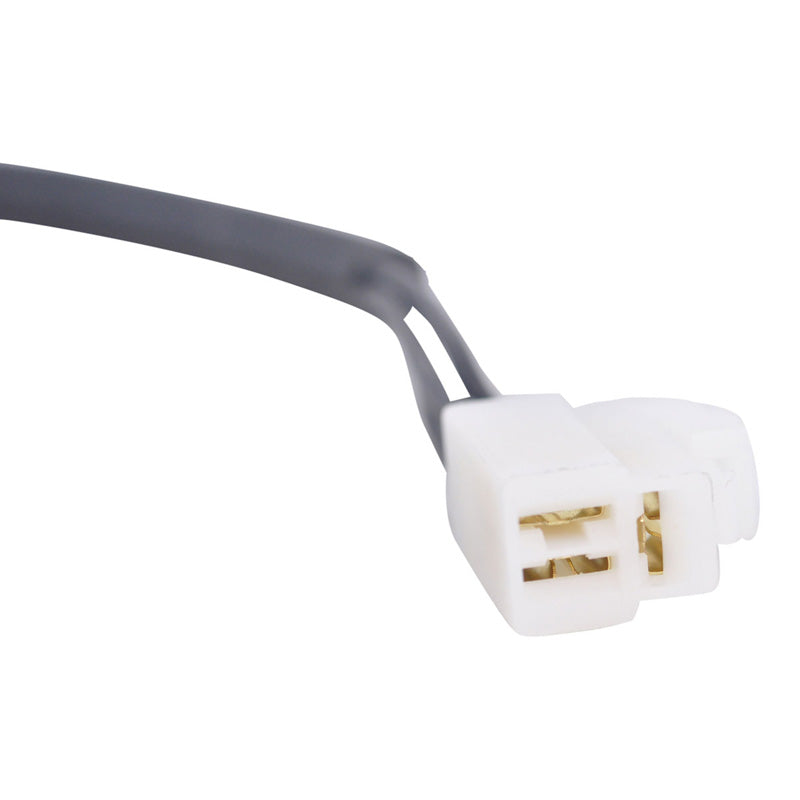

• Connector included
• Rubber grommet included
• All product shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimension :
Interior diameter: 42 mm
Exterior diameter: 115 mm
Width: 21 mm

Other specifications :
Number of wires: 3
Number of plug: 1
Number of terminals: 3
Harness length Stator to grommet: 80 mm
Harness length grommet to plug: 650 mm

Wire to wire resistance :
Alternator : Between each Black = 0.5 ohms +/- 20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please Note : There are 2 possibles stators for Triumph Daytona 955i 2002-2006, our product fits on serial number #179431 and below.
