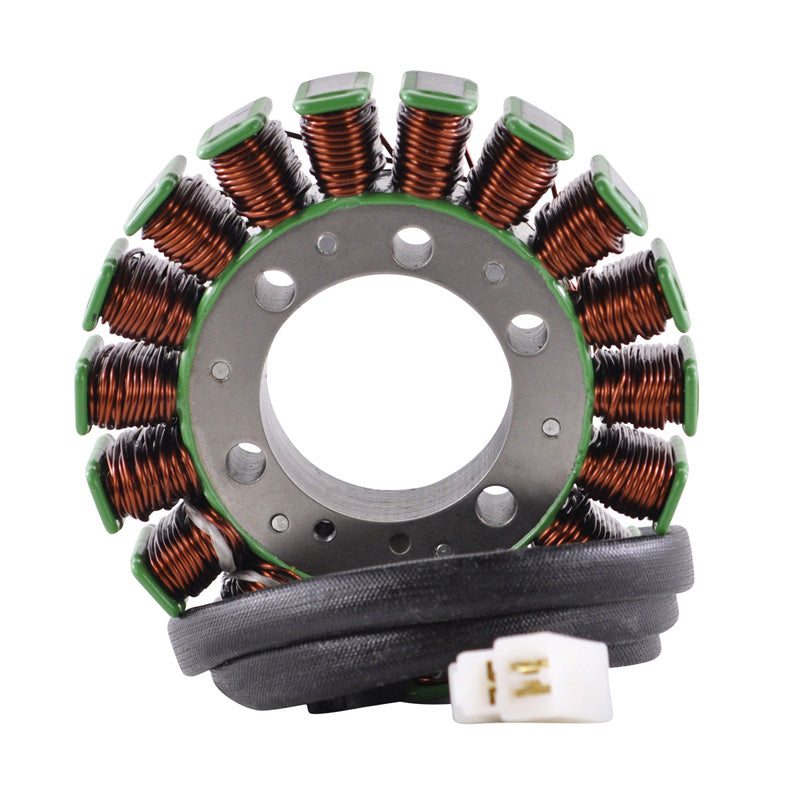

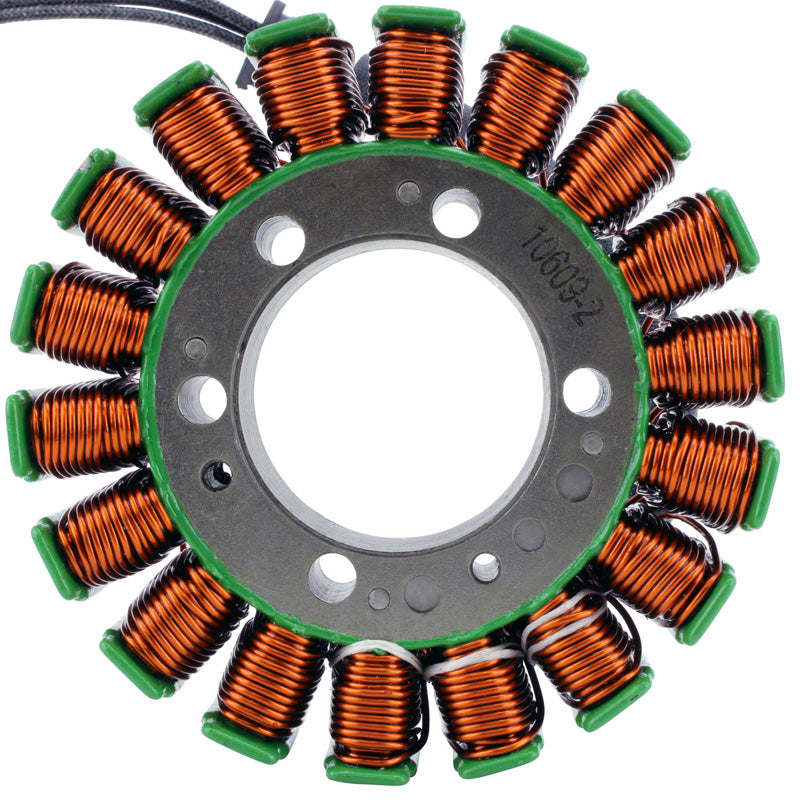

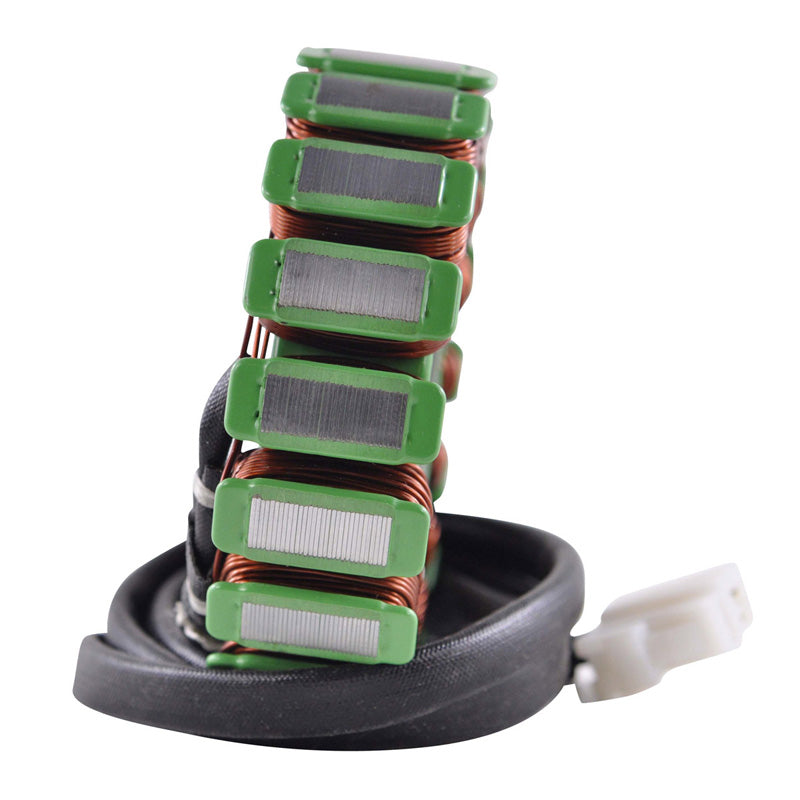

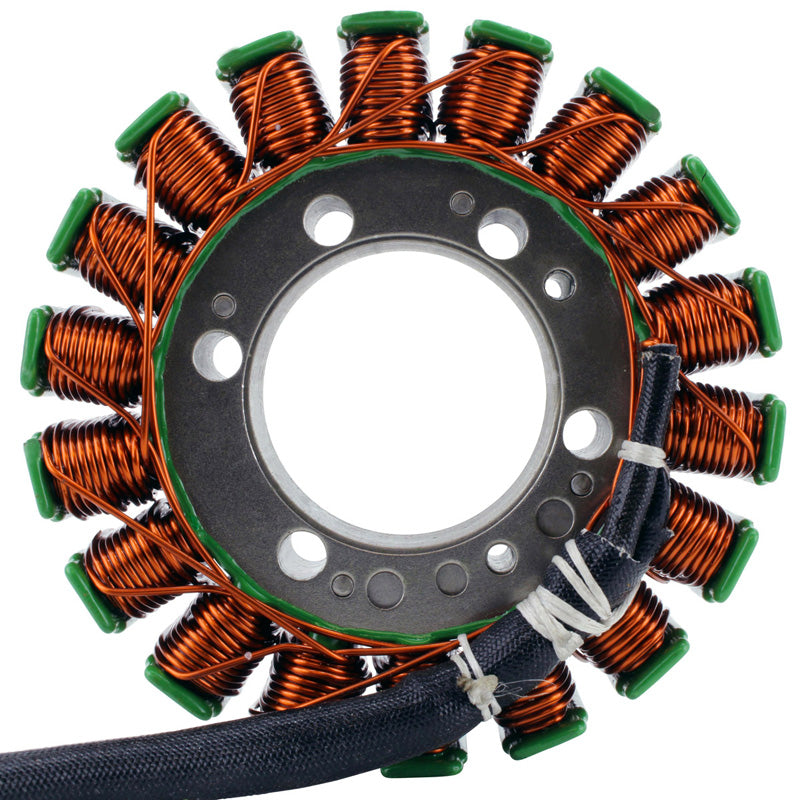

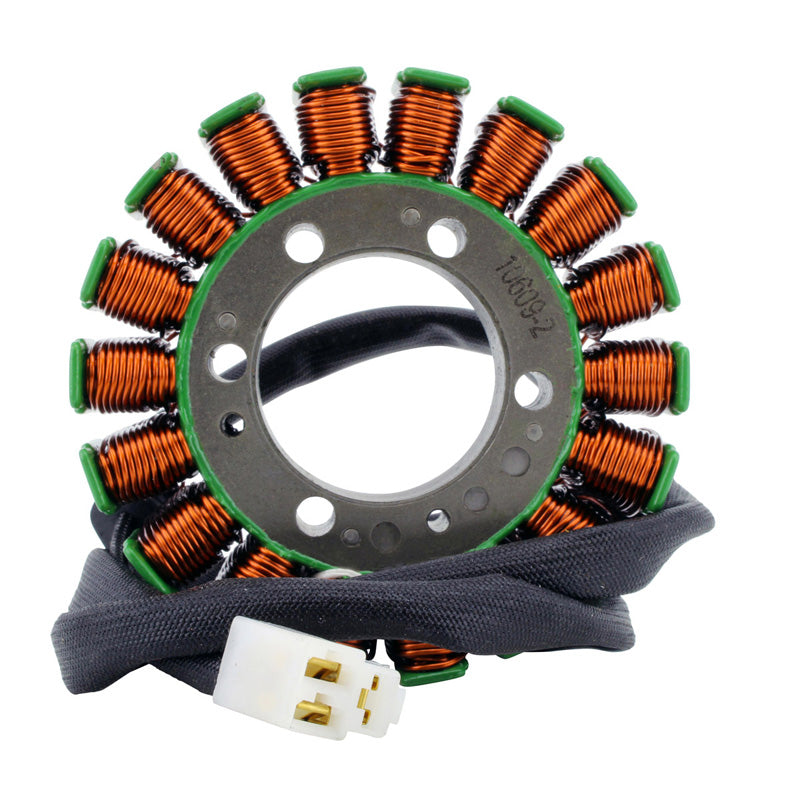

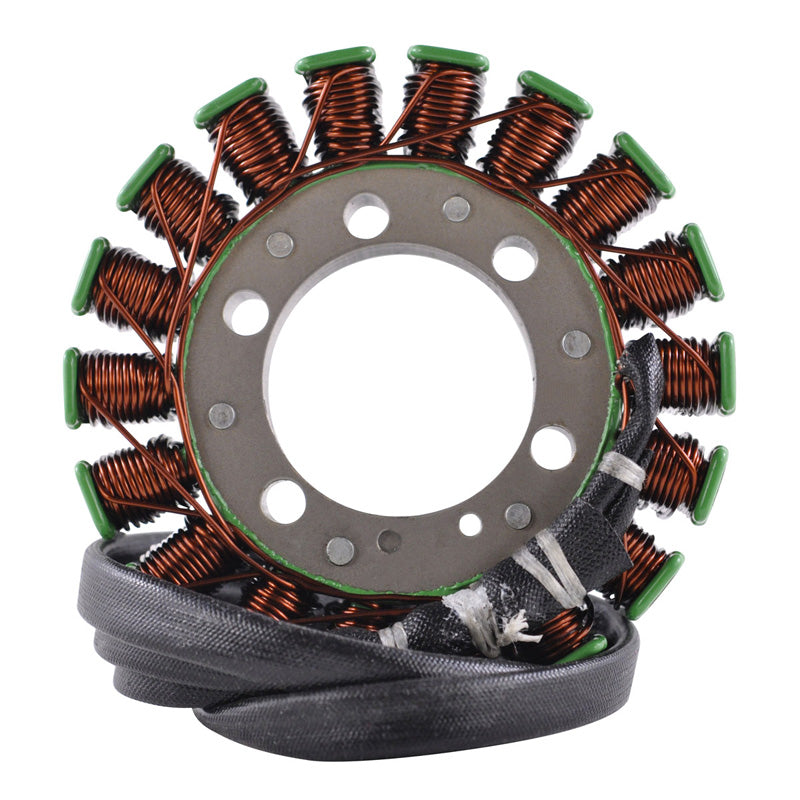

RMS STATOR TRI SPEED TRIPLE|SPRINT|TIGER 955 97-06 RM01348

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Higher grade of electric components.
• Highest grade copper windings, resistant to 200 degrees Celsius.
• All products shipped are tested

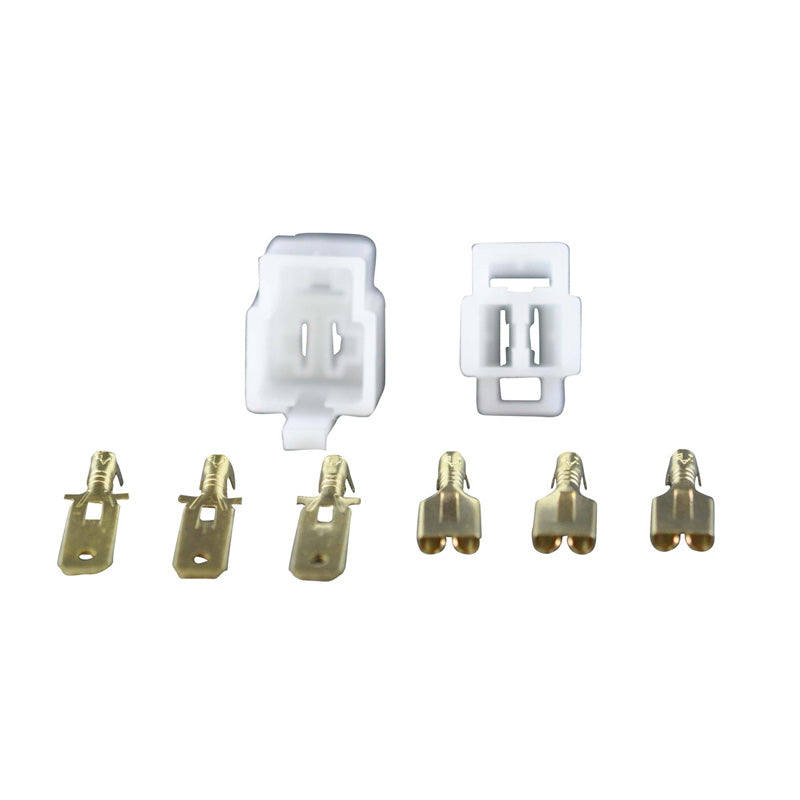

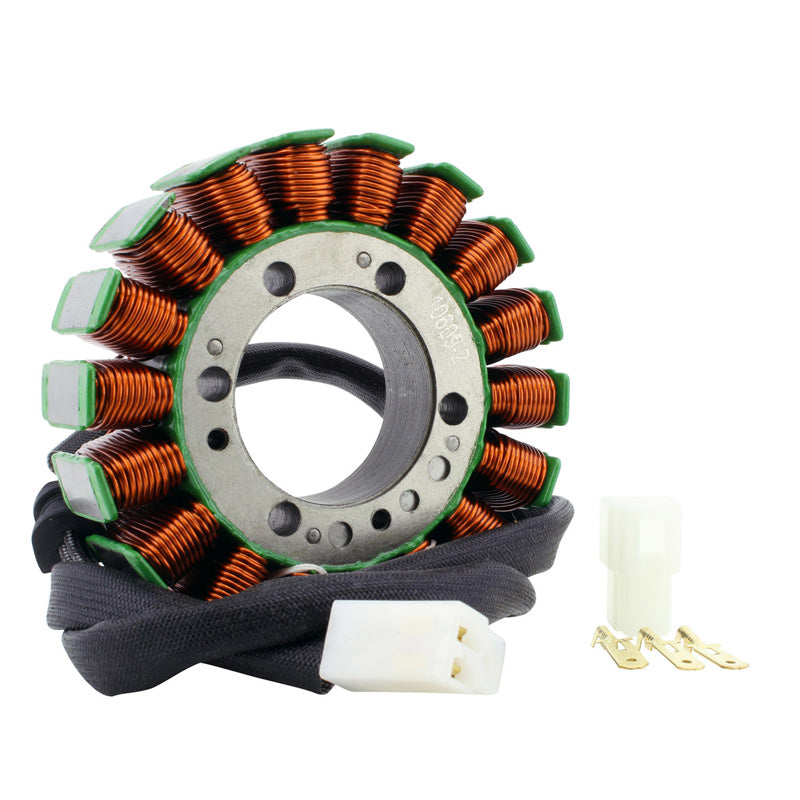

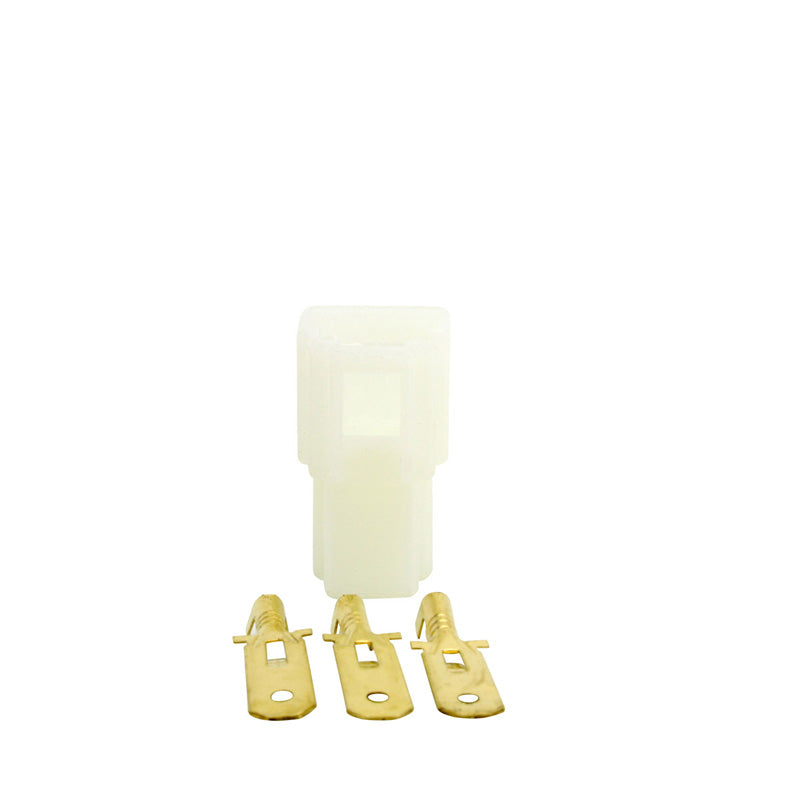

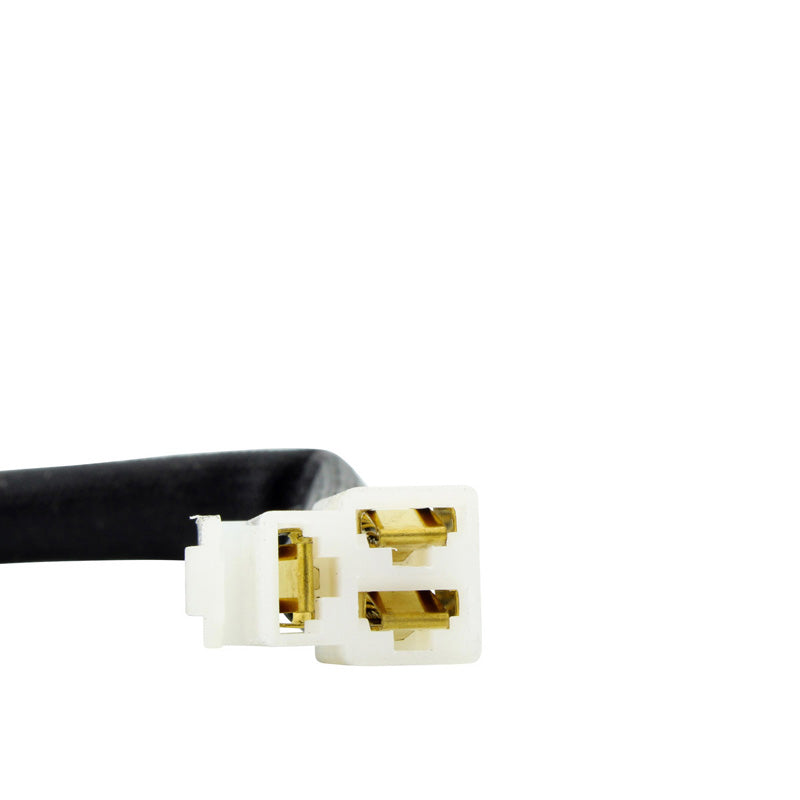

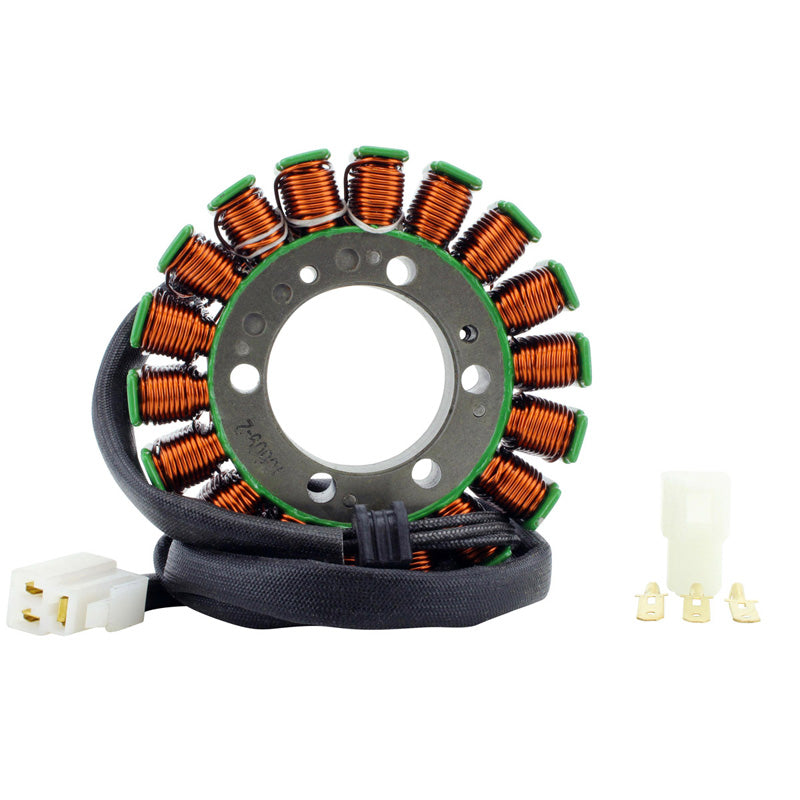

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 104 mm
Thickness : 22 mm
Length of wires stator to grommet : 115 mm
Length of wires grommet to plug : 650 mm

Other specifications :
Number of wires : 3

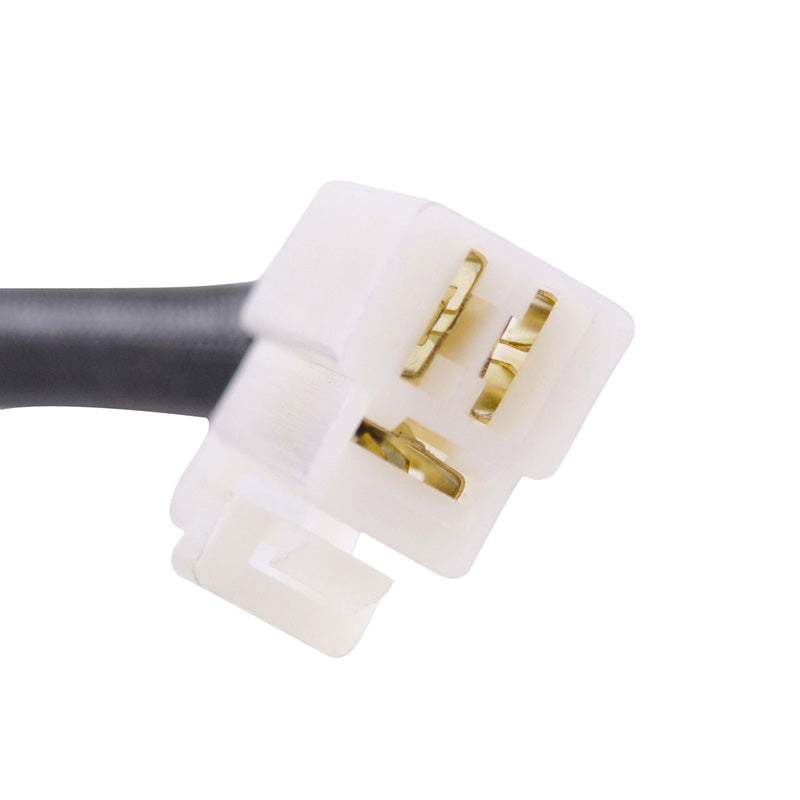

Number of plugs : 1
Wire to wire resistance :
Alternator : Black Between each Black = 0.4 ohms +-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please note Some Triumph models have multiple stators. Refer to the notes below to make sure you are purchasing the right stator. Daytona 955i 2002-2006 : There are 2 possibles stator for Triumph Daytona 955
