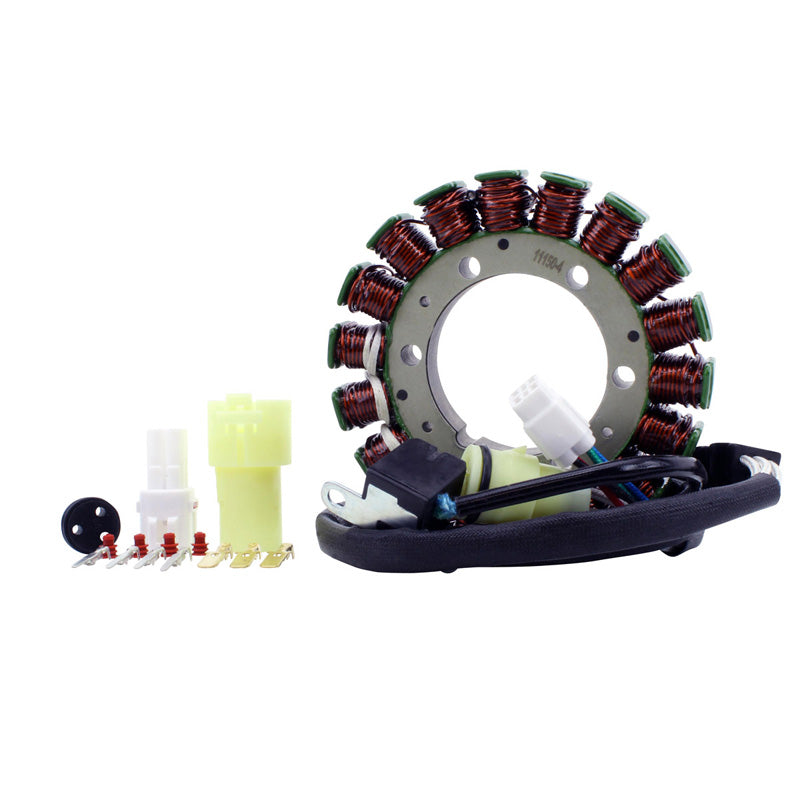

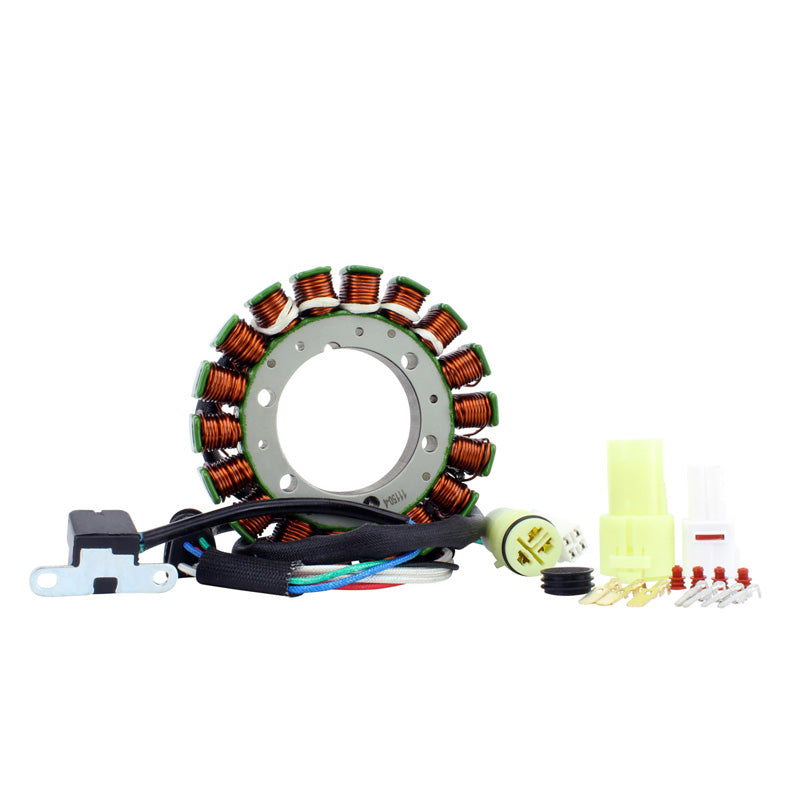

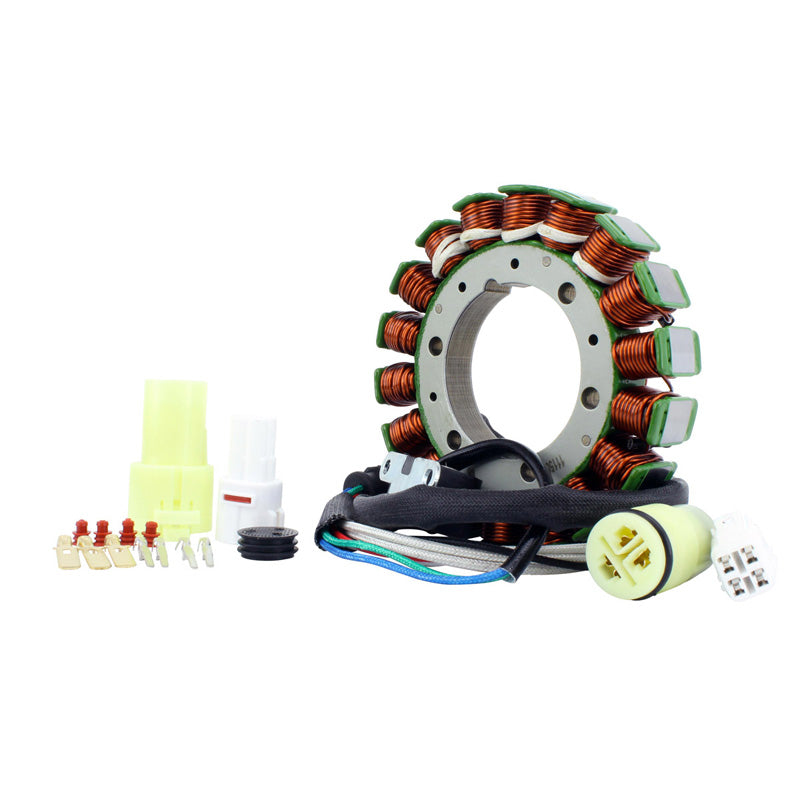

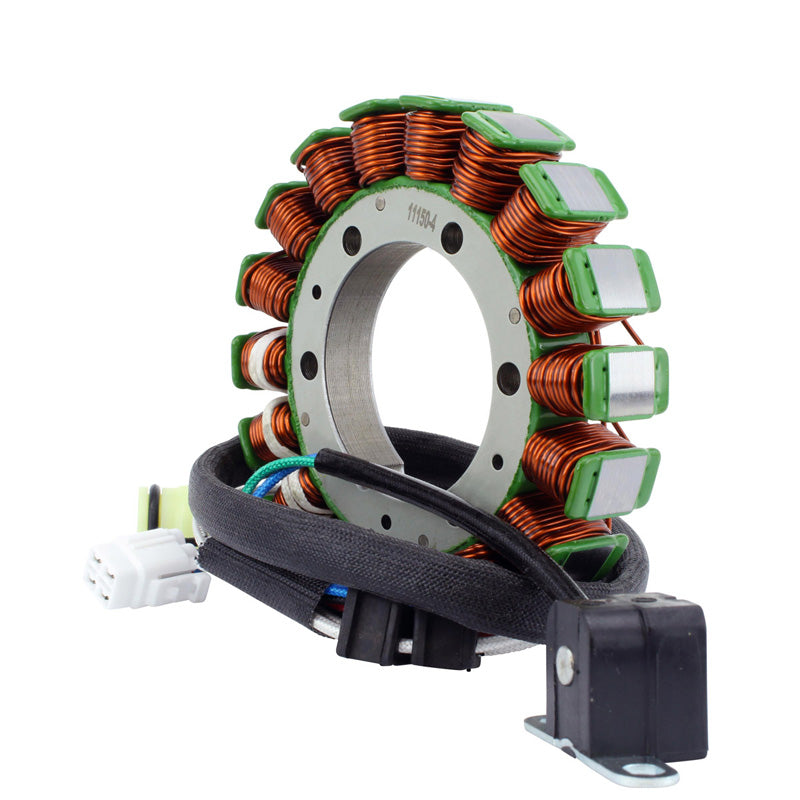

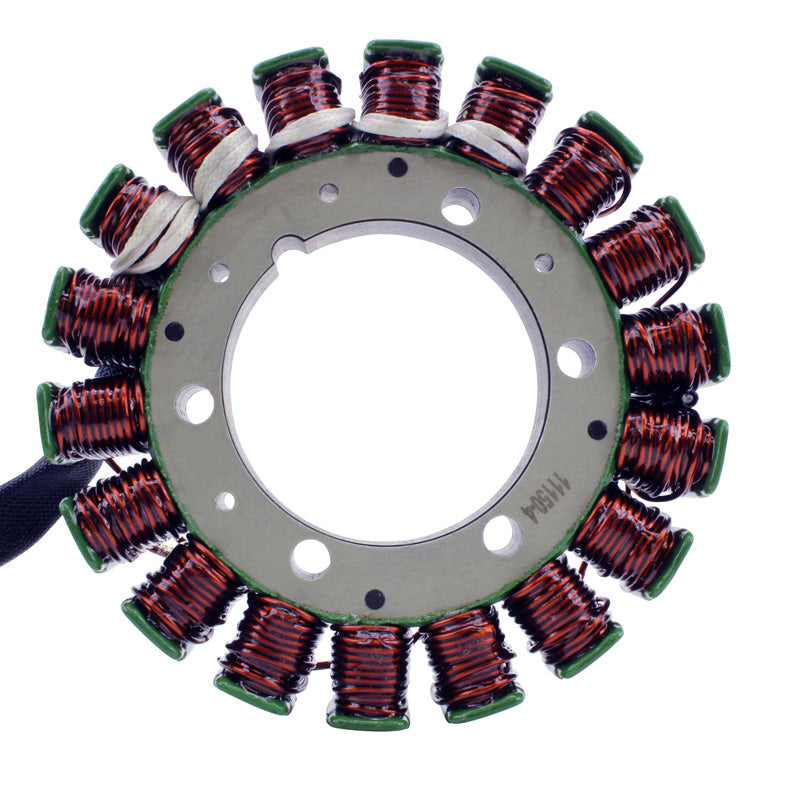

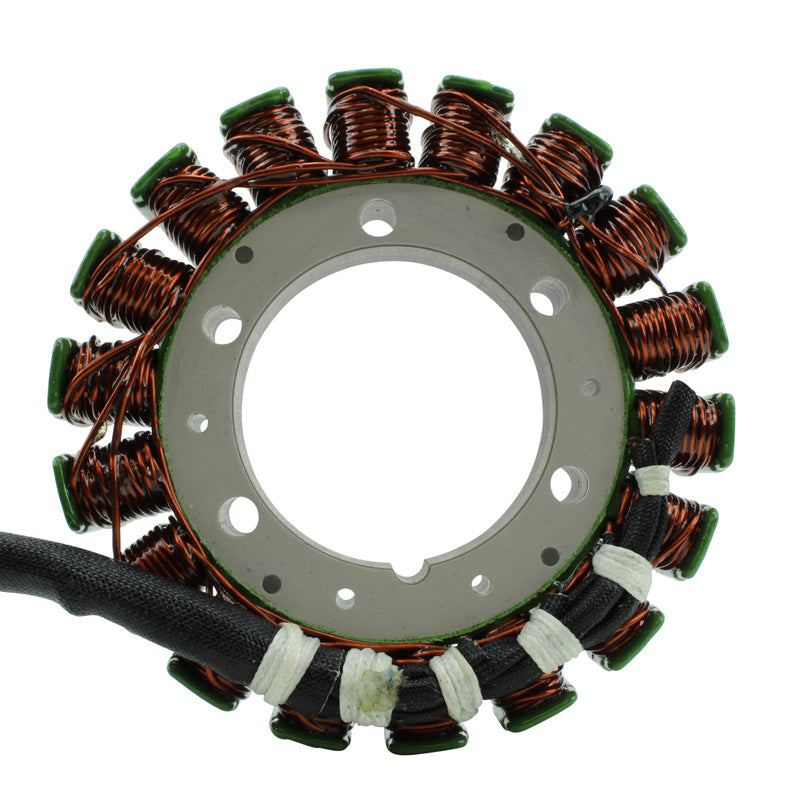

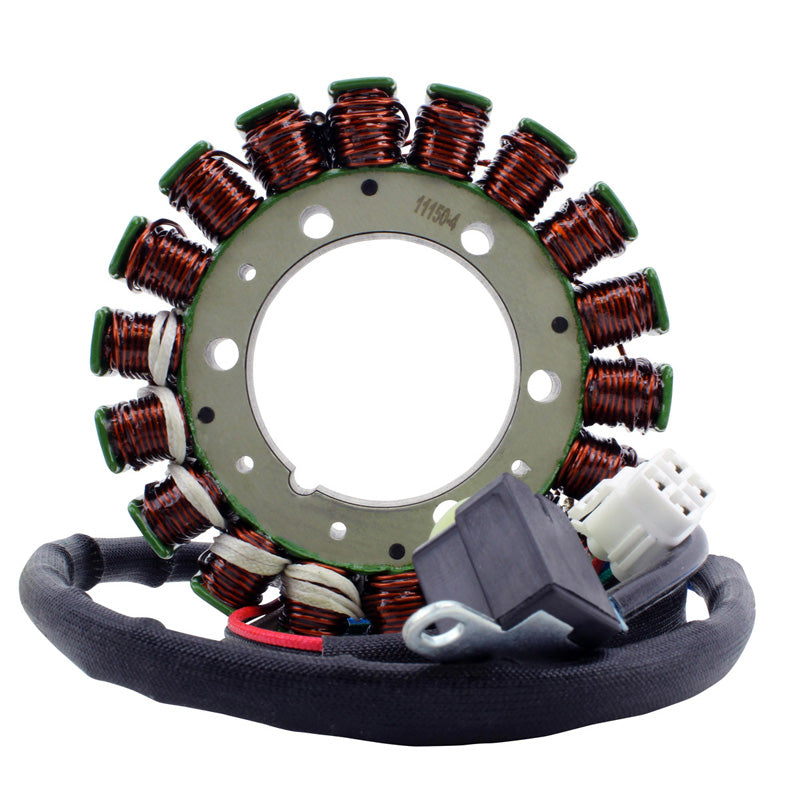

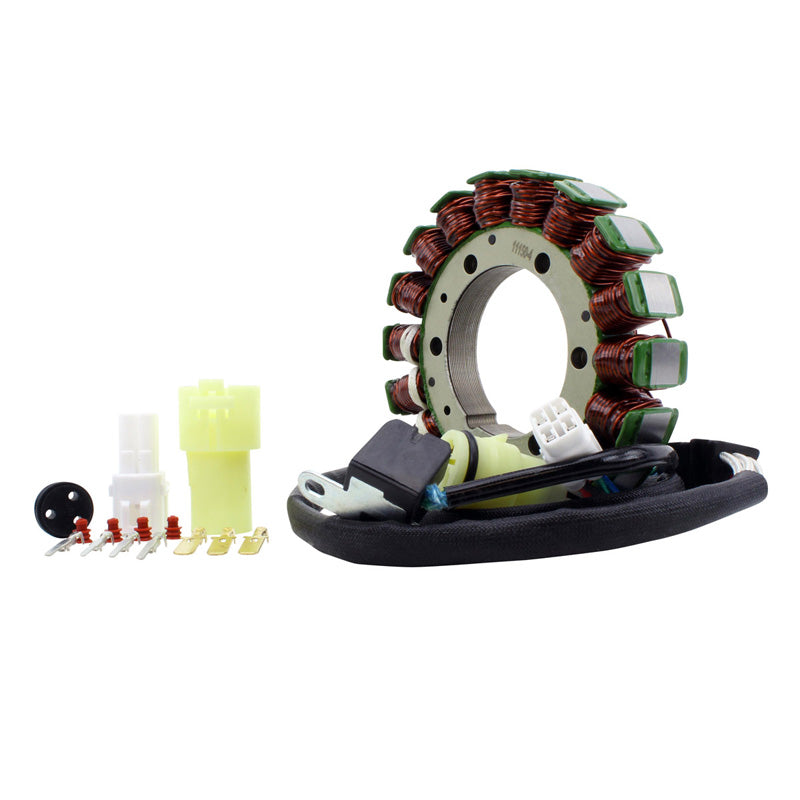

Highest-grade copper winding, resistant to 200 degrees Celsius.
Pick up pulsar coil included.

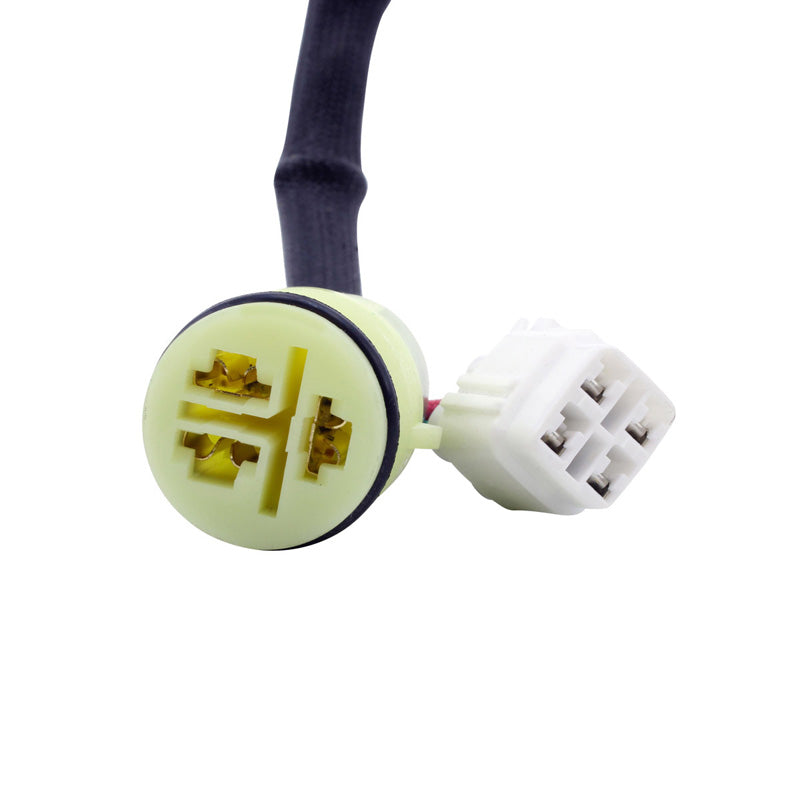

Connector included.
Rubber grommet included.
All products shipped are tested.
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

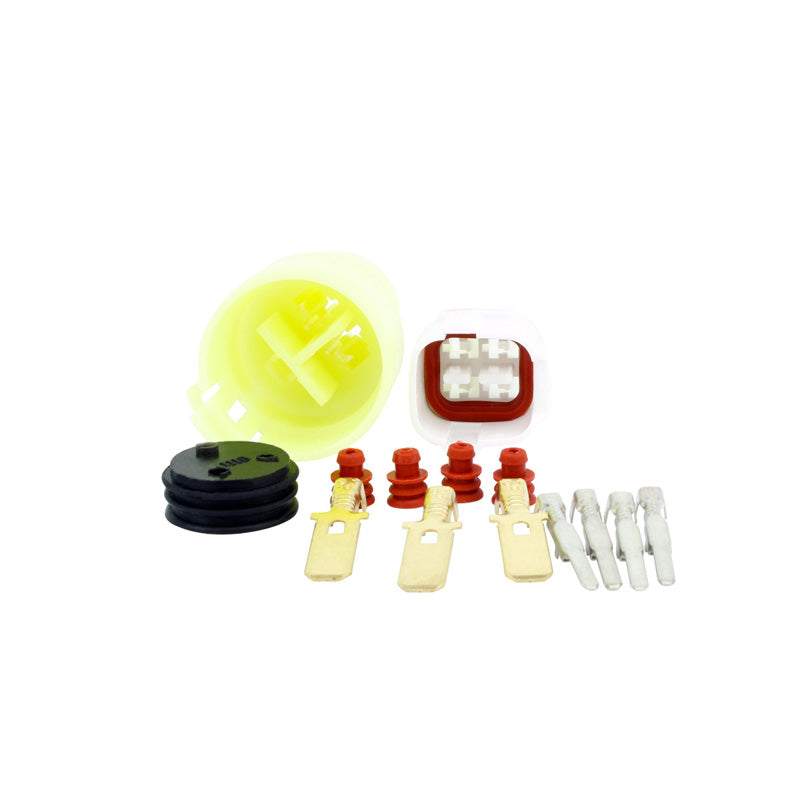

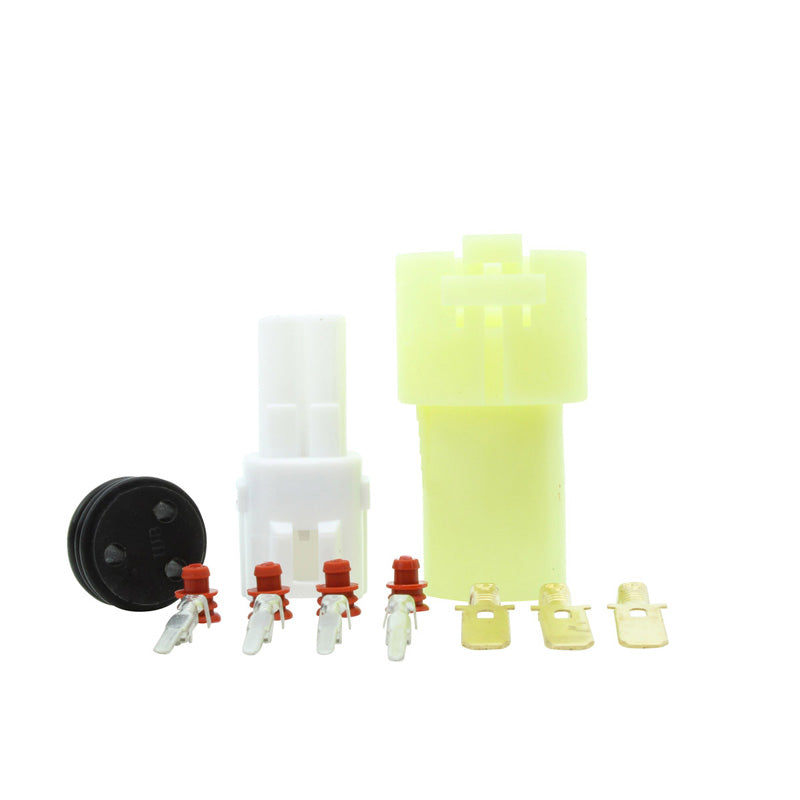

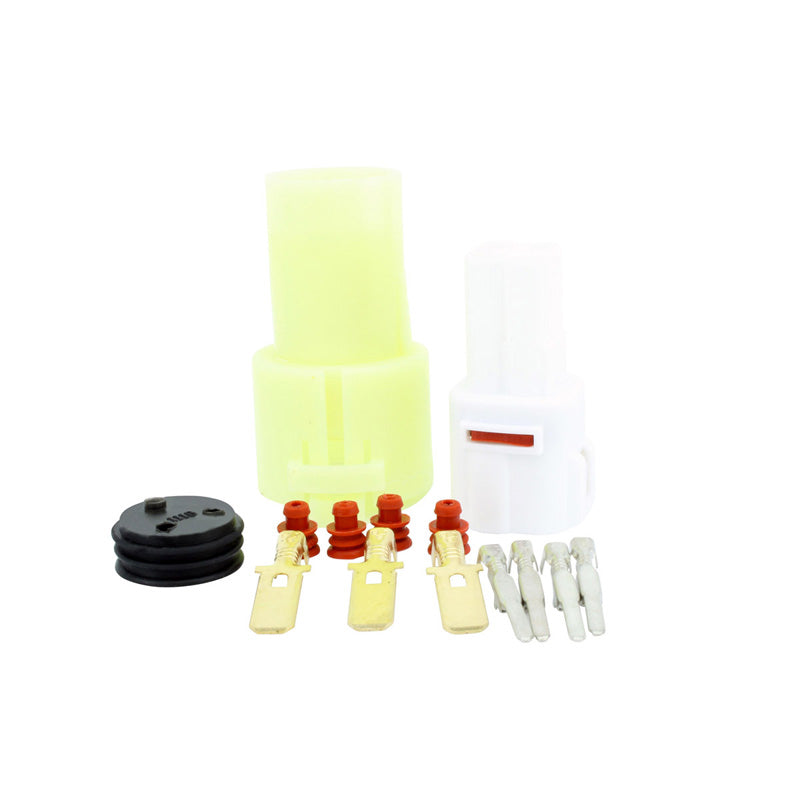

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 54 mm
Exterior diameter: 115 mm
Thickness: 14 mm
Length of wire stator to grommet: 150 mm
Length of wire grommet to plug: 500 mm
Length of pickup coil wire to grommet: 150 mm
Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7
Wire to wire resistance:
Alternator: white between each white = 0.4 ohms +/-20%
Pickup: blue to green = 450 ohms +/-20%
Position sensor: red to white/blue = 0.4 ohms +/-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
