RMS STATOR YAM FX1000/1100 CRUISER 02-10 RMS010-101518

RMS STATOR YAM FX1000/1100 CRUISER 02-10 RMS010-101518

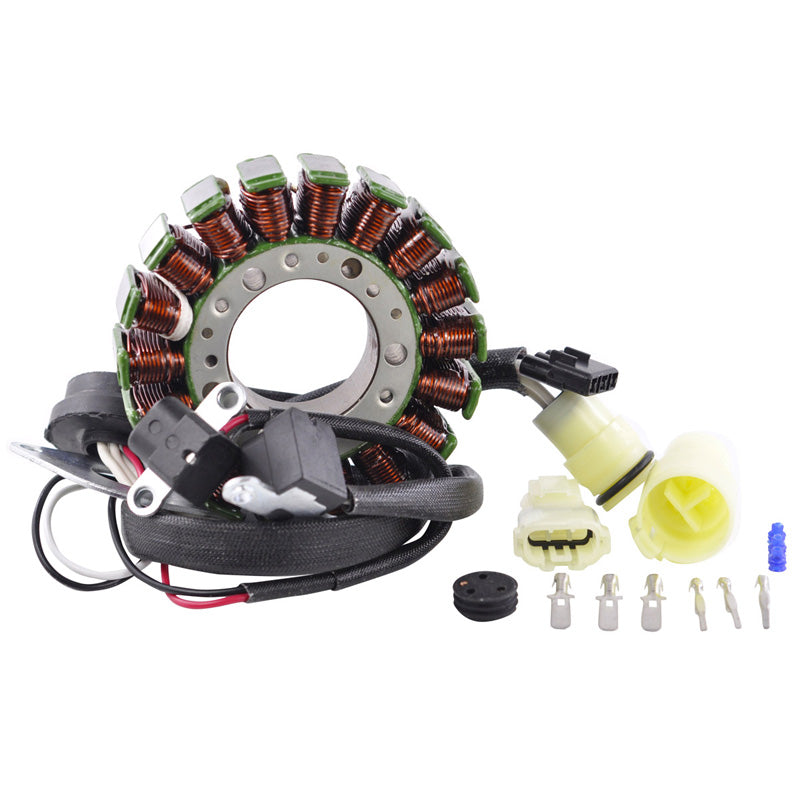

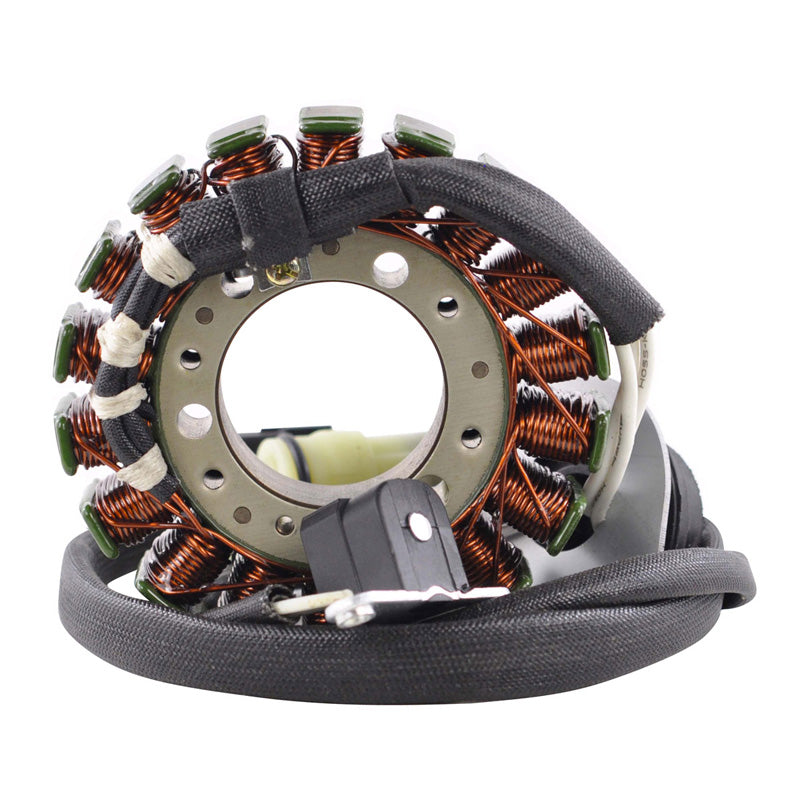

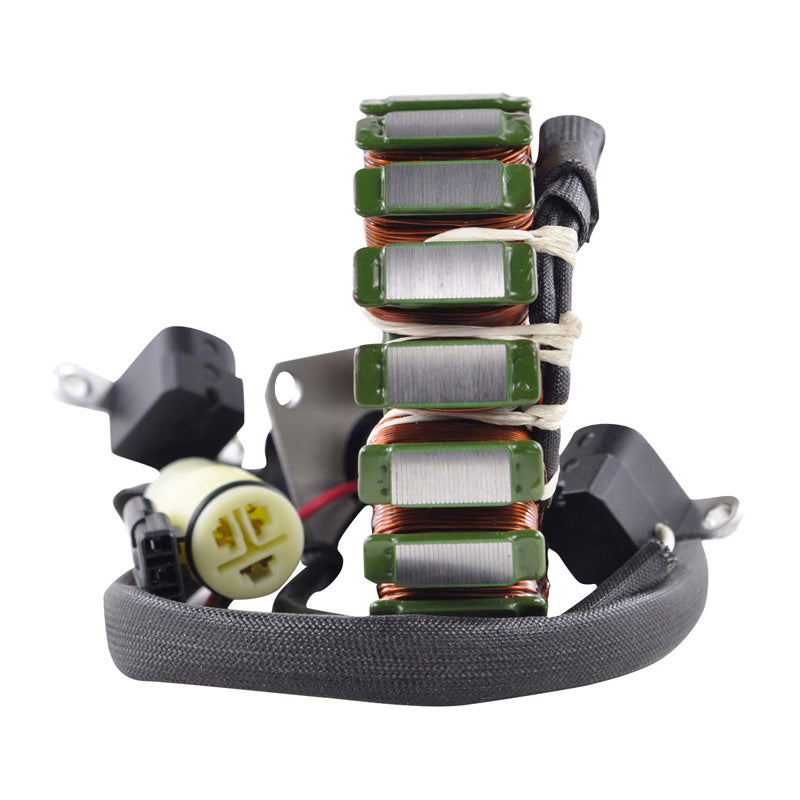

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

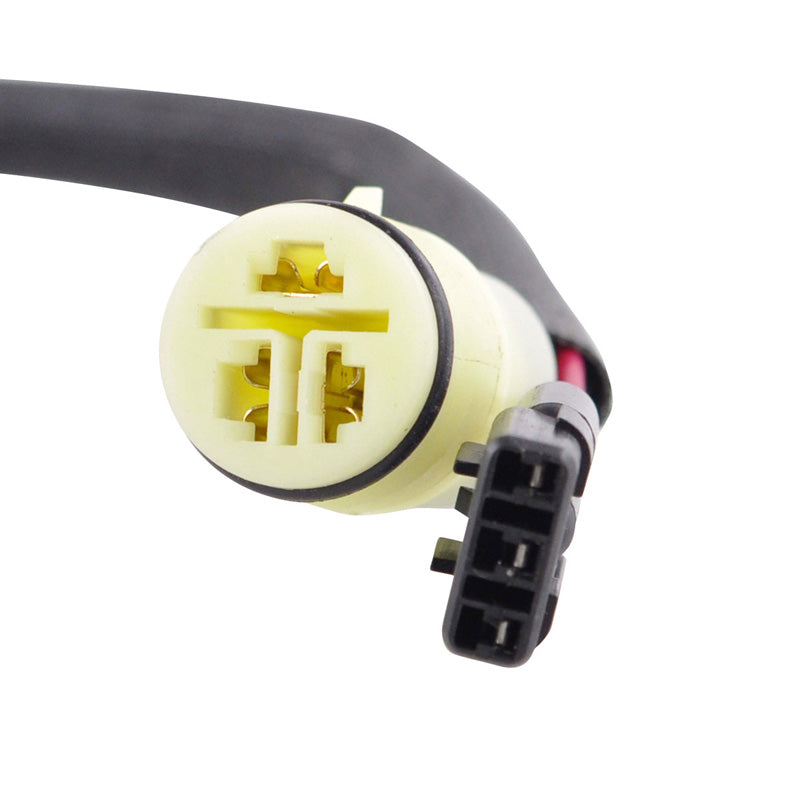

• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter: 42 mm
Exterior diameter: 104 mm
Thickness: 22 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 450 mm
Length of pickup coil wire 1 to grommet: 280 mm
Length of pickup coil wire 2 to grommet: 125 mm

Other specifications :
Number of wires: 6
Number of plugs: 2
Number of pins: 6

Wire to wire resistance:
Alternator: Green between each Green = 0.9 ohms +/-20%
Pickup 1: White to Black = 518 ohms +/-20%
Pickup 2: Red to Black = 524 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
