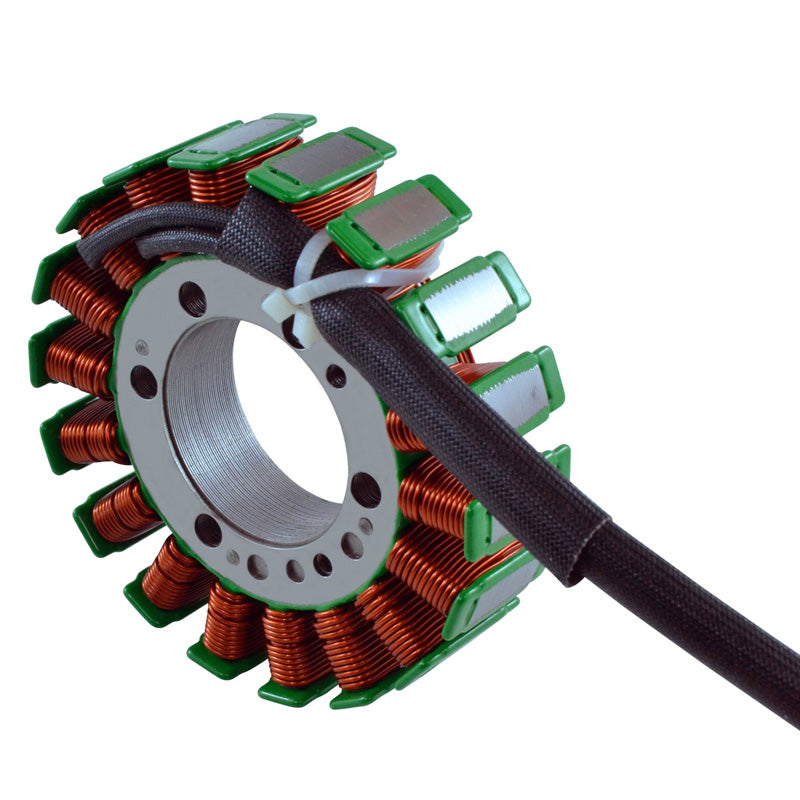

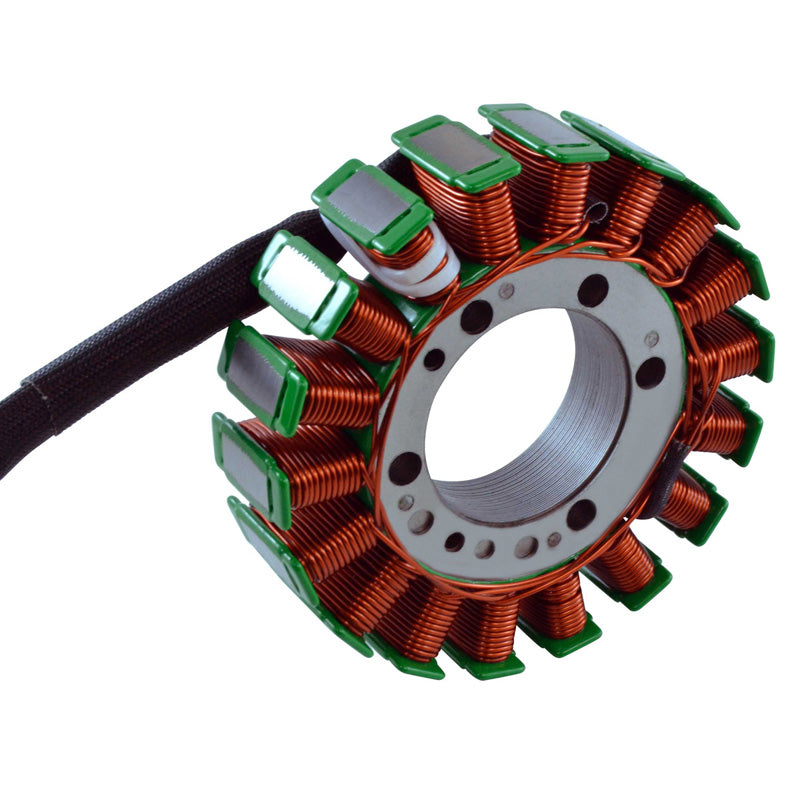

Highest grade copper windings, resistant to 200 degrees Celsius.

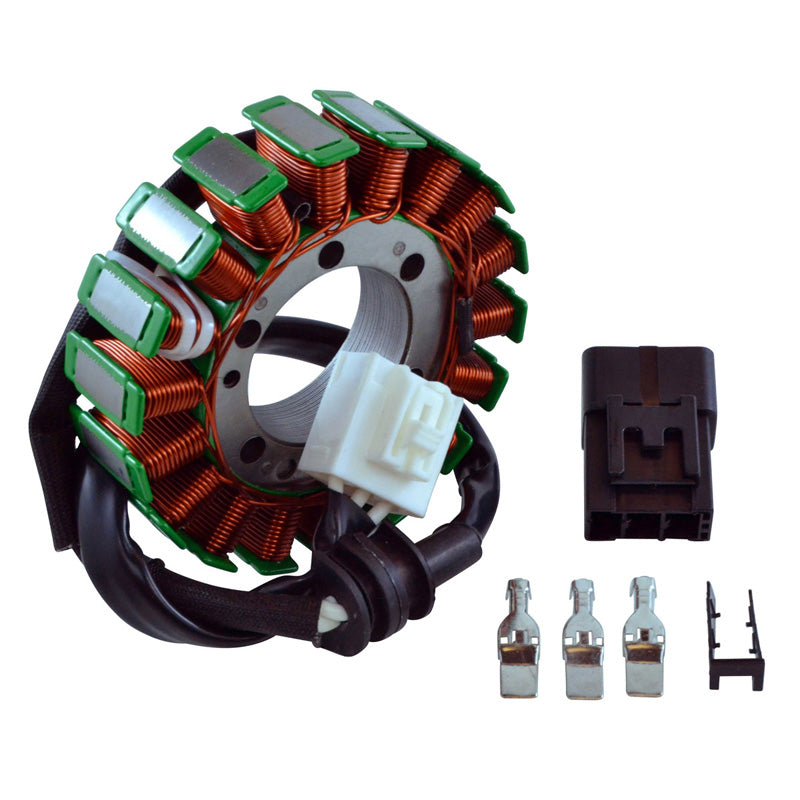

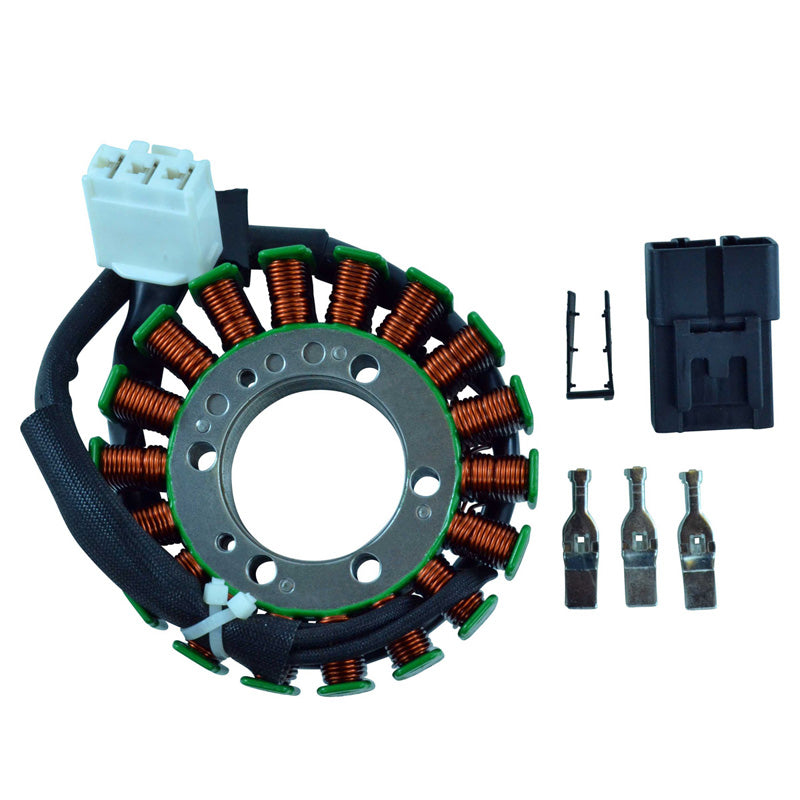

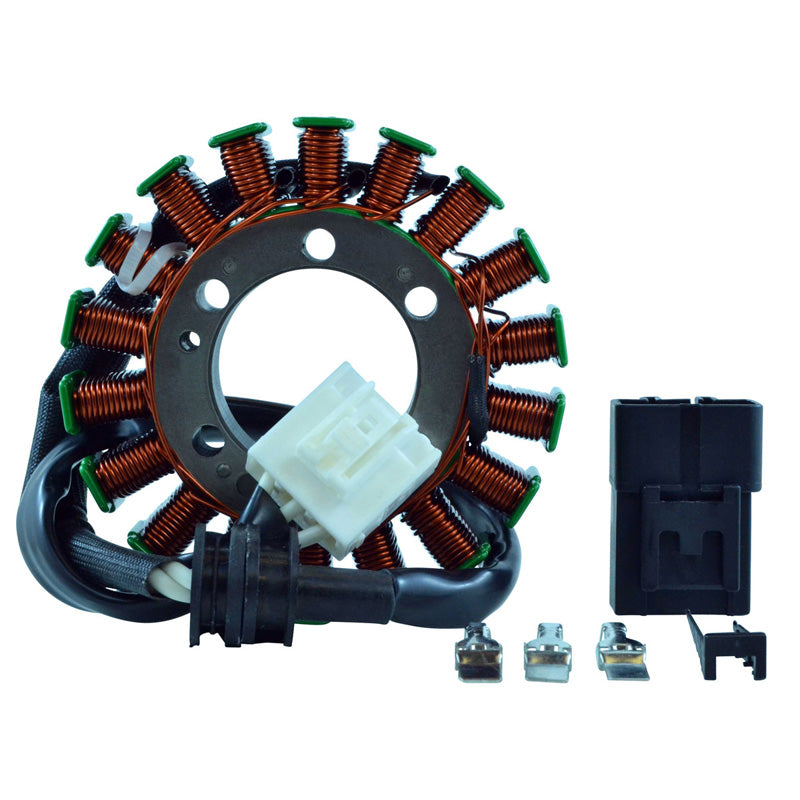

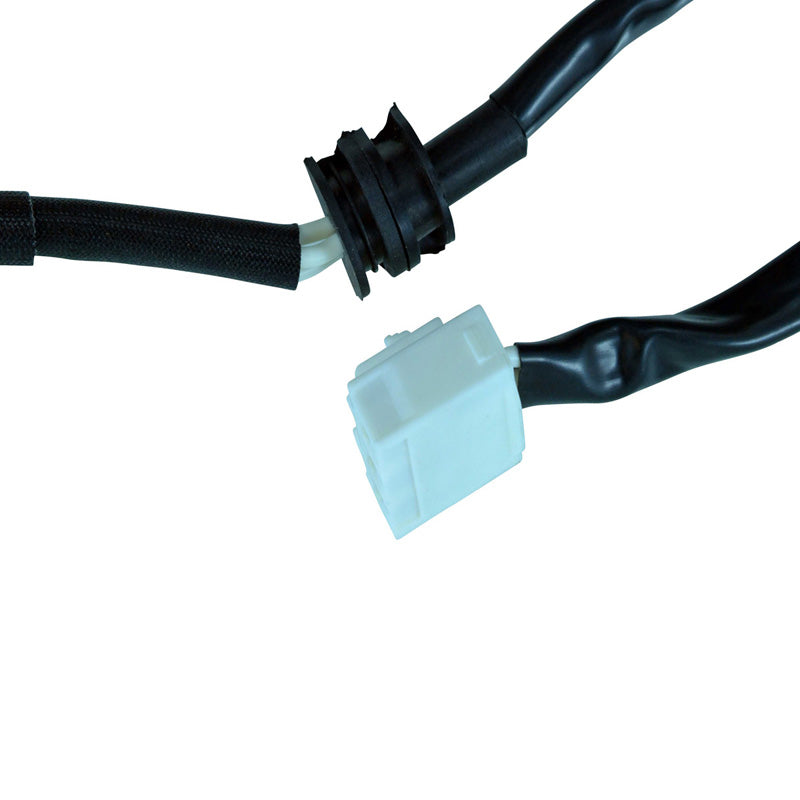

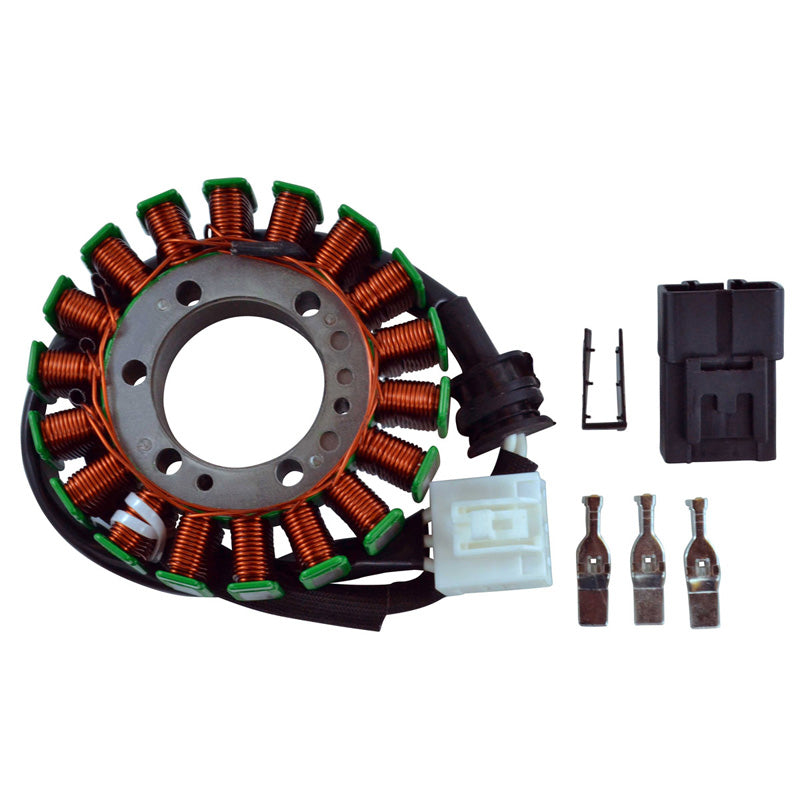

Connector included

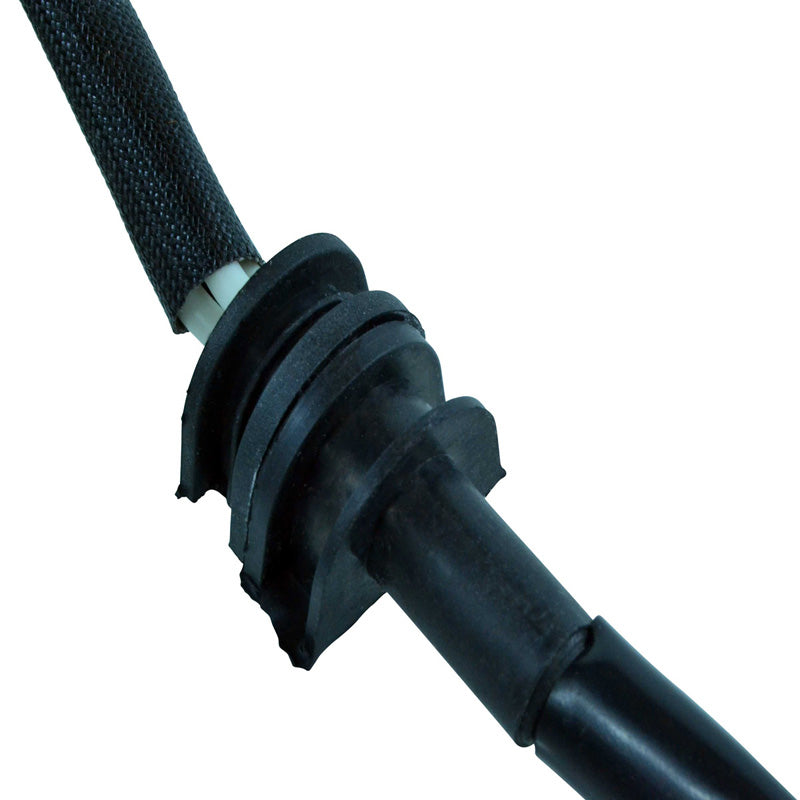

Rubber grommet included
All products shipped are tested

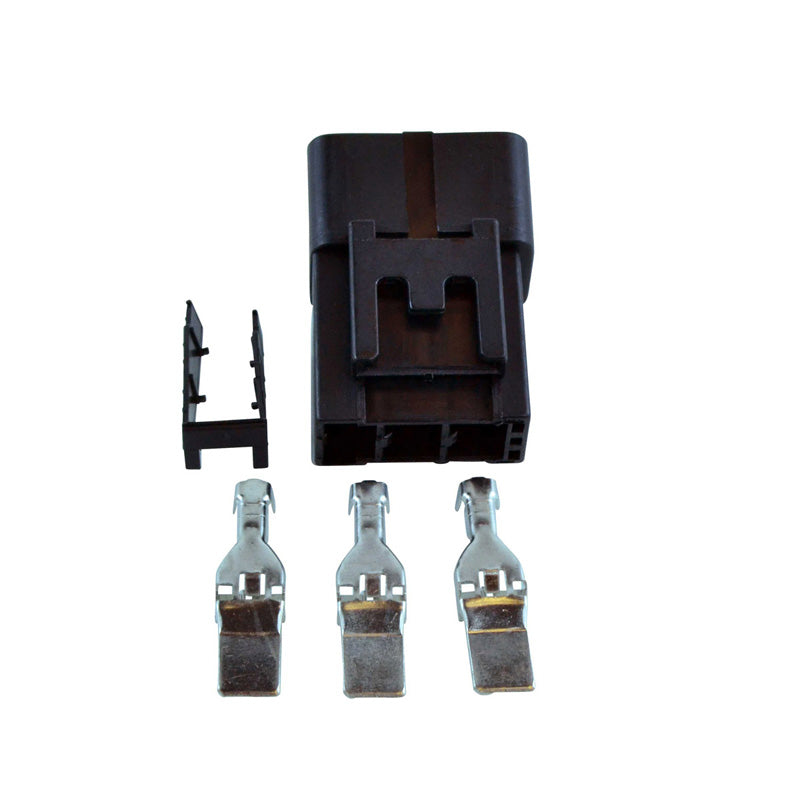

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm

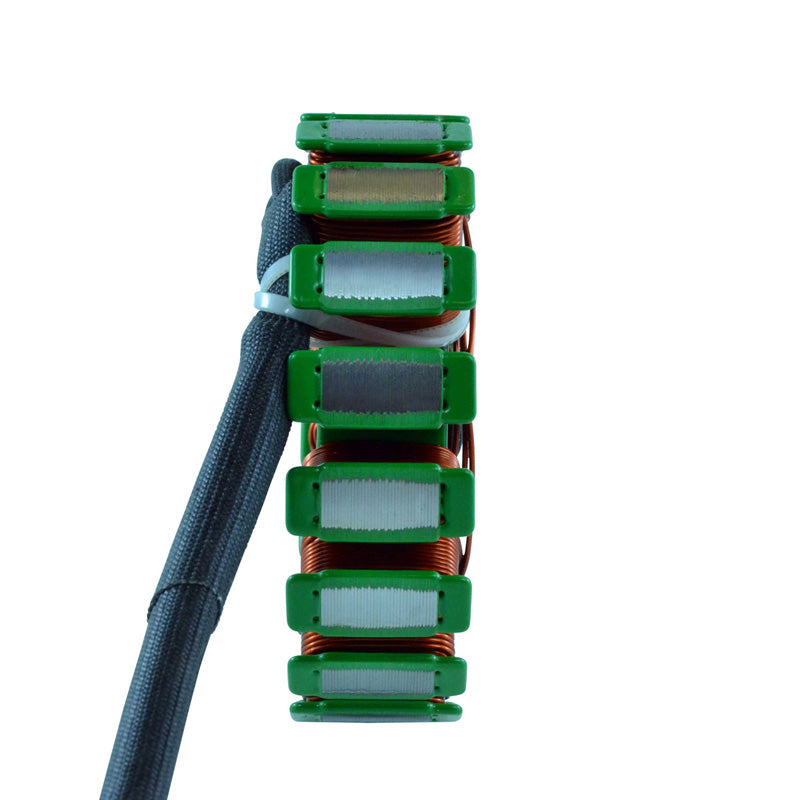

Thickness : 31 mm
Length of wires stator to grommet : 122 mm
Length of wires grommet to plug : 285 mm
Other specifications :
Number of wires : 3
Number of plugs : 1

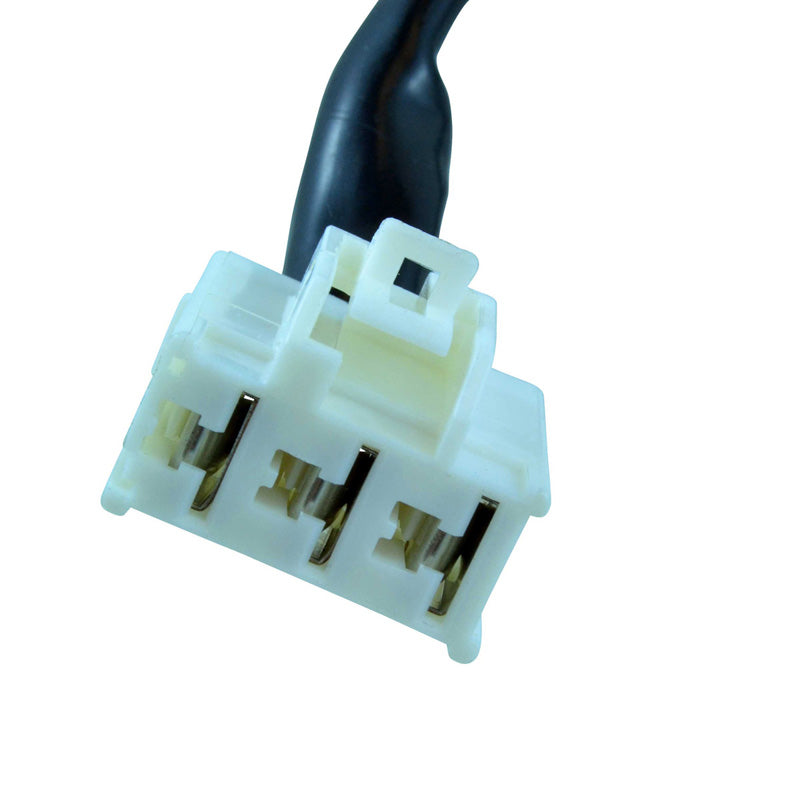

Number of pins : 3

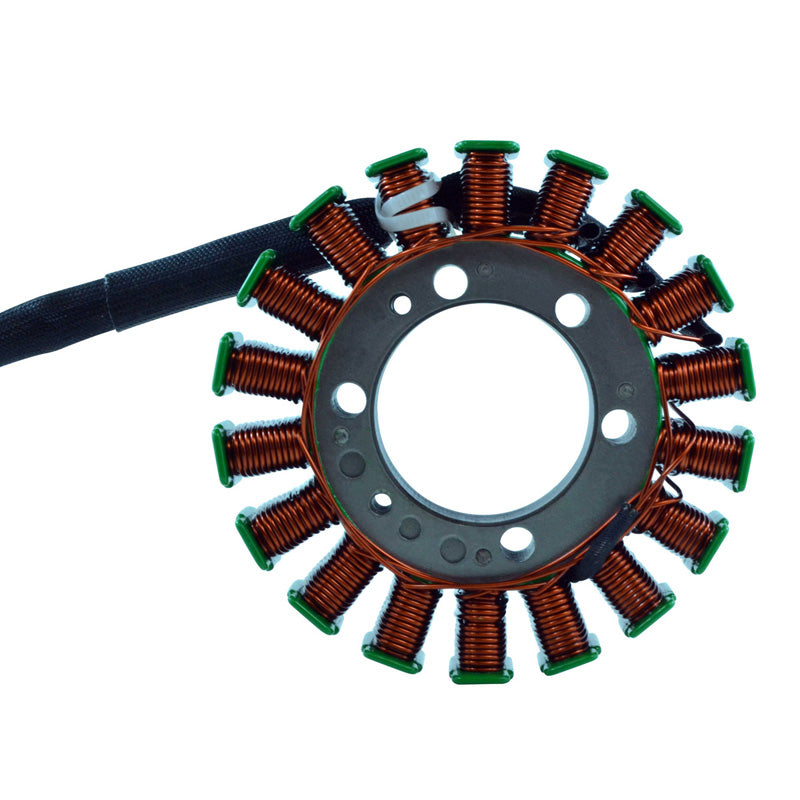

Number of poles : 18
Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
