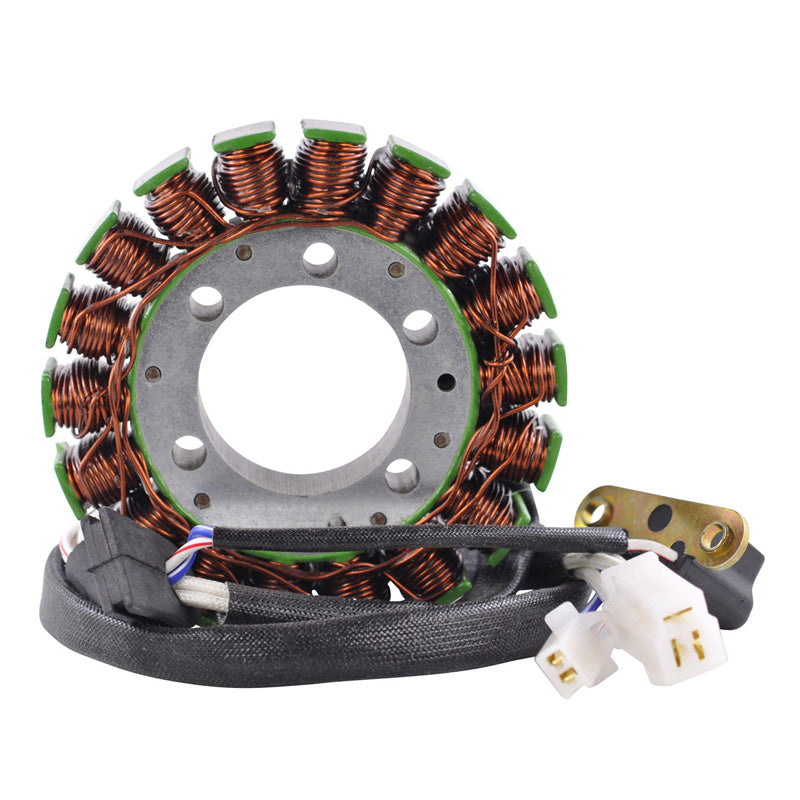

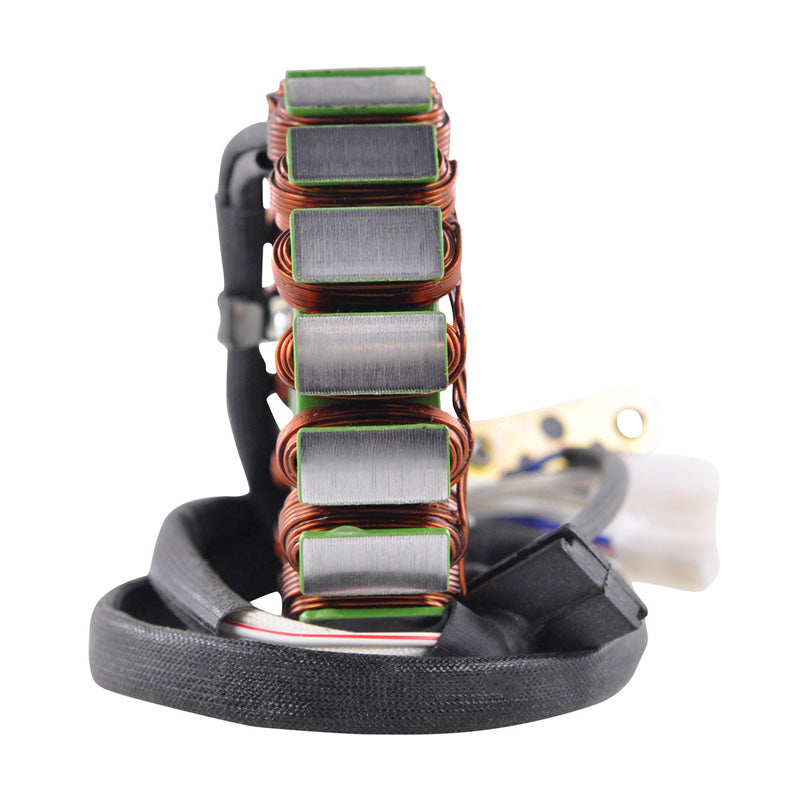

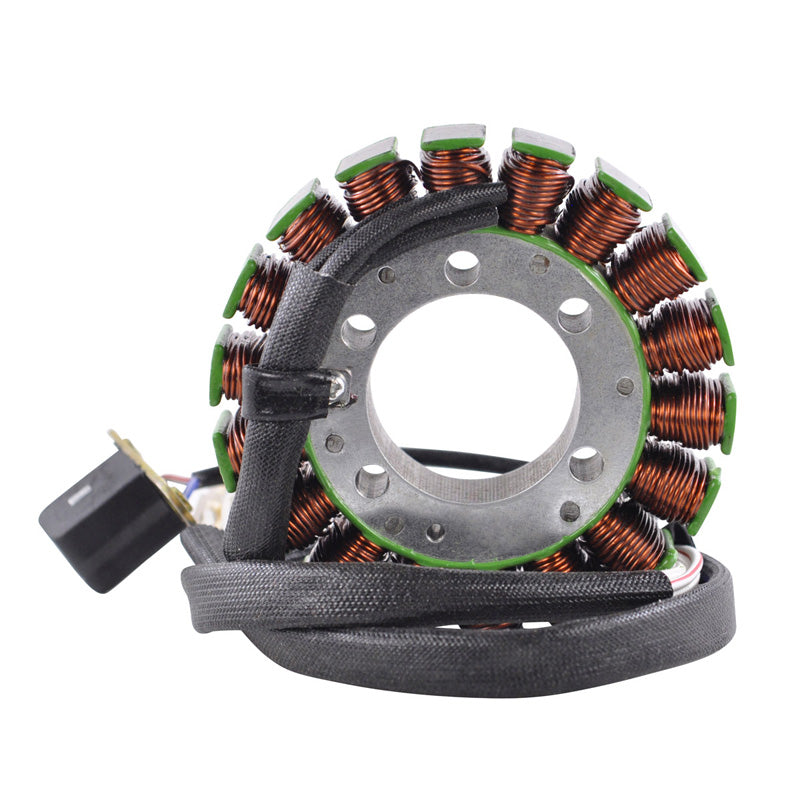

RMS STATOR YAM FZR600|R 89-99 RM01561
RMS STATOR YAM FZR600|R 89-99 RM01561
Couldn't load pickup availability
Brand new aftermarket generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

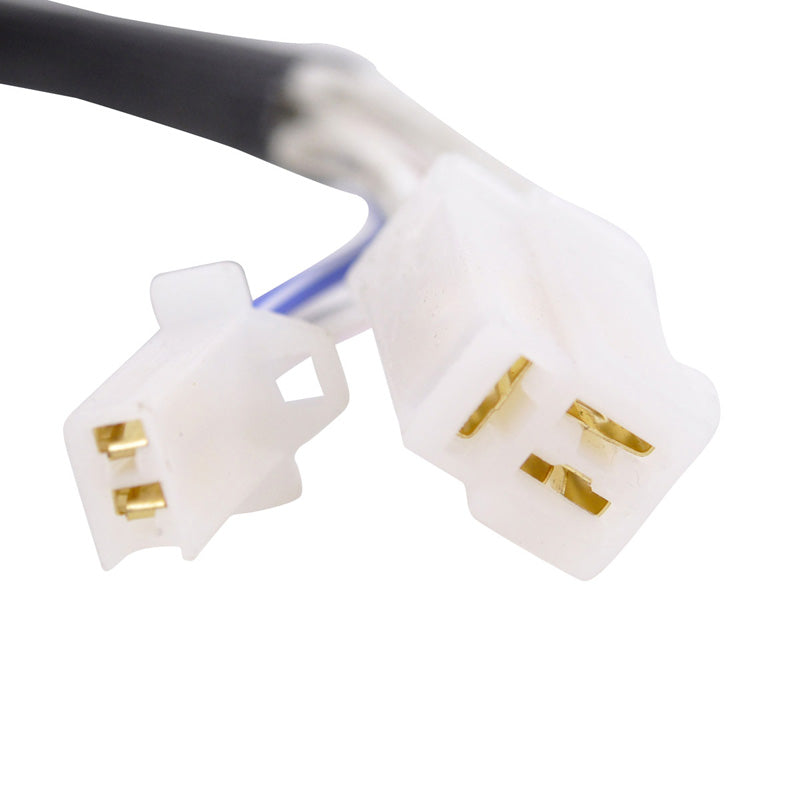

- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
Specifications:
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 22 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 450 mm
Length of pickup coil's wire to grommet : 70 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : White to White = 0.6 ohms +-20%
Pickup : White/Red to White/Black = 101 ohms +-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
