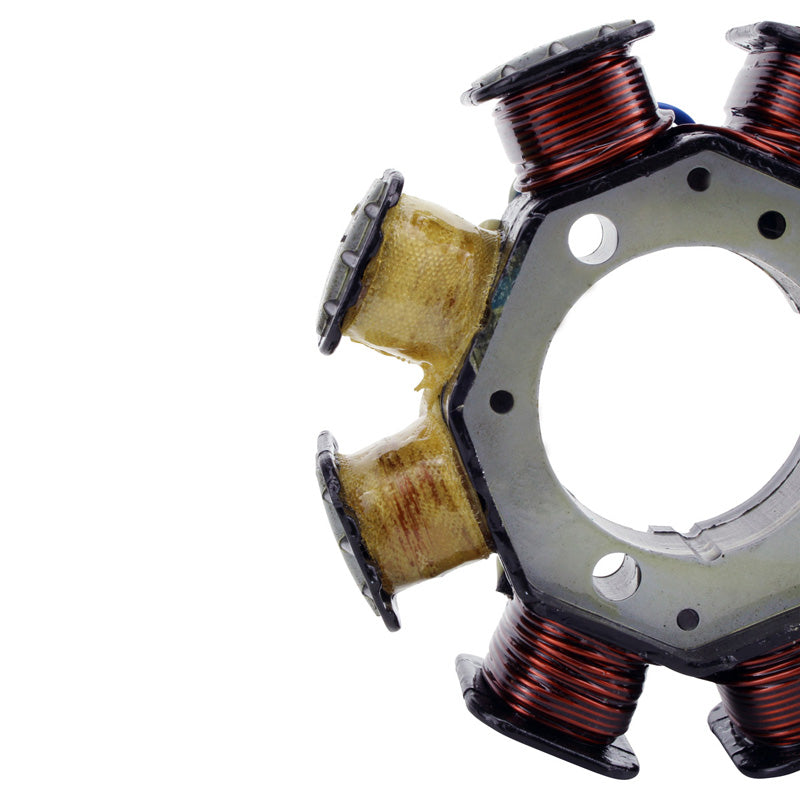

Highest grade copper windings, resistant to 200 degrees Celsius.

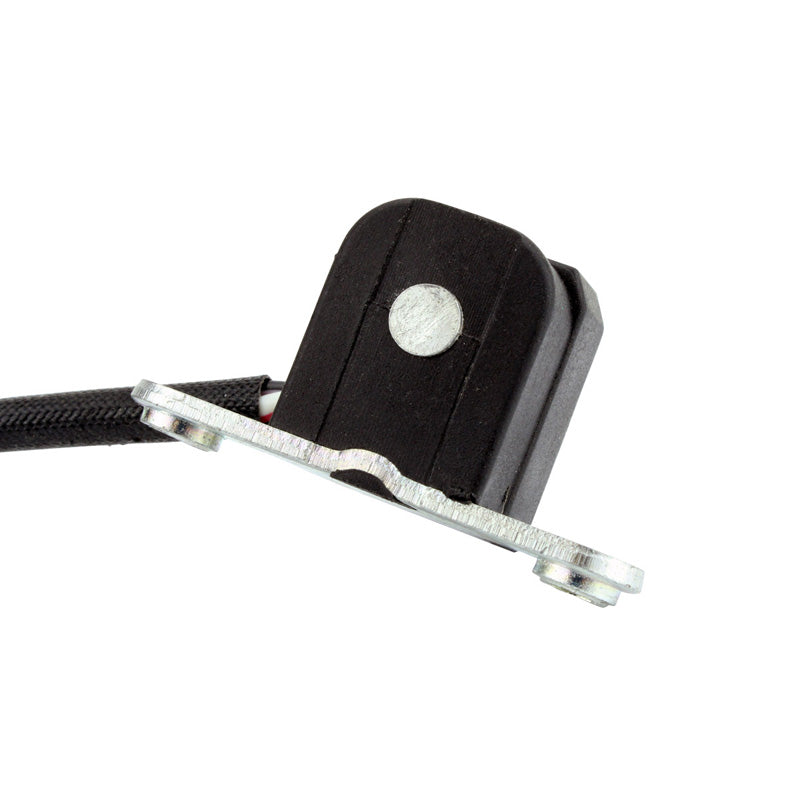

Pick up pulsar coil included

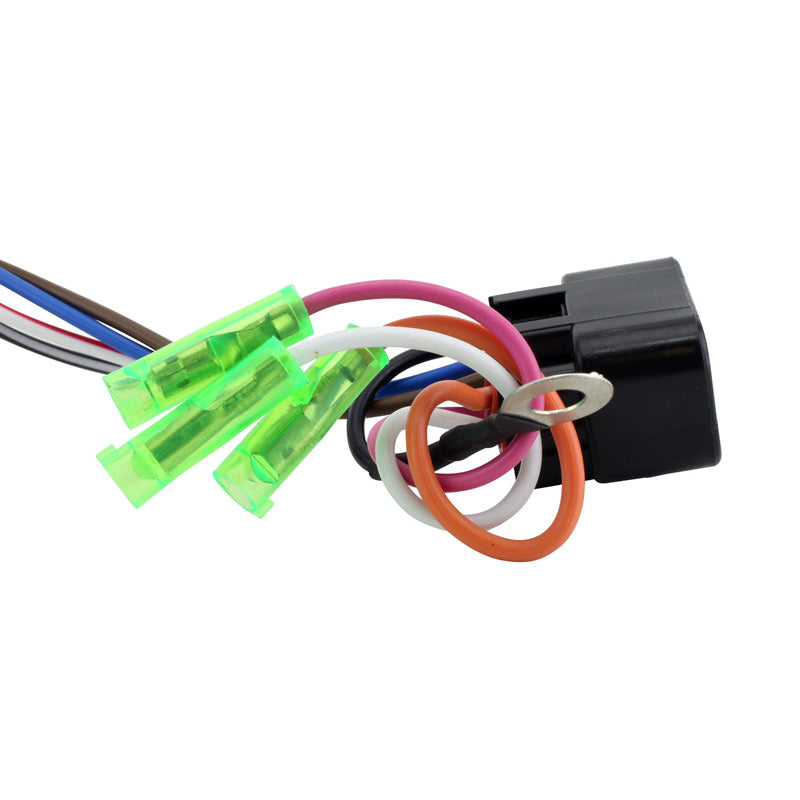

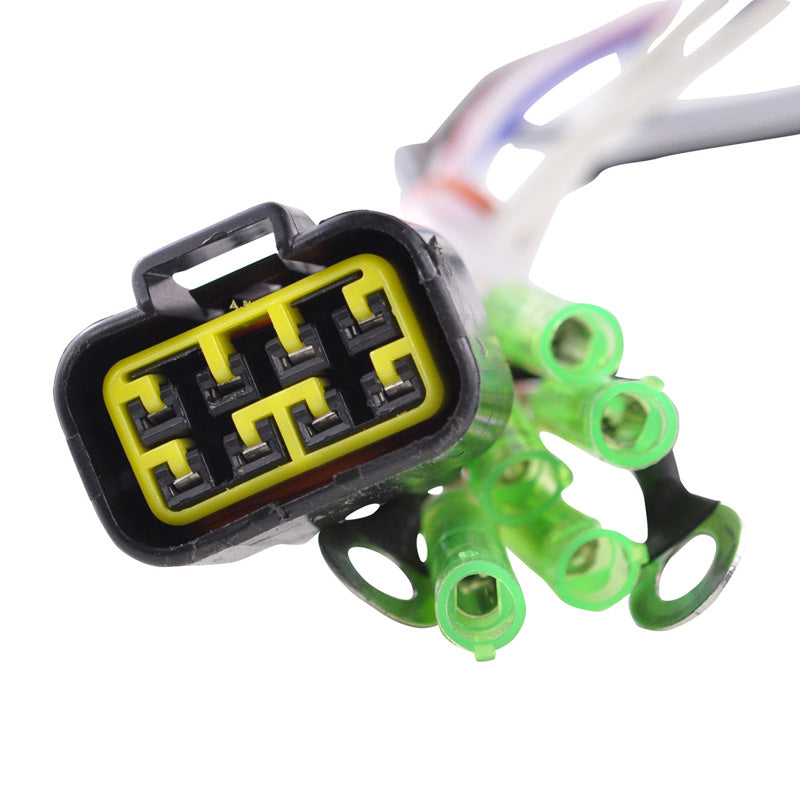

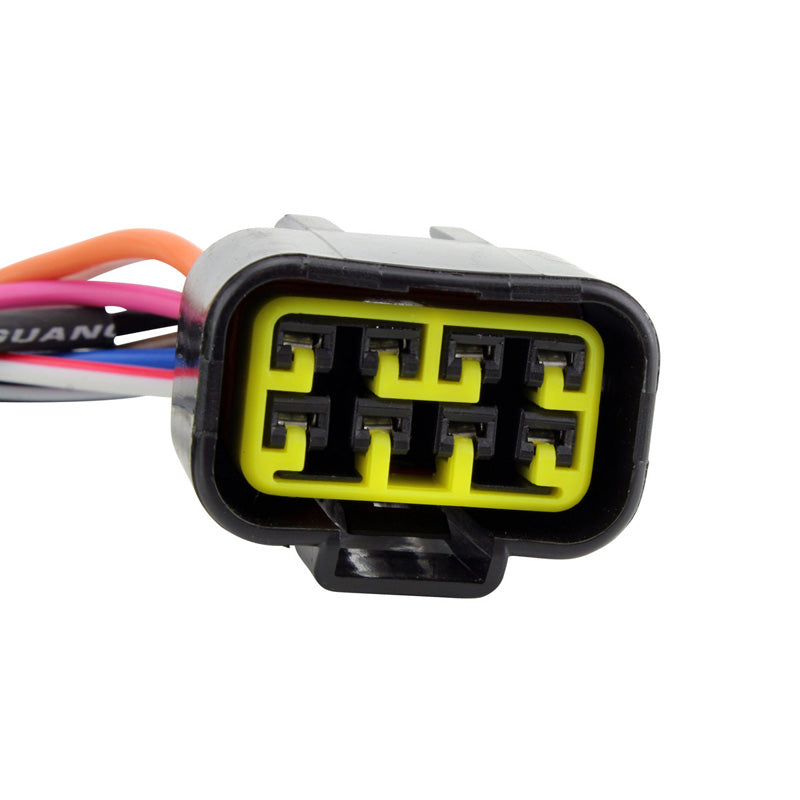

Connector included

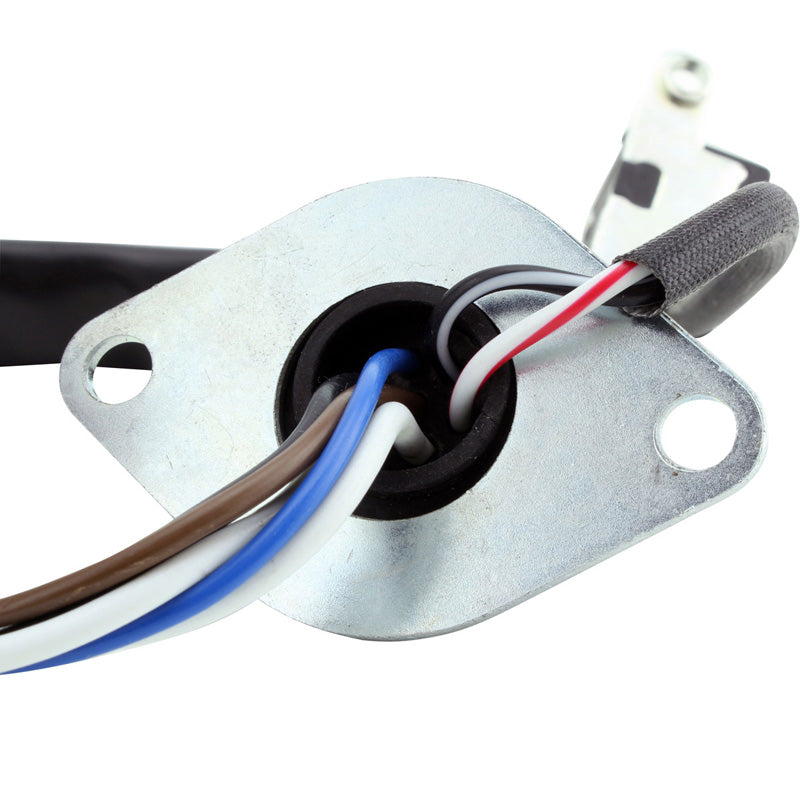

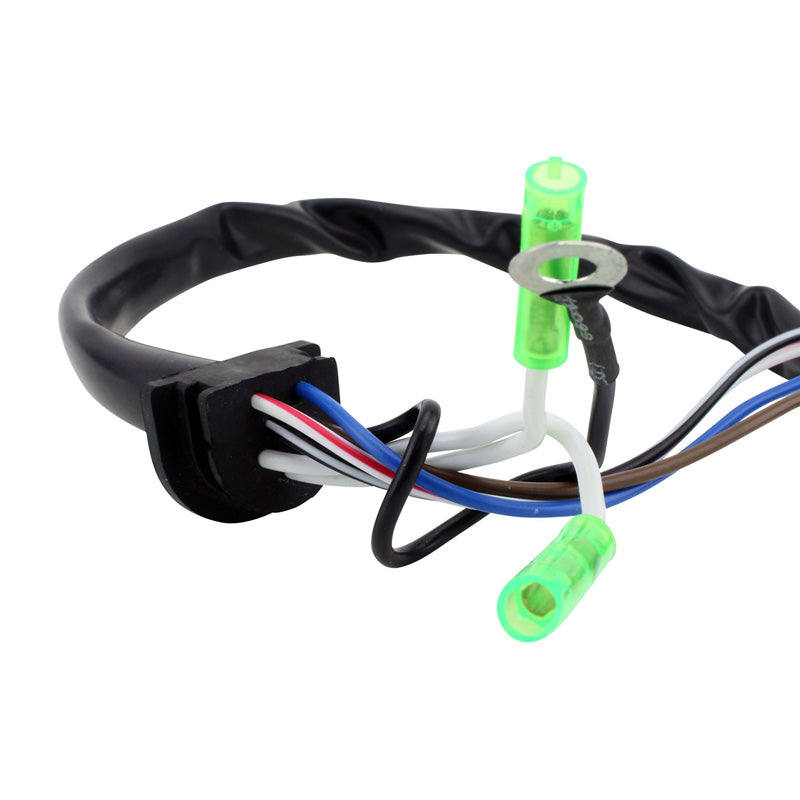

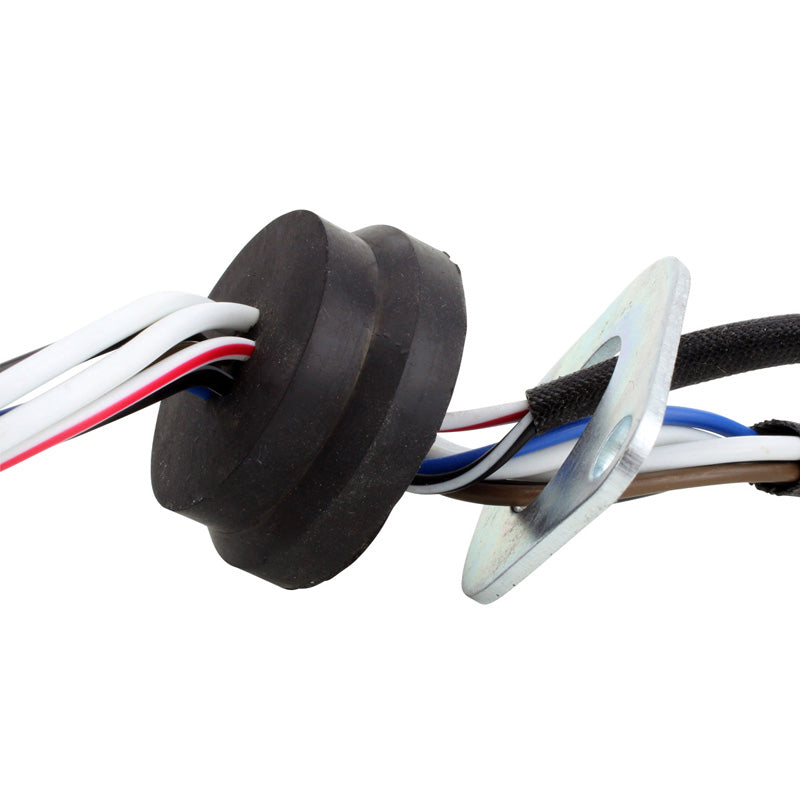

Rubber grommet included
All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions : Interior diameter : 42 mm Exterior diameter : 104 mm Thickness : 16 mm Length of wires stator to grommet : 45 mm Length of wires grommet to plug : 1485 mm Length of pickup coil's wire to grommet : 80 mm
Other specifications : Number of wires :11 Number of plugs : 6 Number of pins : 11
Wire to wire resistance : Alternator : White To White = 1.2 ohms +-20% Pickup : White/Black To White/Red = 524 ohms +-20% Source : Blue To Brown = 344 ohms +-20%
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
