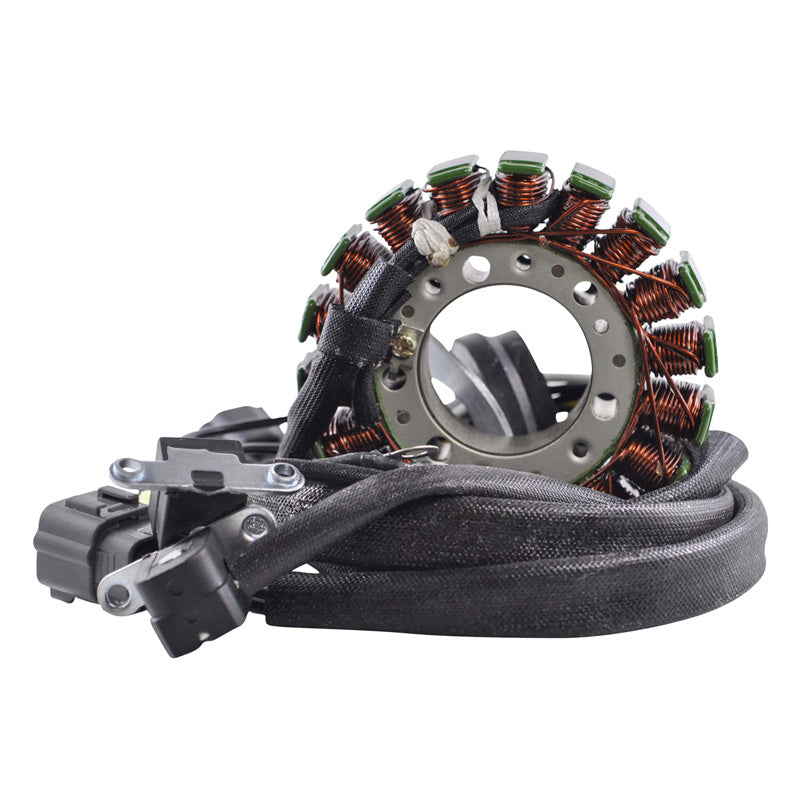

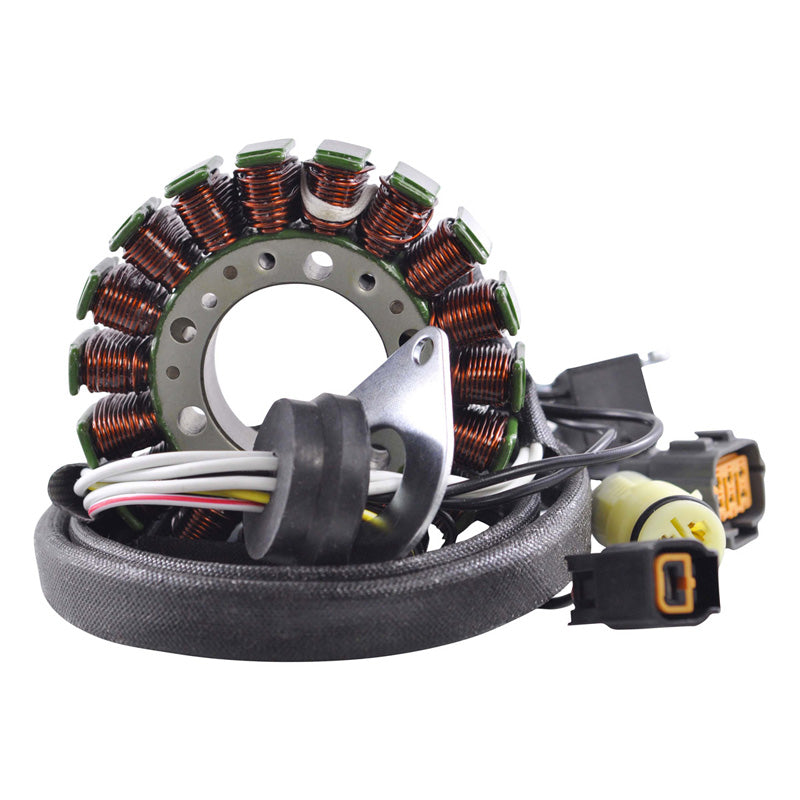

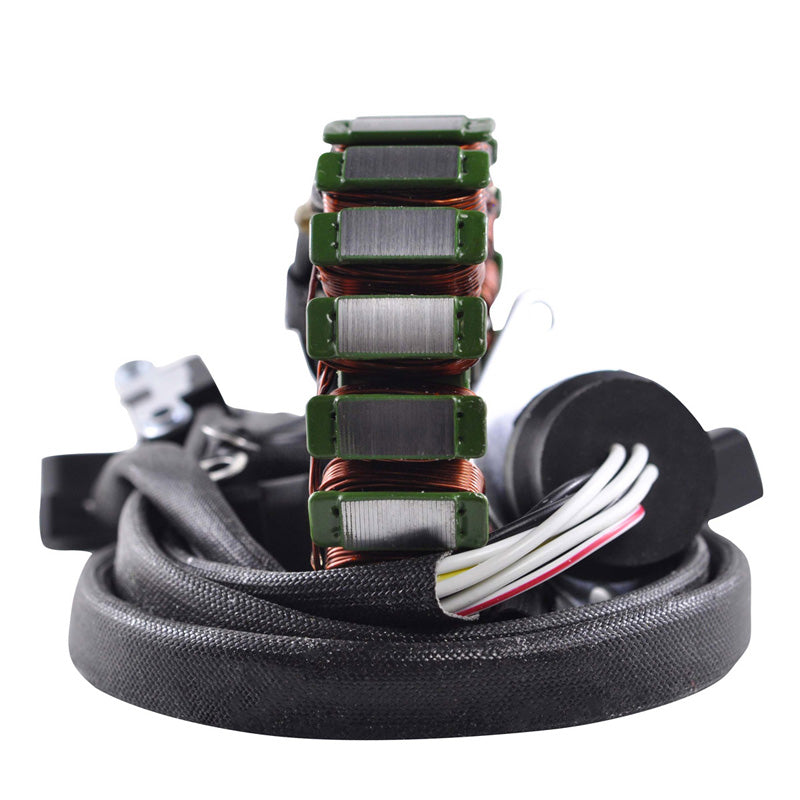

RMS STATOR YAM GP1300R 03-08 RM01542

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coils included (3)

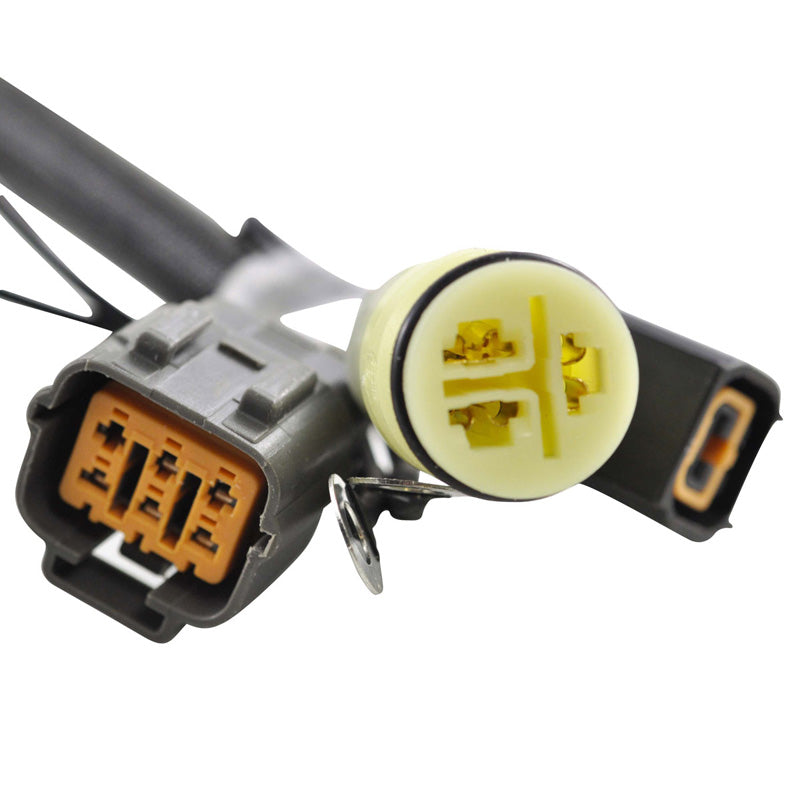

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 22.5 mm
Length of wires stator to grommet : 57 mm
Length of wires grommet to plug : 990 mm
Length of pickup 1 coil's wire to grommet : 90 mm
Length of pickup 2 coil's wire to grommet : 260 mm
Length of pickup 3 coil's wire to grommet : 160 mm

Other specifications :
Number of wires : 9
Number of plugs : 3
Number of pins : 9

Wire to wire resistance :
Alternator : Green to Green = 0.9 ohms +-20%
Pickup 1 : White/Yellow to Black = 527 ohms +-20%
Pickup 2 : White/Black to Black = 526 ohms +-20%
Pickup 3 : White/Red to Black = 520 ohms +-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
