RMS STATOR YAM TIMBERWOLF 250 92-93 RM01426

RMS STATOR YAM TIMBERWOLF 250 92-93 RM01426

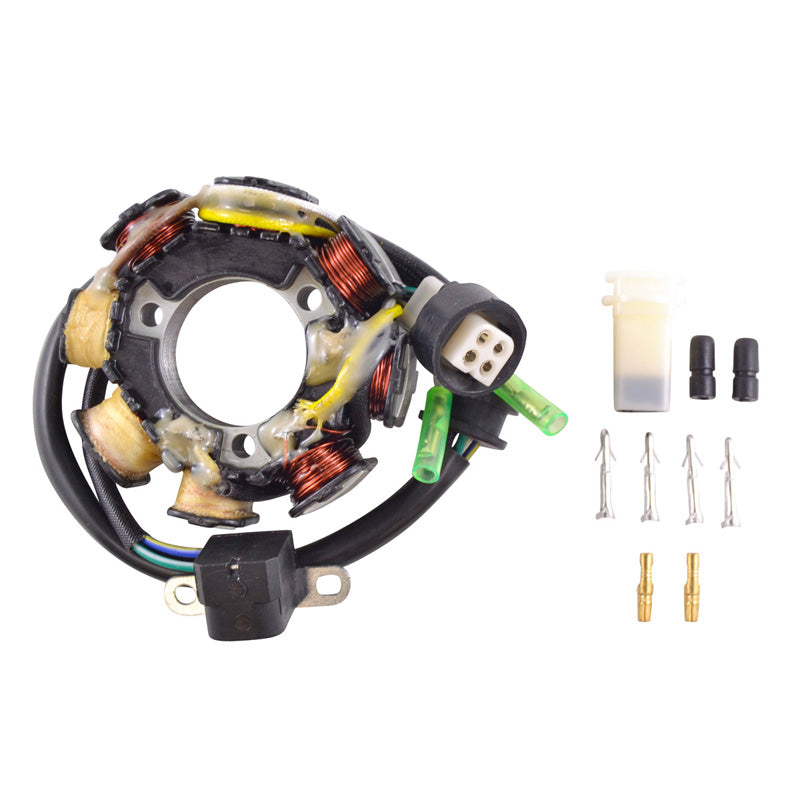

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.

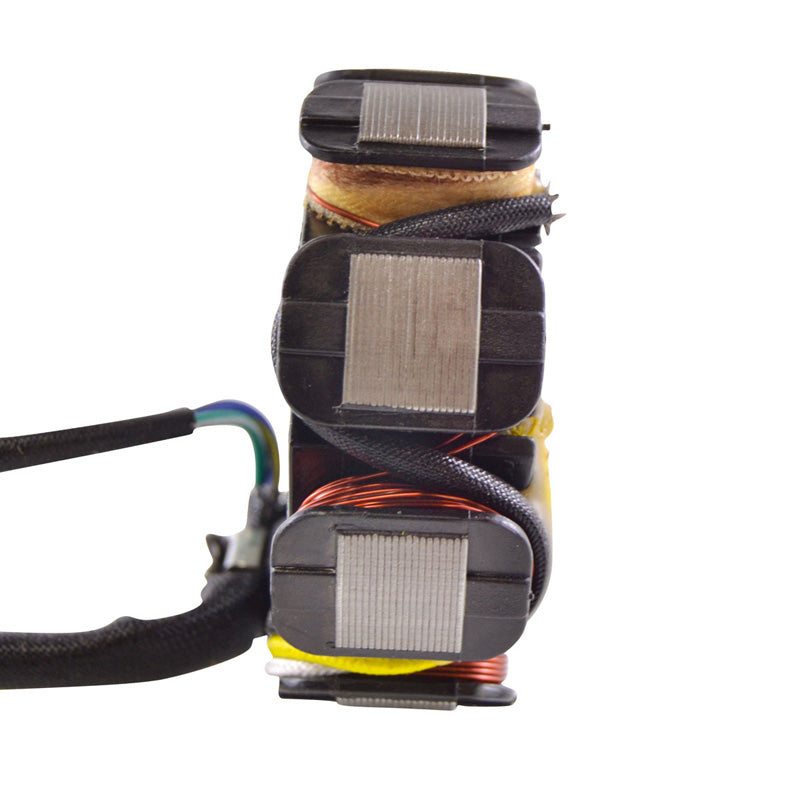

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included

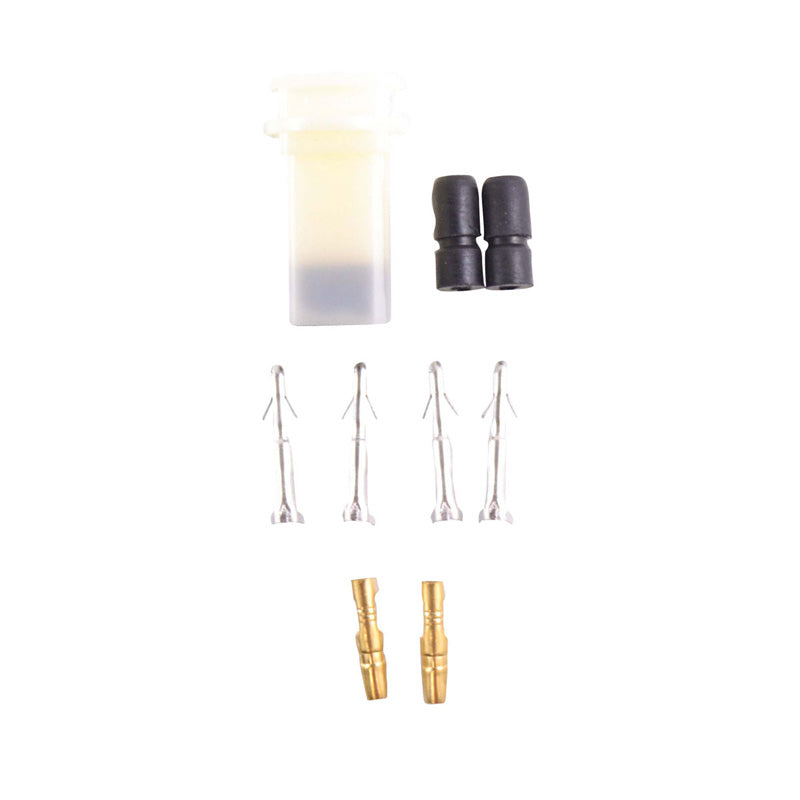

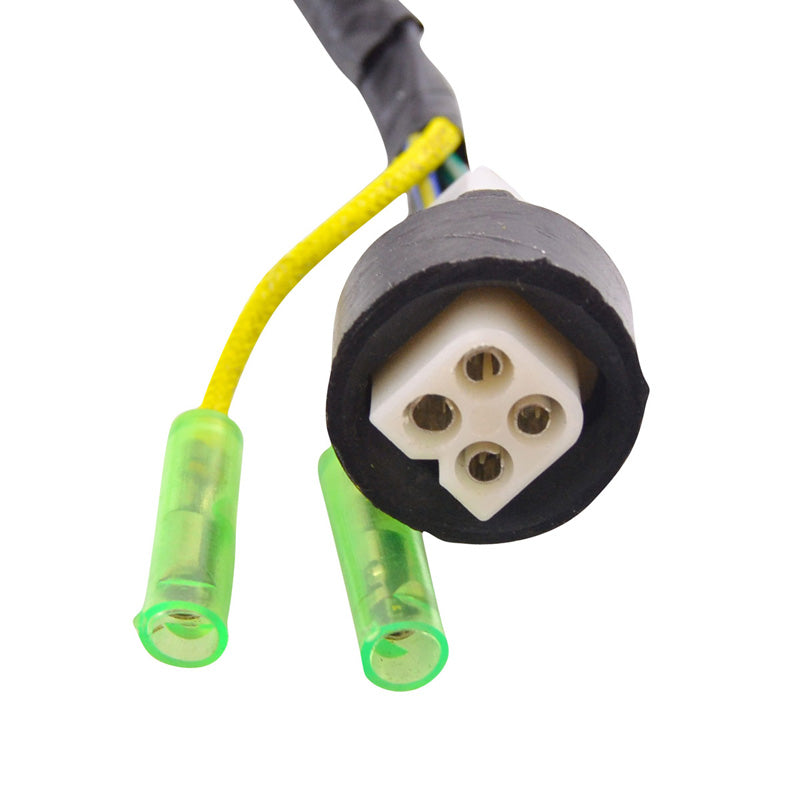

• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 34mm
Exterior diameter : 83mm
Thickness : 14mm
Length of wires stator to grommet : 90mm
Length of wires grommet to plug : 225mm
Length of pickup coil's wire to grommet : 160mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :
Alternator : Yellow to White = 0.4ohms +/-20%
Pickup : Green/White to Blue/Yellow = 275ohms +/-20%
Source : Black to Brown = 475ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
