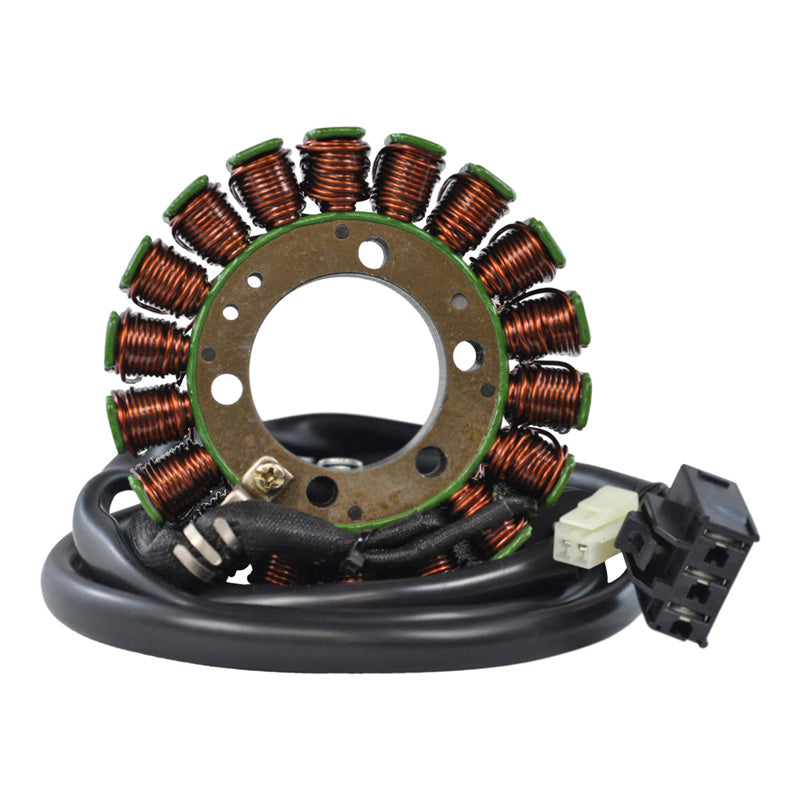

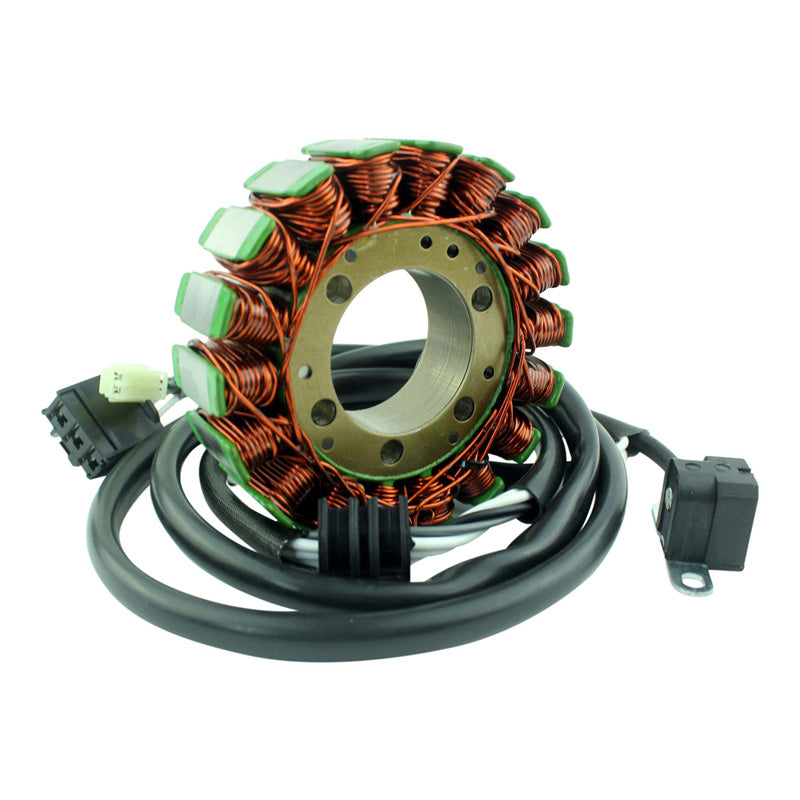

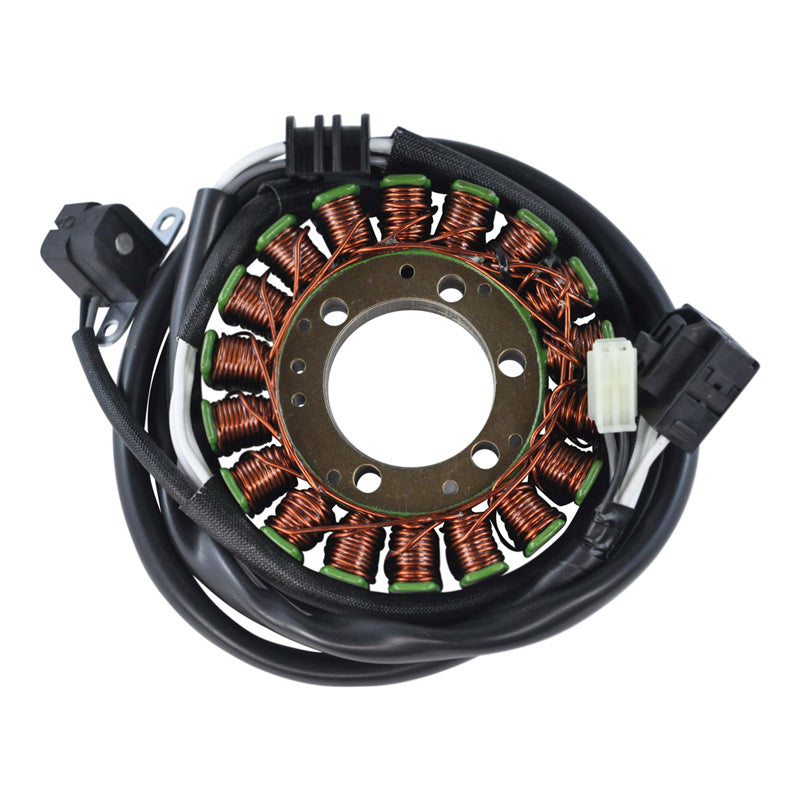

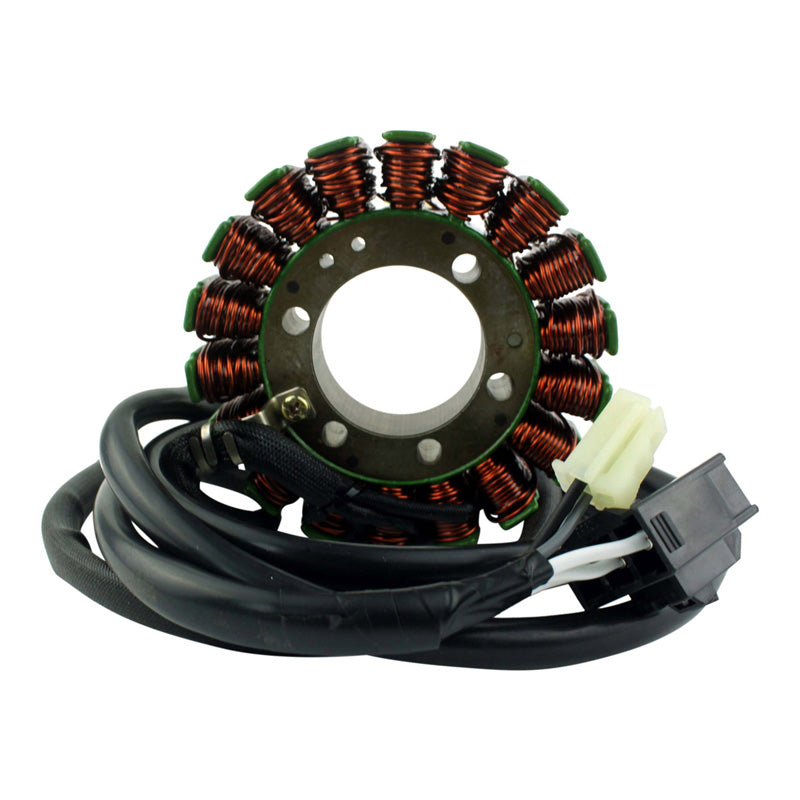

RMS STATOR YAM TMAX 500 01-11 RM01275

Brand new generator stator.

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest-grade lamination materials.
• Highest-grade copper windings, resistant to 200 degrees Celsius.
• Pick-up pulsar coil included.

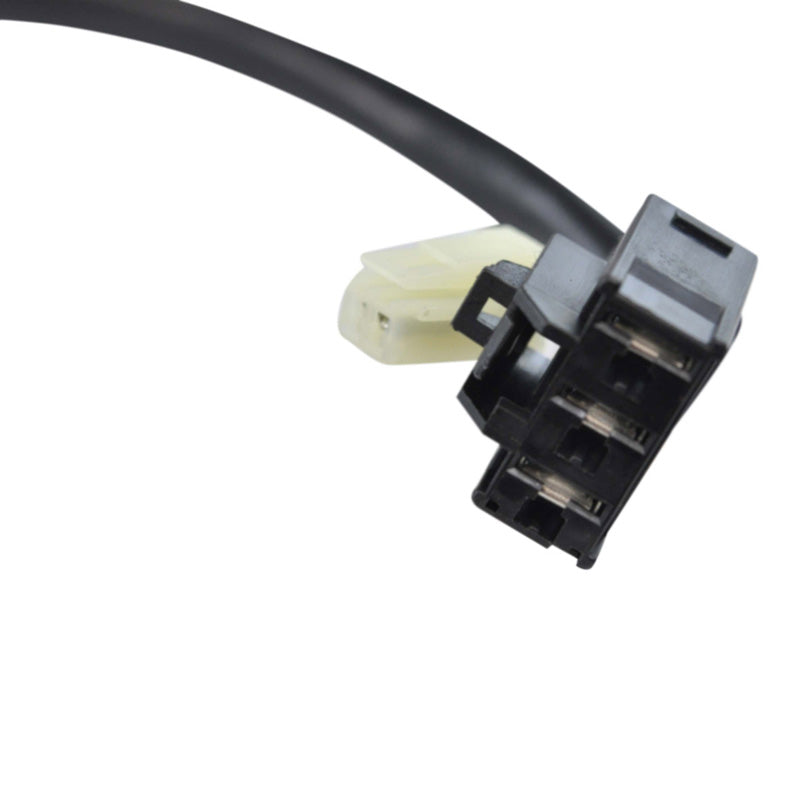

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 43 mm
Exterior diameter: 105 mm
Thickness: 22 mm
Length of wires stator to grommet: 360 mm
Length of wires grommet to plug: 1060 mm
Length of wires pick-up coil to grommet: 280 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5

Wire to wire resistance:
Alternator: = 0.4 ohms +/-20%
Pick-up: = 563 ohms =+/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
