RMS STATOR YAM TT 250 TTR 250 99-06 RM01560

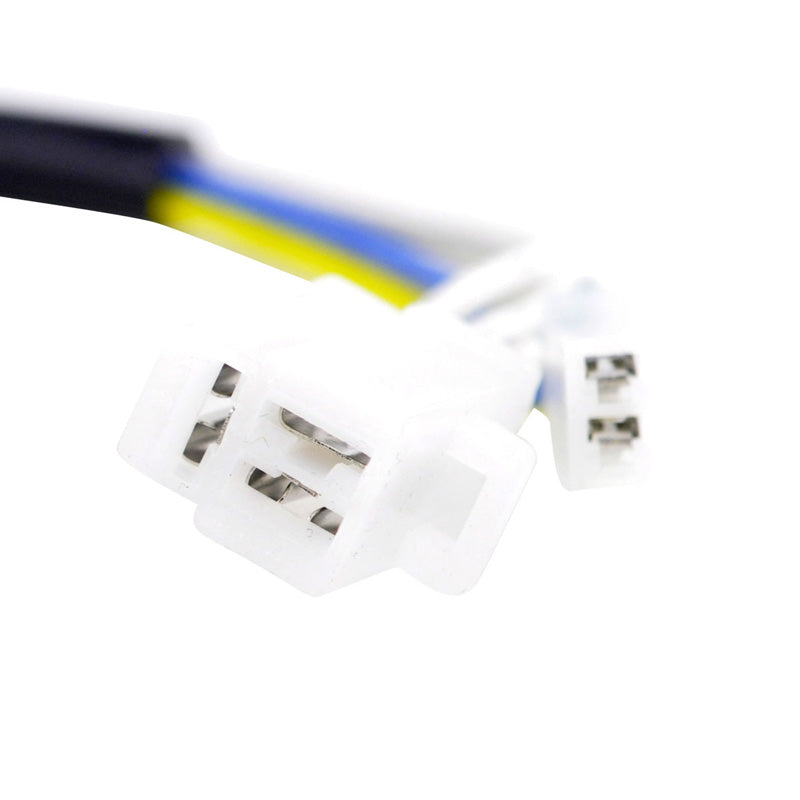

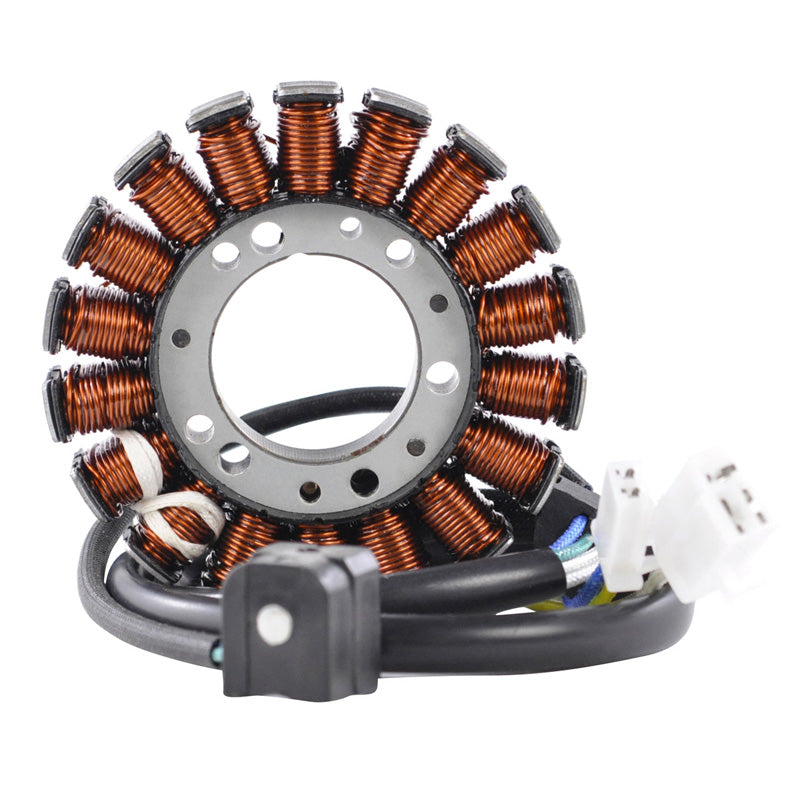

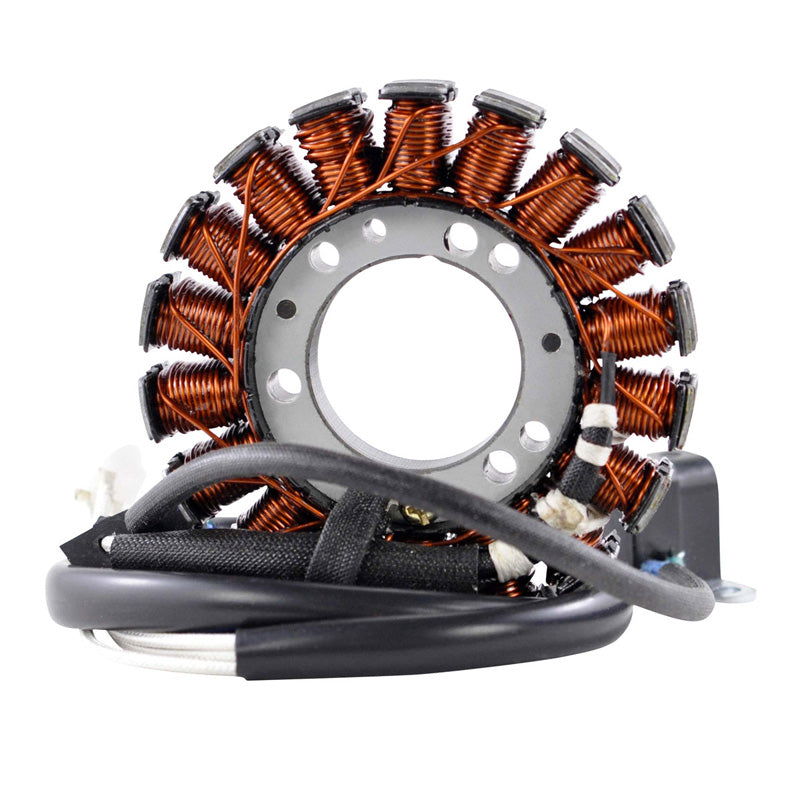

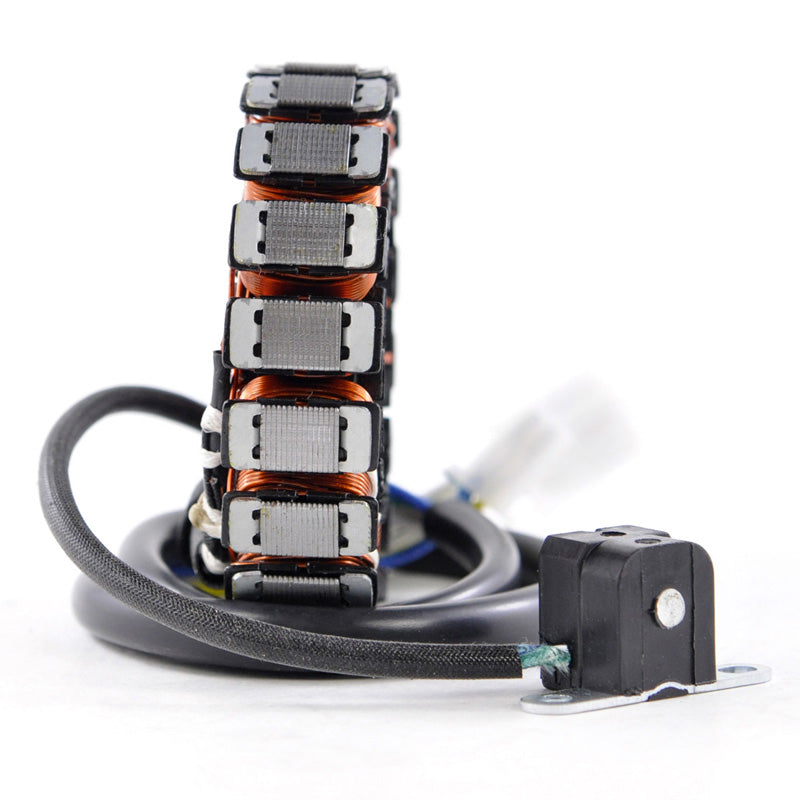

RMS STATOR YAM TT 250 TTR 250 99-06 RM01560 Brand new aftermarket stator Direct replacement to your original unit Plug-and-play, direct fit, easy installation Highest grade lamination materials Highest grade copper windings, resistant to 200 degrees Celsius. Pick up pulsar coil included Connector included Rubber grommet included All products shipped are tested We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues. All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions : Interior diameter : 35 mm Exterior diameter : 93 mm Thickness : 14 mm Length of wires stator to grommet : 70 mm Length of wires grommet to plug : 470 mm Length of pickup coil's wire to grommet : 190 mm Other specifications : Number of wires : 5 Number of plugs : 2 Number of pins : 5 Wire to wire resistance : Alternator : White To White = 1.3 ohms +-20% Pickup : Blue To Yellow = 214 ohms +-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
