RMS STATOR YAM TTR 110 08 09 2011-22 RMS010-107173
RMS STATOR YAM TTR 110 08 09 2011-22 RMS010-107173
Couldn't load pickup availability

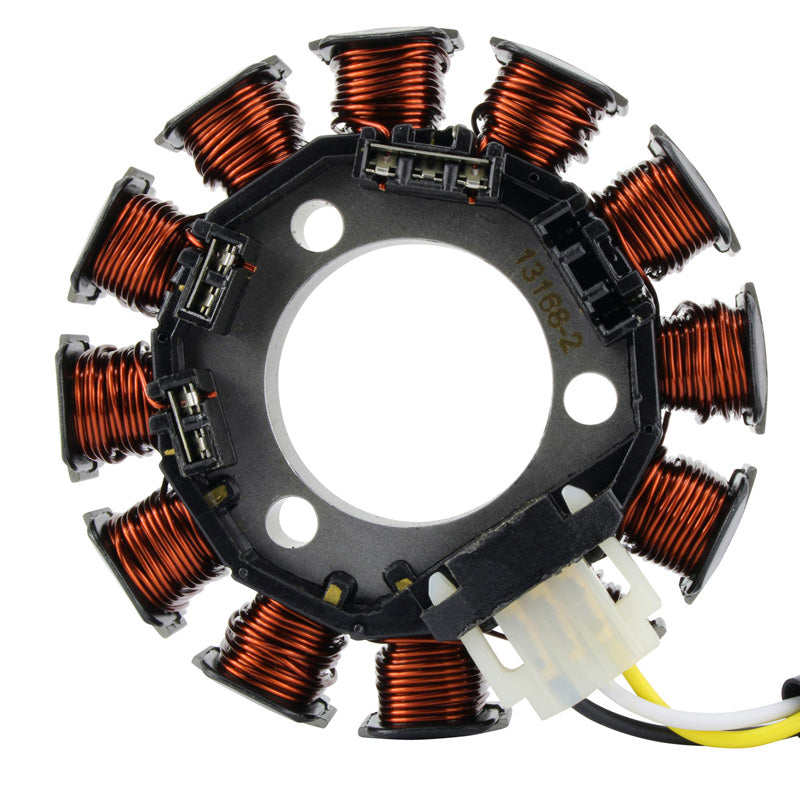

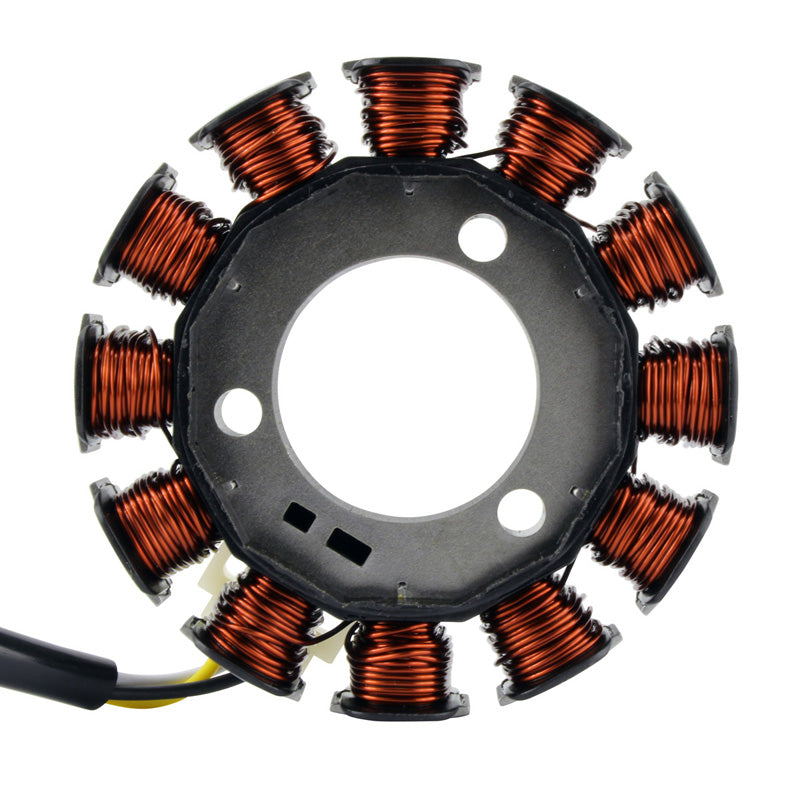

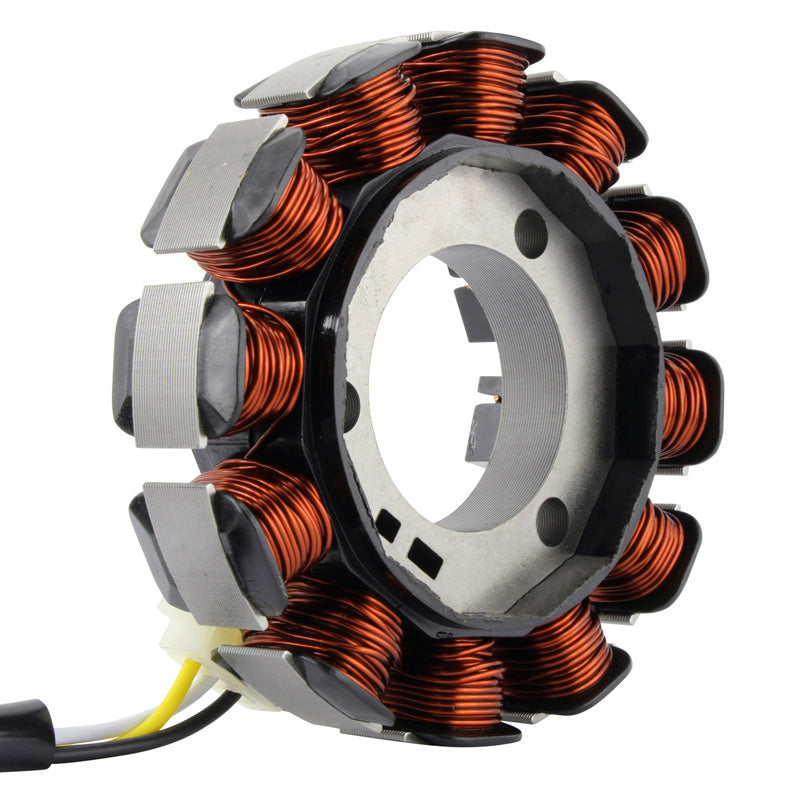

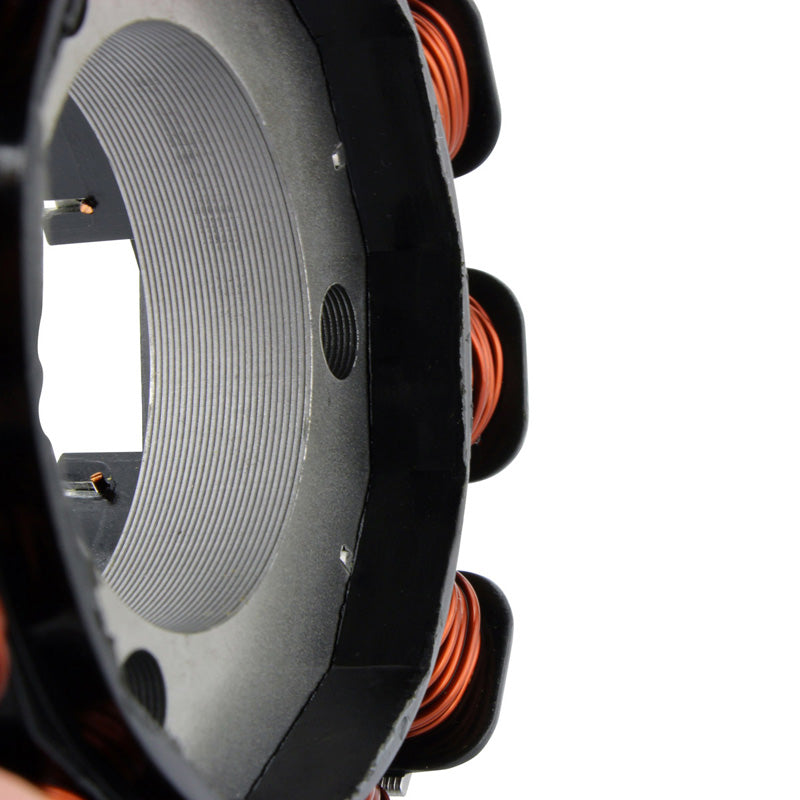

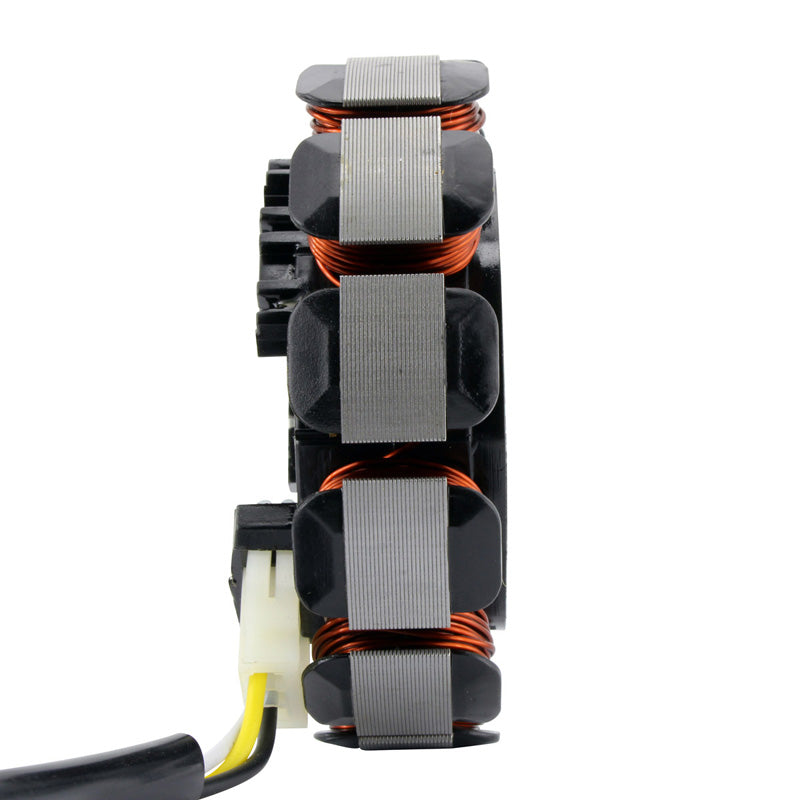

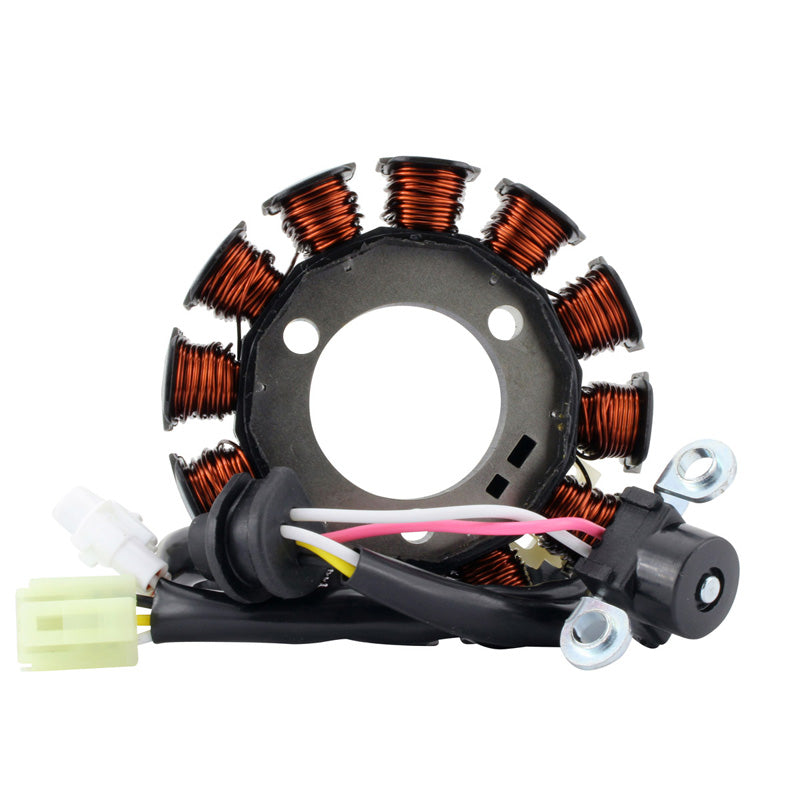

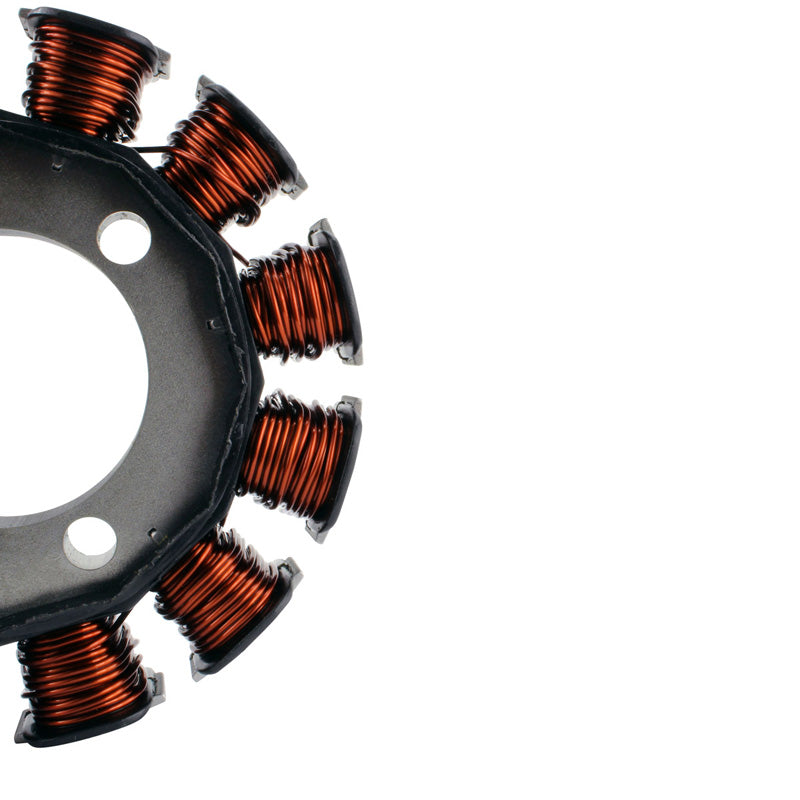

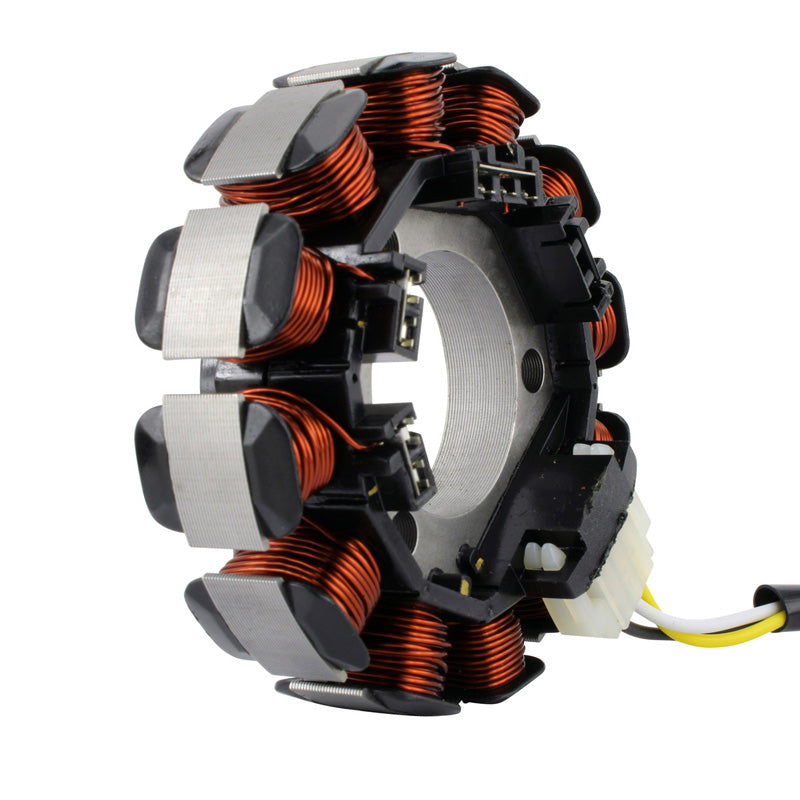

Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

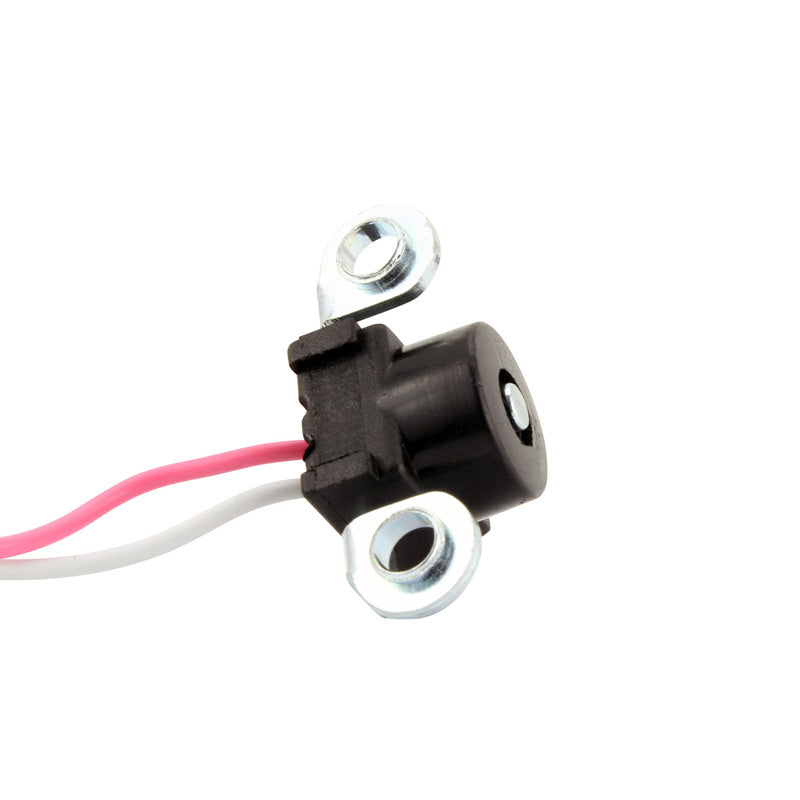

- Pick up pulsar coil included

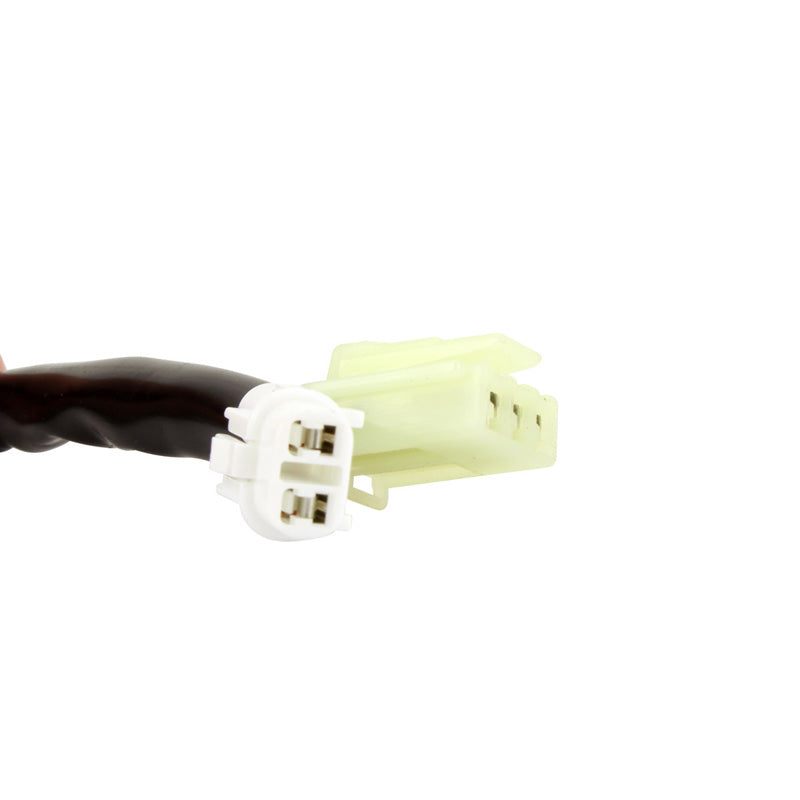

- Connectors included

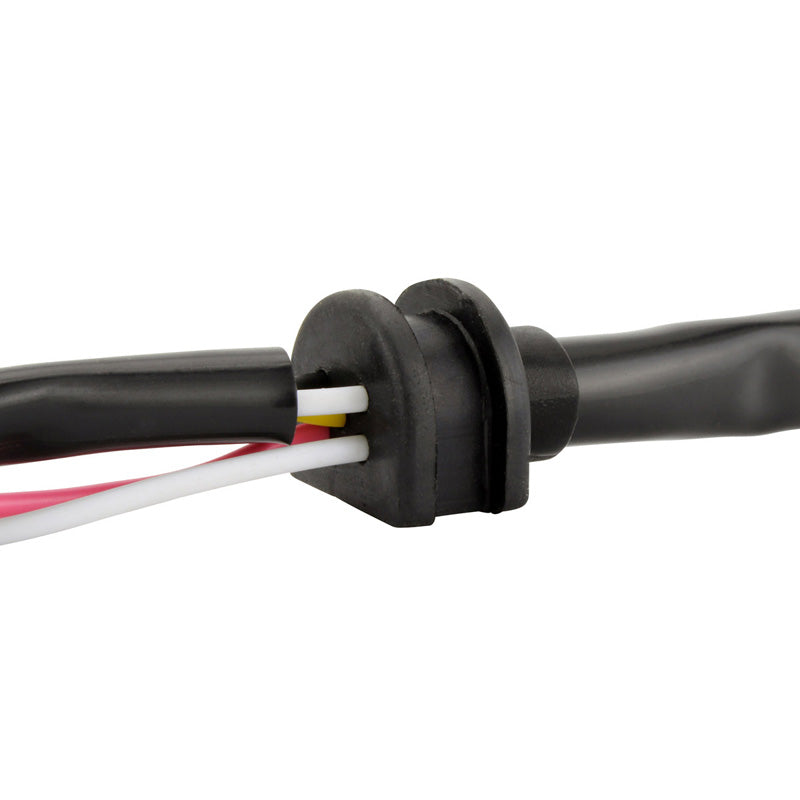

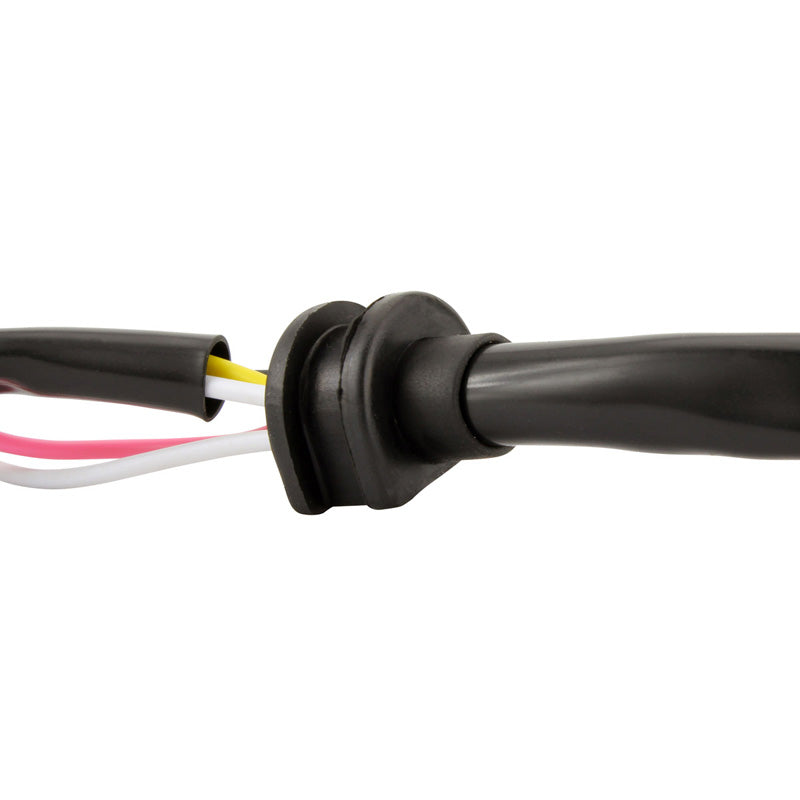

- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
Interior diameter: 37 mm
Exterior diameter: 92 mm
Thickness: 12 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 280 mm
Length of pickup coil's wire to grommet: 55 mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 12
Wire to wire resistance:
All 1p winding: Black to White = 0.9 ohms +-20%
Alternator #1: Yellow to Black = 0.6 ohms +-20%
Alternator #2: Yellow to White = 0.8 ohms +-20%
Pickup: Pink to White = 280 ohms +-20%
Warning:
Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
